Introduction
The Pawfly Portable USB Air Pump is designed to provide essential oxygenation for live bait, fish tanks, and during fish transportation. This compact and efficient aerator ensures a healthy environment for aquatic life, whether for outdoor fishing or maintaining small aquariums. It features a quiet operation and is powered conveniently via USB.
Image: The main pump unit, highlighting its specifications: 15 GPH efficient pump, 35 dB noise level, 1W power, and 0.01 MPa pressure.
Image: Demonstrates the versatility of the aerator, suitable for live wells, nano fish tanks, and emergency oxygen supply.
What's in the Box
Your Pawfly Live Bait Aerator package includes all necessary components for immediate setup and operation:
- Air Pump Unit
- 6.5-foot Air Tubing
- Air Stone
- Control Valve
- Check Valve
- Pump Bracket
Image: A visual representation of all included accessories: 6.5 ft. tubing, pump bracket, check valve, air stone, and control valve.
Setup Instructions
- Attach Air Tubing: Connect one end of the 6.5-foot air tubing to the air outlet nozzle on the pump unit.
- Install Check Valve: Cut a small section of the air tubing and insert the check valve. Ensure the check valve is oriented correctly to prevent water backflow into the pump (usually indicated by an arrow on the valve pointing towards the air stone).
- Connect Air Stone: Attach the other end of the air tubing (after the check valve) to the air stone.
- Position Air Stone: Place the air stone at the bottom of your fish tank, bucket, or live well.
- Install Pump Bracket: Pass the lower column of the bracket through the pump hook. Clip the bracket onto the wall of your fish tank or container and rotate the knob to fasten the pump securely.
- Connect Control Valve (Optional): If air flow adjustment is desired, insert the control valve into the air tubing before the air stone.

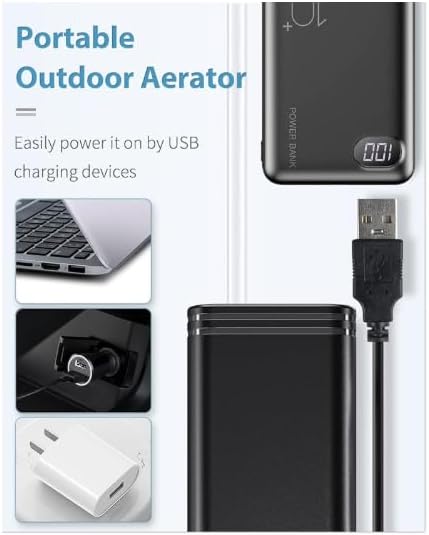

Image: Demonstrates the portability of the aerator, showing it can be powered by USB devices such as a power bank, laptop, or car charger.
Operating Instructions
- Power On: Connect the USB cable of the aerator to any compatible USB power source. This can include a power bank, car charger, laptop port, or a USB wall adapter. The pump will begin operating immediately upon connection.
- Adjust Air Flow: If you have installed the control valve, rotate it to increase or decrease the air flow to your desired level.
- Placement: For optimal aeration, ensure the air stone is submerged and positioned to create a good circulation of bubbles throughout the water.
- Usage Environment: This aerator is suitable for 3-20 gallon nano fish tanks, buckets, coolers, and portable live wells. It is designed for both indoor and outdoor use, providing a reliable oxygen source for fish and live bait.
Image: The aerator in an outdoor setting, connected to a live well bucket, illustrating its use for fishing and bait transportation.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your Pawfly aerator.
- Air Stone Cleaning: Over time, air stones can become clogged with algae or mineral deposits, reducing air flow. Clean the air stone periodically by gently scrubbing it with a brush under running water. Replace the air stone if it becomes severely clogged or damaged.
- Tubing Inspection: Check the air tubing regularly for kinks, cracks, or blockages. Replace any damaged tubing to maintain optimal air flow.
- Pump Unit Cleaning: Wipe the exterior of the pump unit with a damp cloth to remove dust or debris. Ensure no water enters the pump's internal components.
- Check Valve Function: Periodically verify that the check valve is functioning correctly to prevent water from siphoning back into the pump.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No Air Flow / Weak Air Flow |
|
|
| Pump is Noisy |
|
|
| Water Backflow into Pump |
|
|
Specifications
- Brand: Pawfly
- Model: B0FSCP6P1G
- Color: Black
- Material: Plastic
- Hose Length: 6.5 Feet
- Max Air Flow: 15 GPH (Gallons Per Hour)
- Noise Level: Below 35 dB
- Power: 1 W
- Pressure: 0.01 MPa
- Recommended Tank Size: 3-20 Gallons
Warranty Information
The Pawfly Live Bait Aerator comes with a 1 Year Warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Pawfly customer support. You can often find contact information on the product packaging or by visiting the official Pawfly store page on Amazon:
