Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the glass bowl is properly seated before operation.
- This appliance is for household use only.
Product Overview
The Vexon 4.5L Air Fryer is designed for healthy cooking with 360° circulating hot air technology. It features a transparent glass bowl for monitoring food and a digital touchscreen for easy operation.
Components
- Main Unit with Digital Touchscreen
- Transparent Glass Bowl (6mm thick)
- Removable Stainless Steel Tray
- Handle for Glass Bowl
- Power Cord

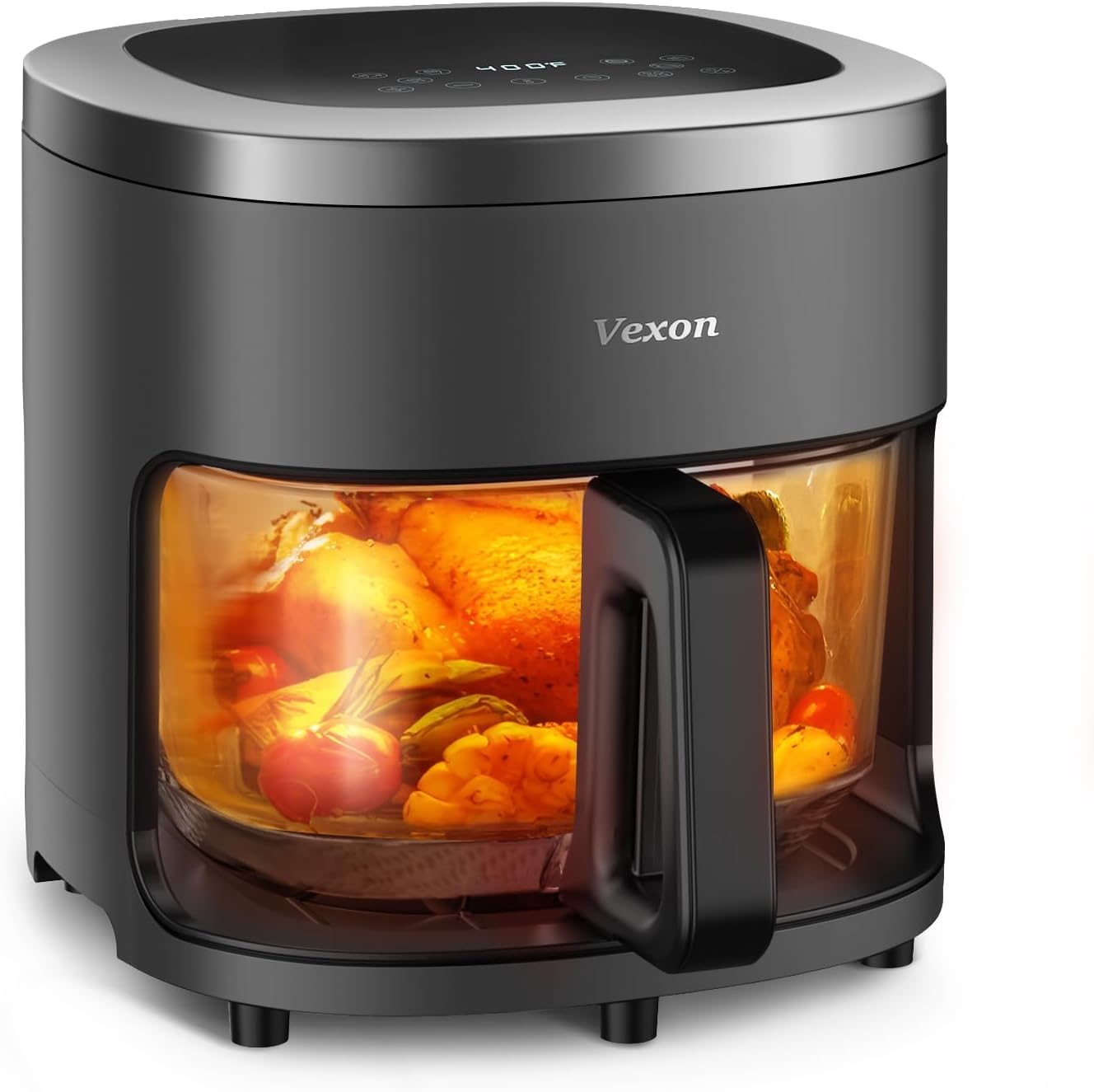

Image: The Vexon 4.5L Air Fryer, showcasing its compact design and transparent glass cooking bowl.
Key Features
- 6-in-1 Functionality: Air Fry, Bake, Roast, Dehydrate, and more.
- 360° Visible Glass Bowl: Allows monitoring of cooking progress without opening the unit.
- Intelligent Temperature Control: Maintains precise temperatures up to 400°F for even cooking.
- Easy to Clean: Removable, dishwasher-safe stainless steel tray and glass bowl. BPA and PFOA free.
- 4.5 Quart Capacity: Suitable for 2-4 people, accommodating items like 13 chicken wings, 2 lbs of French fries, or 3 steaks.
- 360° Circulating Hot Air Technology: Reduces oil usage for healthier cooking.
Image: An illustration highlighting the 6-in-1 functionality (Steak, Chicken Wings, Seafood, Bake, French fries, Chicken) and the 360-degree visible glass bowl of the Vexon Air Fryer.
Image: The Vexon Air Fryer in operation, showing the internal heating element and the circulation of hot air around food in the glass bowl, emphasizing the 360-degree hot air technology.
Setup
- Unpack: Carefully remove all packaging materials and any promotional labels from the air fryer.
- Clean: Before first use, wash the glass bowl and stainless steel tray with warm soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp cloth.
- Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is adequate space (at least 6 inches) around the appliance for proper ventilation.
- Assemble: Insert the stainless steel tray into the glass bowl, then slide the glass bowl assembly into the main unit until it clicks securely into place.
- Power Connection: Plug the power cord into a grounded electrical outlet.
Operating Instructions
Digital Touchscreen Controls
Image: A close-up of the Vexon Air Fryer's digital touchscreen, showing icons for various food presets (fish, fries, steak, chicken, etc.), temperature and time adjustment buttons, and the power button.
- On/Off Button: Tap to power on or off the appliance.
- Function Menu: Tap to select from preset cooking functions (e.g., Steak, Chicken Wings, Seafood, Bake, French Fries, Chicken).
- Temperature Adjustment: Use "+" and "-" buttons to increase or decrease temperature (up to 400°F).
- Time Adjustment: Use "+" and "-" buttons to increase or decrease cooking time.
- Display: Shows current temperature and remaining cooking time.
General Operation
- Prepare Food: Place your ingredients on the stainless steel tray inside the glass bowl. Do not overfill.
- Insert Bowl: Ensure the glass bowl with the tray is securely inserted into the main unit.
- Power On: Plug in the air fryer and press the On/Off button.
- Select Function: Choose a preset cooking function by tapping the corresponding icon, or manually set the desired temperature and time using the adjustment buttons.
- Start Cooking: The air fryer will begin heating. The transparent glass bowl allows you to monitor the cooking process.
- Shake/Flip (Optional): For even cooking, especially with items like fries or chicken wings, you may pause the cooking cycle to shake or flip the food. Carefully remove the glass bowl using the handle, shake/flip, and reinsert. The cooking will resume automatically.
- Completion: The air fryer will beep when the cooking cycle is complete. Carefully remove the glass bowl and transfer the cooked food.
Cooking Tips
- For crispier results, lightly brush or spray food with oil.
- Preheating the air fryer for 3-5 minutes can improve cooking results.
- Adjust cooking times and temperatures based on food quantity and desired crispness.
- Refer to a reliable air fryer recipe guide for specific food types.
Cleaning and Maintenance
Regular cleaning ensures optimal performance and extends the life of your Vexon Air Fryer.

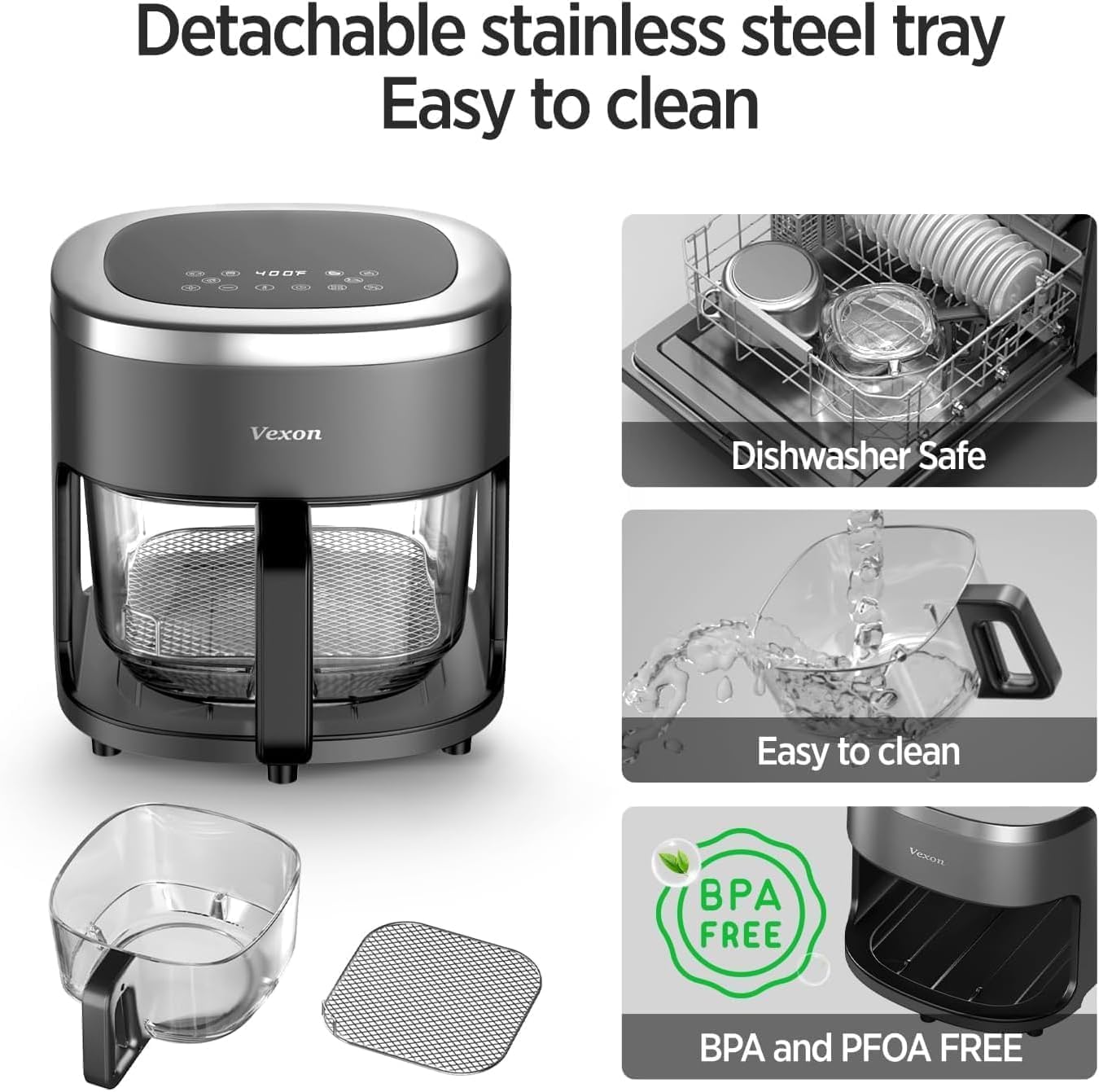

Image: The Vexon Air Fryer with its detachable glass bowl and stainless steel tray, demonstrating how easily they can be removed for cleaning. Insets show the tray in a dishwasher and the glass bowl being rinsed under water, along with a "BPA and PFOA FREE" label.
- Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
- Clean Glass Bowl and Tray: The glass bowl and stainless steel tray are dishwasher safe. Alternatively, wash them with warm soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely.
- Clean Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Heating Element: If necessary, gently clean the heating element with a soft brush to remove any food residue. Ensure the appliance is completely cool and unplugged.
- Storage: Store the cleaned and dried air fryer in a cool, dry place.
Note: The glass bowl and tray are made from BPA and PFOA free materials.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Not plugged in; power outlet malfunction; glass bowl not properly inserted. | Ensure the power cord is securely plugged into a working outlet. Check if the glass bowl is fully inserted and locked into place. |
| Food is not cooked evenly. | Overcrowding the basket; insufficient shaking/flipping; incorrect temperature/time. | Do not overcrowd the basket; cook in smaller batches if necessary. Shake or flip food halfway through cooking. Adjust temperature and time as needed. |
| Food is not crispy. | Too much moisture; not enough oil (for certain foods); temperature too low. | Pat food dry before air frying. Lightly brush or spray with oil. Increase temperature slightly or extend cooking time. |
| White smoke coming from the appliance. | Grease residue from previous use; high-fat food cooking. | Clean the glass bowl and tray thoroughly after each use. For high-fat foods, drain excess fat during cooking. |
Specifications
| Model Name | KQZG-1 |
| Brand | Vexon |
| Capacity | 4.5 Quarts |
| Product Dimensions (D x W x H) | 13.4" x 10.2" x 10.2" |
| Item Weight | 11 pounds |
| Output Wattage | 1050 Watts |
| Voltage | 120 Volts |
| Max Temperature Setting | 400 Degrees Fahrenheit |
| Control Method | Touch |
| Material | Glass |
| Dishwasher Safe Parts | Yes (Glass Bowl, Stainless Steel Tray) |
| Air Frying Technology | 360° circulating hot air technology |
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or contact Vexon customer service directly. Keep your purchase receipt as proof of purchase.
For further assistance, visit the official Vexon website or contact their support team.
