1. Introduction
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Armani Exchange AX4198 Black Watch. Please read this manual thoroughly to ensure proper use and care of your timepiece.

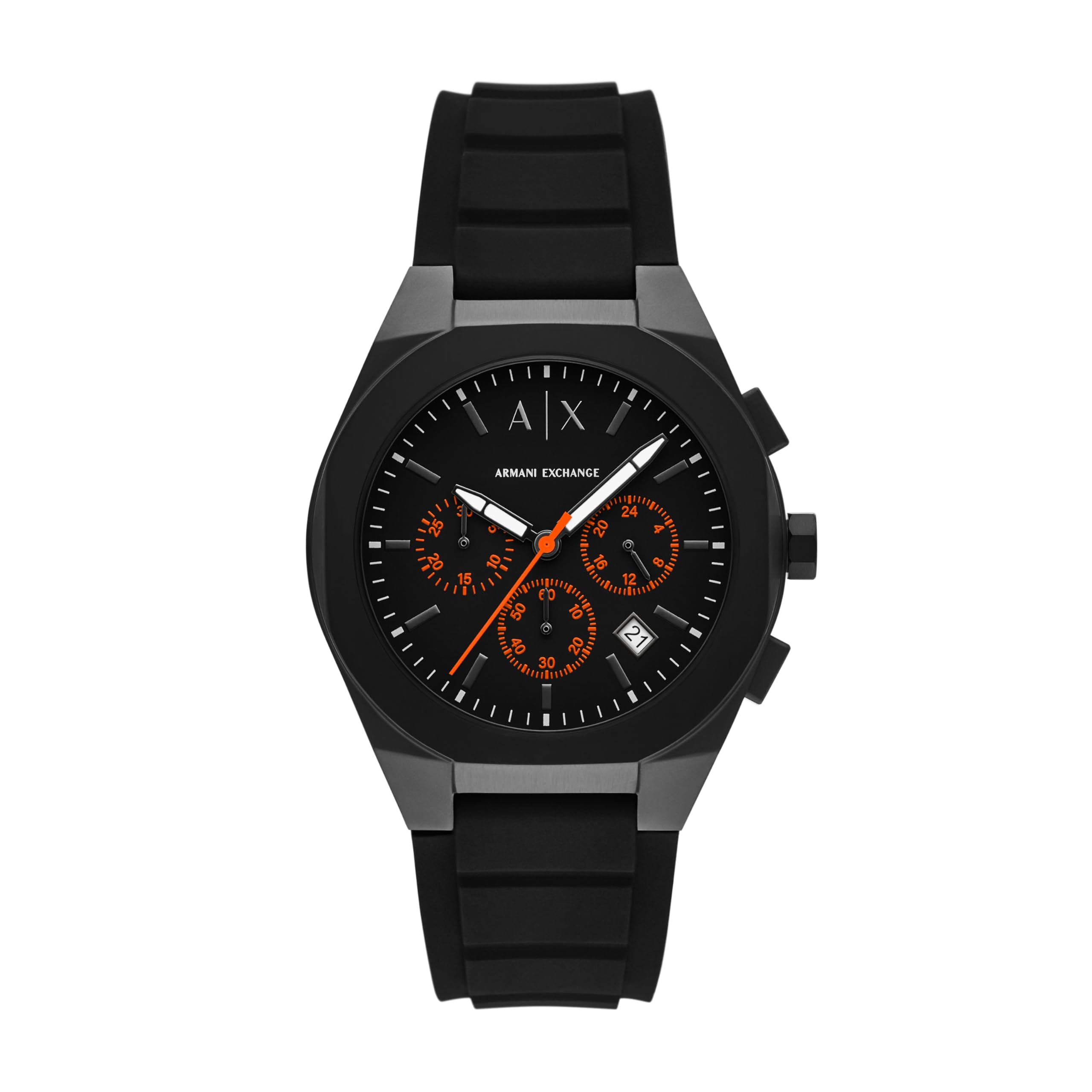

Image 1.1: Angled view of the Armani Exchange AX4198 Black Watch, showcasing the black dial, chronograph subdials, and silicone strap.
2. Product Overview
The Armani Exchange AX4198 is a men's quartz chronograph watch featuring a black stainless steel case, a black dial with contrasting accents, and a comfortable black silicone strap. It is designed for everyday wear with a water resistance of 50 meters.
Image 2.1: The Armani Exchange AX4198 watch displayed alongside the brand logo.
3. Setup and Initial Use
3.1 Unpacking
Carefully remove the watch from its packaging. Inspect for any visible damage. The watch comes with a protective film on the crystal and/or case back, which should be removed before use.
Image 3.1: The Armani Exchange watch presented in its sleek black gift box.
3.2 Setting the Time
- Pull the crown (center knob on the right side of the watch) out to position 2.
- Turn the crown clockwise or counter-clockwise to set the hour and minute hands to the desired time.
- Push the crown back into position 1 (normal operating position) to start the watch.
3.3 Adjusting the Strap
The silicone strap features a buckle closure. Adjust the strap length by inserting the pin into the desired hole for a comfortable and secure fit on your wrist.
Image 3.2: Rear view of the watch, showing the silicone strap and buckle closure.
4. Operating Instructions
4.1 Chronograph Function
Your AX4198 watch is equipped with a chronograph (stopwatch) function:
- Start/Stop: Press the top pusher (button above the crown) to start the chronograph. Press it again to stop.
- Reset: While the chronograph is stopped, press the bottom pusher (button below the crown) to reset all chronograph hands to zero.
4.2 Water Resistance
This watch is water resistant up to 50 meters (5 ATM). This means it is suitable for short periods of recreational swimming, but not for diving or snorkeling. Avoid operating the crown or pushers when the watch is wet or submerged to prevent water intrusion.
5. Maintenance and Care
5.1 Cleaning
To maintain the appearance of your watch, wipe the case and strap regularly with a soft, dry cloth. For the silicone strap, a damp cloth with mild soap can be used, followed by thorough drying.
5.2 Battery Replacement
The watch is powered by a standard watch battery. When the watch stops running or the hands move erratically, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.
5.3 Storage
When not in use, store your watch in a cool, dry place, away from direct sunlight and extreme temperatures. The original watch box is ideal for storage.
6. Troubleshooting
- Watch not running: Check if the crown is fully pushed in. If the watch still does not run, the battery may need replacement.
- Time is incorrect: Reset the time as described in Section 3.2. If the time consistently loses or gains significantly, the movement may require servicing.
- Chronograph hands do not reset to zero: Perform a chronograph reset. If the issue persists, consult a service center.
For issues not listed here, please contact customer support.
7. Specifications
| Model Number | AX4198 |
| Movement Type | Quartz Chronograph |
| Case Material | Stainless Steel |
| Case Diameter | 42 Millimetres |
| Case Thickness | 11 Millimetres |
| Strap Material | Silicone |
| Band Width | 16 Millimetres |
| Water Resistance Depth | 50 Metres (5 ATM) |
| Display Type | Analog |
| Crystal Material | Glass |
| Closure Type | Buckle (Single Prong Strap Buckle) |
| Item Weight | 87.3 Grams |
Image 7.1: Key specifications of the Armani Exchange AX4198 watch.
8. Warranty Information
Your Armani Exchange AX4198 watch comes with a 2-year limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from accidents, improper handling, unauthorized repairs, or normal wear and tear.
Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Armani Exchange warranty documentation provided with your watch or visit the official brand website.
9. Support
For technical assistance, service, or warranty claims, please contact the retailer where the watch was purchased or the authorized service center for Armani Exchange watches.
Manufacturer: Fossil India Pvt Ltd
Importer: Fossil India Pvt. Ltd., Khasra No: 2058/1754/18 & 2059/1754/18, Waka Mouza Bhatoli kalan, Baddi 173205 India
When contacting support, please have your watch model number (AX4198) and proof of purchase readily available.
