Patiowell 4x8 FT Outdoor Storage Shed Instruction Manual

1. Introduction

Thank you for choosing the Patiowell 4x8 FT Outdoor Storage Shed. This resin shed is designed to provide a durable and organized storage solution for your garden, backyard, patio, or lawn equipment. Its generous interior offers ample room for tools, bicycles, and other items, while two side windows ensure natural light and ventilation. The dark gray finish is designed for low maintenance. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation.

2. Safety Information

Local Regulations: Before beginning assembly, check your local Homeowners Association (HOA) policies and any other relevant local regulations to ensure that the shed can be built in your desired location.
Package Delivery: The shed will be divided into two packages, which may arrive at different times. Ensure both packages are present and accounted for before starting assembly to avoid potential hazards or delays.
Assembly Safety: Always wear appropriate safety gear, such as gloves, during assembly. Follow all instructions carefully.
Stable Surface: Assemble the shed on a flat, level, and stable surface to ensure structural integrity and prevent tipping.
Weight Capacity: Do not exceed the maximum roof weight capacity of 550 lbs.
Ventilation: Ensure proper ventilation inside the shed, especially if storing items that may emit fumes.

3. Package Contents

Your Patiowell 4x8 FT Outdoor Storage Shed comes in two clearly marked boxes. Please verify all components are present before starting assembly. The packages include:

All necessary panels for walls, roof, and floor.
Hardware kit (screws, bolts, etc.).
Gloves for assembly.
Instruction manual.

If any parts are missing or damaged, please contact customer support immediately.

4. Setup and Assembly

The Patiowell 4x8 FT Outdoor Storage Shed features an innovative one-piece panel plug-in design, which simplifies the assembly process. This design uses 20% fewer screws and can save up to 30% on installation time, allowing for easy assembly by one person without professional help.

4.1 Preparation

Clear the assembly area of any debris or obstructions.
Ensure the ground is level and firm.
Unpack all components and lay them out according to the parts list in the manual.

4.2 Assembly Steps

Begin by assembling the floor panels on your prepared level surface.
Attach the wall panels using the plug-in structure. Ensure each panel locks securely into place.
Install the roof structure, followed by the roof panels.
Mount the door and install the lockable handle mechanism.
Secure all connections with the provided hardware.

Refer to the detailed diagrams in the included instructional videos (accessible via QR code on packaging) for visual guidance during each step.

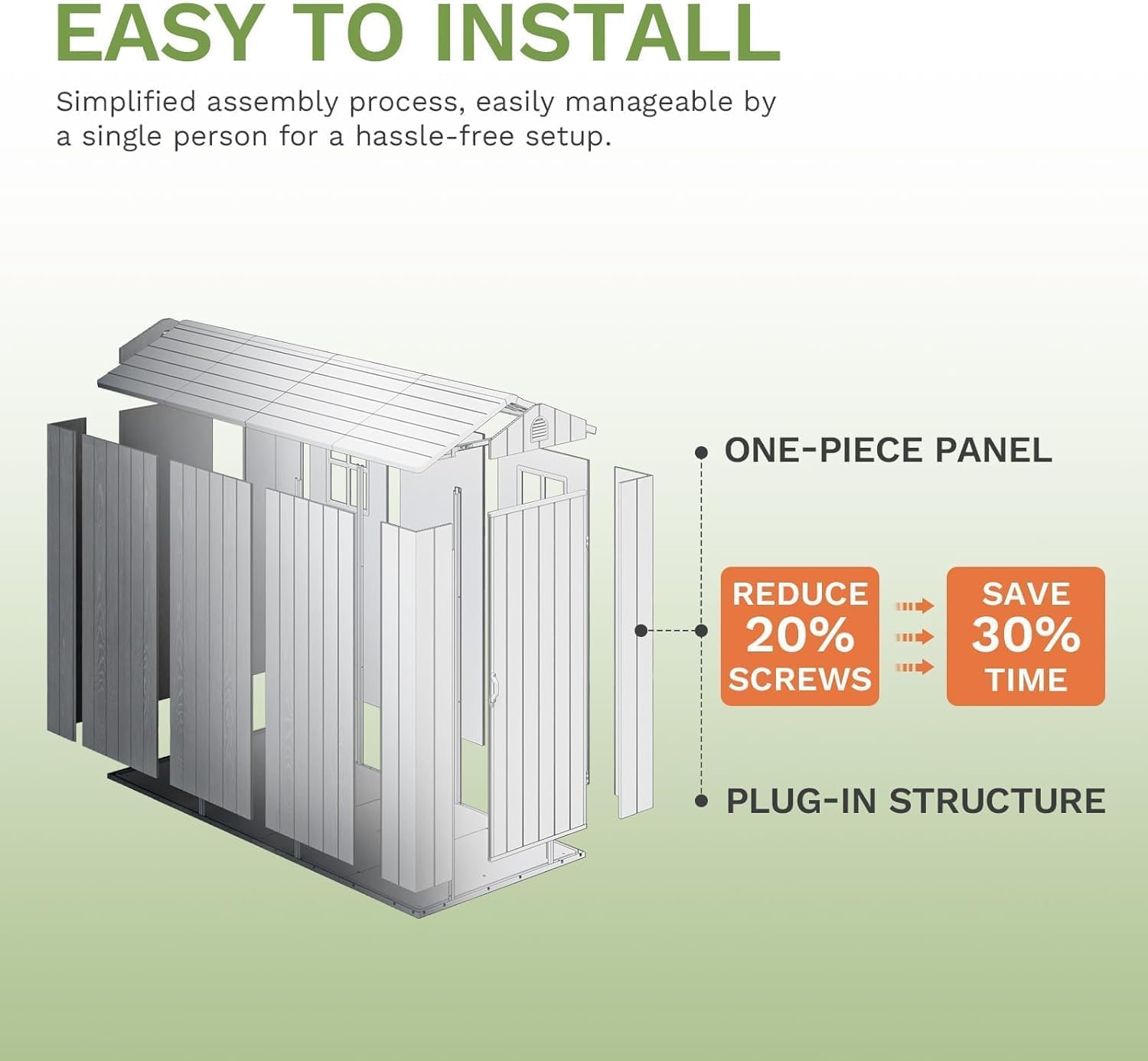

Diagram illustrating the easy assembly process of the Patiowell storage shed with one-piece panels and plug-in structure, highlighting 20% fewer screws and 30% time saving.

Figure 1: Easy Assembly Diagram. The diagram shows the shed's one-piece panel and plug-in structure, emphasizing reduced screw usage and faster installation.

Technical drawing of the Patiowell 4x8 FT Outdoor Storage Shed with detailed dimensions including height, width, depth, door width, and window dimensions.

Figure 2: Shed Dimensions. This image provides a technical drawing of the shed with all key measurements for planning placement.

5. Operating Instructions

Your Patiowell storage shed is designed for efficient and secure outdoor storage.

5.1 Storage Capacity

With its 4x8 foot dimensions, the shed offers a spacious interior for organizing various items such as lawn mowers, bicycles, garden tools, and other outdoor equipment. The efficient layout helps maximize storage space.

Interior view of the Patiowell storage shed showing organized tools, a bicycle, and shelves, demonstrating its spacious and well-organized storage capabilities.

Figure 3: Interior Storage View. This image displays the shed's interior, highlighting its capacity for various tools and equipment.

5.2 Security and Access

The shed is equipped with a lockable door to enhance security and protect your valuables from theft. The door handle is designed for easy operation.

Close-up image showing the wood-look texture of the shed panels, the durable roof structure, the lockable door handle, and the built-in windows.

Figure 4: Key Features. This image details the shed's wood-look texture, durable roof, lockable door, and built-in windows.

5.3 Natural Lighting and Ventilation

Two built-in side windows allow ample natural light into the shed, making it easier to locate items. These windows also contribute to enhanced ventilation, helping to keep stored items fresh and dry.

6. Maintenance

The Patiowell storage shed is constructed from high-quality, UV-resistant plastic, designed for all-weather durability and low maintenance.

6.1 Cleaning

The sleek dark gray finish resists dirt, reducing the frequency of cleaning. For general cleaning, wipe down the exterior with a damp cloth and mild soap. Avoid abrasive cleaners that could damage the surface.

6.2 Weather Protection

The shed's construction and weatherproof peaked roof provide reliable protection against heavy rain, snow, strong winds, and thunderstorms, safeguarding your tools and outdoor gear through all seasons.

Graphic illustrating the all-weather protection features of the Patiowell shed against heavy rain, heavy snow, strong wind, and T-storms.

Figure 5: All-Weather Protection. This graphic highlights the shed's resilience against various weather conditions.

6.3 Material Properties

The shed's wood-like texture offers an aesthetic appeal while being moisture and mildew resistant, contributing to its low maintenance requirements and long-term durability.

7. Troubleshooting

If you encounter any issues during assembly or use, please review the assembly steps carefully. For persistent problems or concerns about missing/damaged parts, refer to the Warranty & Support section for contact information.

Difficulty with Panel Fit: Ensure the ground is perfectly level. Slight unevenness can cause panels to misalign.
Missing Hardware: Double-check all packaging. If still missing, contact customer support.
Door Alignment: Adjust hinges if the door does not close or lock properly. Ensure the shed is square and level.

8. Specifications

Brand	Patiowell
Model Number	436A-DGY-6
Color	Dark Gray
Material	Resin & Plastic
Product Dimensions (D x W x H)	96" x 45.3" x 76.8"
Item Weight	180 Pounds
Door Width	26.2 Inches
Door Height	67.3 Inches
Weight Capacity (Roof)	550 Pounds
Water Resistance Level	Water Resistant
Required Assembly	Yes

9. Warranty and Support

Patiowell is committed to providing quality products and customer satisfaction.

9.1 Returns Policy

This product is eligible for a 30-day easy return policy. Please refer to your purchase documentation for specific terms and conditions.

9.2 Customer Support

For any questions, concerns, or assistance with assembly or parts, Patiowell offers 24/7 customer support. Our team aims to respond to inquiries within 24 hours. Please have your model number (436A-DGY-6) and proof of purchase ready when contacting support.

Contact information can typically be found on the product packaging or the official Patiowell website.

10. Product Overview Images

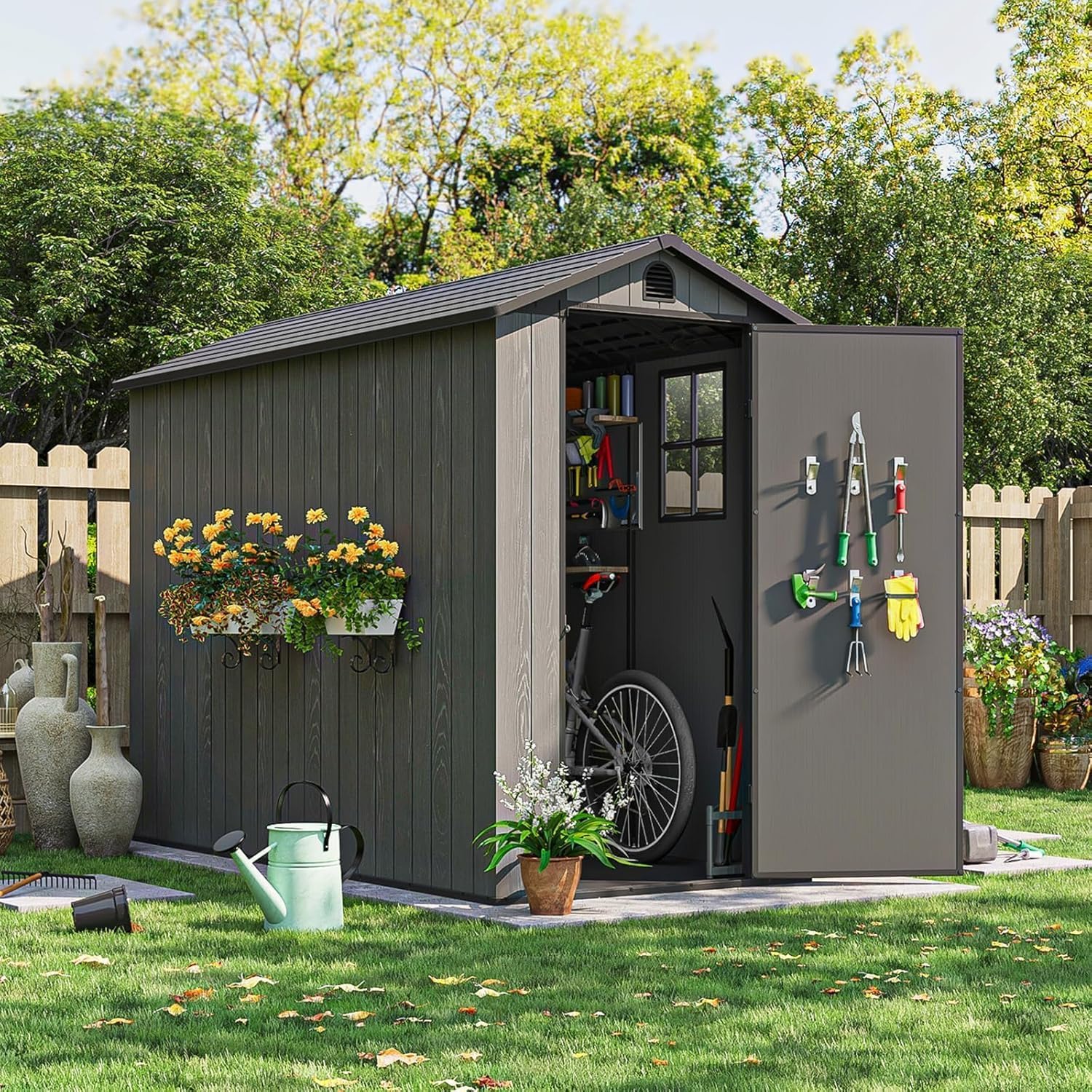

Patiowell 4x8 FT Outdoor Storage Shed with its door open, showcasing the interior storage space for garden tools and a bicycle, set in a lush backyard environment.

Figure 6: Shed in Backyard Setting (Open). This image shows the shed with its door open, revealing the interior and its capacity for various items.

Patiowell 4x8 FT Outdoor Storage Shed with its door closed, positioned neatly in a backyard next to a house, demonstrating its compact and aesthetic presence.

Figure 7: Shed in Backyard Setting (Closed). This image presents the shed with its door closed, showing its exterior appearance in a typical outdoor environment.

Patiowell 436A-DGY-6
