1. Product Overview
The AIRROBO PG100 Plus Dog Grooming Vacuum and Kit is an all-in-one solution designed for efficient and mess-free pet grooming. It features a powerful 12000Pa suction to capture up to 99% of pet hair directly into the dust box, preventing spread and maintaining a clean home environment. The kit includes 8 specialized grooming tools and offers 3 adjustable suction levels for various pet sensitivities and grooming needs.
Figure 1: AIRROBO PG100 Plus Dog Grooming Vacuum in operation, illustrating its powerful suction and adjustable modes.
Figure 2: The 8-in-1 pet grooming vacuum system, showcasing its comprehensive functionality.
2. Package Contents
Before beginning, please ensure all items listed below are present in your package:
- Main Vacuum Unit
- Flexible Hose
- Electric Clipper
- Grooming Brush
- Deshedding Brush
- Pet Paw Trimmer
- Nail Grinder
- Cleaning Brush
- Crevice Cleaning Tool (Cleaning Nozzle)
- 6 Guide Combs (3mm, 6mm, 9mm, 12mm, 18mm, 24mm)
- User Manual

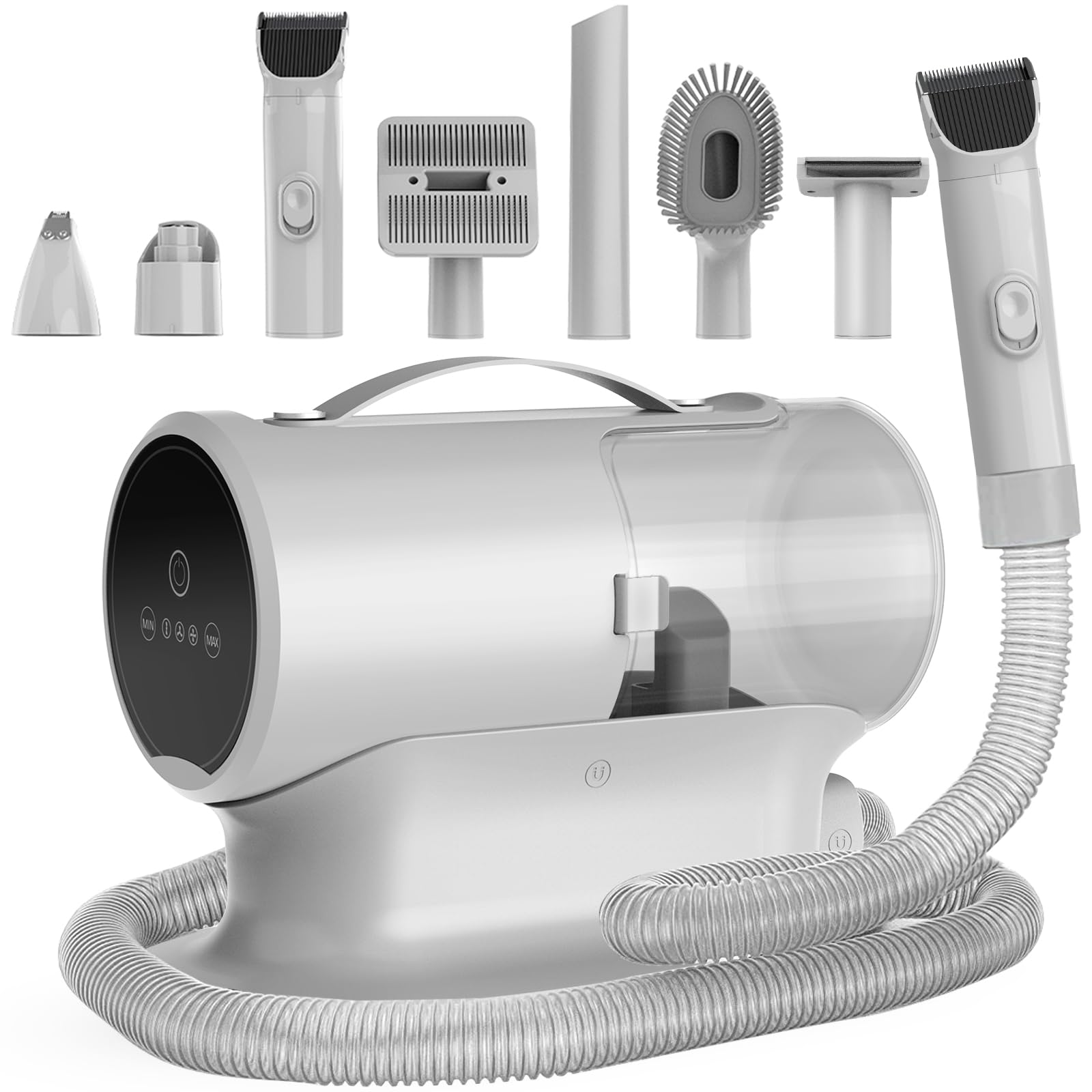

Figure 3: All components of the PG100 Plus kit, including the main unit, hose, and various grooming tools.
3. Setup Instructions
- Connect the Hose: Attach one end of the flexible hose to the suction port on the main vacuum unit. Ensure it clicks securely into place.
- Attach Grooming Tool: Select the desired grooming tool (e.g., grooming brush, electric clipper) and attach it to the other end of the flexible hose. Ensure a firm connection.
- Secure Dust Cup: Verify that the 2L large capacity dust cup is properly installed and securely latched onto the main unit.
- Power Connection: Plug the power cord into a standard 110V electrical outlet. The unit is designed for use in the United States and Canada.
Figure 4: A visual guide demonstrating the four main steps of using the grooming vacuum: Connect, Vacuum, Trim, and Empty.
4. Operating Instructions
4.1 Power On/Off and Suction Control
- Power On: Press the power button (O) on the main unit to turn the device on.
- Adjust Suction: Use the '+' and '-' buttons to select one of the 3 adjustable suction levels:
- Silent Mode (7kPa): Ideal for sensitive pets or initial introduction.
- Standard Mode (9kPa): General grooming tasks.
- Strong Mode (12kPa): For thick coats or heavy shedding.
- Power Off: Press the power button again to turn the device off.
4.2 Using Grooming Tools
Always ensure your pet's fur is completely dry before using any grooming tool with the vacuum function.
- Grooming Brush: Gently brush your pet's coat to remove loose fur and detangle. Press the 'Clean' button on the brush head to retract the bristles and allow the vacuum to suck the collected hair into the dust cup.
- Deshedding Brush: Use this tool to effectively remove undercoat and loose hair, reducing shedding.
- Electric Clipper: Select a guide comb (3mm, 6mm, 9mm, 12mm, 18mm, or 24mm) based on the desired hair length and attach it to the clipper. Turn on the vacuum and gently trim your pet's hair. The vacuum will collect the trimmed hair.
- Pet Paw Trimmer: Carefully trim excess fur from between your pet's paw pads to prevent matting and improve traction.
- Nail Grinder: Gently grind your pet's nails to a smooth finish. Ensure your pet is comfortable with the sound and sensation before prolonged use.
- Cleaning Nozzle (Crevice Tool): Use this attachment to vacuum up stray hairs from floors, furniture, or hard-to-reach areas after grooming.
- Cleaning Brush: For general cleaning of the vacuum unit, tools, and surrounding areas.
Figure 5: An array of the 8-in-1 grooming tools, each designed for specific pet care tasks.
Figure 6: The electric clipper with 6 guide combs, allowing for various hair lengths and styles.
Figure 7: Demonstrating the use of the Pet Paw Trimmer and Nail Grinder for neat and smooth paws.
5. Maintenance
5.1 Emptying the Dust Cup
The large 2L dust cup minimizes the need for frequent emptying. When full, simply pull the quick-release snap on the dust cup to detach it from the main unit. Dispose of the collected pet hair and reattach the cup securely.
Figure 8: The large capacity dust cup, designed for extended grooming sessions without frequent emptying.
5.2 Cleaning Filters
The unit contains a HEPA filter and a sponge filter. Regular cleaning is essential for maintaining optimal suction power and preventing overheating. Refer to the user manual for detailed instructions on how to remove and clean these filters.
5.3 Electric Clippers Maintenance
To ensure longevity and performance of the electric clippers:
- If the clippers have poor contact or the metal pins become oxidized, wipe them with alcohol and clean the clippers.
- Use the included cleaning brush to remove hair buildup.
- Apply the provided lubricant regularly for optimal performance.
6. Troubleshooting
6.1 Pets Afraid of Sounds
Some pets may be sensitive to the vacuum's sound. To help them adjust:
- With the vacuum switched off, let your pet sniff and explore the unit.
- Turn on the vacuum on the first (lowest) setting 3 meters away from your pet to get them used to the noise.
- Start by gently grooming your pet and use positive reinforcement (such as treats and praise) to create a pleasant environment.
6.2 Machine Stops Working
- Overheat Protection Shutdown: The machine may shut down due to overheating. It can be used again after cooling down for half an hour.
- Insufficient Suction Protection Shutdown: This can occur if the filters are clogged. It can be restored to use after cleaning the hair on the sponge/HEPA filter.
6.3 Clipper and Comb Issues
- How to install the guide comb: When installing the guide comb, align the clips on the guide comb with the slots on the clipper. Press inward from the outside until it clicks into place.
- For other clipper issues, refer to section 5.3 for maintenance tips.
6.4 Usage with Wet Fur
WARNING: DO NOT use the PG100 Plus pet grooming vacuum on wet fur or liquids. Always fully dry your pet's hair before grooming and trimming.
Figure 9: Important information regarding operating voltage and the strict warning against using the device on wet fur.
Figure 10: Solutions for common issues such as pet sound sensitivity and machine shutdowns.
Figure 11: Instructions for maintaining electric clippers and properly installing guide combs.
7. Specifications
| Package Dimensions | 17.44 x 13.5 x 7.87 inches; 3.5 Pounds |
| Manufacturer | AIRROBO |
| Model Number | PG100 Plus |
| Color | Light Gray |
| Shape | Oval |
| Bristle Material | Plastic |
| Handle Material | Plastic |
8. Warranty and Support
8.1 Return Policy
This product is eligible for a 30-day refund or replacement policy. Please refer to your purchase documentation for full details.
8.2 Customer Support
For any inquiries or assistance, AIRROBO offers comprehensive support:
- Service Centre: Europe/US Service Centre available.
- Email Support: 24/7 Email Support.
- Hotline Support: +1 8599558668 (9 a.m. to 5 p.m., Monday to Friday).
Figure 12: The compact design of the grooming vacuum, highlighting its portability.
