LANCHEZ Q1000B1 1.6HP Submersible Sump Pump (Auto Variant) User Manual

Product Overview

The LANCHEZ Q1000B1 Submersible Sump Pump is designed for efficient water removal in various applications. It features a powerful 1.6 HP motor, delivering a maximum flow rate of 6000 GPH and a maximum head of 32 feet. The pump includes an automatic float switch for smart operation and thermal overload protection for safety and durability. Its robust construction with reinforced engineering thermoplastic ensures corrosion and abrasion resistance, rated IPX8 waterproof.

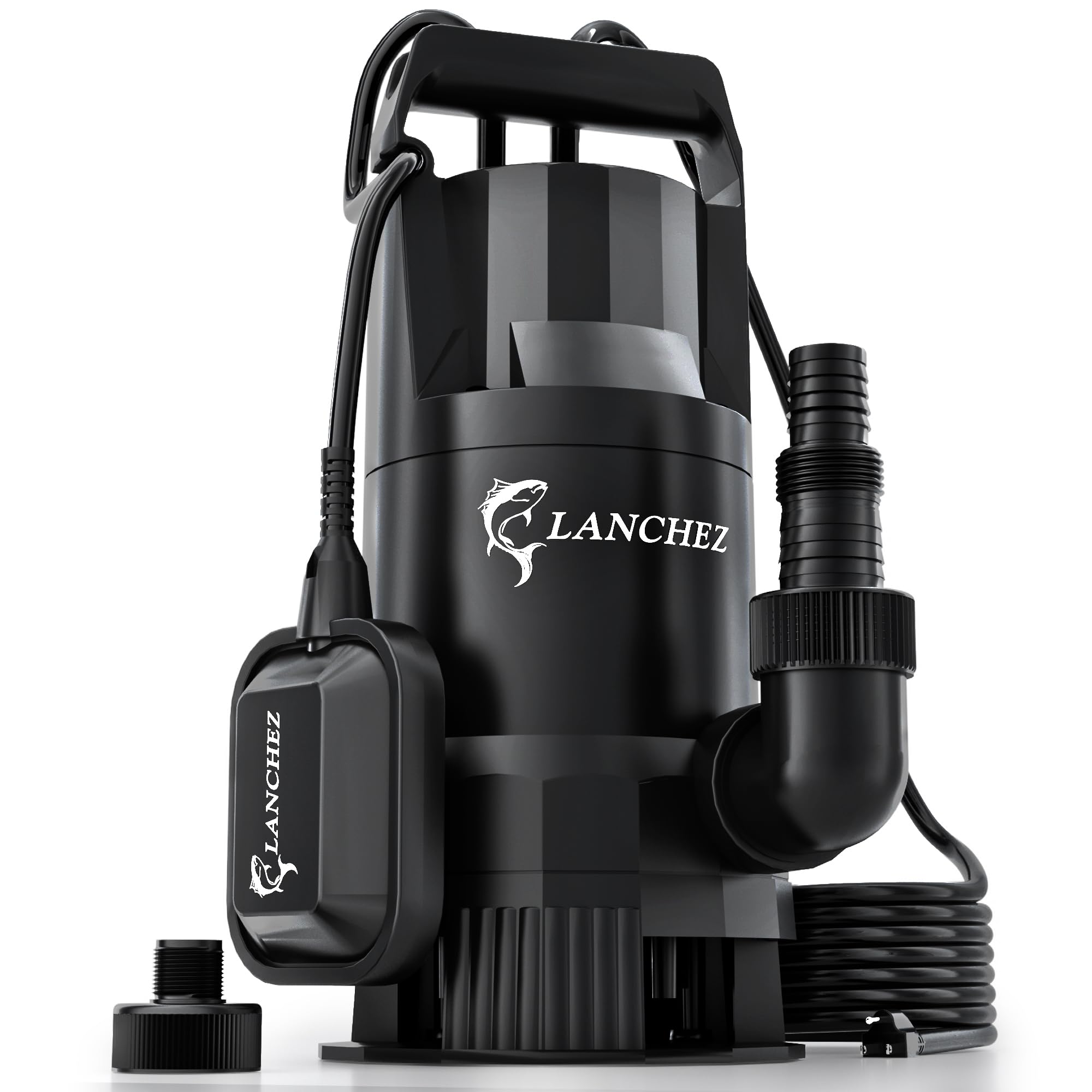

Image: The LANCHEZ 1.6HP Submersible Sump Pump, highlighting its 1.6 HP power, 6000 GPH max flow, and 32 ft max head.

Image: A diagram showing the pump's flow rate at various vertical lift heights, from 5200 GPH at 5 ft to 500 GPH at 31 ft.

Key Features

• High-Performance Drainage: 1.6 HP motor, 6000 GPH max flow, 32 ft max head. Handles particles up to 1.37 inches.
• Automatic Operation: Integrated float switch for automatic on/off based on water level (starts at 6.1 inches, stops at 1.37 inches).
• Safety Features: Built-in thermal overload protection prevents damage during continuous use.
• Versatile Installation: Includes 3/4" NPT garden hose adapter, 1-1/2" NPT elbow adapter, and multi-hose adapter.
• Durable Construction: Reinforced engineering thermoplastic, IPX8 waterproof, PA66 impeller, mechanical seal for leak prevention.
• Portability: Top handle for easy transport and a 16 ft power cord.

Setup and Installation

Before operating the pump, ensure it is placed on a level and solid foundation. Connect the appropriate outlet adapter for your application. The pump comes with various adapters for different hose sizes.

1. Select Adapter: Choose the correct adapter (3/4" NPT, 1-1/2" NPT, or multi-hose adapter) for your water pipe.
2. Connect Hose: Securely attach your discharge hose to the selected adapter.
3. Position Pump: Place the pump in the desired location, ensuring it is stable and the exhaust hole is not blocked.
4. Power Connection: Plug the pump into a suitable power outlet.

Image: A close-up view of the various outlet adapters included with the pump, such as 1-1/2" NPT, 3/4" NPT, and multi-hose adapters.

Image: Visual guide showing the three steps for installation: selecting the water pipe, plugging in the pump, and allowing it to drain water.

Operating Instructions

The LANCHEZ sump pump features an automatic float switch for convenient operation. The pump will automatically start when the water level reaches 6.1 inches and stop when the water level drops to 1.37 inches.

• Automatic Mode: Ensure the float switch is free to move. The pump will activate and deactivate based on the water level.
• Manual Mode (for low water levels): For continuous operation in low water levels, keep the float switch upright.
• Initial Activation: For the pump to start, it must be plugged in, and the float switch must be tilted to at least 45 degrees.
• Float Switch Adjustment: The cable length of the float switch can be adjusted to change the vertical position of the float, but this does not alter the preset maximum/minimum trigger water levels.

Image: Illustration demonstrating the float switch positions: "START WORKING 6.1 inches" (float raised) and "STOP WORKING 1.37 inches" (float lowered).

Image: A tip illustrating how to adjust the cable length of the float switch to suit the required depth, noting it only alters vertical position, not trigger levels.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your sump pump.

• Regular Cleaning: Periodically inspect and clean the pump's intake screen to prevent blockages from debris.
• Float Switch Check: Ensure the float switch moves freely and is not obstructed by debris or the pump's housing.
• Power Cord Inspection: Check the power cord for any signs of damage or wear. Do not move the pump by pulling the power cord.
• Avoid Dry Running: Do not operate the pump without water, as this can cause damage to the motor.

Image: A visual guide illustrating correct and incorrect ways to handle the pump, emphasizing lifting by rope, not pulling the power cord, and avoiding dry operation.

Troubleshooting

If you encounter issues with your LANCHEZ sump pump, refer to the following common troubleshooting steps:

• Pump Not Starting:
  • Ensure the pump is securely plugged into a functional power outlet.
  • Check if the float switch is tilted to at least 45 degrees to activate the pump.
  • Verify there is sufficient water (at least 6.1 inches) for automatic operation.
  • Inspect the power cord for damage.
• Pump Running Continuously:
  • Check if the float switch is stuck in an upright position or obstructed.
  • Ensure the water level has dropped below 1.37 inches for the pump to stop automatically.
• Reduced Flow Rate:
  • Clean the intake screen for any debris that might be blocking it.
  • Check the discharge hose for kinks or obstructions.
  • Ensure the pump is not operating against excessive head pressure.
• Pump Overheating:
  • The pump has thermal overload protection and will automatically shut off if it overheats. Allow it to cool down before restarting.
  • Ensure the pump is fully submerged in water during operation to aid cooling.

If these steps do not resolve the issue, please contact customer support.

Specifications

Image: A diagram illustrating the dimensions of the sump pump: 14.4 inches height, 6.7 inches length, and 6.3 inches width.

Warranty and Support

LANCHEZ is committed to providing quality products and reliable support.

• After-Sales Service: The product includes a 3-year after-sales service.
• Official Warranty: Complimentary returns and exchange are offered.
• Customer Service: 24/7 customer service is available to answer your questions.

For any inquiries or assistance, please refer to the contact information provided with your product packaging or visit the official LANCHEZ store.
