BYSAUD Queen Bed Frame Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your BYSAUD Queen Bed Frame. This bed frame features a storage headboard, integrated LED lighting, a convenient charging station, and six under-bed storage drawers. Please read these instructions carefully before beginning assembly and retain this manual for future reference.

2. Safety Information

• Ensure all parts are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or damaged.
• Assembly requires at least two adults.
• Use only the provided tools and hardware.
• Do not overtighten screws during assembly to avoid damaging components.
• Ensure the bed frame is placed on a level surface.
• The maximum weight capacity for this bed frame is 1,000 lbs. Do not exceed this limit.
• Keep children and pets away from the assembly area.
• Unplug the bed frame from the power outlet before cleaning or performing any maintenance.

3. Package Contents

Your BYSAUD Queen Bed Frame is shipped in one package. Please verify all components against the included parts list in your physical instruction manual.

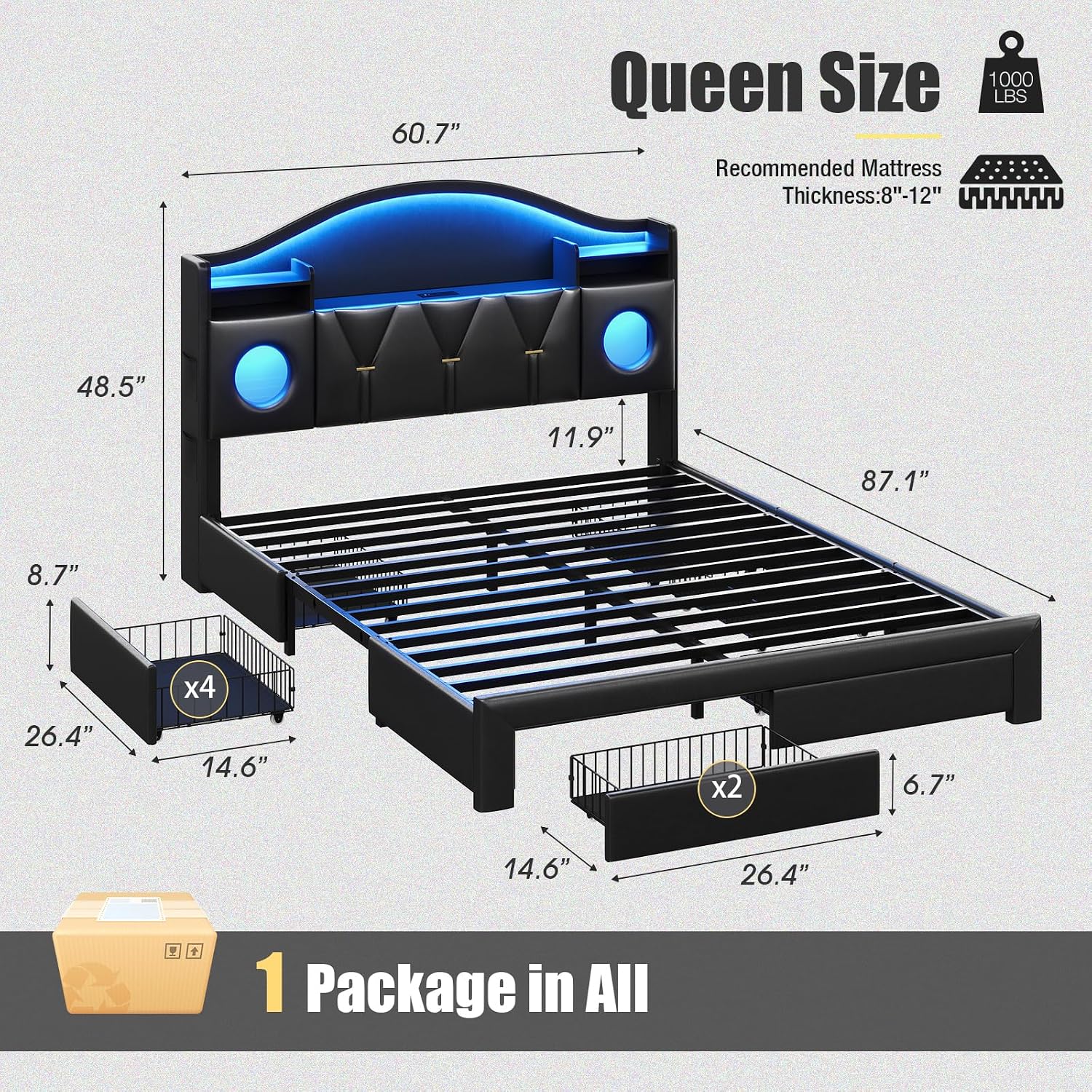

Figure 3.1: Overview of the Queen Bed Frame dimensions and package information. The diagram shows the overall length (87.1"), width (60.7"), and headboard height (48.5"), along with the dimensions of the storage drawers. It also highlights a 1000 lbs weight capacity and confirms that the product ships in a single package.

4. Setup and Assembly

The BYSAUD Queen Bed Frame is designed for straightforward assembly. All parts and tools are labeled with letters or numbers to facilitate the process. An installation instruction manual is included in your package.

4.1 Preparation

• Clear a spacious area for assembly.
• Unpack all components and lay them out, matching them against the parts list.
• Ensure you have the necessary tools (usually an Allen wrench, often included).

Figure 4.1: Illustration of labeled components and tools required for assembly. This image helps in identifying each part before starting the assembly process.

4.2 Assembly Steps

Follow the step-by-step instructions provided in your physical installation manual. Key assembly points include:

1. Assemble the headboard components, including the storage sections and LED light strip.
2. Attach the side rails to the headboard and footboard.
3. Install the heavy-duty metal slats and support legs. Ensure silent foam strips are correctly placed to prevent noise.
4. Assemble and insert the six storage drawers into their designated positions under the bed frame.
5. Connect the power cord for the LED lights and charging station to a wall outlet.

Figure 4.2: Detail of the easy assembly mechanism for the metal slats, showing how components fit together.

Figure 4.3: Structural overview of the bed frame, detailing the 15 heavy-duty metal slats and 9 sturdy support legs designed for stability and a 1000 lbs load capacity.

Figure 4.4: Detail of the silent pads integrated into the metal frame to ensure a noise-free sleeping environment.

5. Operating Instructions

5.1 RGB LED Lights

The integrated RGB LED lights can be controlled via a dedicated app, remote control, or physical keys.

• Brightness and Color: Adjust the intensity and hue of the lights to your preference.
• Modes: Select from various modes including Mic Mode (lights react to sound), Music Mode (lights sync with music), and Timing Mode (set schedules for lights).

Figure 5.1: The Queen Bed Frame with its RGB LED lights active, illustrating the various control options and available modes.

5.2 Charging Station

The headboard features a built-in charging station for your electronic devices.

• Ports: Includes 1 Type-C port (5V/2.1A), 1 USB port (5V/2.1A), and 2 standard AC outlets (125V/12A).
• Power: Ensure the bed frame's power cord is securely plugged into a functional wall outlet for the charging station to operate.

Figure 5.2: Detailed view of the charging station, showing the Type-C, USB, and standard AC outlets.

5.3 Storage Features

The bed frame offers multiple storage solutions to help keep your bedroom organized.

• Under-bed Drawers: Six large capacity sliding drawers are equipped with smooth wheels for easy access and closing buckles to keep them secure.
• Headboard Storage: The headboard includes an open storage shelf, a large hidden storage compartment, two storage cabinets with clear windows, and two storage bags on the sides for smaller items.

Figure 5.3: The six under-bed storage drawers, demonstrating their capacity and smooth operation.

Figure 5.4: The multifunctional storage headboard, highlighting its open shelf, hidden storage space, and two side cabinets with clear windows.

6. Maintenance

Regular maintenance will help preserve the appearance and functionality of your BYSAUD Queen Bed Frame.

• Cleaning: For the PU leather upholstery, wipe with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Hardware: Periodically check all screws and bolts to ensure they are tight. Retighten if necessary, but do not overtighten.
• Drawers: Keep the drawer wheels free of debris to ensure smooth operation.
• Electrical Components: Ensure the power cord for the LED lights and charging station is not pinched or damaged.

7. Troubleshooting

If you encounter any issues with your bed frame, refer to the following common problems and solutions.

8. Specifications

Figure 8.1: Recommended mattress thickness for optimal fit and functionality.

Figure 8.2: Illustration of the embedded design feature that helps keep the mattress securely in place.

9. Customer Support

For any missing or damaged parts, or if you require assistance with assembly or operation, please contact BYSAUD customer support. We aim to respond to all inquiries within 24 hours.

Please refer to your purchase documentation or the BYSAUD brand store on Amazon for contact details: BYSAUD Amazon Store.
