1. Important Safety Instructions
Read all instructions carefully before using the appliance. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or injury.
- Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy.
- Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
- Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
- The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
- Ensure the appliance is properly grounded.
- Always supervise children when the appliance is in use.
2. Product Overview
The Midea AG20CF2E is a 20-liter combined microwave oven featuring both microwave and grill functions. It is designed for freestanding installation and offers 800W microwave power and 1000W grill power.

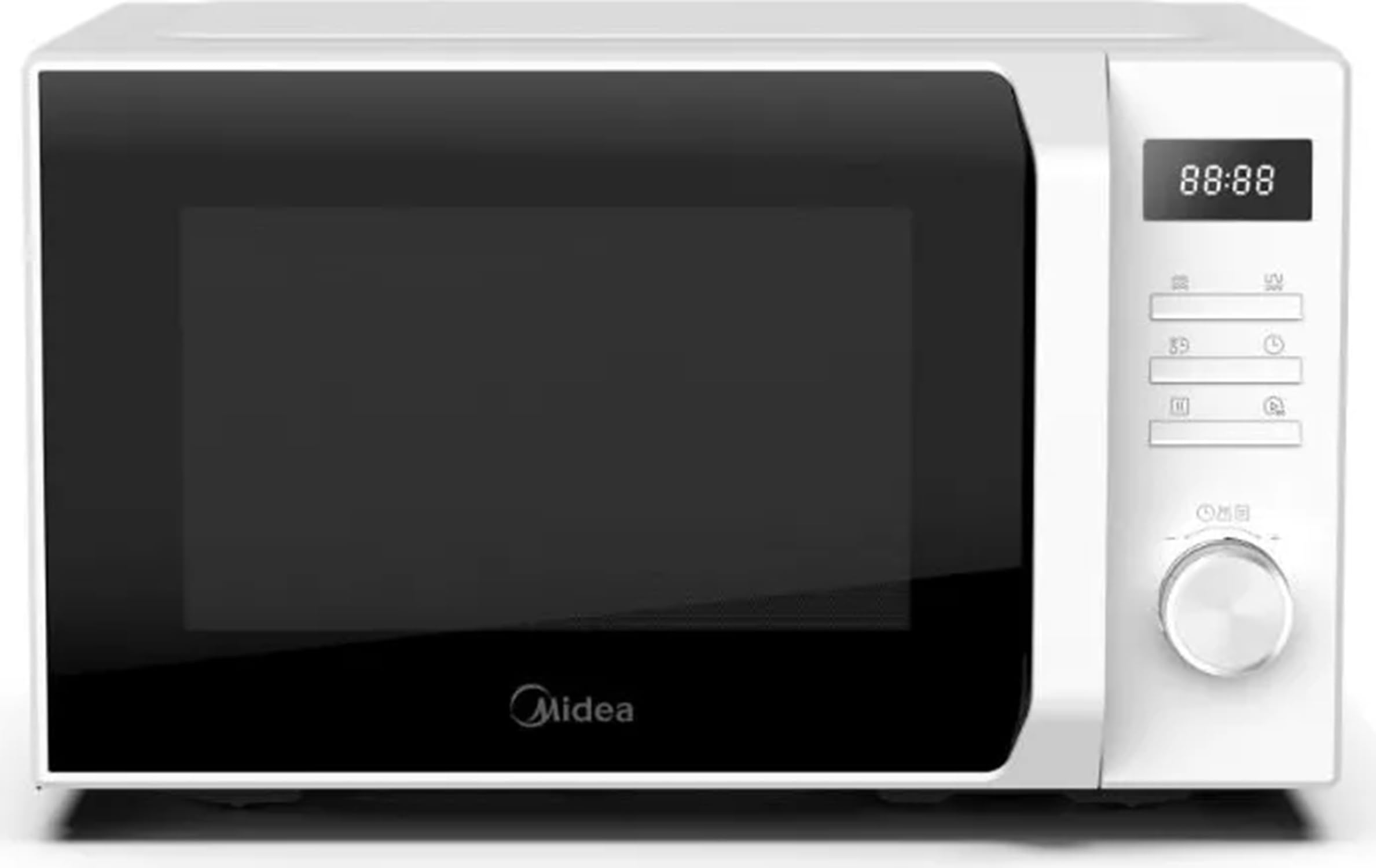

Figure 1: Front view of the Midea AG20CF2E Combined Microwave Oven. This image shows the appliance with its door closed, control panel on the right, and a clear view of its white finish.
Key Features:
- Capacity: 20 Liters
- Microwave Power: 800 W
- Grill Power: 1000 W
- Control Panel: Semi-electronic with digital display
- Timer: Mechanical
- Power Levels: 5
- Inverter Technology: Yes
- Child Safety Lock: Yes
- Turntable Diameter: 43 cm
- Cavity Material: Ceramic and Steel
3. Setup and Installation
This appliance is designed for freestanding installation. Follow these steps for proper setup:
- Unpacking: Carefully remove all packaging materials from the oven and its accessories. Check for any damage during transit. Do not remove the light brown mica sheet that is attached to the oven cavity to protect the magnetron.
- Placement: Place the oven on a flat, stable surface that can support its weight (approximately 11 kg). Ensure there is adequate ventilation space: at least 20 cm above, 10 cm at the rear, and 5 cm on each side.
- Power Connection: Plug the power cord into a properly grounded electrical outlet. Ensure the voltage matches the specifications of the oven (230V, 50Hz).
- Turntable Installation:
- Place the turntable ring inside the oven cavity.
- Position the glass turntable plate on top of the turntable ring, ensuring it sits securely on the central hub.
Note: Do not block air vents on the oven casing. Blocking vents can cause overheating and damage the appliance.
4. Operating Instructions
The Midea AG20CF2E features a semi-electronic control panel. Familiarize yourself with the controls before operation.
4.1 Setting the Clock
- Press the "Clock" button (if available, otherwise refer to specific model manual for clock setting).
- Use the rotary knob or arrow buttons to set the hour.
- Press "Clock" again.
- Use the rotary knob or arrow buttons to set the minutes.
- Press "Clock" to confirm.
4.2 Microwave Cooking
- Place food in a microwave-safe container on the glass turntable.
- Close the oven door securely.
- Select the desired microwave power level (e.g., 800W for high, 400W for medium). The oven has 5 power levels.
- Set the cooking time using the mechanical timer knob.
- The oven will start automatically. A signal will sound at the end of the cooking cycle.
4.3 Grill Cooking
The grill function is ideal for browning and crisping food.
- Place food on the grill rack (if provided) or a heat-resistant dish.
- Close the oven door.
- Select the grill function.
- Set the desired grilling time using the timer knob.
- Monitor food closely to prevent burning.
4.4 Defrost Function
The oven includes a defrost function for various food types.
- Place frozen food in a microwave-safe container.
- Select the defrost function.
- Input the weight of the food or select the appropriate defrost program.
- The oven will calculate the defrosting time automatically. Turn food periodically for even defrosting.
4.5 Child Safety Lock
To prevent unintended operation by children, activate the child safety lock.
- To activate: Press and hold the "Stop/Cancel" button for approximately 3 seconds until a lock indicator appears on the display.
- To deactivate: Press and hold the "Stop/Cancel" button again for approximately 3 seconds until the lock indicator disappears.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and efficient operation of your microwave oven.
- Disconnect Power: Always unplug the oven from the power outlet before cleaning.
- Oven Interior: Wipe the interior cavity (ceramic and steel) with a damp cloth after each use. For stubborn stains, use a mild detergent and then wipe with a clean, damp cloth. Do not use abrasive cleaners or scouring pads.
- Oven Exterior: Clean the exterior surfaces with a soft, damp cloth. Avoid getting water into the ventilation openings.
- Door and Seals: Clean the door, door seals, and adjacent parts carefully with a damp cloth to remove any spills or splatters.
- Turntable and Ring: The glass turntable and turntable ring can be washed in warm soapy water or in a dishwasher. Ensure they are completely dry before placing them back in the oven.
- Grill Element: For grill cleaning, run the grill function for a few minutes after use to burn off any food residue. Once cooled, brush off any loose particles.
Caution: Do not immerse the power cord, plug, or oven in water or any other liquid.
6. Troubleshooting
Before contacting customer service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not start | Power cord not plugged in; Door not closed properly; Fuse blown or circuit breaker tripped. | Ensure plug is securely in outlet; Close door firmly; Check household fuse/circuit breaker. |
| Food not heating | Incorrect power level or cooking time set; Microwave-safe dish not used. | Adjust power level and time; Use appropriate cookware. |
| Turntable not rotating | Turntable not properly seated; Debris under turntable ring. | Re-position turntable and ring; Clean under the ring. |
| Oven light not working | Bulb needs replacement. | Contact qualified service personnel for bulb replacement. |
| Unusual noise during operation | Food container touching oven walls; Turntable not properly seated. | Ensure container is centered; Re-position turntable. |
7. Specifications
Detailed technical specifications for the Midea AG20CF2E microwave oven.
| Feature | Specification |
|---|---|
| Model Number | AG20CF2E |
| Brand | Midea |
| Installation Type | Freestanding |
| Capacity | 20 Liters |
| Microwave Power Output | 800 W |
| Grill Power Output | 1000 W |
| Maximum Absorbed Power | 1000 W |
| Control Panel Type | Semi-electronic |
| Display | Yes |
| Timer Type | Mechanical |
| Number of Power Levels | 5 |
| Inverter Technology | Yes |
| Child Safety Lock | Yes |
| Turntable Diameter | 43 cm |
| Cavity Material | Ceramic and Steel |
| Dimensions (H x W x D) | 440 mm x 320 mm x 250 mm |
| Weight | 11 kg |
8. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Midea website.
- Warranty Period: Please consult your purchase documentation or the Midea official website for specific warranty terms applicable to your region.
- Customer Service: For technical assistance, spare parts, or service requests, contact Midea customer support. You can usually find contact details on the Midea website or in the product packaging.
- Online Resources: Visit the Midea Store on Amazon for additional product information and support.
Note: Any repairs or modifications to the appliance should only be performed by authorized service personnel. Unauthorized repairs may void your warranty.
