YHNNH I5 Corded Stick Vacuum Cleaner User Manual

1. Important Safety Instructions

Please read all instructions carefully before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the power supply voltage matches the voltage specified on the vacuum cleaner.
• Do not use the vacuum cleaner on wet surfaces or to pick up liquids. This appliance is for dry use only.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without the dust cup and filter properly in place.
• Unplug from the electrical outlet when not in use and before cleaning or servicing.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Product Overview

The YHNNH I5 Corded Stick Vacuum Cleaner is designed for efficient cleaning of various surfaces in your home. It features a powerful motor and a versatile 4-in-1 design.

Image: All components of the YHNNH I5 Corded Stick Vacuum Cleaner are shown, including the main vacuum unit, extension tube, floor head, 2-in-1 brush, crevice tool, power cable, warranty card, and user manual.

Key Features:

• 600W High-Efficiency Motor: Provides strong, consistent suction power.
• 18Kpa Powerful Suction: Effective for cleaning dust, dirt, and debris from various surfaces.
• 4-in-1 Flexible Design: Easily converts between stick vacuum, handheld vacuum, and with different attachments for versatile cleaning.
• Corded Operation: Ensures continuous power without battery limitations.
• 1L Large Dustbin: Reduces the frequency of emptying during cleaning tasks.
• Lightweight Design: Weighing approximately 4.7 lbs (2.1 kg) for easy maneuverability.
• Extra Long Power Cord: Approximately 6 meters (20 feet) for extended reach.

Image: The YHNNH I5 vacuum cleaner is shown in both stick and handheld configurations, with icons indicating its 600W high-efficiency motor, 6M extra-long cable, 1L large dustbin, and 4.7lbs weight.

3. Setup and Assembly

Follow these steps to assemble your YHNNH I5 Corded Stick Vacuum Cleaner:

1. Attach the Floor Head: Insert the extension tube firmly into the floor head until it clicks into place.
2. Connect the Main Unit: Insert the other end of the extension tube into the main vacuum unit (motor and dust cup assembly) until it clicks securely.
3. For Handheld Use: The extension tube can be removed, and accessories like the 2-in-1 brush or crevice tool can be directly attached to the main unit.
4. Power Cord: Unwind the power cord completely before plugging it into a suitable electrical outlet.

4. Operating Instructions

General Operation:

1. Plug the power cord into an appropriate electrical outlet.
2. Press the power button located on the main unit to turn the vacuum cleaner ON.
3. Guide the vacuum cleaner over the area to be cleaned.
4. Press the power button again to turn the vacuum cleaner OFF when finished.
5. Unplug the power cord from the outlet.

Image: A person is shown operating the YHNNH I5 Corded Stick Vacuum Cleaner on a hard floor, demonstrating its use for picking up various types of debris.

Using Attachments and Modes:

• Stick Vacuum Mode: Use with the extension tube and floor head for cleaning hard floors and carpets.
• Handheld Vacuum Mode: Remove the extension tube and floor head. Attach the 2-in-1 brush or crevice tool directly to the main unit for cleaning furniture, car interiors, stairs, or other small areas.
• 2-in-1 Brush: Ideal for delicate surfaces, upholstery, and pet hair.
• Crevice Tool: Perfect for reaching tight corners, gaps, and edges.

Image: The YHNNH I5 vacuum cleaner's extension tube is shown with two different lengths, illustrating its adjustable feature from 19 inches to 31 inches for reaching high or low areas.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner. Always unplug the appliance before performing any maintenance.

Emptying the Dust Cup:

1. Ensure the vacuum cleaner is unplugged.
2. Locate the dust cup release button on the main unit.
3. Press the button to detach the dust cup from the main unit.
4. Hold the dust cup over a trash bin and press the bottom release button to open the lid and empty the contents.
5. Close the dust cup lid and reattach the dust cup to the main unit until it clicks securely.

Image: The 1L dust container of the YHNNH I5 vacuum cleaner is shown being emptied into a trash bin, demonstrating the 'One Button | Easy Empty' feature.

Cleaning the Filter:

The HEPA filter should be cleaned regularly to maintain suction power. It is recommended to clean the filter after every 3-5 uses, or when suction power decreases.

1. With the dust cup detached, twist and pull out the filter assembly.
2. Separate the HEPA filter from the filter housing.
3. Tap the filter gently over a trash bin to remove loose dust.
4. Rinse the HEPA filter under cool running water until the water runs clear. Do not use detergent.
5. Allow the filter to air dry completely for at least 24 hours before reassembling. Do not use a dryer or direct heat.
6. Once dry, reassemble the filter components and place them back into the dust cup.

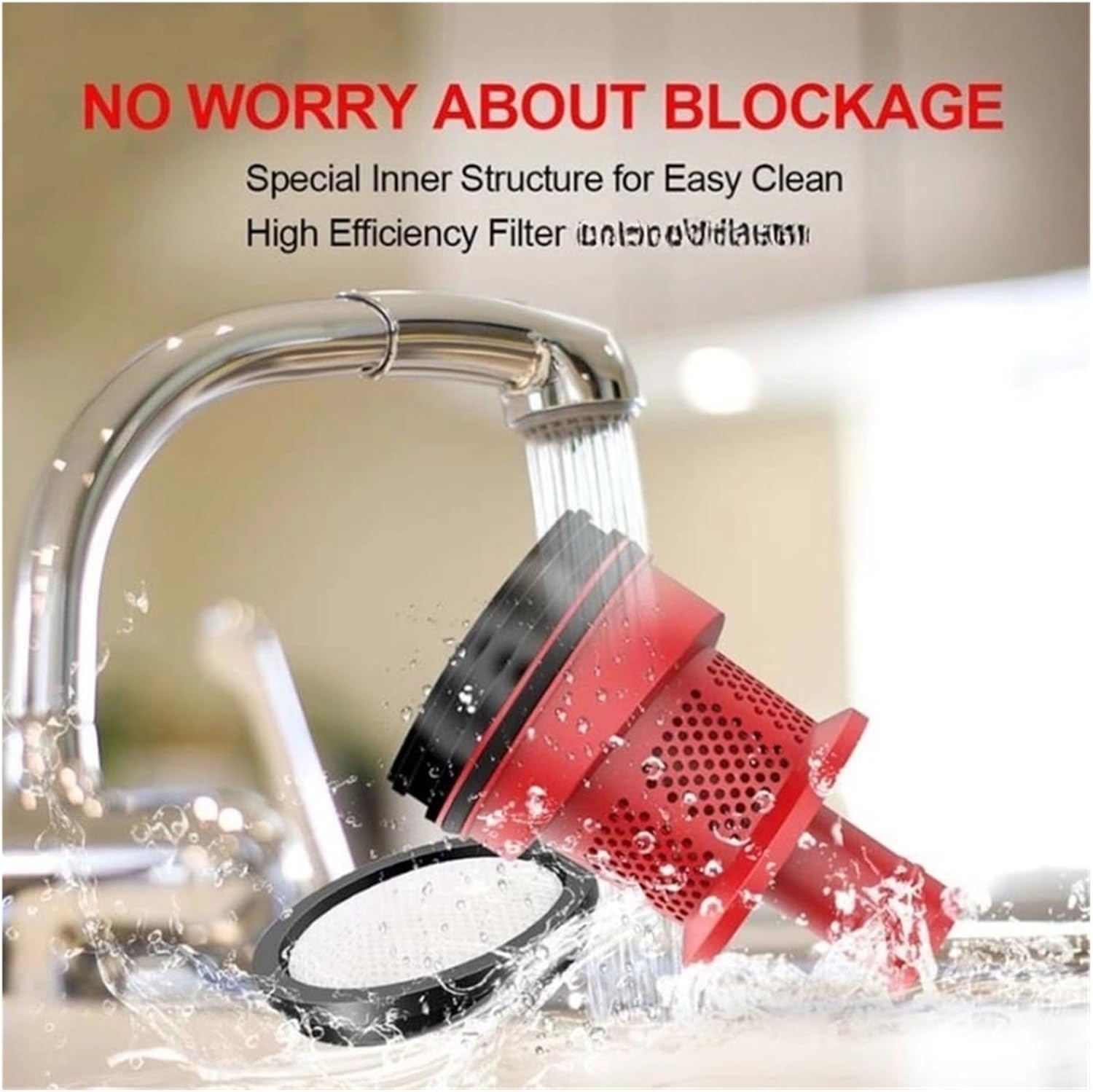

Image: The filter components of the YHNNH I5 vacuum cleaner are shown being rinsed under running water, illustrating the 'NO WORRY ABOUT BLOCKAGE' and 'High Efficiency Filter' features.

Cleaning the Exterior:

Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or solvents.

6. Troubleshooting

If you encounter any issues with your vacuum cleaner, please refer to the following troubleshooting guide:

7. Specifications

8. Warranty and Support

This product includes a warranty card. Please refer to the warranty card provided in the packaging for detailed information regarding warranty coverage and terms.

For technical support, service, or any questions not covered in this manual, please contact the manufacturer or your retailer. Keep your purchase receipt as proof of purchase for warranty claims.
