RedLemon 48" Lift Top Coffee Table Instruction Manual

1. Introduction

Thank you for choosing the RedLemon 48" Lift Top Coffee Table. This mid-century modern coffee table features a convenient lift-top design, slatted sliding doors, and ample hidden storage, making it a versatile addition to your living space or office. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new furniture.

Image 1.1: Overall view of the RedLemon 48" Lift Top Coffee Table in Dark Walnut.

2. Safety Information

Please read and understand all safety instructions before assembling or using this product. Failure to follow these instructions may result in injury or damage to the product.

• Weight Capacity: Do not exceed the maximum weight capacity for the tabletop (150 lbs) and shelves (30 lbs). Overloading can cause instability and damage.
• Assembly: Assemble the coffee table on a soft, clean surface to prevent scratches. Ensure all hardware is securely tightened before use. Periodically check and re-tighten hardware as needed.
• Stability: Do not stand or sit on the coffee table. Avoid placing heavy items on the edges of the lift-top when extended, as this may cause tipping.
• Children: Keep small parts and packaging materials away from children. Do not allow children to play on or around the coffee table, especially with the lift-top mechanism.
• Placement: Place the coffee table on a level surface. Avoid direct sunlight or extreme temperature changes to prevent warping or fading.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Coffee Table Panels (Numbered)
• Hardware Pack (Screws, dowels, cam locks, etc.)
• Lift-Top Mechanism
• Adjustable Shelf Pins
• Assembly Guide
• Installation Tool (e.g., Allen wrench)
• Spare Parts Pack

4. Assembly Instructions

Assembly typically requires two adults. Follow the detailed step-by-step instructions provided in the included Assembly Guide. All parts and accessories are identified with numbered stickers for easy recognition.

1. Unpack and Identify: Carefully unpack all components and lay them out on a soft, clean surface. Match each part to the corresponding number in the Assembly Guide.
2. Assemble Base Structure: Begin by connecting the side panels to the bottom panel using the specified hardware. Ensure all connections are snug but do not overtighten.
3. Install Internal Shelves: Insert the adjustable shelf pins into the desired holes and place the shelves.
4. Attach Legs: Securely attach the tapered legs to the bottom of the coffee table.
5. Install Sliding Doors: Carefully insert the slatted sliding doors into their tracks. Ensure they glide smoothly.
6. Mount Lift-Top Mechanism: Attach the lift-top mechanism to the main body and the tabletop as instructed. This step often requires careful alignment.
7. Attach Tabletop: Secure the tabletop to the lift mechanism. Test the lift function gently to ensure smooth operation.
8. Final Check: Verify that all screws and fasteners are tightened. Gently move the table to its desired location.

Image 4.1: Dimensions of the coffee table, useful for planning placement and assembly.

5. Operating Instructions

5.1. Lift-Top Mechanism

The coffee table features a high-quality hydraulic lift mechanism for smooth and effortless adjustment of the tabletop height.

• To Lift: Gently pull the front edge of the tabletop upwards. The hydraulic mechanism will assist in raising it to a comfortable working or dining height.
• To Lower: Apply gentle downward pressure on the tabletop. The hydraulic mechanism will control the descent, preventing it from slamming shut. Ensure no objects are in the way of the closing mechanism.

Image 5.1: The lift-top extended, providing an elevated surface for work or dining.

Image 5.2: Detail of the hydraulic lift mechanism, designed for smooth operation.

5.2. Sliding Doors and Storage

The coffee table features slatted sliding doors and a spacious hidden compartment under the lift-top, along with adjustable shelves.

• Sliding Doors: Gently slide the slatted doors along their tracks to reveal or conceal the storage shelves. Ensure the tracks are free of obstructions for smooth movement.
• Hidden Compartment: Access the large hidden storage compartment by lifting the tabletop. This space is ideal for storing books, blankets, or other items to keep your living area tidy.
• Adjustable Shelves: The shelves behind the sliding doors are adjustable. To change shelf height, remove the shelf, reposition the shelf pins to the desired level, and then place the shelf back onto the pins.

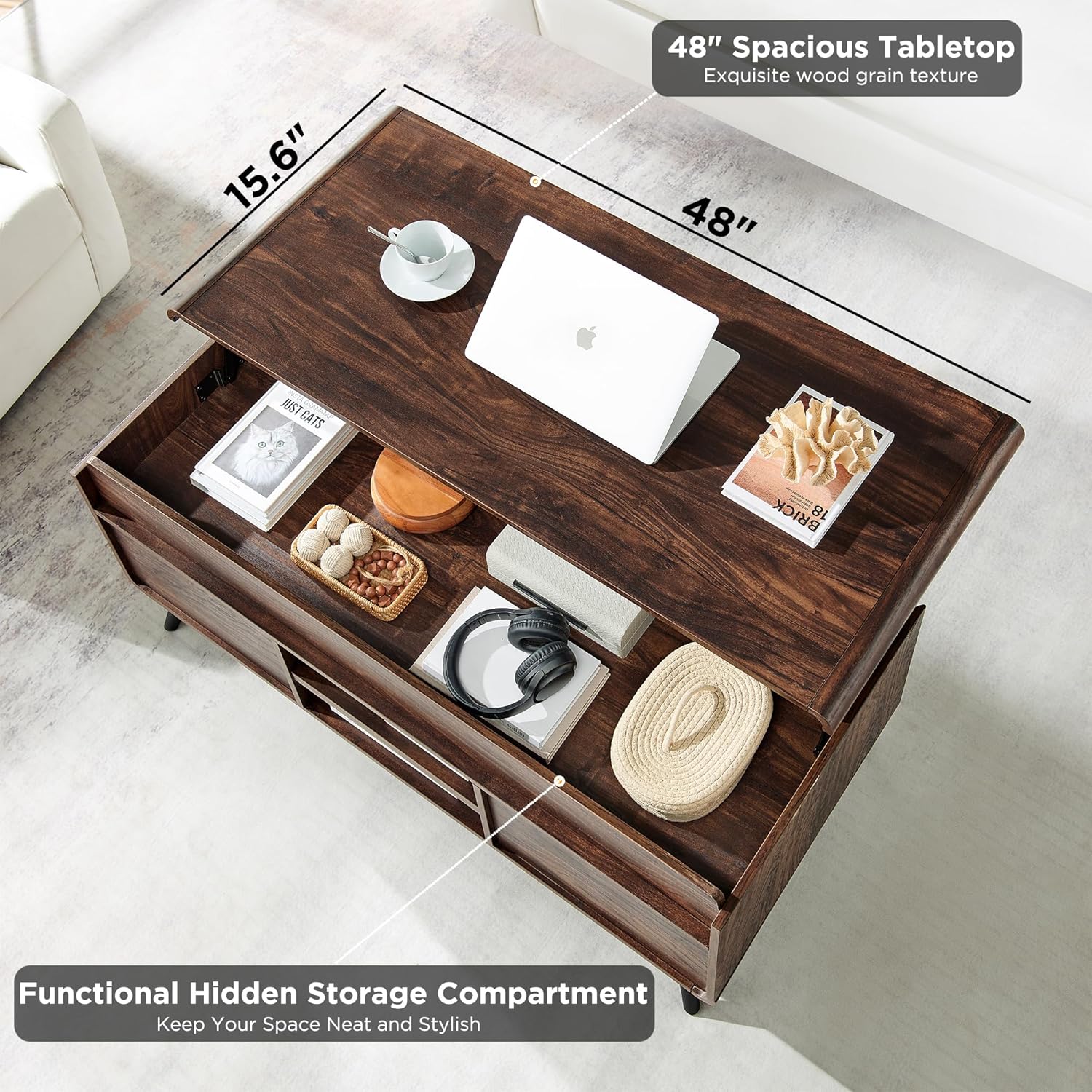

Image 5.3: The hidden storage compartment under the lift-top, offering ample space for organization.

Image 5.4: The slatted sliding doors and adjustable shelves provide flexible storage options.

6. Maintenance

Proper care and maintenance will extend the life and appearance of your coffee table.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals, abrasive cleaners, or polishes that may damage the finish. Dry immediately with a clean cloth.
• Spills: Blot spills immediately with a clean, dry cloth. Do not rub, as this can spread the liquid and damage the finish.
• Heat and Moisture: Use coasters under drinks and placemats under hot items to protect the tabletop from heat and moisture rings.
• Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten as necessary to maintain stability.
• Movement: When moving the coffee table, lift it rather than dragging it to prevent damage to the legs and floor.

7. Troubleshooting

If you encounter any issues with your RedLemon coffee table, refer to the following common problems and solutions.

• Lift-Top is Stiff or Difficult to Operate:
  - Ensure no objects are obstructing the mechanism or the space around the lift-top.
  - Check that all screws securing the lift mechanism are properly tightened. Avoid overtightening, which can restrict movement.
• Sliding Doors Do Not Glide Smoothly:
  - Inspect the tracks for any debris or obstructions. Clean the tracks if necessary.
  - Ensure the doors are correctly seated in both the top and bottom tracks.
  - Verify that the table is on a level surface, as unevenness can affect door movement.
• Table Feels Unstable or Wobbly:
  - Re-check all assembly hardware and tighten any loose screws or fasteners.
  - Ensure the table is placed on a flat, level floor. Use furniture pads if needed to stabilize.
• Missing or Damaged Parts:
  - If you find any parts missing or damaged upon unpacking, do not proceed with assembly. Refer to the Warranty and Support section to contact RedLemon customer service for assistance.

8. Specifications

9. Warranty and Support

RedLemon is committed to providing quality products and customer satisfaction. Every package includes detailed installation instructions, and all parts are easily identifiable. We also supply a pack of spare parts in case of loss during assembly.

If you encounter any issues with your product, including missing or damaged parts, or require assistance with assembly or operation, please contact RedLemon customer service. We will provide a satisfactory solution promptly.

For customer support, please refer to the contact information provided in your purchase documentation or visit the official RedLemon website.
