Manuals+

Mayer MMAF452

Mayer 4.5L Air Fryer MMAF452 User Manual

Model: MMAF452

Introduction

Thank you for purchasing the Mayer 4.5L Air Fryer MMAF452. This appliance is designed to cook a variety of foods using rapid hot air circulation, offering a healthier alternative to traditional deep frying. Please read this manual thoroughly before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

  • Read all instructions before use.
  • Do not touch hot surfaces. Use handles or knobs.
  • To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
  • Close supervision is necessary when any appliance is used by or near children.
  • Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
  • Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
  • The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
  • Do not use outdoors.
  • Do not let cord hang over edge of table or counter, or touch hot surfaces.
  • Do not place on or near a hot gas or electric burner, or in a heated oven.
  • Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
  • Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
  • Do not use appliance for other than intended use.

Product Overview

Familiarize yourself with the components of your Mayer 4.5L Air Fryer MMAF452.

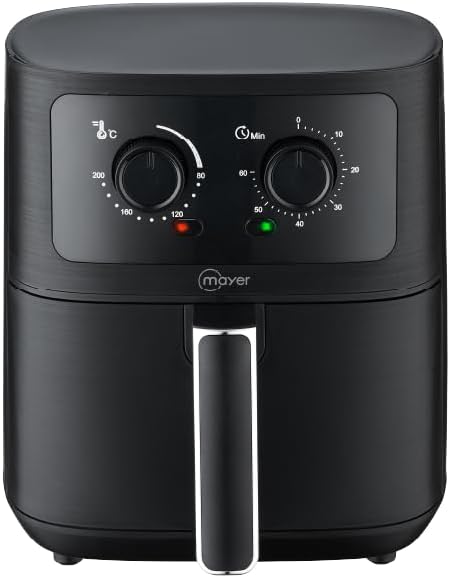

Mayer 4.5L Air Fryer MMAF452 front view

Image 1: Front View of the Mayer 4.5L Air Fryer MMAF452. This image displays the front of the air fryer, highlighting the temperature control knob on the left and the timer control knob on the right. The Mayer logo is visible below the control panel, and the handle for the frying basket is at the bottom center.

Mayer 4.5L Air Fryer MMAF452 angled view

Image 2: Angled View of the Mayer 4.5L Air Fryer MMAF452. This image shows the air fryer from a slight angle, providing a better perspective of its compact design and the textured finish of the control panel. The temperature and timer knobs are clearly visible.

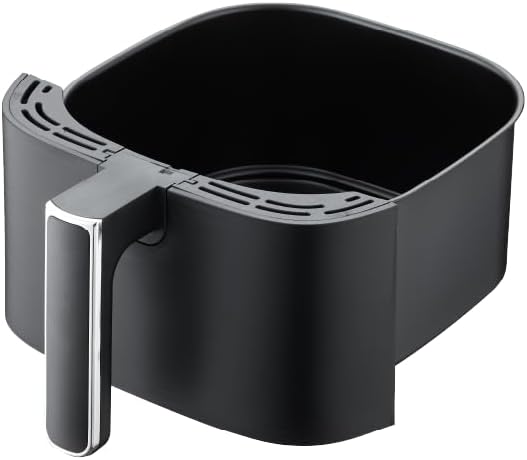

Mayer 4.5L Air Fryer MMAF452 non-stick basket

Image 3: Non-stick Basket and Tray. This image focuses on the removable non-stick frying basket and tray, showcasing its interior and the handle mechanism. The basket's design allows for efficient air circulation around food.

Mayer 4.5L Air Fryer MMAF452 basket partially pulled out

Image 4: Basket Partially Pulled Out. This image illustrates the frying basket partially pulled out from the main unit, demonstrating how it slides in and out for loading and unloading food. The interior of the air fryer cavity is partially visible.

Key Components:

  • Temperature Control Knob: Used to set the desired cooking temperature (80 – 200°C).
  • Timer Control Knob: Used to set the cooking time (up to 60 minutes).
  • Power Indicator Light: Illuminates when the appliance is powered on.
  • Heating Indicator Light: Illuminates when the heating element is active.
  • Frying Basket: Removable non-stick basket for holding food.
  • Frying Tray: Removable non-stick tray placed inside the basket.
  • Handle: For safely pulling out and inserting the frying basket.
  • Air Outlet Vent: Located at the rear of the appliance for hot air exhaust.

Before First Use

  1. Remove all packaging materials, stickers, and labels from the appliance.
  2. Clean the frying basket and tray thoroughly with hot water, a mild dishwashing liquid, and a non-abrasive sponge.
  3. Wipe the inside and outside of the appliance with a damp cloth.
  4. Ensure all parts are completely dry before use.
  5. Place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to allow for proper air circulation.

Setup

  1. Place the frying tray into the frying basket.
  2. Slide the assembled frying basket back into the main unit until it clicks securely into place.
  3. Plug the power cord into a grounded wall outlet. The power indicator light will illuminate.

Operating Instructions

Cooking Process:

  1. Carefully pull the frying basket out of the air fryer.
  2. Place your ingredients into the frying basket. Do not exceed the MAX fill line.
  3. Slide the frying basket back into the air fryer. Ensure it is fully closed.
  4. Turn the Temperature Control Knob to your desired temperature (80 – 200°C).
  5. Turn the Timer Control Knob to your desired cooking time (up to 60 minutes). The air fryer will start heating, and the heating indicator light will turn on.
  6. During the cooking process, you may pull out the basket to shake or turn ingredients for even cooking. The air fryer will pause automatically when the basket is removed and resume when re-inserted.
  7. When the set cooking time has elapsed, the timer will ring, and the air fryer will automatically shut off.
  8. Carefully pull out the basket and transfer the cooked food to a plate. Use tongs for hot food.
  9. Unplug the appliance from the wall outlet after use.

Tips for Best Results:

  • For smaller ingredients, a shorter cooking time is generally required.
  • Shaking smaller ingredients halfway through the cooking time optimizes the end result and can help prevent unevenly fried ingredients.
  • Add a little oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you added the oil.
  • Do not cook extremely greasy ingredients like sausages in the air fryer.

Cleaning and Maintenance

Clean the appliance after every use.

  1. Unplug the air fryer and allow it to cool down completely before cleaning.
  2. Wipe the outside of the appliance with a damp cloth.
  3. Clean the frying basket and tray with hot water, a mild dishwashing liquid, and a non-abrasive sponge. The non-stick coating is durable, but avoid using metal utensils or abrasive cleaning materials.
  4. For stubborn food residue, soak the basket and tray in hot water with some dishwashing liquid for approximately 10 minutes.
  5. Clean the inside of the appliance with hot water and a non-abrasive sponge.
  6. Clean the heating element with a cleaning brush to remove any food residue.
  7. Ensure all parts are completely dry before storing or next use.

Troubleshooting

Problem Possible Cause Solution
The air fryer does not work. The appliance is not plugged in. Plug the main plug into a grounded wall socket.
The timer has not been set. Turn the timer knob to the desired cooking time.
Food is not cooked evenly. Too much food in the basket. Reduce the amount of food in the basket. Cook in smaller batches.
Food was not shaken or turned. Shake or turn ingredients halfway through the cooking time.
White smoke comes from the appliance. Greasy ingredients are being cooked. Avoid cooking extremely greasy ingredients. Clean the basket and tray thoroughly after each use.
Residue from previous use. Clean the basket and tray thoroughly after each use.

Specifications

  • Model: MMAF452
  • Capacity: 4.5 Liters
  • Voltage: 1300 Volts
  • Temperature Range: 80 – 200°C
  • Timer: Up to 60 minutes
  • Product Dimensions: 35.5D x 25.5W x 29H centimetres
  • Features: Non-stick Basket and Tray, Smooth-Turning Knobs

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your purchase or contact Mayer customer service. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the official Mayer website or contact their customer support channels.
