Quarte Queen Size Murphy Bed with L-Shaped Sofa and Storage Shelves Instruction Manual

1. Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Quarte Queen Size Murphy Bed with L-Shaped Sofa and Storage Shelves. This multi-functional furniture piece is designed to optimize space in small apartments, studios, or multi-purpose rooms by combining a comfortable queen-size bed, an L-shaped sofa, and integrated storage solutions.

Please read this manual thoroughly before beginning assembly or using the product. Keep it for future reference.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or property damage.

• Wall Mounting is Mandatory: This Murphy bed unit MUST be securely anchored to a solid wall structure (e.g., wall studs) to prevent tipping. Do not attempt to use the bed without proper wall anchoring.
• Professional Assembly Recommended: Due to the complexity and weight of the unit, professional assembly is highly recommended. If assembling yourself, ensure you have adequate assistance and follow all instructions precisely.
• Keep Clear During Operation: Ensure the area around the bed is clear of people, pets, and objects when opening or closing the bed.
• Mattress Requirements: Use a queen-size mattress between 8 to 10 inches thick. Do not exceed the recommended mattress thickness or weight. Mattress is not included.
• Weight Capacity: Do not exceed the maximum weight capacity for the bed frame. Refer to the assembly guide for specific weight limits.
• Regular Inspection: Periodically check all fasteners and connections to ensure they remain tight and secure.
• Children and Pets: Keep children and pets away from the unit during operation. Do not allow children to play on or around the bed mechanism.

3. Package Contents

Your Quarte Murphy Bed system is delivered in multiple packages. Please refer to the separate assembly instruction manual for a detailed list of all components, hardware, and tools required for assembly. Verify all parts are present and undamaged before beginning assembly.

4. Setup and Assembly

Assembly of the Quarte Queen Size Murphy Bed requires careful attention to detail and adherence to the provided assembly guide. It is strongly recommended to have at least two adults for assembly, and professional installation is advised.

Key Assembly Steps (Refer to the dedicated assembly manual for full details):

1. Unpack and Organize: Carefully unpack all components and organize them according to the parts list in your assembly manual.
2. Assemble Cabinet Frame: Construct the main cabinet frame, ensuring all connections are secure.
3. Install Wall Anchoring: This is a critical safety step. Securely anchor the cabinet to a solid wall structure using the provided hardware. Failure to do so can result in serious injury.
4. Assemble Bed Mechanism: Install the dual-piston metal folding system and bed frame into the cabinet.
5. Attach Sofa Components: Assemble and attach the L-shaped sofa sections to the unit.
6. Install Storage Shelves and Doors: Place shelves and attach doors to the integrated storage compartments.
7. Final Checks: Before first use, double-check all fasteners, hinges, and wall anchors for tightness and stability.

Figure 4.1: Quarte Queen Size Murphy Bed with L-Shaped Sofa in open position, ready for use. This image illustrates the bed extended from the wall unit, with the L-shaped sofa positioned in front.

Figure 4.2: Quarte Queen Size Murphy Bed with L-Shaped Sofa and integrated storage shelves, showcasing the open bed configuration. This view highlights the accessible storage compartments above and to the side of the bed when it is deployed.

Figure 4.3: Quarte Queen Size Murphy Bed in closed position, transforming into a functional L-shaped sofa. This image shows the compact, space-saving configuration with the bed neatly folded away.

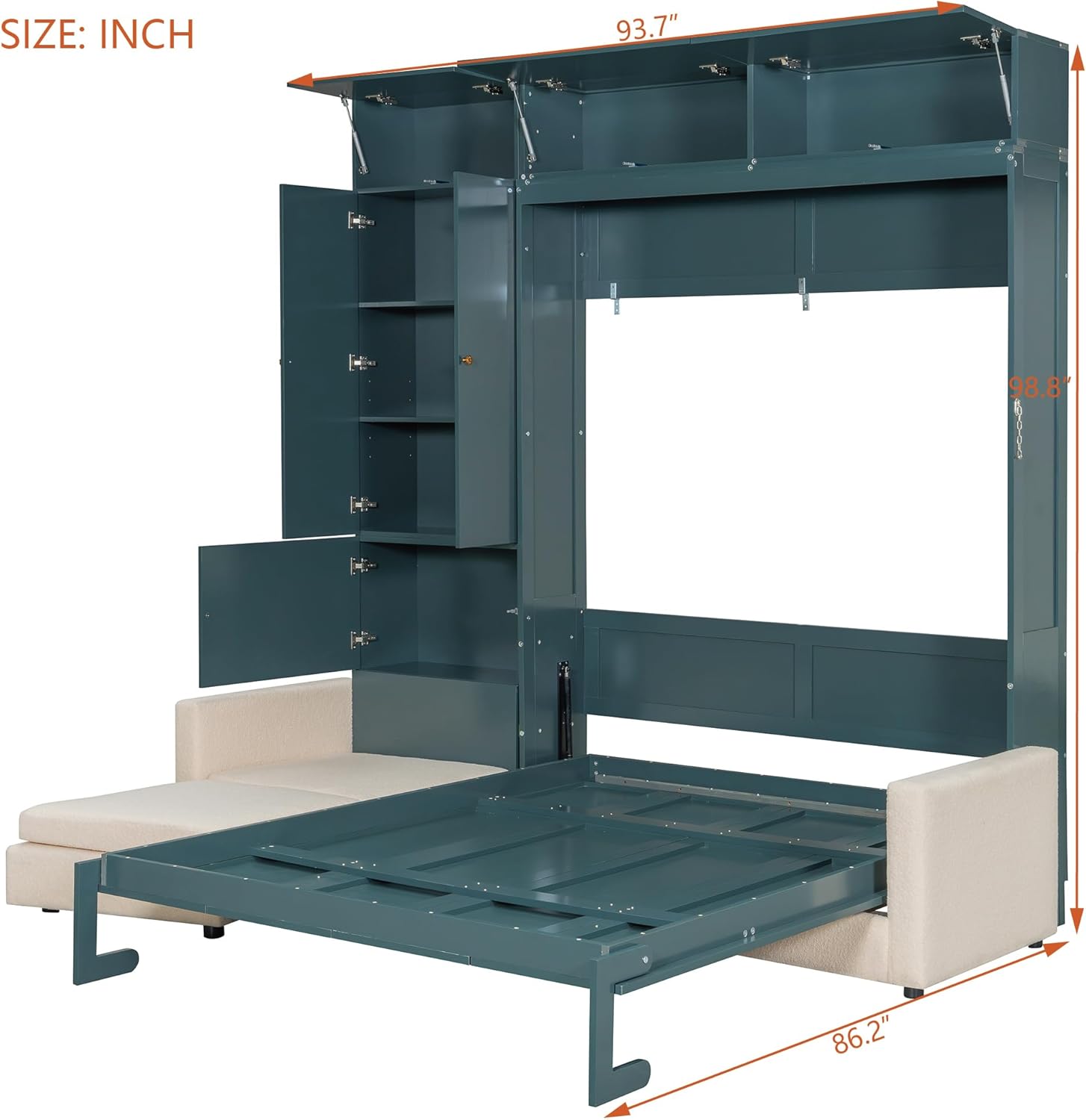

Figure 4.4: Dimensional view of the Quarte Queen Size Murphy Bed with L-shaped sofa, showing the bed frame extended and storage compartments open. Key measurements are indicated.

Figure 4.5: Dimensional view of the Quarte Queen Size Murphy Bed with L-shaped sofa in its closed, compact configuration. This image provides overall dimensions for the unit when the bed is stored.

5. Operating Instructions

The Quarte Murphy Bed features a dual-piston metal folding system for smooth and safe operation.

5.1. Opening the Bed

1. Clear the Area: Ensure the space in front of the unit is completely clear of obstructions, including the sofa cushions if they interfere with the bed's path.
2. Locate Handle: Identify the handle on the front panel of the bed unit.
3. Pull Down: Gently pull the handle downwards. The dual-piston mechanism will assist in lowering the bed frame.
4. Rotate Support Legs: As the bed lowers, rotate the support legs into their locked, upright position to provide stable support for the bed frame.
5. Position Mattress: Adjust your mattress as needed.

Figure 5.1: Close-up of the dual-piston metal folding system and bed frame mechanism. This image shows the robust construction designed for smooth bed deployment.

Figure 5.2: Detail of the decorative handle used to operate the Murphy bed. This handle is used to pull the bed down from its stored position.

5.2. Closing the Bed

1. Remove Bedding: Remove any pillows or thick bedding that might obstruct the closing mechanism.
2. Fold Support Legs: Fold the support legs back into their stored position.
3. Lift Bed Frame: Grasp the handle and gently lift the bed frame upwards. The piston mechanism will assist in raising the bed.
4. Secure in Closed Position: Continue lifting until the bed is fully upright and securely latched into its closed position. Ensure the safety chain (if applicable) is engaged.

Figure 5.3: Detail of the safety chain mechanism on the Quarte Murphy Bed unit. This chain provides an additional layer of security when the bed is closed.

5.3. Using the L-Shaped Sofa and Storage

The integrated L-shaped sofa can be used independently when the bed is in its closed position. The side and top cabinets provide convenient storage for various items.

Figure 5.4: Close-up view of the internal storage shelves within the Quarte Murphy Bed unit. These shelves offer practical space for books, decor, or personal items.

6. Maintenance

• Cleaning:
  • For the wooden/MDF surfaces, wipe with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
  • For the teddy fabric sofa, spot clean with a mild fabric cleaner as needed. Test on an inconspicuous area first.
• Hardware Check: Periodically inspect all screws, bolts, and hinges. Tighten any loose fasteners to ensure the unit remains stable and safe.
• Mechanism Lubrication: The dual-piston mechanism is designed for long-term use. If you notice any stiffness or unusual noise, consult the manufacturer or a qualified technician. Do not attempt to lubricate without proper guidance.

7. Troubleshooting

If you encounter problems not listed here or if suggested solutions do not resolve the issue, please contact Quarte customer support for assistance.

8. Specifications

• Brand: Quarte
• Model: Queen Size Murphy Bed with L-Shaped Teddy Fabric Sofa and Storage Shelves
• Size: Queen
• Overall Dimensions (Closed): Approximately 102.3"L x 86.2"W x 98.8"H (Refer to Figure 4.5 for detailed dimensions)
• Material: Plywood, MDF (Medium-Density Fiberboard), Teddy Velvet Fabric
• Recommended Mattress Thickness: 8" - 10" (Mattress not included)
• Mechanism: Dual-piston metal folding system

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official Quarte website. If you require technical assistance, replacement parts, or have any questions regarding your Quarte Queen Size Murphy Bed, please contact Quarte customer support.

Please have your model number (Queen Size Murphy Bed with L-Shaped Teddy Fabric Sofa and Storage Shelves) and purchase date available when contacting support.
