Introduction
The KZYEE KM06 is a versatile automotive circuit tester designed for diagnosing electrical systems in 8-35V vehicles. It provides stable and accurate readings for various electrical tests, making it suitable for both DIY users and professional technicians. This manual provides instructions for safe and effective operation.
Safety Information
- Always wear appropriate eye protection when working on vehicle electrical systems.
- Ensure the vehicle's ignition is off before connecting or disconnecting the tester, unless specific test procedures require otherwise.
- Avoid touching live circuits with bare hands.
- Do not use the tester if it appears damaged.
- Refer to the vehicle's service manual for specific wiring diagrams and safety precautions.
Product Overview
The KZYEE KM06 features a clear 1.77" TFT display, LED indicators, and audible alerts for instant feedback. It integrates multiple testing modes and a component activation function.
Key Features
- 4 Essential Modes: DC Voltage, AC Voltage, Resistance/Continuity, and Diode testing.
- Component Activation: Safely activate components like bulbs, fans, pumps, and relays.
- Polarity Detection: Red/Green LED indicators for positive/negative polarity.
- Built-in Circuit Breaker: Auto-reset circuit breaker protects against overload.
- Work Light: Integrated bright LED work light for dark environments.
Figure 1: KZYEE KM06 Super Probe Tester highlighting its various functions.
Setup
- Connect to Vehicle Battery:
- Connect the red alligator clip to the positive (+) terminal of the vehicle battery.
- Connect the black alligator clip to the negative (-) terminal of the vehicle battery or a suitable chassis ground point.
- The device will power on automatically.
- Auxiliary Ground Lead: For certain tests, connect the auxiliary ground lead to a known good ground point on the vehicle.
Figure 2: KZYEE KM06 Power Circuit Probe Tester and its connection cables.
Video 1: This video demonstrates the initial setup and connection of the KZYEE KM06 to a vehicle battery, showing the device powering on and ready for use.
Operating Modes
The KM06 offers four primary operating modes, accessible by pressing the "Mode" button.
Figure 3: The four smart modes displayed on the KM06 screen.
1. DC Voltage Mode
In this mode, the tester measures DC voltage with a resolution of 0.1V. It displays the current voltage, maximum voltage, minimum voltage, and frequency between the probe tip and the auxiliary ground lead.
Video 2: This video demonstrates the DC Voltage measurement capability of the KM06, showing how to obtain voltage readings from a vehicle's electrical system.
2. AC Voltage Mode
This mode measures AC voltage, displaying the waveform, maximum voltage, minimum voltage, and frequency. Useful for checking AC signals in automotive systems.
Video 3: This video demonstrates the AC Voltage mode of the KZYEE KM06, showing how to read AC voltage and frequency on the display.
3. Resistance/Continuity Mode
Use this mode to measure resistance and check for continuity in circuits. An audible tone indicates continuity.
Video 4: This video demonstrates the Resistance mode of the KZYEE KM06, showing how to test a connector for resistance and continuity.
4. Diode Mode
This mode identifies the positive and negative poles of a diode and measures its forward voltage drop (0-3V).
Video 5: This video demonstrates the Diode mode of the KZYEE KM06, showing how to test a diode and identify its polarity.
Figure 4: The KM06 performing various electrical tests.
Component Activation
The KM06 allows for safe activation of components before replacement. By applying positive or negative battery voltage directly to a component, you can verify its functionality.
- Connect the probe tip to the component's terminal.
- Press the UP button to apply positive voltage or the DOWN button to apply negative voltage.
- Observe the component's response. The built-in auto-reset circuit breaker protects against overloads.
Figure 5: Examples of component activation using the KM06.
Troubleshooting Common Issues
Finding Bad Grounds & Short Circuits
The KM06 assists in quickly locating weak grounds or basic short circuits using its polarity LEDs and continuity mode. The long cable and auxiliary ground lead facilitate reaching various points in the vehicle.
No Power/Incorrect Readings
- Ensure the red and black alligator clips are securely connected to the correct battery terminals.
- Check the auxiliary ground lead connection for a solid ground.
- Verify the vehicle battery has sufficient charge.
- Inspect the probe tip for damage or corrosion.

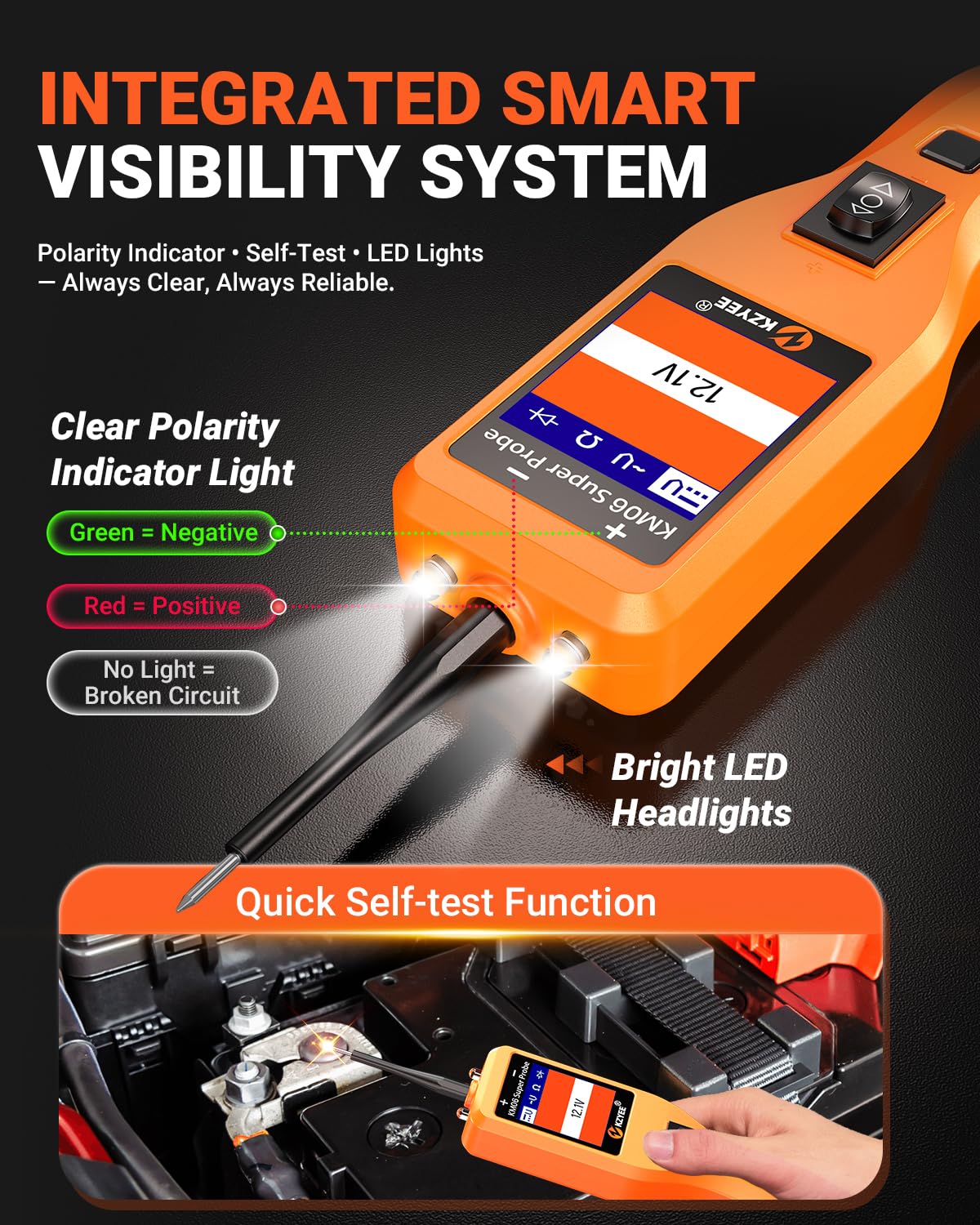

Figure 6: Integrated Smart Visibility System with polarity indicators and work lights.
Specifications
| Feature | Detail |
|---|---|
| Model | KM06 |
| Operating Voltage | 8-35V DC |
| Measurement Accuracy | +/-0.1 |
| Display | 1.77" TFT |
| Included Components | KZYEE KM06 Power Circuit Probe Tester*1, Probe Tip*2 |
| Item Weight | 449 g |
| Product Dimensions | 22.5 x 4.5 x 3.5 cm |
| Batteries Required | No |
Figure 7: Durable construction and advanced internal components of the KM06.
Figure 8: The KM06 is compatible with a wide range of 8V-35V DC vehicle electrical systems.
Maintenance
- Keep the tester clean and free from dirt, grease, and moisture.
- Store the device in a dry, cool place when not in use.
- Regularly inspect the cables and probe tip for any signs of wear or damage.
- Do not attempt to disassemble or repair the unit yourself. Contact customer support for assistance.
Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase or visit the official KZYEE website.
