1. Setup and Assembly
This section guides you through the initial setup and assembly of your OOTD J15 MAX Electric Scooter.
1.1 Unboxing and Initial Assembly
Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present. The scooter comes partially assembled. Follow the steps below to complete the assembly.
Video Description: This video demonstrates the unboxing and installation process for the J15 MAX Electric Scooter. It shows how to unpack the scooter, attach the handlebars, connect the front light cable, install the kickstand, and attach the rear fender and turn signals. The video concludes with a demonstration of the display and folding mechanism.
Step-by-Step Assembly:
- Unpack the Scooter: Carefully remove the scooter and all accessories from the box. Remove all protective packaging materials.
- Attach the Handlebars: Lift the main stem. Secure the handlebars to the stem using the provided tools. Ensure all screws are tightened securely.
- Connect Front Light Cable: Locate the front light cable and connect it securely.
- Install Kickstand: Attach the kickstand to the designated area on the scooter deck using the provided screws and tools.
- Attach Rear Fender: Secure the rear fender over the rear wheel using the provided screws.
- Install Turn Signals: Attach the rear turn signals to the designated points on the rear of the scooter.
1.2 Initial Charging
Before your first ride, fully charge the scooter's battery. The charging time is approximately 8 hours. Use only the charger included with your scooter.
Image Description: An illustration highlighting the 48V 18Ah battery, indicating a range of 28-32 miles, a maximum speed of 31 MPH, and a charging time of 7-8 hours. The image emphasizes the scooter's long-lasting adventure capabilities.
2. Operating Your OOTD J15 MAX Electric Scooter
Familiarize yourself with the controls and features for a safe and enjoyable riding experience.
2.1 Controls and Display
The OOTD J15 MAX features an intuitive LCD display and accessible controls.
Image Description: A detailed view of the scooter's intelligent LCD display, which provides real-time information such as current speed, selected riding mode (ECO, STD, TURBO), and battery level. This display helps riders stay informed while on the go.
- LCD Display: Shows speed, riding mode (ECO, STD, TURBO), and battery level.
- Headlights, Turn Signals, Taillights, Side Lights: Ensure 360° visibility. The automatic lighting system activates in the dark.
- Horn: For alerting others.
2.2 Riding Guidelines
The J15 MAX is designed for powerful performance and versatility across various terrains.
Video Description: This video showcases the J15 MAX Electric Scooter in action, demonstrating its riding capabilities on various surfaces and its overall performance. It highlights the scooter's agility and stability during use.
- Speed and Power: Equipped with a 1600W brushless motor, reaching speeds up to 31 MPH.
- Range: The 48V 18Ah battery provides a range of 28-32 miles per charge.
- Terrain: 11-inch all-terrain tires and dual suspension allow for confident riding on rough trails, uneven city roads, mountain roads, snow roads, and sand roads.
- Weight Capacity: Supports a maximum load of 330 lbs.

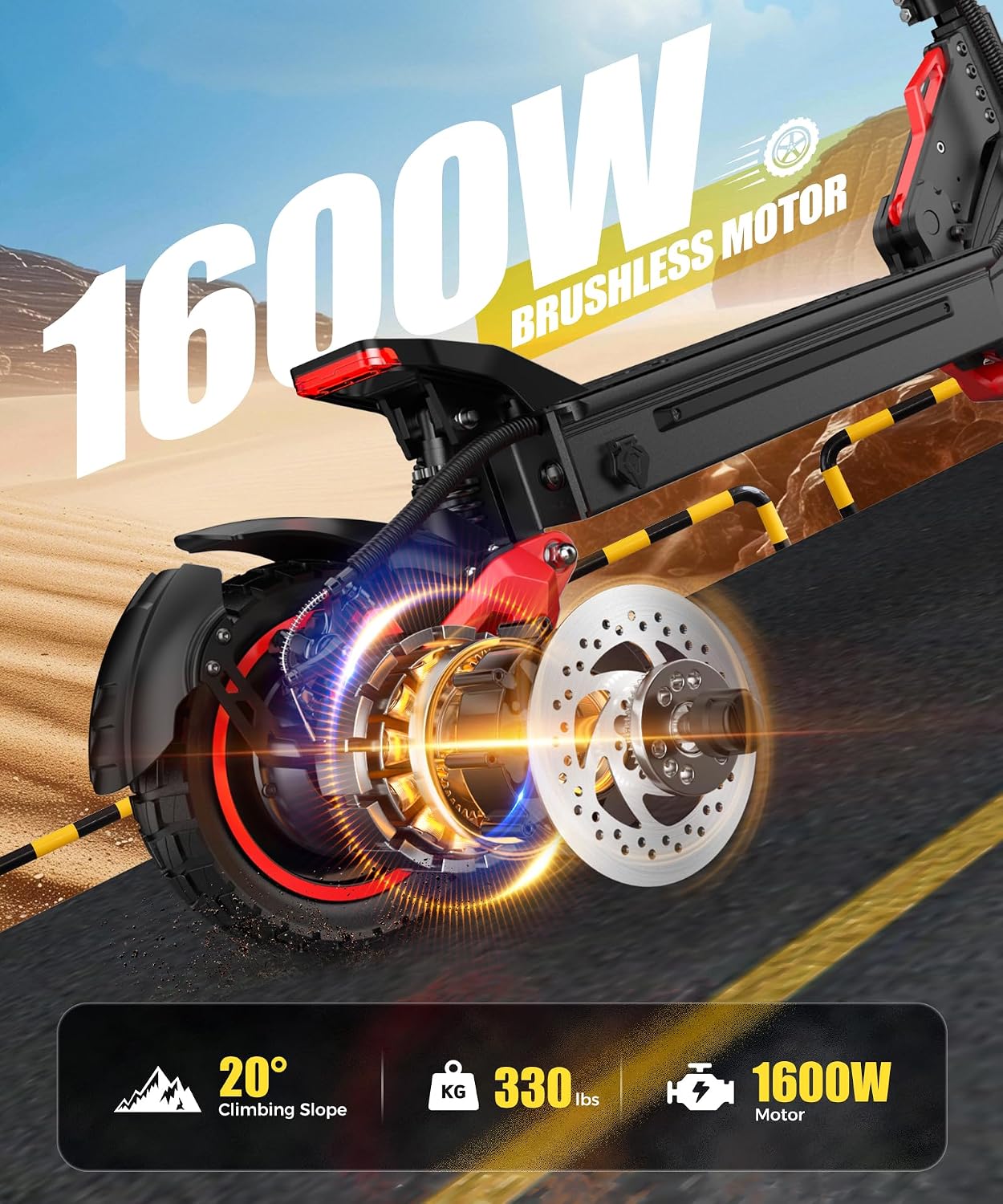

Image Description: An image illustrating the powerful 1600W brushless motor of the OOTD J15 MAX Electric Scooter, emphasizing its ability to handle 20-degree climbing slopes and a maximum load of 330 lbs.
Image Description: This image showcases the 11-inch off-road wheels of the J15 MAX Electric Scooter, highlighting its suitability for various terrains including mountain roads, snow roads, sand roads, and city roads.
2.3 Folding and Portability
The J15 MAX is designed for quick folding and easy transport.
Image Description: An image demonstrating the quick folding capability of the OOTD J15 MAX Electric Scooter, showing its compact folded size of 51.57x25.78x24 inches and its lightweight design at 57 lbs, making it easy to carry.
- Folding Mechanism: Folds in approximately 3 seconds.
- Compact Size: Folded dimensions are 51.57 x 25.78 x 24 inches.
- Weight: Weighs 57 lbs, making it convenient for transport in a trunk, office, or subway.
3. Maintenance
Regular maintenance ensures the longevity and optimal performance of your scooter.
3.1 General Care
- Keep the scooter clean and dry. Wipe down with a damp cloth after use.
- Avoid exposing the scooter to extreme temperatures or direct sunlight for prolonged periods.
- Store in a cool, dry place when not in use.
3.2 Battery Care
- Charge the battery regularly, even if the scooter is not used frequently, to maintain battery health.
- Do not overcharge or completely drain the battery.
- Use only the original charger provided.
3.3 Tires and Brakes
- Tires: Regularly check the pressure of the 11-inch off-road pneumatic tires. Maintain recommended pressure for optimal performance and safety. Inspect for wear and tear.
- Brakes: The scooter features dual brakes (front and rear). Periodically check the brake pads and cables for wear and proper function. Adjust or replace as needed.
3.4 Suspension
- The dual suspension system provides a smooth ride. Inspect the suspension components for any signs of damage or excessive wear.
4. Troubleshooting
This section provides solutions to common issues you might encounter.
4.1 Scooter Not Turning On
- Check if the battery is charged. Connect the charger and ensure it's receiving power.
- Ensure the power key is inserted and turned to the 'ON' position.
- Verify all electrical connections are secure.
4.2 Reduced Range or Speed
- Ensure the battery is fully charged. Battery performance can decrease in cold weather.
- Check tire pressure. Under-inflated tires can significantly reduce range and speed.
- Riding conditions (e.g., uphill, heavy load, strong headwinds) can affect performance.
4.3 Unusual Noises
- Inspect wheels and brakes for any obstructions or loose parts.
- Check the suspension system for any loose components.
4.4 Lights Not Working
- Check the light switch on the handlebar controls.
- Ensure all light connections are secure.
If you encounter issues not covered here or require further assistance, please contact customer support.
5. Specifications
| Feature | Detail |
|---|---|
| Brand | OOTD |
| Model Name | J15 MAX Electric Scooter |
| Motor Power | 1600W Brushless Motor |
| Battery | 48V 18Ah |
| Max Speed | Up to 31 MPH |
| Max Range | 28-32 Miles |
| Charging Time | 8 Hours |
| Weight Limit | 330 Pounds |
| Item Weight | 57 Pounds |
| Product Dimensions | 50"L x 25.7"W x 52.3"H |
| Folded Size | 51.57"L x 25.78"W x 24"H |
| Wheel Size | 11 Inches |
| Wheel Type | 11-inch Off-Road Pneumatic Tires |
| Suspension Type | Dual Suspension |
| Brake Style | Front Braking, Rear Braking |
| Special Features | Anti-Puncture Tire, Digital Display, Dual Braking System, Foldable, Lights |
| Frame Material | Aluminum |
| Included Components | Charger, Product Manual, Tightening Tools |
6. Warranty and Support
6.1 Warranty Information
The OOTD J15 MAX Electric Scooter comes with a 12-month or 180-day warranty, depending on the specific parts. Please refer to the detailed warranty card included in your product packaging for full terms and conditions.
- Warranty Type: Limited
- Warranty Description: 2 Year Manufacturer (as per specifications, please cross-reference with included warranty card for exact details)
6.2 Customer Support
OOTD provides professional support to assist you with any questions or issues. For assistance, please refer to the contact information provided in your product manual or visit the official OOTD website.
