1. Safety Information
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other personal injury.
- Electrical Safety: Ensure the power is turned off at the circuit breaker before installation or maintenance. All wiring must be in accordance with national and local electrical codes. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- Mounting: The ceiling fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting the fan's weight.
- Blade Clearance: Ensure there is adequate clearance between the fan blades and any obstructions.
- Bulb Type: Use only E26 base bulbs as specified. Do not exceed the maximum wattage.
2. What's in the Box
Verify that all components are present before beginning installation:
- Flush Mount Ceiling Fan with Lights (pre-assembled)
- Remote Control
- Mounting Hardware
- Instruction Manual
- E26 LED Filament Bulbs (4 included, plus 1 spare)

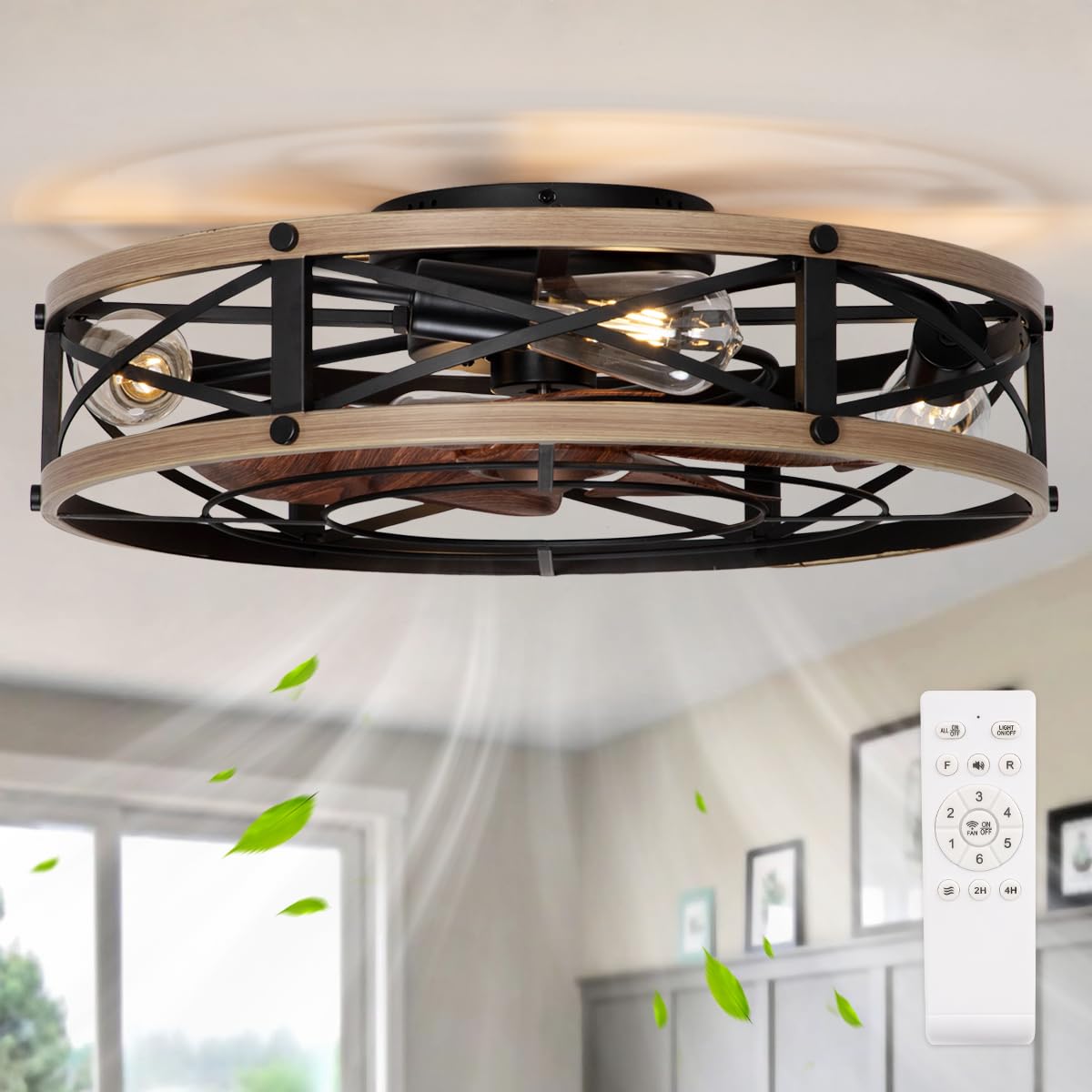

Image: Main product view of the SHLUCE 22-inch Low Profile Caged Ceiling Fan with Light.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | SHLUCE |
| Model Number | FLA003A-22IN-WD |
| Color | Wood |
| Material | Metal |
| Style | Ceiling Mount, Farmhouse, Rustic |
| Installation Type | Flush Mount |
| Dimensions (L x W x H) | 22"L x 22"W x 6.9"H |
| Item Weight | 12.5 Pounds |
| Power Source | DC |
| Voltage | 110 Volts |
| Light Source | LED |
| Number of Light Sources | 4 |
| Bulb Base | E26 |
| Wattage (per bulb) | 4 Watts (LED) |
| Light Color Temperature | 2700K (Warm White) |
| Control Method | Remote Control |
| Fan Speeds | 6 |
| Motor Type | Upgraded DC Motor (Ultra-quiet) |
| Special Features | Reversible Motor, Timer (2/4H), No Beeping Mode |
| Certification | ETL Certified |
Image: Product dimensions and key features including 6 speeds, 4x E26 base, reversible motor, and timer.
4. Setup and Installation
The fan is designed for quick installation with most functional components pre-assembled. However, if you are not comfortable with electrical work, it is recommended to consult a qualified electrician.
- Preparation: Turn off power at the main circuit breaker. Ensure the mounting location is secure and can support the fan's weight.
- Mounting Bracket: Secure the mounting bracket to the ceiling outlet box or a wooden joist using the provided hardware.
- Wiring: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the included instruction manual. Ensure all connections are secure.
- Attach Fan Body: Carefully lift the fan body and attach it to the mounting bracket. Secure it with the screws provided.
- Install Bulbs: Screw the provided E26 LED filament bulbs into the light sockets.
- Restore Power: Once installation is complete, restore power at the circuit breaker.
Image: Detailed view of the fan's internal structure, including the fan blades and light bulb sockets.
5. Operating Instructions
The SHLUCE ceiling fan is operated using the included remote control. Ensure the remote has working batteries (2*AAA batteries, not included).
- Power On/Off: Press the power button (U) to turn the entire unit (fan and light) on or off.
- Light Control: Press the light button (Light Bulb Icon) to turn the lights on or off independently.
- Fan Speed: Use buttons 1 through 6 to select the desired fan speed. 1 is the lowest speed, 6 is the highest.
- Reversible Motor: The fan features a reversible motor for year-round comfort. Press the F/R button to switch between forward (downdraft for cooling in summer) and reverse (updraft for air circulation in winter) modes.
- Timer Function: Set the fan to turn off automatically after a set period. Press 2H for 2 hours or 4H for 4 hours.
- Mute Mode: The fan operates with low noise. If a beeping sound is heard from the remote, press the mute button (speaker icon) to silence it.

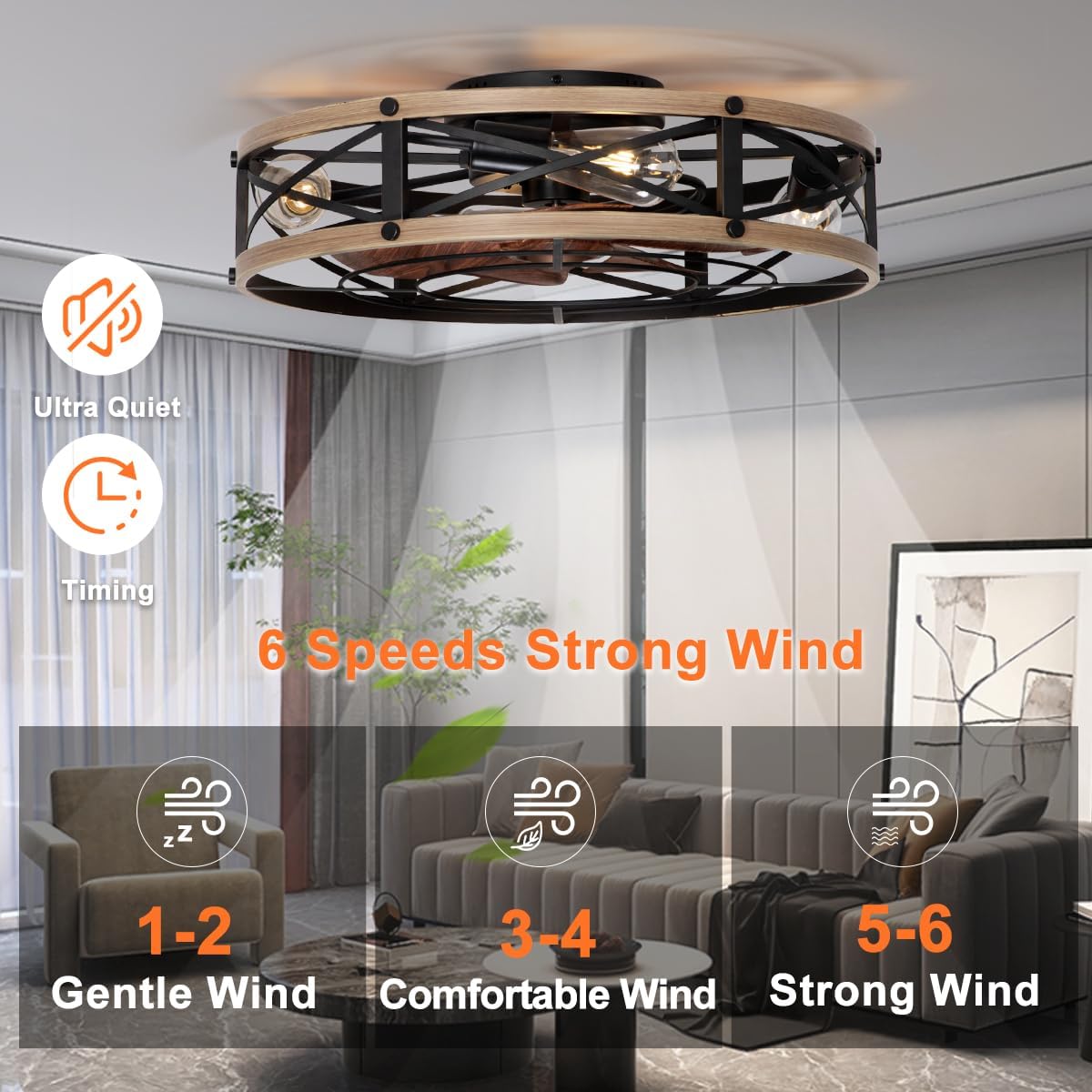

Image: The fan operating in a room, highlighting its quiet operation and various speed settings.

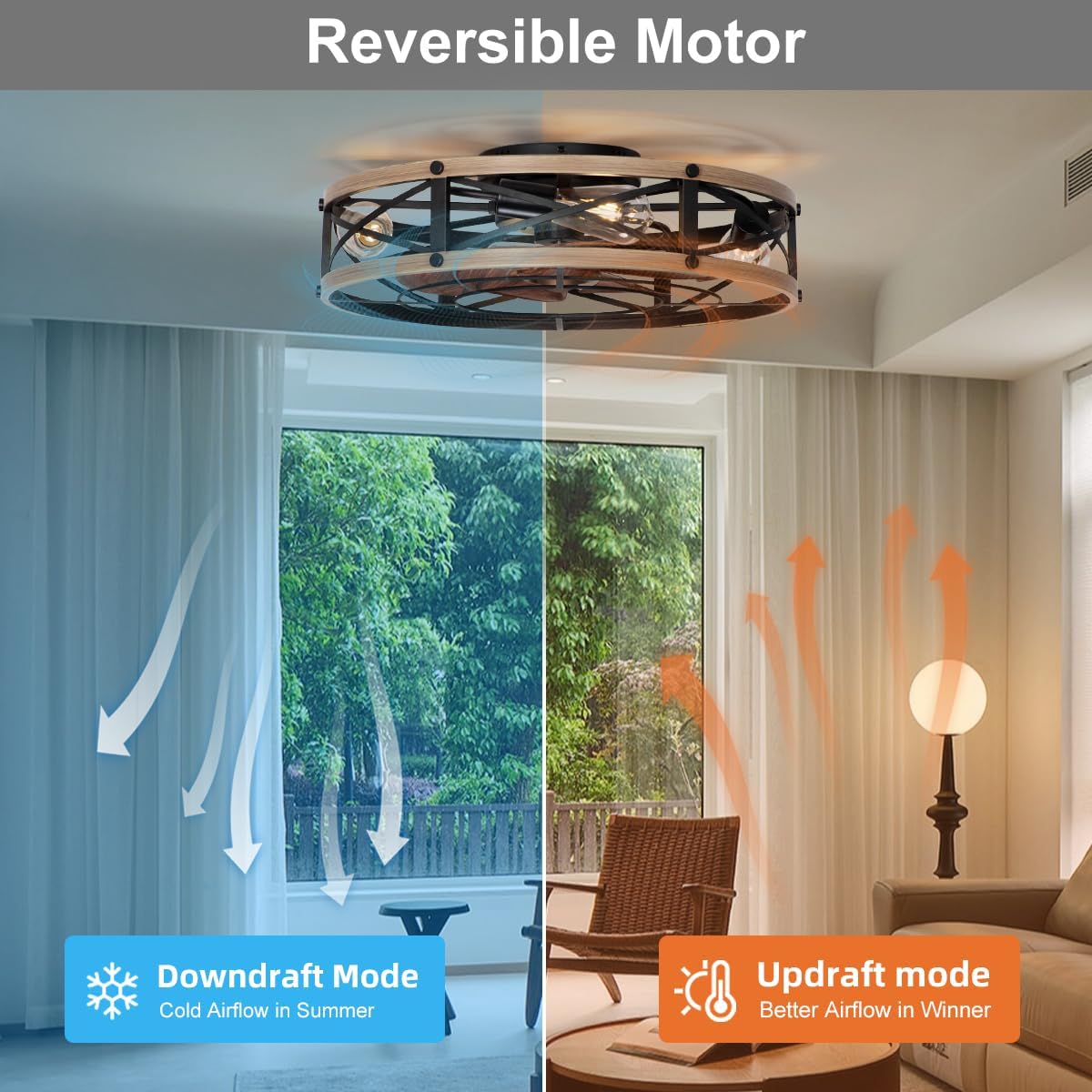

Image: Illustration of the reversible motor function, showing cold airflow in summer (downdraft) and better airflow in winter (updraft).
6. Maintenance
- Cleaning: To clean the fan, wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
- Bulb Replacement: When replacing bulbs, ensure the power is off. Use E26 base LED filament bulbs, 4 Watts, 110 Volts, 2700K color temperature.
- Tighten Fasteners: Periodically check and tighten all fasteners to ensure safe operation.
7. Troubleshooting
- Fan Does Not Operate: Check if the power is on at the circuit breaker and wall switch. Ensure all wiring connections are secure. Verify remote control batteries are installed correctly and are not depleted.
- Lights Do Not Work: Check if the light button on the remote is pressed. Verify bulbs are screwed in tightly and are not burnt out. Ensure all wiring connections are secure.
- Remote Control Not Responding: Replace remote control batteries. Ensure there are no obstructions between the remote and the fan's receiver.
- Excessive Noise/Wobbling: Ensure all mounting screws are tight. Check that the fan blades are securely attached.
8. Warranty and Support
SHLUCE offers a 2-year warranty for this ceiling fan and a 30-day refund policy. We also provide free spare parts support.
If you encounter any lost, defective, or missing parts (e.g., remote control), please contact SHLUCE customer service through your Amazon orders for assistance.
