Auvoda S300 Portable Bluetooth Speaker Instruction Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Auvoda S300 Portable Bluetooth Speaker. Please read this guide thoroughly to ensure optimal performance and longevity of your device. The Auvoda S300 combines a portable Bluetooth speaker with 15W fast wireless charging, a 13-color dimmable night light, white noise functions, an alarm clock, and an FM radio.

What's in the Box

• Auvoda S300 Bluetooth Speaker
• Type-C Charging Cable
• Instruction Manual (this document)

Product Overview

Familiarize yourself with the various components and controls of your Auvoda S300 speaker.

Image: Front controls and rear ports of the Auvoda S300 speaker.

Controls and Ports:

• Power/Light Switch Button: Long press to turn on/off power. Short press to switch or turn off lights.
• Mode Button (M): Long press to switch between Bluetooth (BT), White Noise (NS), and FM Radio (FM) modes. When NS or FM is displayed, short press to switch between options using the '+' and '-' buttons.
• Play/Pause Button: Short press to play or pause audio.
• Previous Track/Volume Down (-): Short press for previous track. Long press to decrease volume. In conjunction with alarm clock, clock, white noise, FM radio settings, use to decrease values.
• Next Track/Volume Up (+): Short press for next track. Long press to increase volume. In conjunction with alarm clock, clock, white noise, FM radio settings, use to increase values.
• Timer/Bluetooth Pairing Button: Short press to set timer (15/30/60 seconds). Long press to pair Bluetooth devices.
• Alarm Settings Button: Long press until the alarm symbol flashes to enter alarm setting mode. Short press to make it flash, and use '+' and '-' to set the time.
• Clock Settings Button: Long press to switch between 12-hour and 24-hour modes. Short press to make it flash, and use '+' and '-' to set the time.
• DC5V Port: For Type-C charging cable.
• TF Card Slot: For TF card playback.
• USB Port: For USB playback.
• AUX Port: For 3.5mm audio input.
• Wireless Charging Pad: Located on top surface for Qi-enabled devices.

Setup

1. Charging the Device

Before first use, fully charge the Auvoda S300 using the provided Type-C charging cable. Connect the cable to the DC5V port on the back of the speaker and plug the other end into a compatible USB power adapter (not included). The device supports up to 6 hours of battery life.

2. Power On/Off

Long press the Power/Light Switch button to turn the speaker on or off.

3. Bluetooth Pairing

1. Turn on the Auvoda S300 speaker.
2. Long press the Mode button (M) until 'BT' appears on the display, indicating Bluetooth mode.
3. On your mobile device, enable Bluetooth and search for 'Auvoda S300'.
4. Select 'Auvoda S300' to pair. A confirmation sound will indicate successful pairing.

4. TWS (True Wireless Stereo) Pairing

To achieve expansive stereo sound, you can pair two identical Auvoda S300 speakers:

1. Ensure both Auvoda S300 speakers are powered on and in Bluetooth mode.
2. On one of the speakers, long press the Timer/Bluetooth Pairing button. It will enter TWS pairing mode.
3. The two speakers will automatically connect to each other. A confirmation sound will indicate successful TWS pairing.
4. Connect your mobile device to one of the paired speakers via Bluetooth as described above. Audio will now play in stereo across both speakers.

5. Setting the Clock

1. Long press the Clock Settings button to switch between 12-hour and 24-hour modes.
2. Short press the Clock Settings button to make the hour display flash. Use the '+' and '-' buttons to adjust the hour.
3. Short press the Clock Settings button again to make the minute display flash. Use the '+' and '-' buttons to adjust the minutes.
4. Short press the Clock Settings button one more time to confirm and exit clock setting mode.

6. Setting the Alarm

1. Long press the Alarm Settings button until the alarm symbol flashes on the display.
2. Short press the Alarm Settings button to make the hour display flash. Use the '+' and '-' buttons to adjust the alarm hour.
3. Short press the Alarm Settings button again to make the minute display flash. Use the '+' and '-' buttons to adjust the alarm minutes.
4. Short press the Alarm Settings button one more time to confirm and exit alarm setting mode.
5. To activate or deactivate the alarm, short press the Alarm Settings button when the alarm symbol is not flashing.

Operating Instructions

1. Bluetooth Audio Playback

Once paired, you can stream audio from your device to the Auvoda S300. Use the Play/Pause button to control playback, and the '+' and '-' buttons for volume adjustment or track navigation.

2. Night Light Function

The Auvoda S300 features a 13-color dimmable night light.

Image: The Auvoda S300 speaker showcasing its adjustable lighting modes.

• Switching Colors: Short press the Power/Light Switch button to cycle through the 13 available colors and lighting effects.
• Turning Off Lights: Continue short pressing the Power/Light Switch button until the lights turn off.

3. White Noise Function

The speaker includes 7 soothing white noise sounds for relaxation or sleep.

Image: The Auvoda S300 speaker illustrating its selection of white noise sounds.

1. Long press the Mode button (M) until 'NS' appears on the display, indicating White Noise mode.
2. Use the '+' and '-' buttons to cycle through the 7 available white noise sounds (e.g., Ocean waves, Rain, Forest).
3. Adjust the volume using the '+' and '-' buttons (long press).

4. FM Radio Function

Listen to your favorite FM radio stations.

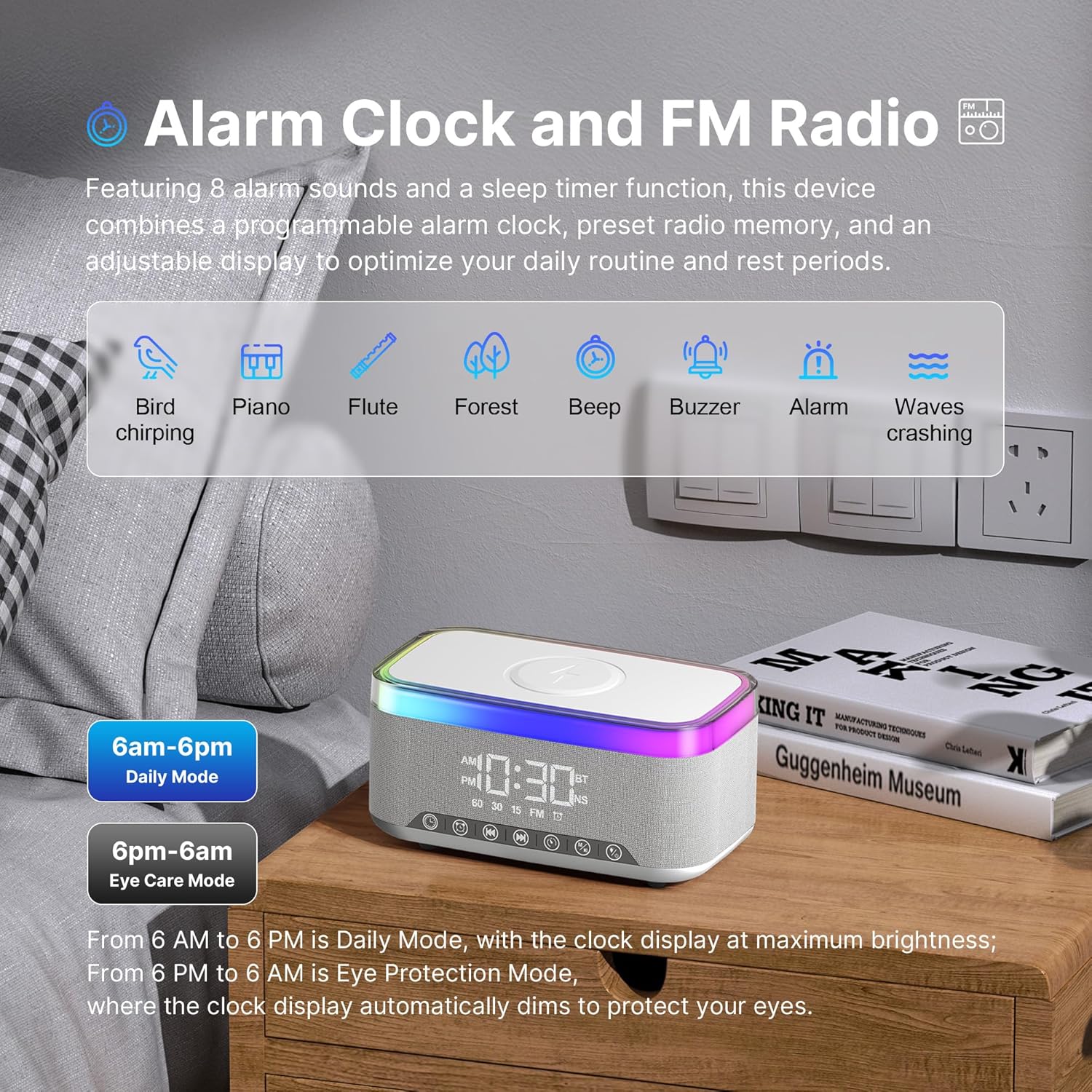

Image: The Auvoda S300 speaker highlighting its alarm clock and FM radio functionalities.

1. Long press the Mode button (M) until 'FM' appears on the display, indicating FM Radio mode.
2. Use the '+' and '-' buttons to tune to different FM frequencies.
3. Adjust the volume using the '+' and '-' buttons (long press).

5. Wireless Charging

The Auvoda S300 features a 15W fast wireless charging pad for Qi-enabled devices.

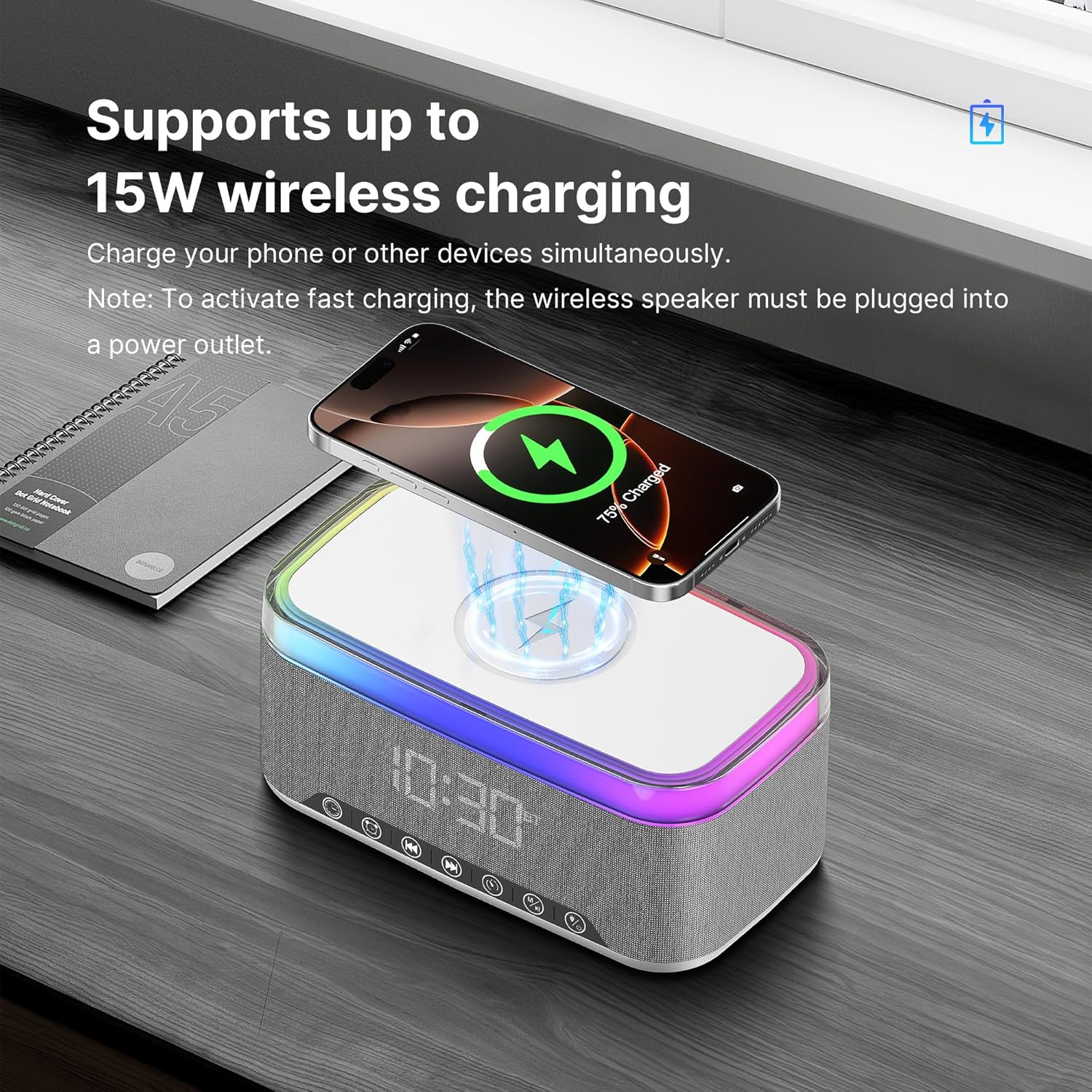

Image: A smartphone being wirelessly charged on the Auvoda S300 speaker.

• Place your Qi-enabled device on the wireless charging pad located on the top surface of the speaker.
• Ensure the speaker is plugged into a power outlet to activate fast wireless charging.
• The charging indicator on your device will confirm charging has begun.

6. AUX, TF Card, and USB Playback

The speaker supports audio playback via AUX input, TF card, and USB drive.

• AUX Input: Connect an audio device using a 3.5mm AUX cable to the AUX port. The speaker will automatically switch to AUX mode.
• TF Card/USB Playback: Insert a TF card into the TF card slot or a USB drive into the USB port. The speaker will automatically detect and play audio files. Use the '+' and '-' buttons for track navigation and volume control.

7. Video Demonstration

Watch this video for a visual guide on operating the Auvoda S300 Multi-function Bluetooth Speaker.

Video: A demonstration of the Auvoda S300 Multi-function Bluetooth Speaker's features, including power on, volume adjustment, light switching, FM radio, white noise, alarm clock, and wireless charging.

Maintenance

• Clean the speaker with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Keep the device away from extreme temperatures, direct sunlight, and moisture. The device is IPX3 splash-resistant, but not waterproof.
• Avoid dropping the speaker or subjecting it to strong impacts.
• Store in a cool, dry place when not in use for extended periods.

Troubleshooting

No Power / Device Not Turning On

• Ensure the device is fully charged or connected to a power source.
• Verify the power cable is securely connected to both the speaker and the power outlet.

Bluetooth Pairing Issues

• Make sure the speaker is in Bluetooth pairing mode ('BT' displayed).
• Ensure your mobile device's Bluetooth is enabled and within range (up to 10 meters).
• Forget 'Auvoda S300' from your device's Bluetooth list and try pairing again.
• Restart both the speaker and your mobile device.

Poor Audio Quality

• Ensure the speaker and your audio source are within Bluetooth range and there are no obstructions.
• Check the volume levels on both the speaker and your connected device.
• If using AUX, TF card, or USB, ensure the cable/card/drive is properly inserted and functional.

Wireless Charging Not Working

• Ensure the speaker is plugged into a power outlet (wireless charging does not work on battery power alone).
• Verify your device is Qi-enabled and properly centered on the charging pad.
• Remove any thick phone cases that might interfere with wireless charging.

Alarm Not Sounding

• Confirm the alarm time is set correctly and the alarm is activated (alarm symbol visible on display).
• Check the speaker's volume level.

Specifications

Warranty and Support

The Auvoda S300 Portable Bluetooth Speaker comes with a limited warranty. For specific warranty terms, duration, and support inquiries, please refer to the warranty card included with your product or contact Auvoda customer service directly. Contact information can typically be found on the manufacturer's official website or product packaging.
