busyaeh Full Size Low Loft Bed with Desk and 9 Drawers

Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your busyaeh Full Size Low Loft Bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Ensure all components are present and undamaged before proceeding.

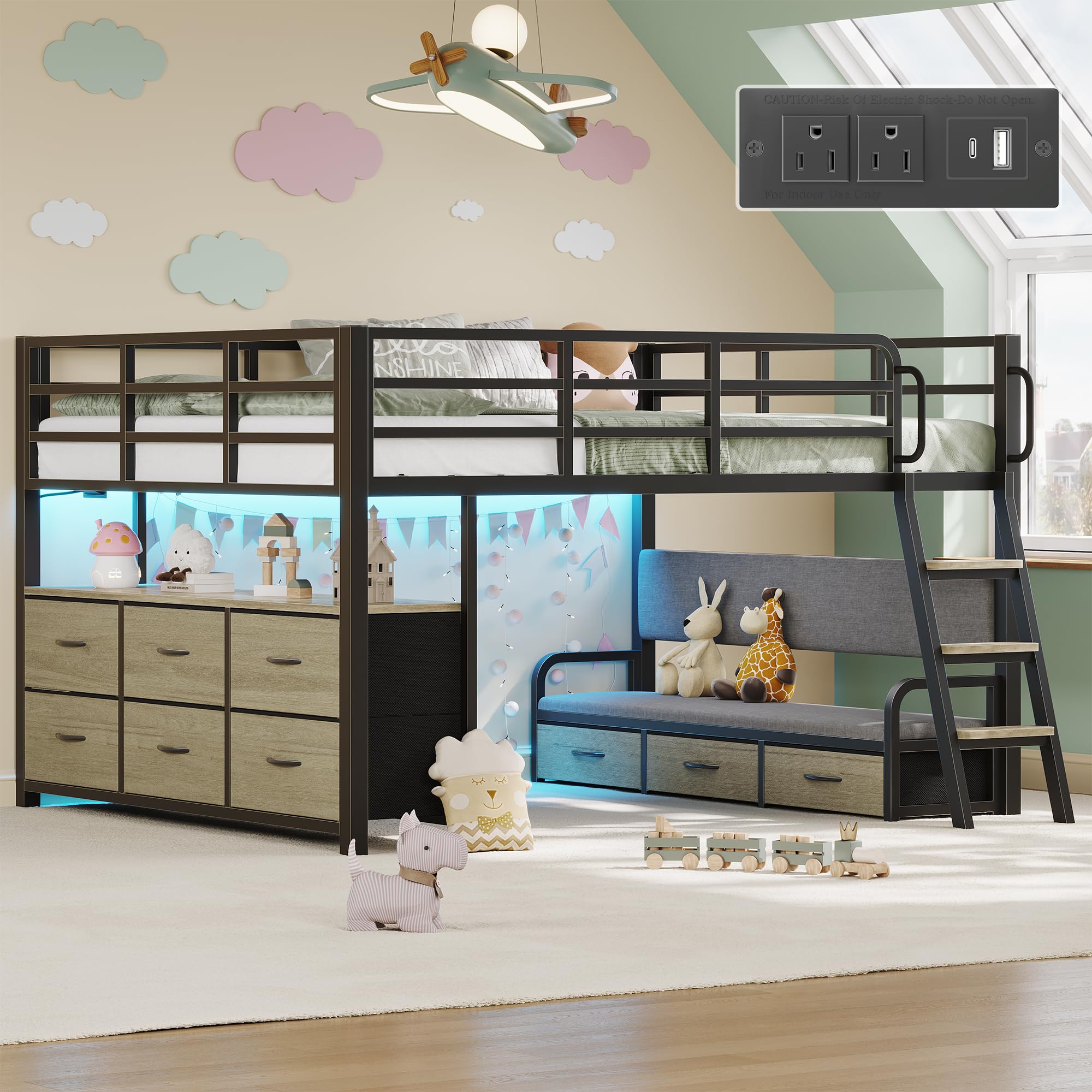

Figure 1: busyaeh Full Size Low Loft Bed (Oak Gray)

Safety Information

Your safety is paramount. Adhere to the following guidelines to prevent injury or damage:

• Weight Capacity: Do not exceed the maximum weight capacity of 400 lbs for the bed frame.
• Guardrail Height: The bed features a 15.8-inch high guardrail. Ensure the mattress thickness allows for adequate guardrail height above the mattress surface to prevent falls. Recommended mattress thickness is 4-8 inches.
• Anti-Tipping Device: Always install the provided anti-tipping device to secure the bed to the wall. This prevents accidental tipping.
• Ladder Safety: Use the ladder for climbing only. Ensure safety handrails are securely attached and stair treads are clean and dry before use.
• Assembly: Assembly should ideally be performed by two adults. Follow all steps precisely.
• Regular Inspection: Periodically check all bolts, screws, and connections to ensure they are tight and secure.

Figure 2: Safety Features - Guardrail, Handrails, and Wide Treads

Figure 3: Anti-Tipping Device Components

Package Contents

Before beginning assembly, unpack all components and verify that you have received all parts listed below. If any parts are missing or damaged, please contact customer support.

• Metal Bed Frame Components
• Desk Surface
• 9 Fabric Storage Drawers (6 large, 3 small)
• Inclined Ladder with Safety Handrails
• Linen-Upholstered Bench with Adjustable Backrest
• LED Lighting System (7.2ft strip)
• Charging Station (2 AC outlets, 1 USB, 1 Type-C)
• Anti-Tipping Device Kit
• Assembly Hardware (bolts, screws, tools)

Assembly Instructions (Setup)

Follow these steps carefully for proper assembly. It is recommended to have two people for this process.

1. Prepare the Area: Clear a spacious area for assembly. Lay out all parts and hardware, matching them to the provided parts list.
2. Assemble the Main Bed Frame: Connect the long and short metal beams to form the bed frame base. Ensure all connections are secure. The frame features a quick installation design with interlocking parts.
3. Attach Support Slats: Install the 13 sturdy steel pipes (slats) across the bed frame. These are designed for silent operation and stability.
4. Install Guardrails: Securely attach the 15.8-inch high guardrails to the bed frame.
5. Assemble Desk and Storage Units: Construct the desk surface and the frames for the 9 storage drawers. Position them under the loft bed as shown in the diagrams. Insert the fabric drawers into their respective compartments.
6. Attach Ladder and Bench: Secure the inclined ladder with its safety handrails to the designated side of the bed. Assemble the linen-upholstered bench and place it under the bed.
7. Install LED Lights and Charging Station: Adhere the 7.2ft LED strip along the underside of the loft bed. Mount the charging station (with 2 AC outlets, 1 USB, and 1 Type-C port) to the designated area, typically near the desk. Connect the power cables.
8. Secure Anti-Tipping Device: Attach the anti-tipping device to the bed frame and then to a wall stud using appropriate hardware. This is a critical safety step.
9. Final Check: Verify all bolts and screws are tightened. Ensure the bed is stable and level.

Figure 4: Overall Dimensions and Key Measurements

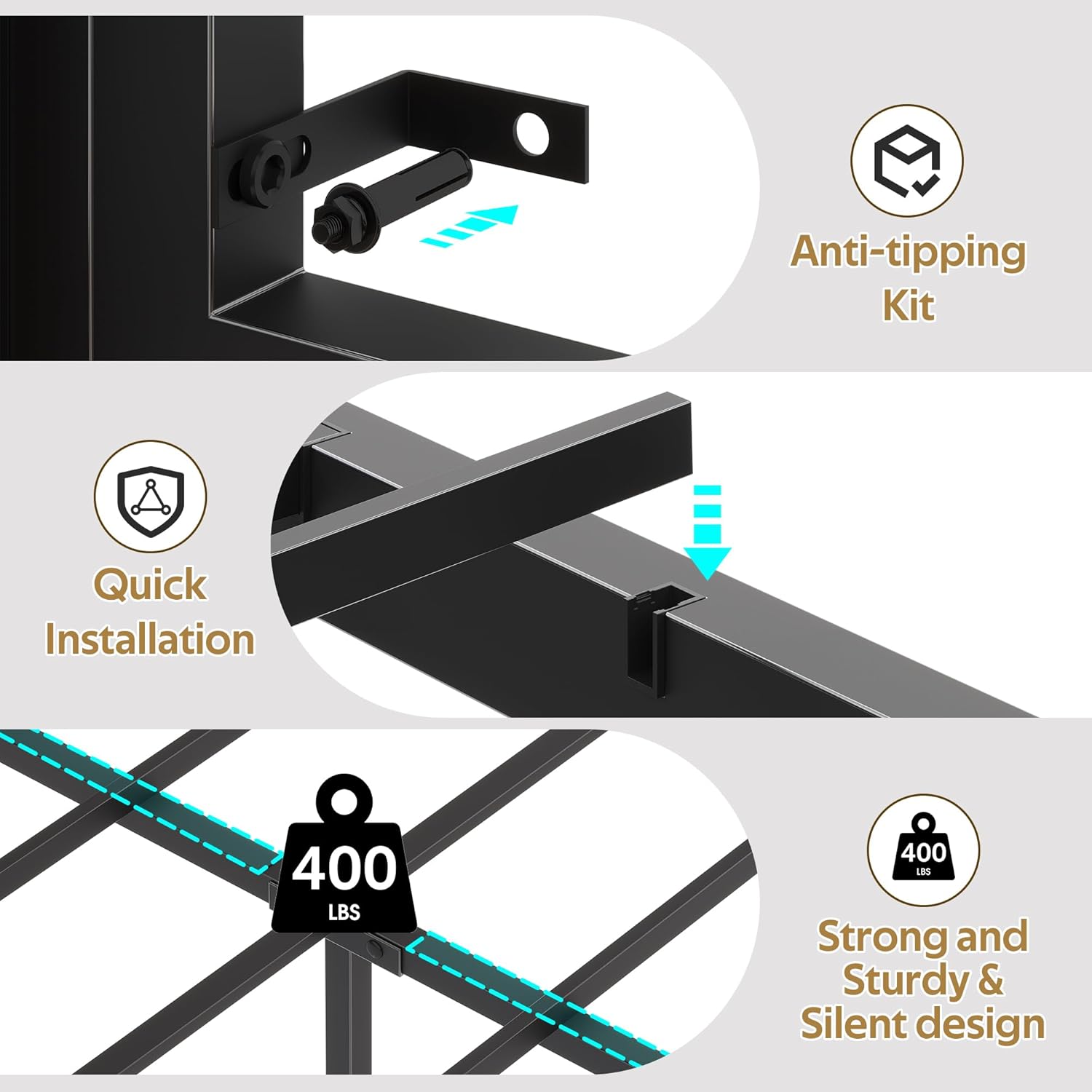

Figure 5: Frame Construction and Stability Features

Operating Instructions

LED Lighting System

The integrated LED lighting system offers over 60,000 colors and various modes, controllable via a smartphone application. Download the designated app (refer to the packaging or included leaflet for app name) to connect and customize your lighting experience. Features include music synchronization, timing functions, and microphone mode.

Figure 6: LED Lighting with App Control

Charging Station

The bed includes a convenient charging station with 2 standard AC outlets (125V/12A), 1 USB port (5V/2.1A), and 1 Type-C port (5V/2.1A). Plug the charging station's power cord into a wall outlet. Use the ports to charge electronic devices such as laptops, tablets, and smartphones.

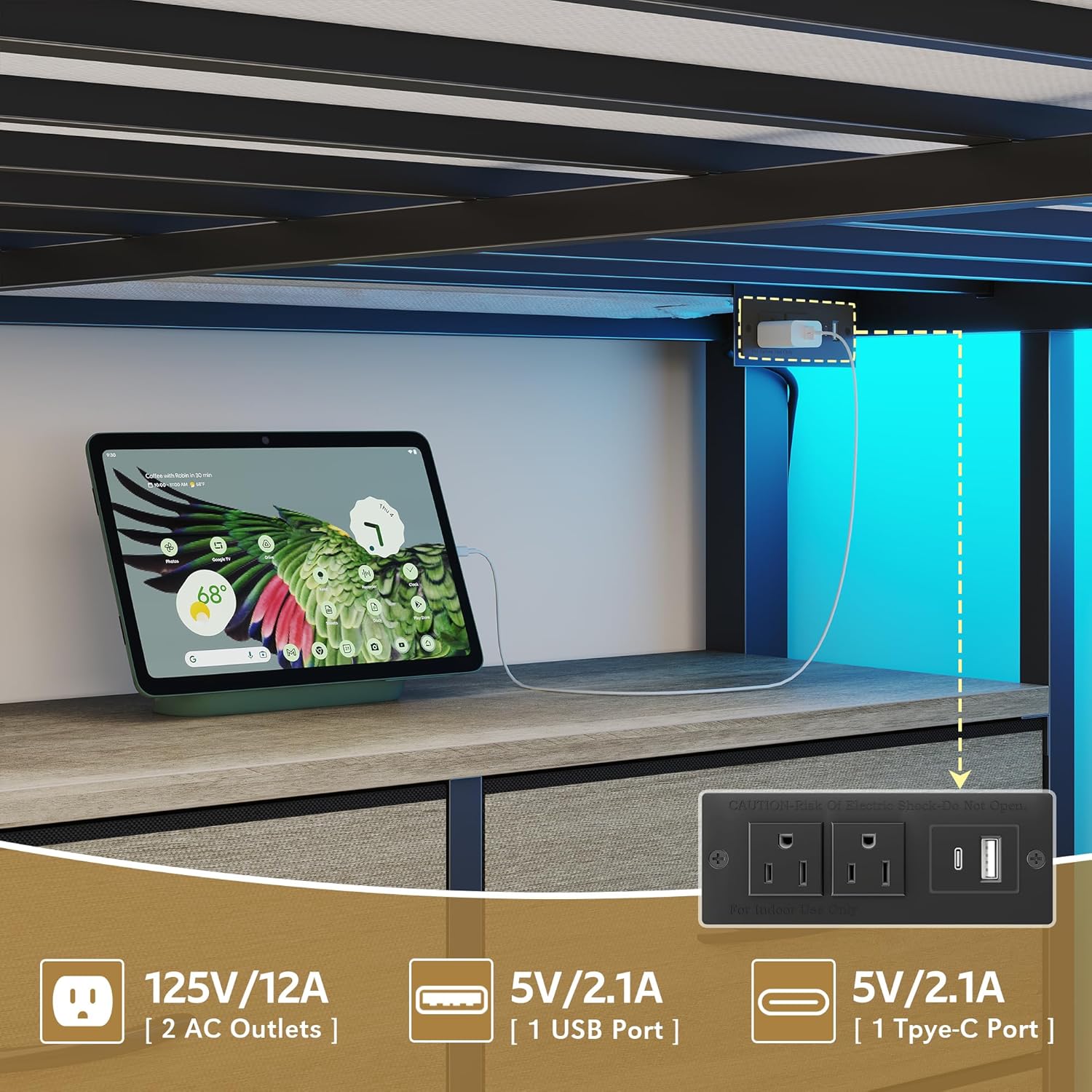

Figure 7: Integrated Charging Station

Storage Drawers

The bed features 9 deep fabric storage drawers (6 large, 3 small) for organizing toys, clothes, books, and other items. Simply pull the handles to open and push to close. Ensure drawers are not overloaded to maintain their shape and functionality.

Figure 8: Fabric Storage Drawers

Adjustable Bench Backrest

The linen-upholstered bench includes an adjustable backrest. Gently lift and pull the backrest to adjust its angle to a comfortable position for sitting or lounging. Ensure it clicks into place securely.

Figure 9: Adjustable Bench Backrest

Maintenance

Regular maintenance helps prolong the life and appearance of your loft bed.

• Cleaning: Wipe the metal frame and desk surfaces gently with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. For fabric drawers and the bench, spot clean with a mild detergent and allow to air dry.
• Hardware Check: Periodically (e.g., every 3 months) inspect all bolts, screws, and connections. Tighten any that have become loose.
• LED Lights: If LED lights dim or malfunction, check the power connection. If issues persist, contact customer support.
• Charging Station: Ensure the charging station is kept dry and free from dust. Do not attempt to disassemble or repair.

Troubleshooting

Specifications

Figure 10: Detailed Product Dimensions

Warranty and Support

For warranty information, missing parts, or any questions regarding your busyaeh Full Size Low Loft Bed, please refer to the warranty card included with your purchase or contact busyaeh customer support directly. Our team is committed to providing professional assistance and resolving any concerns within 24 hours.
