B-Tek 48-Piece Chrome Vanadium Socket and Bit Set

1. Product Overview

This B-Tek 48-piece socket and bit set is designed for various maintenance and repair tasks. It features high-quality Chrome Vanadium (CrV) steel construction for durability and resistance. The set includes a wide range of interchangeable bits and sockets, organized in a compact and robust carrying case, making it suitable for both domestic and professional use.

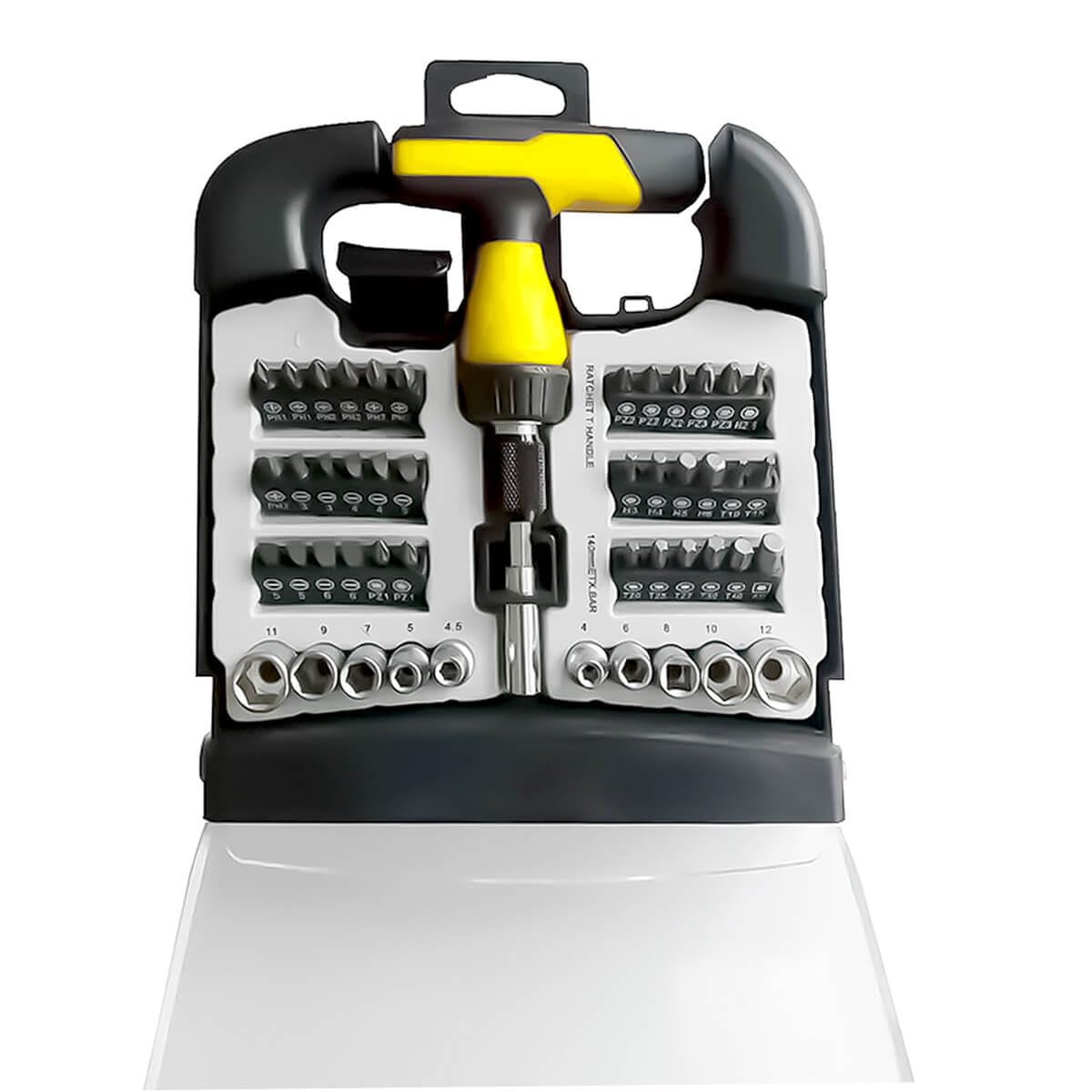

Image 1.1: The complete B-Tek 48-piece set, showcasing the T-handle driver, multiple bit types, and sockets within its organized storage case.

2. Product Components

The B-Tek 48-piece set includes the following components:

• Bits: A comprehensive selection of Phillips (PH1, PH2, PH3), Flat (SL3, SL4, SL5, SL6), Torx (TX10, TX15, TX20, TX25, TX27, TX30, TX40), Allen (2.5mm, 3mm, 4mm, 5mm, 6mm), and Pozidriv (PZ1, PZ2, PZ3) bits.
• Sockets: 10 sockets in common sizes: 4mm, 4.5mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm.
• T-Handle Ratchet Driver: An ergonomically designed T-shaped handle with a reversible ratchet mechanism for comfortable and efficient operation.
• Extension Bar: An adjustable extension bar, ranging from 40mm to 120mm, for improved reach in confined spaces.
• Storage Case: A durable plastic case (18 x 4 x 18 cm) in black and gray, designed to keep all components organized and secure for transport and storage.

Image 2.1: The T-handle driver alongside a selection of interchangeable bits, highlighting the variety of fastener types supported.

Image 2.2: The T-handle driver with an extension and several sockets, illustrating the socket component of the set.

3. Setup and Assembly

Follow these steps to prepare your B-Tek socket and bit set for use:

1. Unpacking: Open the storage case and carefully remove the T-handle driver, extension bar, and the required bit or socket.
2. Bit/Socket Selection: Choose the appropriate bit or socket that matches the fastener you intend to work with.
3. Attaching Bits/Sockets: Insert the selected bit or socket firmly into the 1/4" (6.3mm) hexagonal drive of the T-handle ratchet driver. Ensure it is fully seated and secure to prevent slippage during use.
4. Using the Extension Bar: If your task requires additional reach, first insert the extension bar into the T-handle driver, then attach the desired bit or socket to the end of the extension bar. The extension bar can be adjusted for length.

Image 3.1: The T-handle driver assembled with an extension bar and a bit, ready for use.

Image 3.2: Detailed view of the secure connection between the T-handle driver and the extension bar.

4. Operating Instructions

Using the T-Handle Ratchet Driver

The T-handle driver features a reversible ratchet mechanism for efficient fastening and loosening of screws and bolts.

• Direction Control: Locate the directional switch on the T-handle. Push the switch to the left for loosening (counter-clockwise rotation) or to the right for tightening (clockwise rotation). The center position locks the driver, allowing it to be used as a fixed screwdriver.
• Application: Place the bit or socket onto the fastener head. Apply firm, steady pressure to the T-handle while rotating. The ergonomic design provides a comfortable grip and allows for greater torque application compared to standard screwdrivers.

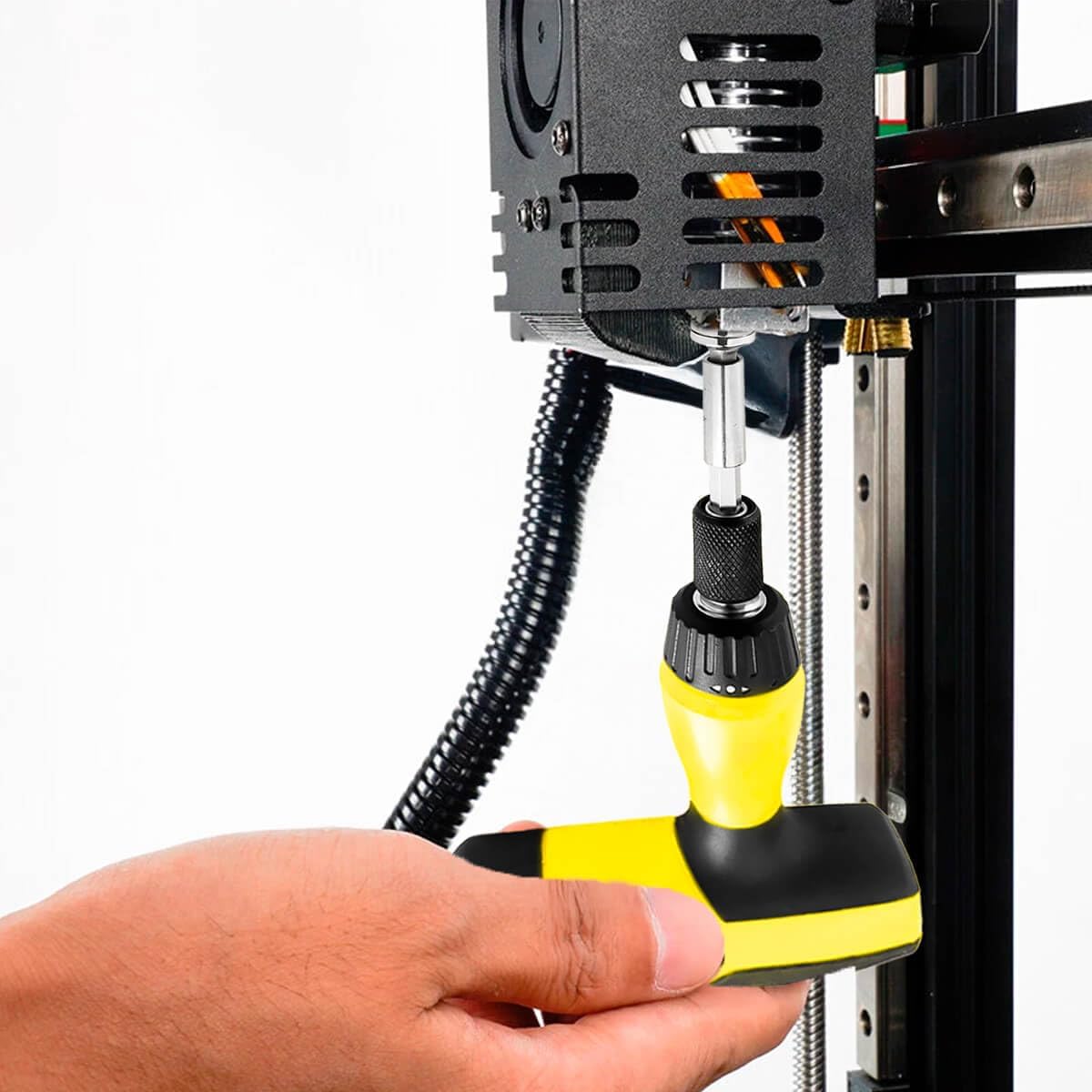

Image 4.1: The B-Tek T-handle ratchet driver in active use, fastening a component.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your B-Tek tool set:

• Cleaning: After each use, wipe down all bits, sockets, and the T-handle with a clean, dry cloth to remove any dirt, grease, or debris. Avoid using harsh chemicals that may damage the materials.
• Lubrication: Periodically apply a light coat of machine oil to the metal parts of the ratchet mechanism on the T-handle. This helps ensure smooth operation and prevents corrosion.
• Storage: Always store all components back in the provided plastic case. This protects the tools from physical damage, keeps them organized, and prevents loss. Store the case in a dry environment to avoid rust and corrosion.
• Inspection: Regularly inspect bits and sockets for signs of wear, damage, or corrosion. Replace any components that show significant wear or damage to ensure safe and effective use.

Image 5.1: The B-Tek tool set stored correctly in its case, emphasizing organization and protection.

6. Troubleshooting

Bit/Socket Slipping:

Ensure the correct size bit or socket is used for the fastener. Verify that the bit or socket is fully inserted and securely seated in the driver's hexagonal drive. Avoid using worn or damaged bits/sockets.

Difficulty Turning:

Check if the ratchet direction switch is set correctly for tightening or loosening. Ensure the fastener is not stripped, seized, or cross-threaded. Apply appropriate force without over-straining the tool.

Corrosion on Tools:

Clean and dry tools thoroughly after each use, especially if exposed to moisture. Store the set in a dry environment. Apply a light oil coating to metal components for added protection against rust.

7. Specifications

8. Warranty and Support

Specific warranty information for this B-Tek 48-Piece Chrome Vanadium Socket and Bit Set is not provided in the available product data. For details regarding warranty coverage, claims, or technical support, please contact the retailer where the product was purchased or the manufacturer directly.

It is recommended to retain your purchase receipt or proof of purchase for any warranty-related inquiries.
