1. Introduction
This manual provides essential information for the proper use, installation, and maintenance of your Mesqool Bed Shaker Replacement Vibrator. Please read these instructions carefully before use to ensure optimal performance and longevity of the product. This vibrator is designed exclusively for specific Mesqool vibrating alarm clock models.
2. Product Overview
The Mesqool Bed Shaker Replacement Vibrator is a dedicated accessory designed to provide a strong vibration alert for compatible Mesqool alarm clocks. It is intended to be placed under a pillow or mattress to wake users through tactile sensation.

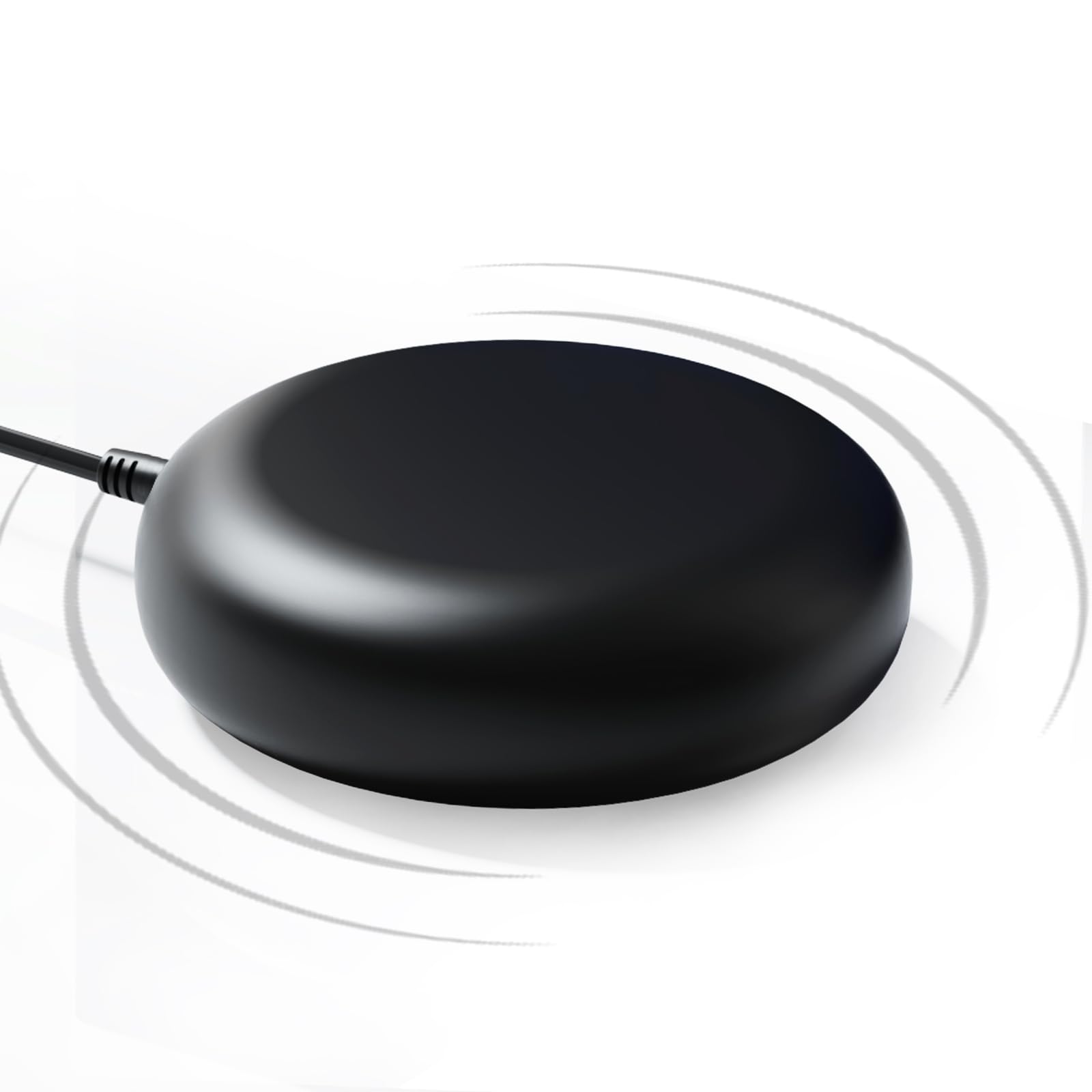

Image 1: Mesqool Bed Shaker Replacement Vibrator. This image shows the compact, black, disc-shaped vibrator with its attached power cable.
Key Features:
- Dedicated Replacement: Specifically designed for Mesqool vibrating alarm clocks.
- Standard Interface: Equipped with a 3.5mm x 1.35mm DC Power Jack for connection.
- Generous Cable Length: Features a 1.8-meter (71-inch) cable for flexible placement.
- Input: Operates on 5V DC power.
3. Compatibility
This bed shaker is only compatible with the following Mesqool vibrating alarm clock models:
- CR1001i
- CR1001EM
- CR1001EM PRO
- CR1028EM
- CR1008i
Important: This is not a universal part. Before ordering or attempting to connect, please verify your alarm clock's model number. The model number is typically located on the back of your alarm clock device or within its original instruction manual.
Image 2: Example of a Mesqool alarm clock connected to a bed shaker. This image illustrates how the bed shaker connects to a compatible alarm clock, which also features a projection display.
4. Setup Instructions
- Identify the Port: Locate the dedicated vibrator port on your compatible Mesqool alarm clock. This port is typically labeled or indicated in your alarm clock's manual. It is a 3.5mm x 1.35mm DC Power Jack.
- Connect the Vibrator: Insert the plug of the bed shaker replacement vibrator firmly into the vibrator port on your alarm clock. Ensure a secure connection.
- Position the Vibrator: Place the bed shaker under your pillow or between your mattress and box spring. For optimal vibration, ensure it is on a flat surface and not obstructed.
- Test Functionality: Refer to your Mesqool alarm clock's instruction manual to set an alarm with the vibration function enabled. Confirm that the bed shaker vibrates when the alarm activates.
5. Operating Instructions
The Mesqool Bed Shaker Replacement Vibrator operates in conjunction with your compatible Mesqool alarm clock. Its function is entirely controlled by the alarm clock's settings.
- Alarm Activation: When an alarm is set on your Mesqool alarm clock with the vibration feature enabled, the bed shaker will activate simultaneously with or instead of the audible alarm, depending on your alarm clock's settings.
- Vibration Intensity: The vibration intensity is predetermined by the bed shaker's design and cannot be adjusted independently. Any adjustments to alarm duration or mode (e.g., vibrate only, sound only, or both) are made through your alarm clock's controls.
- Power Source: The bed shaker draws power directly from the connected alarm clock. Ensure your alarm clock is properly powered for the vibrator to function.
6. Maintenance
To ensure the longevity and proper functioning of your Mesqool Bed Shaker Replacement Vibrator, follow these simple maintenance guidelines:
- Cleaning: Wipe the surface of the bed shaker with a soft, dry cloth. Do not use liquid cleaners, abrasive materials, or chemical solvents, as these can damage the device.
- Storage: When not in use, store the bed shaker in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid kinking or sharply bending the cable.
- Handling: Handle the bed shaker and its cable with care. Avoid dropping the device or pulling on the cable forcefully, as this can damage internal components or the connector.
- Moisture: Keep the bed shaker away from water and high humidity. It is not waterproof.
7. Troubleshooting
If you experience issues with your Mesqool Bed Shaker Replacement Vibrator, please refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed shaker does not vibrate. |
|
|
| Vibration is weak or inconsistent. |
|
|
If these steps do not resolve the issue, please refer to the support information provided in your original Mesqool alarm clock manual or contact Mesqool customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Mesqool |
| Model Number | W1004 |
| Interface | 3.5mm x 1.35mm DC Power Jack |
| Cable Length | 1.8 meters (71 inches) |
| Input Voltage | 5V DC |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Dimensions (W x H) | 3.94" x 1.22" (approximately) |
| Color | Black |
9. Warranty and Support
For warranty information and customer support regarding your Mesqool Bed Shaker Replacement Vibrator, please refer to the documentation included with your original Mesqool alarm clock or visit the official Mesqool website. You may also contact Mesqool customer service directly for assistance with product-related inquiries or technical support.
Mesqool Official Website: Mesqool Store on Amazon
