1. Introduction
Thank you for purchasing the YARD FORCE 3m Cordless Electric Pole Saw LSC21P-JP. This powerful and lightweight tool is designed for efficient and safe pruning of high branches. Please read this manual thoroughly before use to ensure proper operation and maintenance.
2. Safety Instructions
Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or property damage.
- Wear Protective Gear: Always wear the provided safety goggles and cut-resistant gloves.
- Secure Grip: Use the shoulder belt for better control and reduced fatigue.
- Prevent Accidental Operation: The unit is equipped with a double safety switch (W-switch) to prevent unintended starts. Ensure both switches are engaged for operation.
- Clear Work Area: Ensure the area around you is clear of bystanders, pets, and obstacles.
- Inspect Before Use: Check the chain tension and overall condition of the saw before each use.
- Avoid Overreaching: Maintain a stable stance and do not overextend your reach.
3. Package Contents
Verify that all items are present in your package:
- Main Unit (Pole Saw)
- Japanese-made Branch Cutting Blade (x1)
- 24V Lithium-ion Battery (with remaining charge indicator)
- Battery Charger
- Safety Goggles
- Shoulder Belt
- PROSTAR Special Accessory: Fuji Glove BD-508 Cut-Resistant Gloves (European CE Standard Level E)

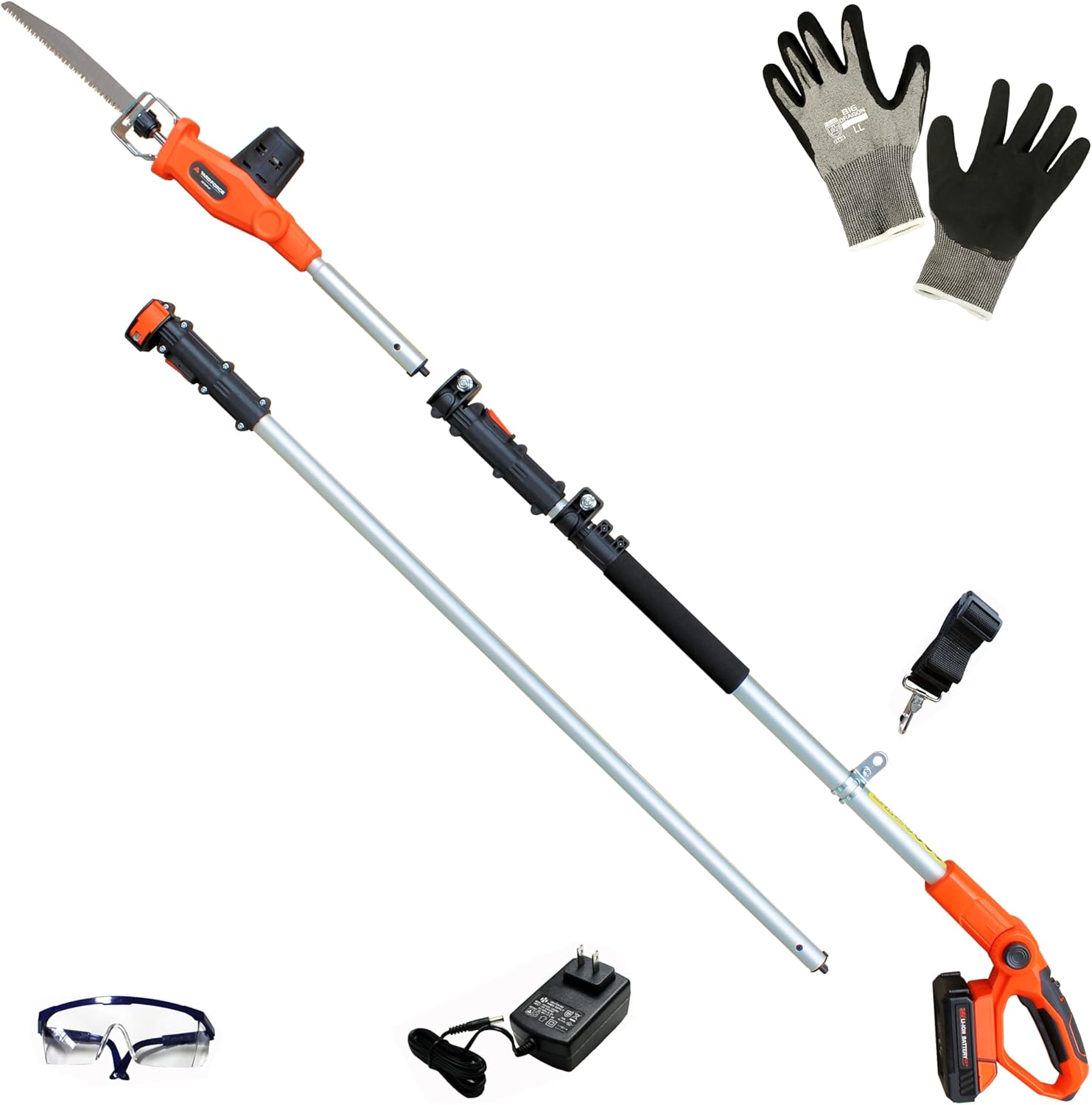

Figure 3.1: YARD FORCE 3m Cordless Electric Pole Saw with all included accessories.
Figure 3.2: Detailed view of the pole saw components, including the main unit, battery, charger, blade, goggles, and shoulder belt.
4. Assembly
The YARD FORCE pole saw requires some assembly before first use. Follow these steps:
- Attach the Extension Pole: Connect the saw head unit to the extension pole. Ensure it clicks securely into place.
- Adjust Length: The pole is infinitely adjustable in length. Without the extension pole, the length is approximately 162-209 cm. With the extension pole, it can be adjusted from approximately 258-305 cm.
- Install Battery: Insert the 24V lithium-ion battery into the designated slot on the handle until it locks.
Figure 4.1: Assembling the pole saw by connecting the head unit to the extension pole.
Figure 4.2: Close-up of the secure connection points for the pole saw assembly.
5. Setup
5.1 Battery Charging
The 24V lithium-ion battery provides power for the pole saw. A full charge takes approximately 80 minutes and allows for up to 35 minutes of continuous operation (no-load). The battery features a remaining charge indicator.
5.2 Chain Installation and Adjustment
Proper chain installation and tension are crucial for safe and effective cutting. Refer to the following video for a visual guide on chain replacement and adjustment. Ensure the chain is oriented correctly.
Video 5.1: This video demonstrates the chain replacement procedure for a high branch electric chainsaw. Follow these steps carefully for your YARD FORCE pole saw.
Figure 5.1: Adjusting the chain tension using the integrated dial.
Figure 5.2: The high-quality Japanese-made branch cutting blade.
6. Operating Instructions
The YARD FORCE pole saw is designed for ease of use and effective pruning.
- Cutting Capacity: The saw can cut branches up to 15 cm in diameter. It features a 20mm stroke length and 0-2700 strokes per minute for efficient cutting.
- Adjusting Operating Angle: The operating handle can be adjusted to 3 different angles for optimal comfort and reach.
- Using the Extension Pole: Extend the pole to reach high branches. Always ensure the pole is securely locked at the desired length before cutting.
Figure 6.1: Demonstrating the use of the pole saw for high branch pruning.
Figure 6.2: The extended pole saw allows for easy access to elevated branches.
Video 6.1: This video illustrates the proper usage and operability of the YARDFORCE High Branch Electric Chainsaw Vmax, showcasing its features in action.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your pole saw.
- Chain Lubrication: Apply chain oil regularly to the chain and guide bar to reduce friction and wear.
- Cleaning: After each use, clean the saw head, blade, and pole to remove sawdust, sap, and debris. Use a dry cloth or soft brush.
- Storage: When not in use, store the pole saw in a dry, secure location, out of reach of children. The assembly allows for compact storage.
Figure 7.1: The included PROSTAR cut-resistant gloves provide essential hand protection during operation and maintenance.
8. Troubleshooting
If you encounter issues with your YARD FORCE pole saw, consider the following common solutions:
- Saw Not Starting: Ensure the battery is fully charged and properly inserted. Check that both safety switches are engaged.
- Poor Cutting Performance: Verify the chain tension is correct. The chain may need sharpening or replacement. Ensure the blade is clean.
- Unusual Noise/Vibration: Stop operation immediately. Check for loose parts, chain damage, or obstructions. Consult a qualified technician if the issue persists.
9. Specifications
| Brand | Yard Force |
| Model Number | LSC21P-JP |
| Dimensions (approx.) | Depth 9cm x Length 162-305cm x Height 15cm |
| Weight (approx.) | Main unit 2.2kg, Battery 0.4kg |
| Materials | Resin, Aluminum, Steel |
| Power Source | 24V Lithium-ion Battery (with remaining charge indicator) |
| Voltage | 24 Volts |
| Blade Length | 21 cm |
| Battery Type | Lithium-ion |
| Charging Time (approx.) | 80 minutes (rapid full charge) |
| Continuous Operation Time (no-load) | 35 minutes |
| Max. Cutting Diameter | 15 cm |
| Stroke Length | 20 mm |
| Strokes Per Minute | 0-2700 |
10. Warranty and Support
The main unit of the YARD FORCE 3m Cordless Electric Pole Saw LSC21P-JP comes with a 1-year warranty from the date of purchase. Please retain your purchase receipt as proof of purchase for warranty claims.
For technical support, spare parts, or warranty service, please contact your retailer or the official YARD FORCE customer service. Contact details can typically be found on the product packaging or the official brand website.
