NARVI MORAIRA 7285 WH

NARVI Moraira Ceiling Fan with Remote Control and LED Light User Manual

Model: MORAIRA 7285 WH

Introduction

Thank you for choosing the NARVI Moraira Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before installation and keep them for future reference.

Safety Instructions

  • Ensure the main power supply is disconnected before installation or maintenance.
  • Installation must be performed by a qualified electrician in accordance with local wiring regulations.
  • The mounting structure must be capable of supporting the fan's weight (approximately 5.9 kg).
  • Do not connect the fan to a dimmer switch.
  • Ensure blades are at least 2.3 meters (7.5 feet) from the floor and 0.5 meters (1.6 feet) from any wall or obstruction.
  • This fan is designed for indoor use only.
  • Do not insert objects into the path of the blades while the fan is operating.

Package Contents

Verify that all components are present and undamaged before beginning installation.

  • Ceiling Fan Motor Housing with Integrated LED Light
  • 3 Retractable Fan Blades
  • Mounting Bracket
  • Downrod (includes 10cm and 20cm options)
  • Canopy
  • Remote Control
  • Hardware Pack (screws, washers, wire nuts)
  • Instruction Manual

Setup (Installation)

Follow these steps for proper installation. Professional installation is recommended.

  1. Turn Off Power: Before starting, ensure the power to the ceiling fan circuit is turned off at the main electrical panel.
  2. Mounting Bracket Installation: Secure the mounting bracket to the ceiling junction box. Ensure the bracket is firmly attached and can support the fan's weight.
  3. Downrod Assembly: Choose the desired downrod length (10cm or 20cm). Feed the electrical wires from the fan motor through the downrod. Attach the downrod to the fan motor housing.
  4. Hanging the Fan: Carefully lift the fan assembly and hang it onto the mounting bracket hook. This will free your hands for wiring.
  5. Wiring Connections: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full manual. Ensure all connections are secure and insulated with wire nuts.
  6. Securing the Fan: Once wiring is complete, carefully lift the fan off the hook and secure it to the mounting bracket using the provided screws. Ensure all connections are tight.
  7. Canopy Installation: Slide the canopy up to the ceiling and secure it to cover the wiring and mounting bracket.
  8. Blade Attachment: The fan features retractable blades that are integrated into the design. No separate blade attachment is required.
Technical diagram showing dimensions of the NARVI Moraira Ceiling Fan, including 107cm diameter, 50cm light diameter, and 42cm total height.
Figure 1: Fan Dimensions. Total diameter 107cm, light diameter 50cm, total height 42cm (with 20cm downrod).
NARVI Moraira Ceiling Fan features: IP20 protection, suitable for sloped ceilings, max 20m² rooms, dual downrod lengths (10cm & 20cm), and adjustable light intensity.
Figure 2: Installation features including IP20 protection, suitability for sloped ceilings, recommended room size (max 20m²), and adjustable downrod options.

Operating Instructions

Your NARVI Moraira Ceiling Fan is operated using the included remote control.

NARVI Moraira Ceiling Fan remote control features, including 6 speeds, retractable blades, memory function, and timer.
Figure 3: Remote control functions for fan speed, light, timer, and memory.

Remote Control Functions:

  • Power On/Off: Press the power button to turn the fan and light on or off.
  • Fan Speed: Use the speed buttons (1-6) to adjust the fan's rotation speed. There are 6 available speeds.
  • Light Control:
    • Press the light button to turn the LED light on or off.
    • Adjust the light intensity and color temperature (3000K-6500K) using the dedicated buttons on the remote.
  • Winter/Summer Function: Press the dedicated button to switch between modes.
    • Summer Mode: Blades rotate counter-clockwise, creating a downward airflow for a cooling effect.
    • Winter Mode: Blades rotate clockwise, creating an upward airflow to circulate warm air trapped near the ceiling.
  • Timer Function: Set the fan to turn off automatically after 2, 4, or 8 hours using the timer buttons.
  • Memory Function: The fan remembers the last light setting (intensity and color temperature) when turned off via the remote control. If turned off via a wall switch, the memory may reset.

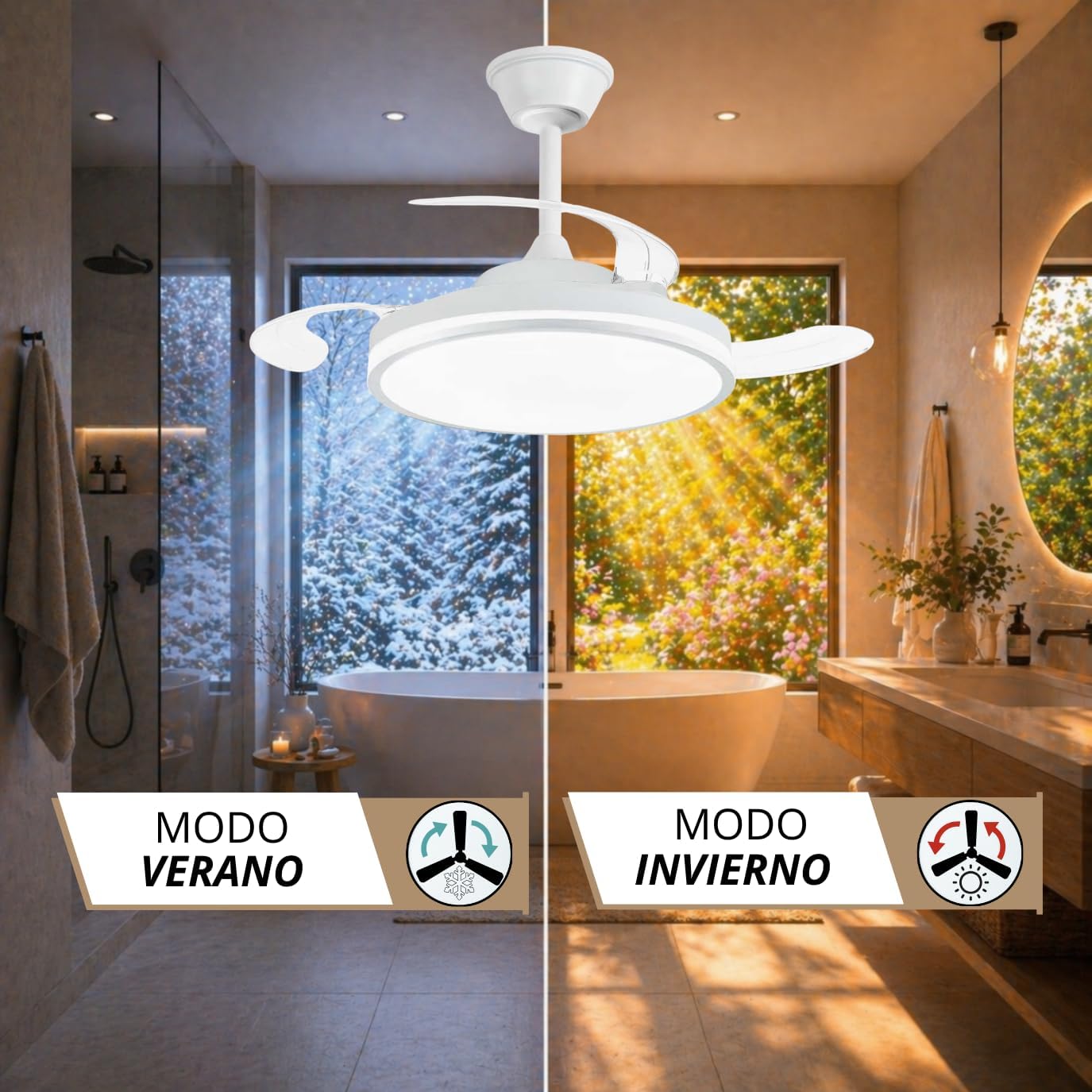

Illustration of NARVI Moraira Ceiling Fan's Winter and Summer modes.
Figure 4: Visual representation of Winter and Summer operating modes.

Maintenance

Regular maintenance ensures optimal performance and longevity of your ceiling fan.

  • Cleaning: Always turn off the power before cleaning. Use a soft, damp cloth to wipe down the fan housing and blades. Do not use abrasive cleaners or solvents.
  • Blade Balance: If the fan wobbles, check that all blade screws are tight. Minor wobbling is normal, but excessive movement may indicate an imbalance.
  • Light Source: The integrated LED light source is designed for long life. If replacement is needed, contact a qualified technician or NARVI support.
  • Remote Control: Replace batteries in the remote control when its range decreases or it stops responding.

Troubleshooting

If you encounter issues, refer to the following common problems and solutions.

Problem Possible Cause Solution
Fan does not start No power supply; Loose wiring; Remote control battery dead. Check circuit breaker; Verify wiring connections; Replace remote control battery.
Light does not work No power supply; Loose wiring; LED module failure. Check power; Verify wiring; Contact NARVI support for LED module replacement.
Fan wobbles excessively Loose mounting screws; Unbalanced blades. Ensure mounting bracket and fan body screws are tight; Check for any obstructions.
Remote control not working Dead battery; Obstruction between remote and receiver; Remote not paired. Replace battery; Ensure clear line of sight; Refer to pairing instructions (if applicable, usually automatic).
Fan makes noise Loose screws; Motor hum; Blades hitting an obstruction. Tighten all screws; Ensure no wires are rubbing; Check for obstructions. A slight motor hum is normal for DC motors.

Specifications

Feature Detail
Brand NARVI
Model Name MORAIRA
Model Number MORAIRA 7285 WH
Color White Moraira
Electric Fan Design Ceiling Fan
Power Source Electric Cable
Style Minimalist
Product Dimensions (Diameter x Height) 107 cm x 42 cm (with 20cm downrod)
Recommended Room Type Dining Room (suitable for various living spaces)
Special Feature Adjustable Height (via downrod options)
Recommended Use Ventilation
Mounting Type Ceiling Mount
Number of Speeds 6
Total Power 60 Watts (DC Motor: 27W, LED Light: 30W)
Number of Blades 3 (Retractable)
Voltage 180 Volts
Indoor/Outdoor Use Indoor
Efficiency Rating F
Motor Type DC Motor
Material Polycarbonate
Downrod Length Options 10 cm, 20 cm
Light Diameter 50 cm
Item Weight 5.9 Kilograms
Country of Origin Spain
NARVI Moraira Ceiling Fan with LED light and DC motor, highlighting total power.
Figure 5: Fan power components. Note: Actual LED power is 30W and motor power is 27W, totaling 57W, while the product specification states 60W total power.

Warranty and Support

For warranty information, technical support, or replacement parts, please contact NARVI customer service. Keep your purchase receipt as proof of purchase.

Manufacturer: NARVI

Please visit the official NARVI website or your retailer's support page for contact details.
