1. Introduction
Thank you for choosing the FLEXISPOT All-in-One Adjustable Bed Frame. This product combines a bed frame and an adjustable base into a single, minimalist unit, designed for enhanced comfort and relaxation. This manual provides essential information for safe setup, operation, and maintenance of your new adjustable bed frame.

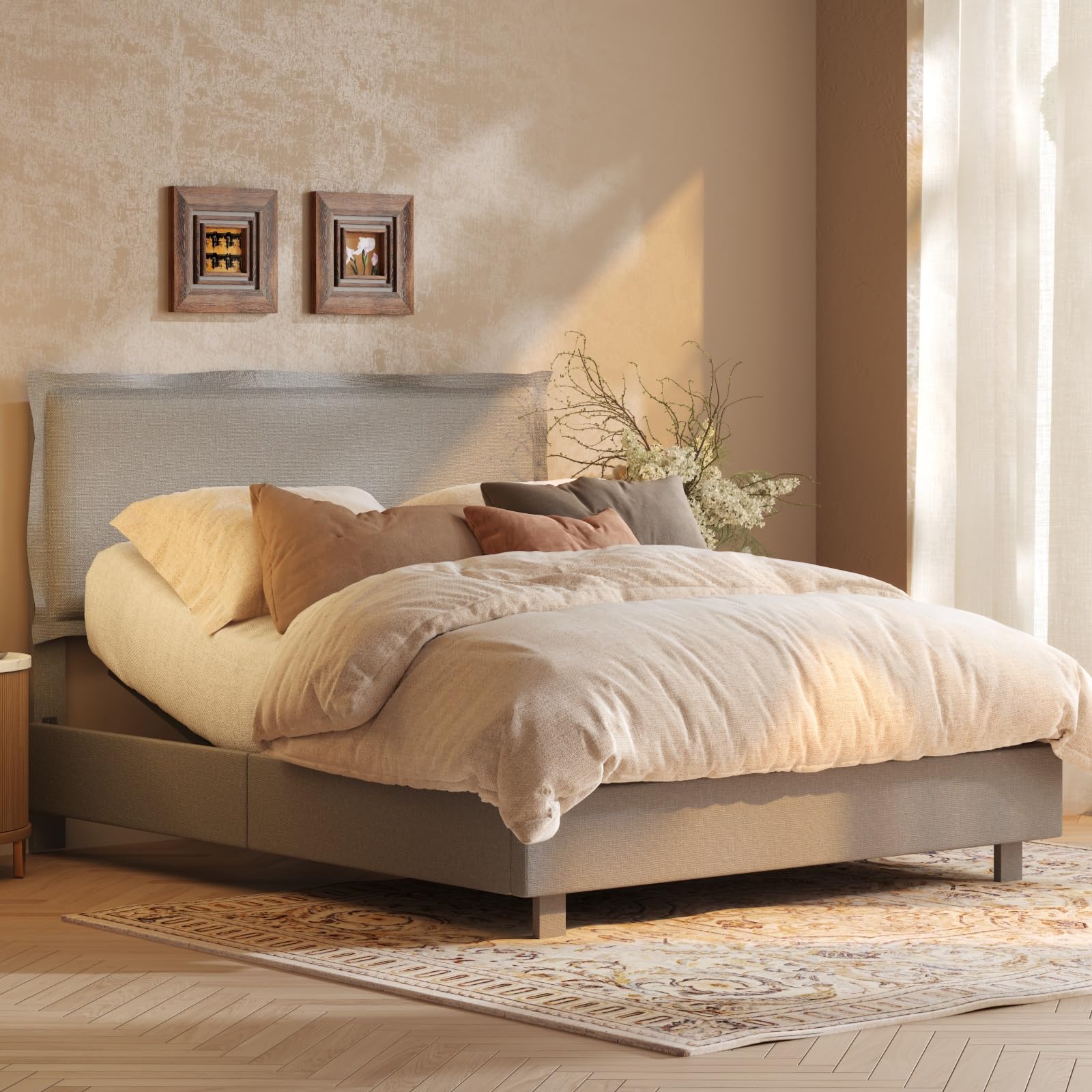

Figure 1: FLEXISPOT All-in-One Adjustable Bed Frame (Queen, Light Grey)
The integrated design eliminates the need for a separate box spring, offering a clean and modern aesthetic. The upholstered flange edge headboard, along with soft-padded side rails and footboard, provides both style and cushioned comfort. Enjoy synchronized head and foot lift functionality for various activities like reading, watching TV, or simply relaxing.
2. Safety Information
Please read and understand all safety warnings and instructions before operating this product. Failure to do so may result in injury or damage to the product.
- Weight Capacity: Do not load more than 600 lbs (272 kg) on the bed frame. Exceeding this limit may cause damage and void the warranty.
- Motorized Lift Mechanism: Exercise caution when using the motorized lift mechanism. Keep hands, feet, and pets clear of moving parts to prevent injury.
- Sharp Edges: Exercise care around any sharp edges during assembly and use.
- Children and Pets: Keep children and pets away from the adjustable bed frame, especially during operation, to prevent accidents.
- Power Cord: Ensure the power cord is not pinched or damaged. Do not operate the bed if the power cord is compromised.
- Professional Assembly: While assembly is designed to be straightforward, consider professional assistance if you are unsure about any steps.
Figure 2: Certified Safe, Built To Last - ISO 9001 SGS Certification
3. Package Contents
Your FLEXISPOT All-in-One Adjustable Bed Frame is shipped in two clearly labeled boxes. Carefully unpack all components and verify against the parts list provided in the assembly instructions. If any parts are missing or damaged, please contact customer support.
Figure 3: Product packaging indicating two boxes for shipment.
Included Components:
- Bed Frame Sections (Upholstered)
- Adjustable Base Mechanism
- Upholstered Flange Edge Headboard
- Wired Remote Control
- Hardware Kit (screws, washers, Allen wrenches)
- Mattress Retainer Bar
- Power Adapter
- Assembly Instructions
4. Setup
Assembly is designed to be straightforward. Follow these steps carefully for proper setup. It is recommended to have two people for certain assembly steps.
4.1 Unpacking and Preparation
- Place the two boxes in the desired room for assembly.
- Carefully open both boxes and remove all components.
- Lay out all parts on a clean, soft surface to prevent scratches. Verify all hardware against the parts list.
Figure 4: Components of the bed frame laid out for assembly.
4.2 Assembling the Frame
- Connect the main frame sections using the provided bolts and Allen wrenches. Ensure all connections are secure but do not fully tighten until all sections are aligned.
- Attach the bed legs to the frame.
- Once all frame sections are connected and legs are attached, fully tighten all bolts.
Figure 5: Detailed view of frame assembly with bolts and tools.
4.3 Attaching the Headboard and Side Panels
- Attach the upholstered side rails and footboard to the assembled frame.
- Position the upholstered flange edge headboard. The headboard height is adjustable to accommodate different mattress thicknesses. Secure it at your desired height using the provided hardware.
- Install the mattress retainer bar at the foot of the bed to prevent the mattress from sliding.
Figure 6: Close-up of the headboard showing its stabilizer, linen fabric, and flange edge design.
Figure 7: Details of the upholstered headboard, reinforced footboard, and thickened side rails.
4.4 Connecting the Power
- Connect the power adapter to the adjustable base motor.
- Plug the power adapter into a grounded electrical outlet.
- Ensure all cables are neatly routed and secured to prevent tripping hazards or damage.
5. Operating Instructions
Your FLEXISPOT Adjustable Bed Frame features a wired remote control for easy adjustment of head and foot positions.
5.1 Using the Wired Remote Control
Figure 8: Wired remote control for adjusting bed positions.
- Head Incline: Press and hold the "Head Up" button to raise the head section. Release to stop at the desired angle (up to 60°).
- Head Decline: Press and hold the "Head Down" button to lower the head section.
- Foot Incline: Press and hold the "Foot Up" button to raise the foot section. Release to stop at the desired angle (up to 35°).
- Foot Decline: Press and hold the "Foot Down" button to lower the foot section.
- Synchronized Movement: The single motor design allows for synchronized movement of both head and foot sections.
5.2 Recommended Positions
- Reading/Watching TV: Elevate both head and foot sections to a comfortable angle.
- Relaxation: Slightly elevate the head and foot to relieve pressure and improve circulation.
- Sleeping: Adjust to a flat position or a slight head elevation for optimal comfort.
Video 1: Demonstration of the FlexiSpot All-in-One Adjustable Bed's features and various positions.
Video 2: Quick overview of the FlexiSpot All-In-One Adjustable Bed & Upholstered Bed Frame.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your adjustable bed frame.
- Cleaning:
- For the upholstered parts, use a soft cloth and a mild fabric cleaner. Test on an inconspicuous area first.
- For the metal frame, wipe with a damp cloth. Avoid harsh chemicals.
- Inspections: Periodically check all bolts and connections to ensure they are tight. Re-tighten if necessary.
- Motor and Wiring: Ensure the motor and all wiring are free from obstructions and damage. Do not attempt to service the motor yourself.
7. Troubleshooting
If you encounter any issues with your adjustable bed frame, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed does not respond to remote. | No power; loose connection; remote issue. |
|
| Motor makes unusual noise. | Obstruction; loose components. |
|
| Mattress slides off the frame. | Mattress retainer bar not installed or loose. |
|
If the problem persists after attempting these solutions, please contact FLEXISPOT customer support.
8. Specifications
Figure 9: Dimensions of the Queen Size Adjustable Bed Frame.
- Model: All-In-One Adjustable Bed Frame
- Size: Queen
- Color: Light Grey
- Product Dimensions (L x W x H): 85.4" x 63" x 47.6"
- Headboard Height Adjustment: 37.8" - 47.6"
- Material: Wood, Steel, Fabric (Upholstered)
- Weight Capacity: Up to 600 lbs
- Head Incline: 0-60°
- Foot Incline: 0-35°
- Motor: Quiet Single-Motor Lift
- Control: Wired Remote
- Compatible Mattress Size: Queen (Recommended height: 6-14 inches)
- Assembly Required: Yes
- UPC: 840521504034
9. Warranty & Support
FLEXISPOT stands behind the quality of its products. Your All-in-One Adjustable Bed Frame comes with comprehensive warranty coverage:
- Motor Warranty: 5-year warranty on the motor.
- Frame Warranty: 10-year warranty on the frame.
For warranty claims, technical support, or any questions regarding your product, please contact FLEXISPOT customer service. Keep your purchase receipt as proof of purchase.
Manufacturer: FLEXISPOT
Website: Visit the FLEXISPOT Store
