Product Overview
The Dyeetic 5000A Jump Starter with Air Compressor (Model D18) is a versatile device designed for vehicle emergencies and general inflation needs. It combines a powerful jump starter, a 150 PSI tire inflator, a portable power bank, and an emergency LED light into one compact unit. This manual provides detailed instructions for its safe and efficient use.
Image: The Dyeetic 5000A Jump Starter with Air Compressor, showcasing its main unit, jumper cables, and various inflation nozzles.
Package Contents
Verify that all items listed below are included in your package:
- Portable Jump Starter with Air Compressor (Model D18)
- Air Pump Hose
- 4 Gas Nozzles (various adapters for different inflatables)
- Extended Smart Jumper Cables
- USB-A to C Cable (adapter not included)
- Portable Carrying Case
- User Manual (this document)
Image: All components included in the Dyeetic 5000A Jump Starter package, neatly arranged with the main unit, cables, nozzles, and carrying case.
Setup and Charging
Before first use, fully charge the jump starter. The large digital screen will display the battery percentage.
Charging the Unit:
- Connect the provided USB-A to C cable to the USB-C input port on the jump starter.
- Connect the other end of the cable to a compatible USB power adapter (not included).
- The LCD screen will indicate the charging status and battery percentage. Charge until it reaches 100%.
For optimal performance, it is recommended to fully charge the unit every 3-6 months, especially during periods of non-use. The unit features ultra-low power consumption, allowing for up to 24 months of standby time on a full charge.
Image: The Dyeetic 5000A Jump Starter displaying its 24-month standby capability, indicating long-lasting charge retention.
Operating Instructions
1. Jump Starting a Vehicle
This jump starter is designed to start 12V batteries in vehicles with up to 10.0L gas or 8.0L diesel engines.
- Ensure the jump starter is sufficiently charged (at least 50% recommended).
- Connect the smart jumper cables to the jump starter's output port. The indicator light on the smart cable will flash red and green, indicating it's ready.
- Attach the red clamp to the positive (+) terminal of the vehicle's battery.
- Attach the black clamp to the negative (-) terminal of the vehicle's battery. The indicator light on the smart cable should turn solid green. If it flashes red, check connections for correct polarity.
- Start the vehicle's engine within 30 seconds.
- Once the engine starts, immediately remove the smart jumper cables from the vehicle battery, then disconnect them from the jump starter.
Image: The Dyeetic 5000A Jump Starter connected to a car battery using its smart jumper cables, ready for jump-starting.
Video: A demonstration of the Dyeetic 6000A Jump Starter in action, showing the connection process and successful vehicle start. (Note: Model shown is 6000A, but operation is similar).
Video: Instructions on how to use a jump starter and tire inflator, demonstrating the steps for starting a car and inflating tires. (Generic JS-9 model shown, but principles apply).

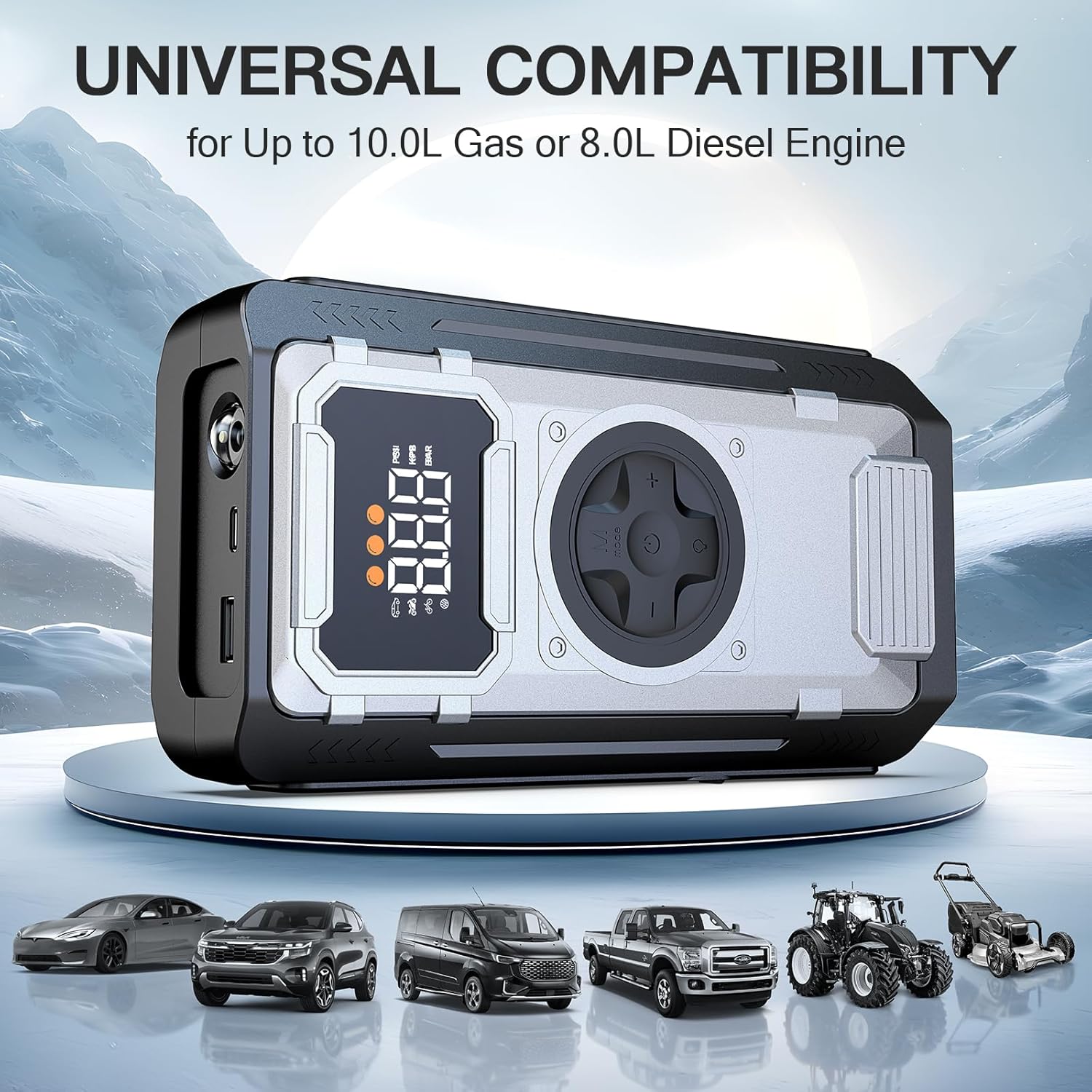

Image: Illustration of the Dyeetic 5000A Jump Starter's universal compatibility with various vehicle types, including cars, SUVs, trucks, motorcycles, and lawnmowers.
2. Using the Air Compressor
The built-in 150 PSI air compressor can inflate car tires, bicycles, sports balls, and other inflatables.
- Screw the air pump hose into the designated port on the jump starter.
- Attach the appropriate nozzle adapter to the air pump hose for your item.
- Connect the nozzle to the item you wish to inflate.
- Press the power button to activate the unit. The LCD screen will display the current pressure.
- Use the '+' and '-' buttons to set the desired pressure.
- Press the inflation button (often indicated by a pump icon) to start inflation. The compressor will automatically stop once the preset pressure is reached.
- Disconnect the nozzle and hose after inflation.
Image: The Dyeetic 5000A Jump Starter demonstrating its 150 PSI fast tire inflation capability, showing a tire being inflated from 25 PSI to 36 PSI in approximately 1 minute.
Video: A demonstration of the UTRAI 5000A Battery Booster Pack with Air Compressor, illustrating the process of connecting the hose and inflating a tire. (Generic UTRAI model shown, but principles apply).
3. Using as a Power Bank
The jump starter features USB output ports for charging electronic devices.
- Connect your device's USB charging cable to one of the USB output ports on the jump starter.
- The jump starter will automatically begin charging your device.
- The LCD screen will show the remaining battery percentage of the jump starter.
4. Using the LED Light
The integrated LED light provides illumination for various situations.
- Press and hold the light button (often indicated by a lightbulb icon) to turn on the flashlight mode.
- Press the light button again to cycle through different modes: flashlight, strobe, and SOS.
- Press and hold the light button to turn off the LED light.
Image: The Dyeetic 5000A Jump Starter's emergency flashlight function, illustrating its three modes: flashlight, strobe, and SOS.
Safety Features
The Dyeetic 5000A Jump Starter is equipped with 10 advanced safety protections to ensure safe and reliable operation:
- Over-current Protection
- Reverse Polarity Protection
- Short-circuit Protection
- Over-voltage Protection
- Low Temperature Protection
- High Temperature Protection
- Reverse Charge Protection
- Overcharge Protection
- Anti-Spark Protection
- Overload Protection
Image: Visual representation of the 10 leading safety protections integrated into the Dyeetic 5000A Jump Starter, including icons for each protection type.
Maintenance
- Store the unit in its portable carrying case in a cool, dry place when not in use.
- Recharge the unit fully every 3-6 months to maintain battery health, even if not used.
- Keep the ports and clamps clean and free of dust or debris.
- Avoid exposing the unit to extreme temperatures outside its operating range (-20°C to 60°C / -4°F to 140°F).
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Battery is fully discharged. | Charge the unit fully using the provided USB-C cable. |
| Vehicle does not jump start. | Incorrect clamp connection; vehicle battery too low; unit not charged. | Ensure clamps are connected correctly (red to positive, black to negative). Check unit's battery level. Try "one-press BOOST" function if available and safe. |
| Air compressor does not inflate. | Hose not securely attached; incorrect pressure setting; unit not charged. | Verify hose and nozzle connections. Check and adjust desired pressure. Ensure unit is charged. |
| Smart jumper cable indicator flashes red. | Reverse polarity connection. | Immediately disconnect clamps and re-attach them correctly (red to positive, black to negative). |
Specifications
- Brand: Dyeetic
- Model: D18
- Peak Current: 5000A
- Engine Compatibility: Up to 10.0L Gas / 8.0L Diesel Engines (12V vehicles)
- Air Compressor Pressure: 150 PSI
- Battery Cell Composition: Lithium Polymer
- Voltage: 12 Volts
- Product Dimensions: 5D x 10W x 20H Centimetres
- Item Weight: 1.3 kg
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Standby Time: Up to 24 months (on full charge)
- Manufacturer: Dyeetic
- Country of Origin: China
Warranty and Support
This Dyeetic 5000A Jump Starter with Air Compressor is backed by a 3-year warranty. For any technical assistance or product-related inquiries, please contact our customer support. We offer lifetime technical support to ensure your peace of mind with every purchase.
