Bella PRO 8-Quart Touchscreen Air Fryer (Model 90241) Instruction Manual

1. Introduction

The Bella PRO 8-Quart Touchscreen Air Fryer with Divided Basket is designed to provide a healthier, faster, and more versatile cooking experience for your household. Its extra-large capacity can accommodate up to 6 lbs of food, suitable for serving 6–8 people, making it ideal for family meals, gatherings, and meal preparation. The innovative divided basket feature allows for simultaneous cooking of two different food items, preventing flavor transfer and optimizing cooking time. This appliance utilizes advanced air frying technology to achieve crispy, golden results with up to 75% less fat compared to traditional deep frying methods. The EverGood Ceramic Nonstick Coating is free from PFAS, PFOA, PTFE, Lead, and Cadmium, ensuring a safe cooking environment and simplifying cleanup. The digital touchscreen display offers intuitive control over time and temperature settings, while the sleek matte black finish and stainless steel handle contribute a modern aesthetic to any kitchen. All removable parts are dishwasher-safe, facilitating effortless post-meal cleaning.

2. Important Safety Instructions

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. Product Overview

The Bella PRO 8-Quart Touchscreen Air Fryer is designed for ease of use and versatility. Below are its key components and features.

Key Features:

• Dual Cooking with Divided Basket: Cook two different foods simultaneously without mixing flavors.
• Large 8-Quart Capacity: Accommodates up to 6 lbs of food, serving 6–8 people.
• Healthier Cooking: Reduces fat by up to 75% compared to traditional deep frying.
• Digital Touchscreen Controls: Intuitive display for precise time and temperature adjustments.
• Safe & Durable Nonstick Coating: EverGood Ceramic Nonstick, free of PFAS, PFOA, PTFE, Lead, and Cadmium.
• Modern Matte Black Design: Stylish finish with a professional stainless steel handle.
• Easy Cleanup: Dishwasher-safe removable basket and accessories.

Visual Components:

Figure 1: Front view of the Bella PRO 8-Quart Touchscreen Air Fryer in matte black, showcasing its digital display and sleek design.

Figure 2: The air fryer with its 8-quart divided basket pulled out, illustrating the large capacity and dual cooking capability.

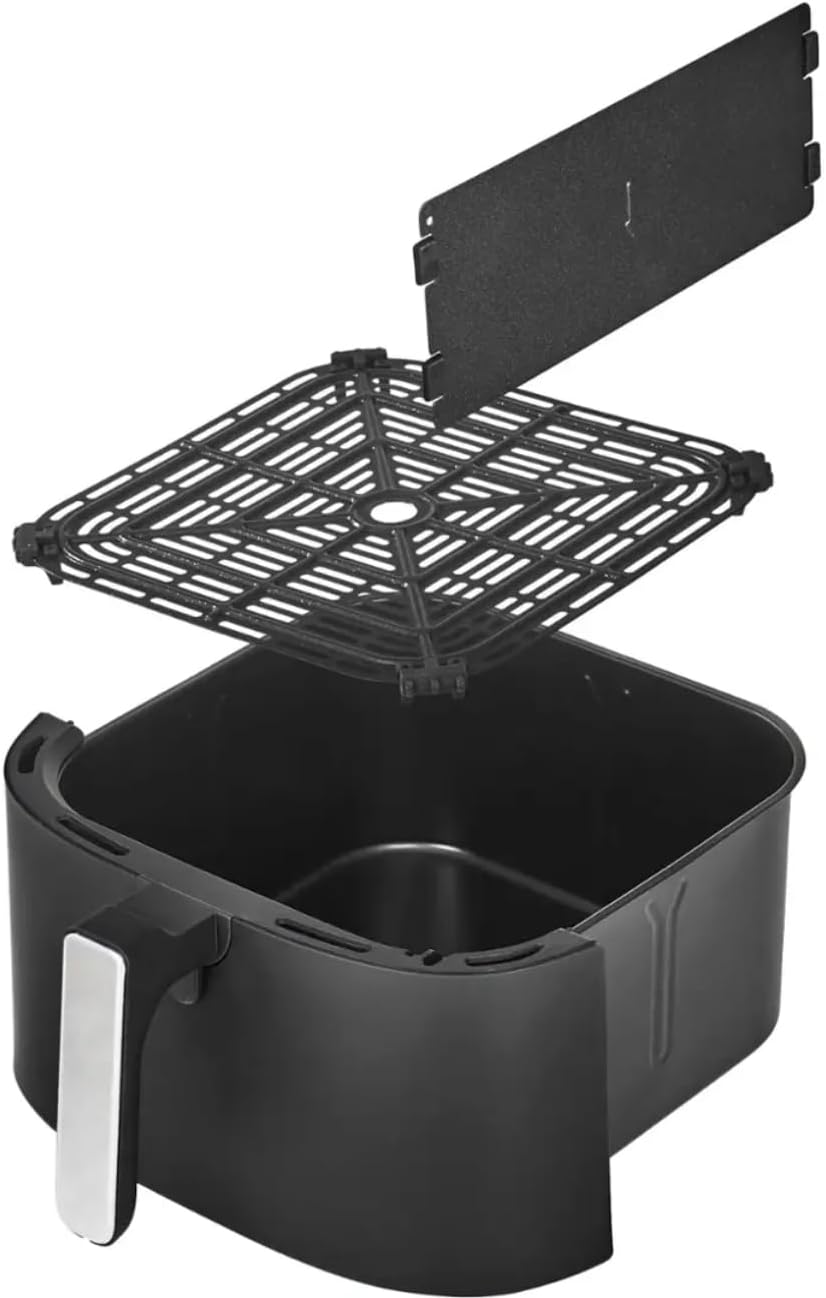

Figure 3: An exploded view showing the main cooking basket, the removable crisping tray, and the divider for versatile cooking options.

Figure 4: A top-down perspective of the divided basket in use, demonstrating how two distinct food items can be cooked simultaneously.

Figure 5: The Bella PRO Air Fryer in operation, with mixed vegetables being air-fried in the divided basket, highlighting its practical application.

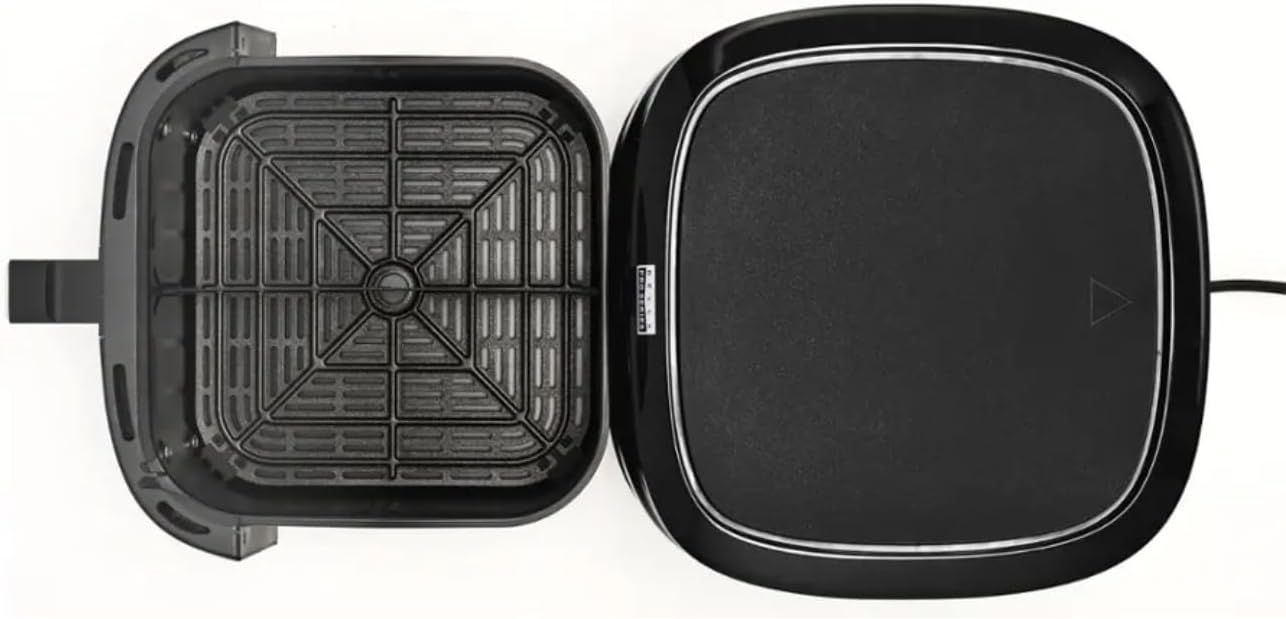

Figure 6: A view from above the air fryer with the cooking basket removed, showing the interior cavity of the appliance.

Product Overview Video:

4. Initial Setup

1. Unpack: Carefully remove all packaging materials, stickers, and labels from the air fryer.
2. Clean Components: Wash the removable basket, crisping tray, and divider in warm, soapy water. Rinse thoroughly and dry completely. The basket and accessories are dishwasher-safe.
3. Wipe Main Unit: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water.
4. Placement: Place the air fryer on a stable, heat-resistant surface, ensuring adequate clearance (at least 6 inches) from walls or other appliances to allow for proper air circulation.
5. First Use Odor: During the first few uses, a slight odor may be detected. This is normal and will dissipate quickly. Ensure good ventilation.

5. Operating Instructions

Digital Touchscreen Controls:

The air fryer features an intuitive digital touchscreen for easy operation. The display allows you to adjust time and temperature with precision.

• Power Button: Press to turn the unit on/off.
• Temperature Control: Use the up/down arrows to adjust the cooking temperature (e.g., 170°F to 400°F).
• Time Control: Use the up/down arrows to set the cooking time (e.g., 1 to 60 minutes).
• Menu Button: Cycle through various preset cooking functions.
• Start/Pause Button: Begin or temporarily stop the cooking cycle.

Preset Functions:

The air fryer includes several convenient preset functions for common dishes:

• Air Fry
• Roast
• Bake
• Broil
• Reheat
• Keep Warm
• Dehydrate

Select a preset by pressing the Menu button until the desired function is highlighted. The default time and temperature for that preset will appear. You can then adjust these settings manually if needed.

Dual Cooking with Divided Basket:

To utilize the dual cooking feature, insert the divider into the main cooking basket. This allows you to cook two different food items simultaneously without their flavors intermingling. Ensure both food items require similar cooking temperatures for optimal results.

Shake Reminder:

For even cooking and crispiness, some recipes may require shaking or flipping food halfway through the cooking cycle. The air fryer may feature an audible reminder to prompt you to shake the basket. When prompted, carefully remove the basket, shake its contents, and reinsert it to resume cooking.

6. Cooking Guide

The Bella PRO Air Fryer uses rapid air circulation to cook food, resulting in a crispy exterior and tender interior with significantly less oil. Always ensure food is cooked to safe internal temperatures.

General Cooking Tips:

• For best results, preheat the air fryer for 3-5 minutes before adding food.
• Do not overcrowd the basket. Cook in batches if necessary to ensure even cooking and crispiness.
• Lightly spray or toss food with a small amount of oil for enhanced crispiness, especially for fresh ingredients.
• Shake the basket or flip food halfway through the cooking time for even browning.
• Adjust cooking times and temperatures as needed based on food quantity, thickness, and desired crispiness.

Approximate Cooking Chart:

This chart provides general guidelines. Actual cooking times may vary.

7. Maintenance and Cleaning

Proper cleaning and maintenance will ensure the longevity and optimal performance of your Bella PRO Air Fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Dishwasher-Safe Parts: The removable cooking basket, crisping tray, and divider are dishwasher-safe for convenient cleaning.
3. Hand Washing: If hand washing, use warm, soapy water and a non-abrasive sponge. Avoid using metal scouring pads or harsh abrasive cleaners, as they may damage the EverGood Ceramic Nonstick Coating.
4. Exterior Cleaning: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
5. Interior Cleaning: For the interior of the main unit, wipe with a damp cloth. For stubborn residue, a small amount of mild detergent can be used, followed by wiping with a clean, damp cloth.
6. Storage: Ensure all parts are completely dry before reassembling and storing the air fryer in a cool, dry place.

8. Troubleshooting

If you encounter any issues with your air fryer, please refer to the following common troubleshooting tips:

• Appliance does not turn on: Ensure the power cord is securely plugged into a working electrical outlet. Check if the basket is fully inserted into the main unit.
• Food is not cooked evenly: Do not overcrowd the basket. Cook in smaller batches if necessary. Shake or flip food halfway through the cooking time.
• Food is not crispy: Ensure the temperature is set correctly. Lightly toss food with a small amount of oil before air frying.
• White smoke coming from the appliance: This may be caused by grease from previous cooking. Clean the basket and crisping tray thoroughly. Ensure no excess oil is dripping into the bottom of the unit.
• Unusual odor during first use: This is normal for new appliances and will dissipate after a few uses. Ensure good ventilation.

If problems persist, please contact customer support.

9. Specifications

10. Warranty and Customer Support

For warranty information, product registration, or customer support, please refer to the manufacturer's official website or contact their customer service department. Keep your purchase receipt for warranty claims.
