Introduction
This manual provides comprehensive instructions for the KEF Muo High-Fidelity Portable Speaker. Please read this manual thoroughly before using your speaker to ensure proper operation and to maximize its performance and longevity. Keep this manual for future reference.
What's in the Box
Verify that all items are present in the packaging:
- Muo Bluetooth Speaker
- Power Cable
- Quick Start Guide
- Removable carrying strap
Product Overview
The KEF Muo is a compact, high-fidelity portable speaker designed for exceptional audio quality and durability. It features intuitive controls and versatile placement options.
Image: KEF Muo Portable Speaker in Midnight Black, shown at an angle with its removable carrying strap attached.
Image: Top view of the KEF Muo speaker, highlighting the power, function, volume down, and volume up buttons.
Controls and Indicators
- Power Button: Located on the top panel, used to turn the speaker on or off.
- Function Button: For Bluetooth pairing and other modes.
- Volume Buttons (+/-): Adjusts playback volume.
- LED Indicator: Provides status feedback for power, charging, and Bluetooth connection.
- USB-C Port: For charging the speaker.
- Bluetooth Pairing Button: Dedicated button on the back for initiating Bluetooth pairing.
Image: Rear view of the KEF Muo speaker, showing the USB-C charging port and the Bluetooth pairing button.
Setup
1. Charging the Speaker
Before first use, fully charge the KEF Muo speaker. Connect the provided power cable to the USB-C port on the back of the speaker and plug the other end into a suitable USB power adapter (not included). The LED indicator will show charging status. A full charge provides up to 24 hours of playback, and a 15-minute quick charge can provide an additional 3 hours.
2. Powering On/Off
- To power on, press and hold the Power button until the LED indicator illuminates.
- To power off, press and hold the Power button again until the LED indicator turns off.
3. Bluetooth Pairing
- Ensure the speaker is powered on.
- Press the Bluetooth pairing button on the back of the speaker. The LED indicator will flash, indicating it is in pairing mode.
- On your device (smartphone, tablet), navigate to the Bluetooth settings and select "KEF Muo" from the list of available devices.
- Once connected, the LED indicator will show a solid light.
The KEF Muo supports Bluetooth 5.4 with aptX Adaptive for high-resolution audio and a stable connection.

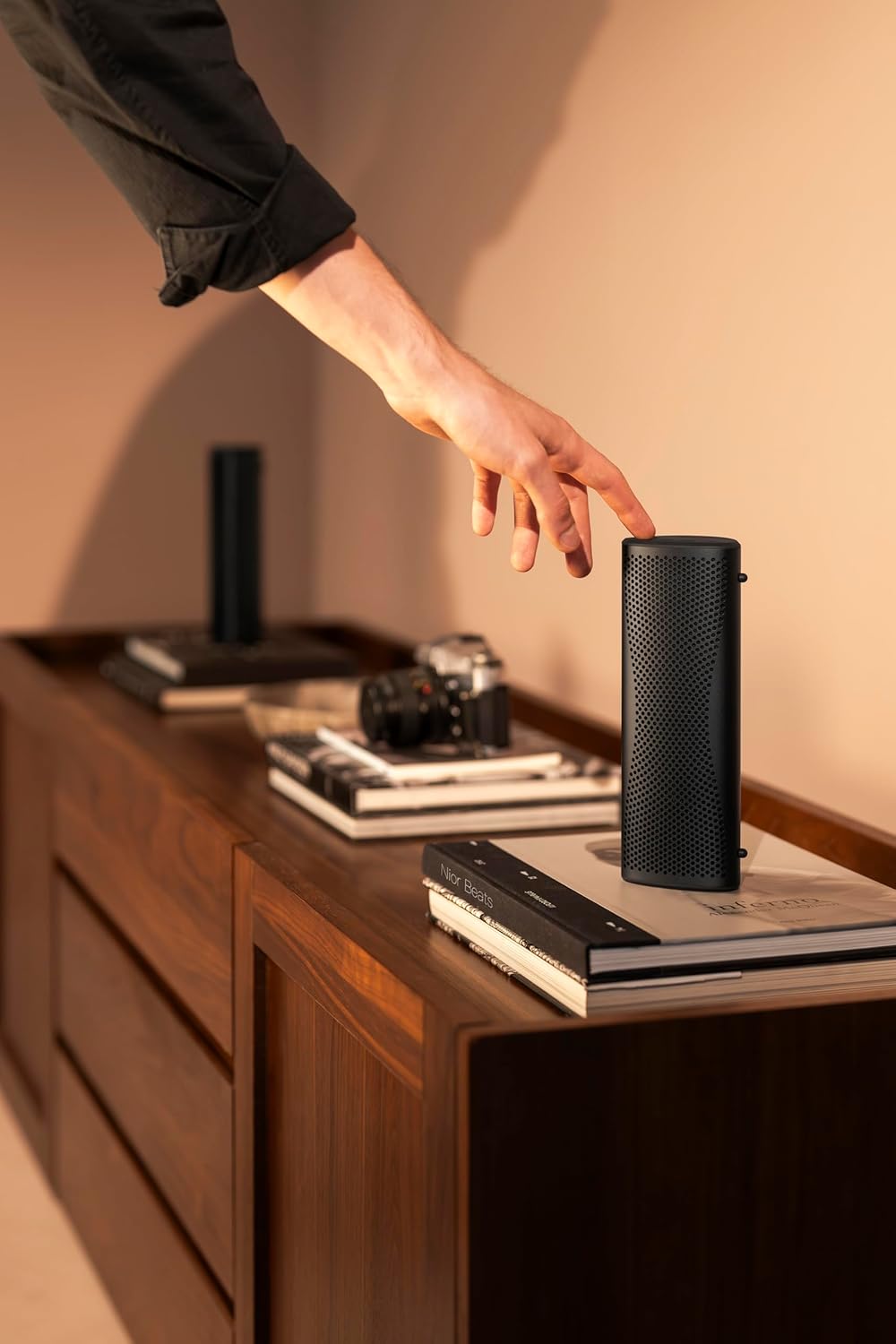

Image: A user's hand gently touching the top control panel of the KEF Muo speaker, demonstrating interaction with the touch controls.
4. True Wireless Stereo Pairing (Optional)
For an enhanced stereo soundstage, two KEF Muo speakers can be paired wirelessly:
- Ensure both Muo speakers are powered on and not connected to any other Bluetooth device.
- On the first speaker, press and hold the Function button until the LED indicator flashes a specific pattern (refer to Quick Start Guide for exact pattern). This speaker will become the left channel.
- Repeat the process for the second speaker. This speaker will become the right channel.
- Once paired, the LED indicators on both speakers will confirm the stereo connection.
- Connect your device to the left channel speaker via Bluetooth as described in step 3.
Image: Two KEF Muo speakers positioned in a living space, demonstrating a True Wireless Stereo setup for immersive audio.
Operating the Speaker
Audio Playback
- Play/Pause: Press the Function button once.
- Next Track: Double-press the Function button.
- Previous Track: Triple-press the Function button.
- Volume Control: Use the '+' and '-' buttons on the top panel.
Call Functions
The KEF Muo includes a built-in microphone for hands-free calling when connected to a smartphone.
- Answer/End Call: Press the Function button once.
- Reject Call: Press and hold the Function button.
Maintenance
Cleaning
Wipe the speaker with a soft, damp cloth. Avoid using abrasive cleaners or solvents. Ensure the USB-C port cover is securely closed before cleaning or exposing to moisture.
Waterproof and Dustproof Features
The KEF Muo is rated IP67, meaning it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. Always ensure the USB-C port cover is fully sealed to maintain its waterproof integrity. After exposure to water, dry the speaker thoroughly before charging.
Image: The KEF Muo speaker standing on a wet wooden bench, illustrating its IP67 waterproof capability.
Battery Care
To prolong battery life, avoid fully discharging the speaker frequently. Store the speaker in a cool, dry place when not in use for extended periods. Charge the battery periodically if stored for a long time.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not power on | Low battery; Power button not pressed correctly | Charge the speaker; Press and hold the Power button for a few seconds |
| Cannot pair via Bluetooth | Speaker not in pairing mode; Device Bluetooth off; Interference | Ensure speaker is in pairing mode (flashing LED); Enable Bluetooth on your device; Move closer to the speaker; Restart both devices |
| No sound | Volume too low; Device not connected; Audio source issue | Increase volume on speaker and device; Re-establish Bluetooth connection; Check audio playback on your device |
| Poor sound quality | Weak Bluetooth signal; Interference; Low battery | Move device closer to speaker; Avoid obstacles; Charge the speaker |
| True Wireless Stereo pairing fails | Incorrect pairing sequence; Speakers too far apart | Follow TWS pairing instructions carefully; Ensure speakers are within close proximity |
Specifications
| Feature | Detail |
|---|---|
| Model Name | Muo |
| Item Model Number | SP4105C2AA |
| Brand | KEF |
| Material | Aluminum |
| Speaker Type | Portable Speaker |
| Special Features | Built-in Microphone, Dustproof, Hi-Res Audio, Portable, Waterproof |
| Recommended Uses | For Music Players, For Smartphones or Tablets, For Surround Sound Systems |
| Compatible Devices | Smartphone, Tablet |
| Surround Sound Channel Configuration | 2.0 |
| Color | Midnight Black |
| Product Dimensions | 2.3"D x 3.2"W x 8.5"H |
| Item Weight | 1.6 Pounds |
| Waterproof Rating | IP67 |
| Control Method | Touch |
| Wireless Communication Technology | Bluetooth 5.4 aptX Adaptive |
| Speaker Maximum Output Power | 30 Watts |
| Connectivity Technology | Bluetooth, USB |
| Audio Output Mode | Stereo |
| Power Source | Battery Powered (1 Lithium Metal battery included) |
| Audio Driver Type | Dynamic Driver (Racetrack driver and P-Flex Surround technology) |
| UPC | 637203051807 |
Warranty and Support
Warranty Information
The KEF Muo Portable Speaker comes with a Limited Warranty. Please refer to the warranty card included in your product packaging or visit the official KEF website for detailed terms and conditions.
Customer Support
For technical assistance, troubleshooting, or further inquiries, please visit the official KEF support website or contact their customer service department. Contact information can typically be found on the KEF website or in the Quick Start Guide.
