1. Introduction
The DONOW Smith Machine is a multi-function home gym system designed to consolidate a full rack, a Smith machine, and a cable crossover station into one space-saving unit. Constructed from premium-grade steel with precise engineering, this machine is built for durability and supports a wide range of exercises for comprehensive full-body workouts. The enclosed weight stacks and secure locking mechanisms ensure a safe and tidy workout area.
Figure 1: The DONOW All-In-One Home Gym Station, featuring a Smith machine, squat rack, and cable machine.
2. Safety Information
Always consult with a healthcare professional before starting any new exercise program. Inspect the equipment before each use for any signs of wear or damage. Ensure all pins, bolts, and cables are securely in place. Do not exceed the maximum weight capacities specified for each component. Keep children and pets away from the machine during operation. Use proper form and controlled movements to prevent injury. The weight stacks are encased in durable steel covers for enhanced safety.
3. Included Components
The DONOW Smith Machine includes the following components:
- Smith machine
- Leverage bar
- Pair of cable handles
- Lat pull down bar
- Cable bar
- Bicep rope
- Ankle strap
4. Setup & Assembly
The assembly process is designed to be straightforward. A detailed assembly video is available to guide you through each step, ensuring correct installation of all screws and parts. It is recommended to have at least two people for assembly due to the size and weight of some components. Ensure adequate space is available for assembly and operation.
5. Operating Instructions
5.1. Solid Smith Machine System
The Smith machine features smooth linear bearings for stable and secure lifts. Always engage the safety catches when racking the bar. Adjust the safety stops to prevent the bar from descending too low during exercises like squats and bench presses.

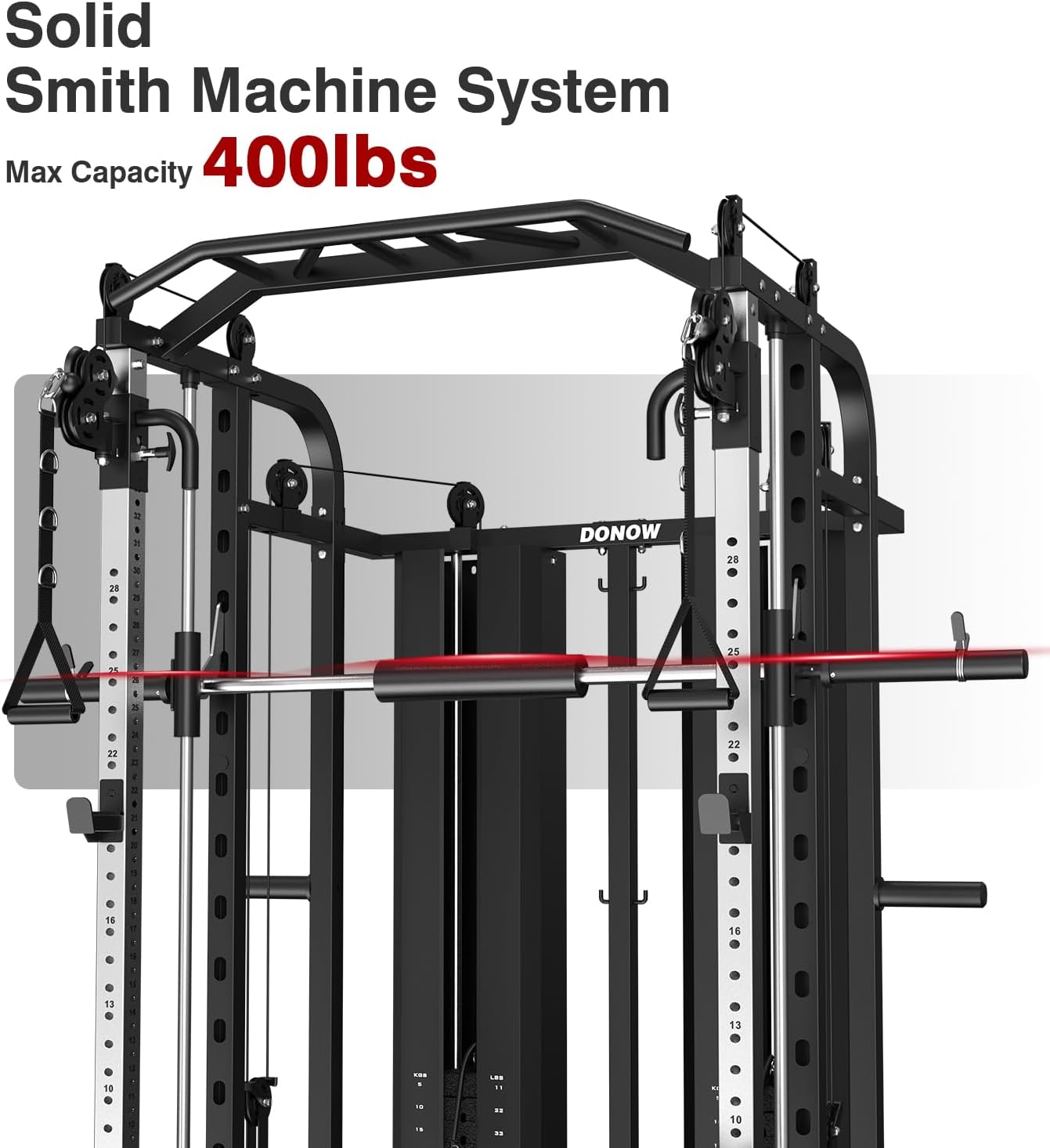

Figure 2: The Solid Smith Machine System, highlighting its smooth operation and safety features. Max capacity 400lbs.
Figure 3: Detailed view of the Smith machine's linear bearing for smooth movement and safety catches for secure lifts.
5.2. Dual Cable Crossover System
The dual independent cable system allows for versatile movement patterns and effective isolation exercises. Adjust the pulley height to suit your exercise needs. Ensure the selectorized weight stacks are securely pinned at the desired resistance level.

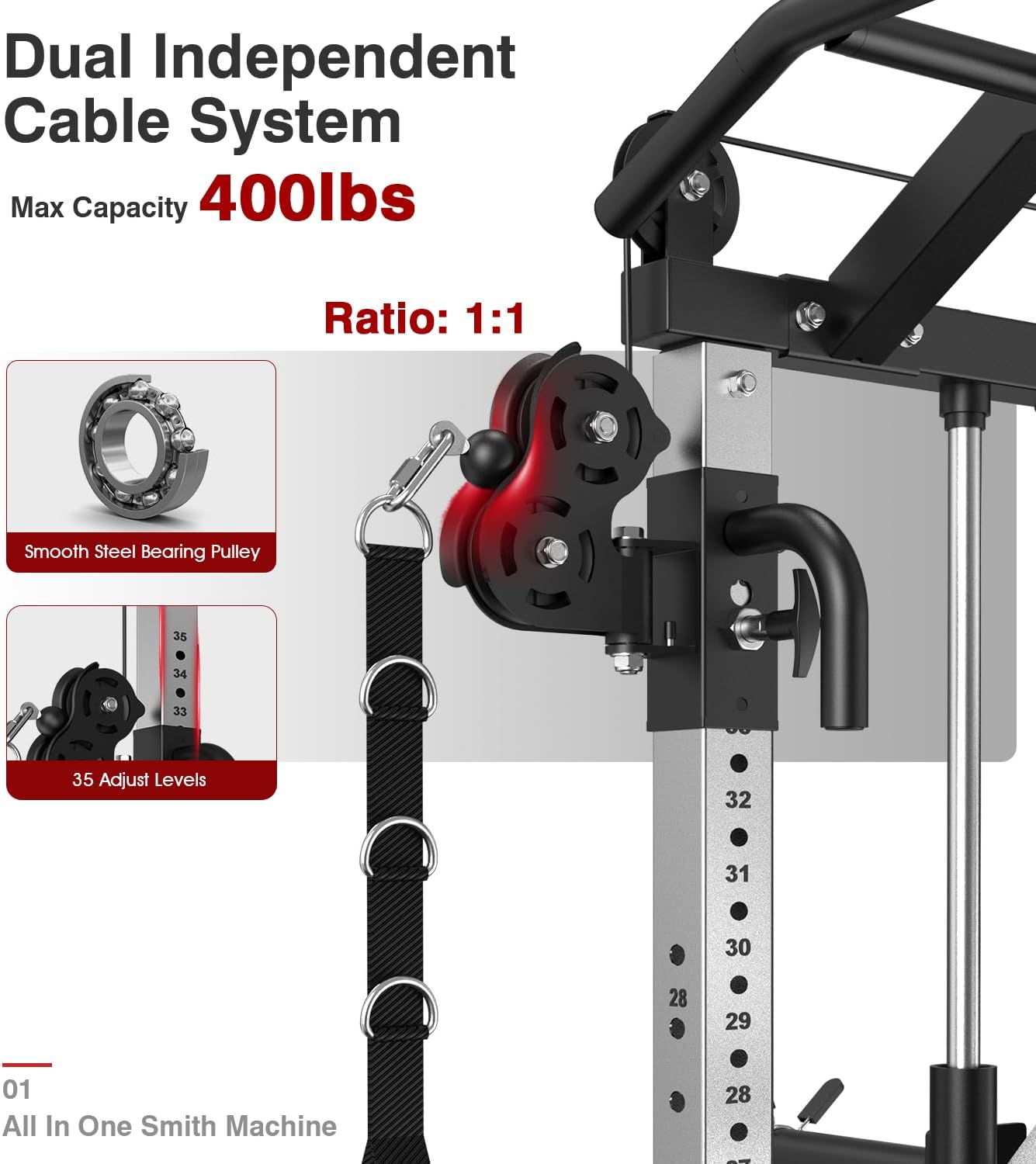

Figure 4: The Dual Independent Cable System, featuring smooth steel bearing pulleys and 35 adjustable levels. Max capacity 400lbs.
Figure 5: Close-up of the dual independent cable system, showing smooth pulleys and durable 7-strand cables.
5.3. Heavy-Duty Dual Weight Stacks
The machine is equipped with two massive weight stacks, providing smooth resistance. Use the quick adjustment pin to select your desired weight. The weight stacks are encased in steel covers for safety and a tidy appearance.

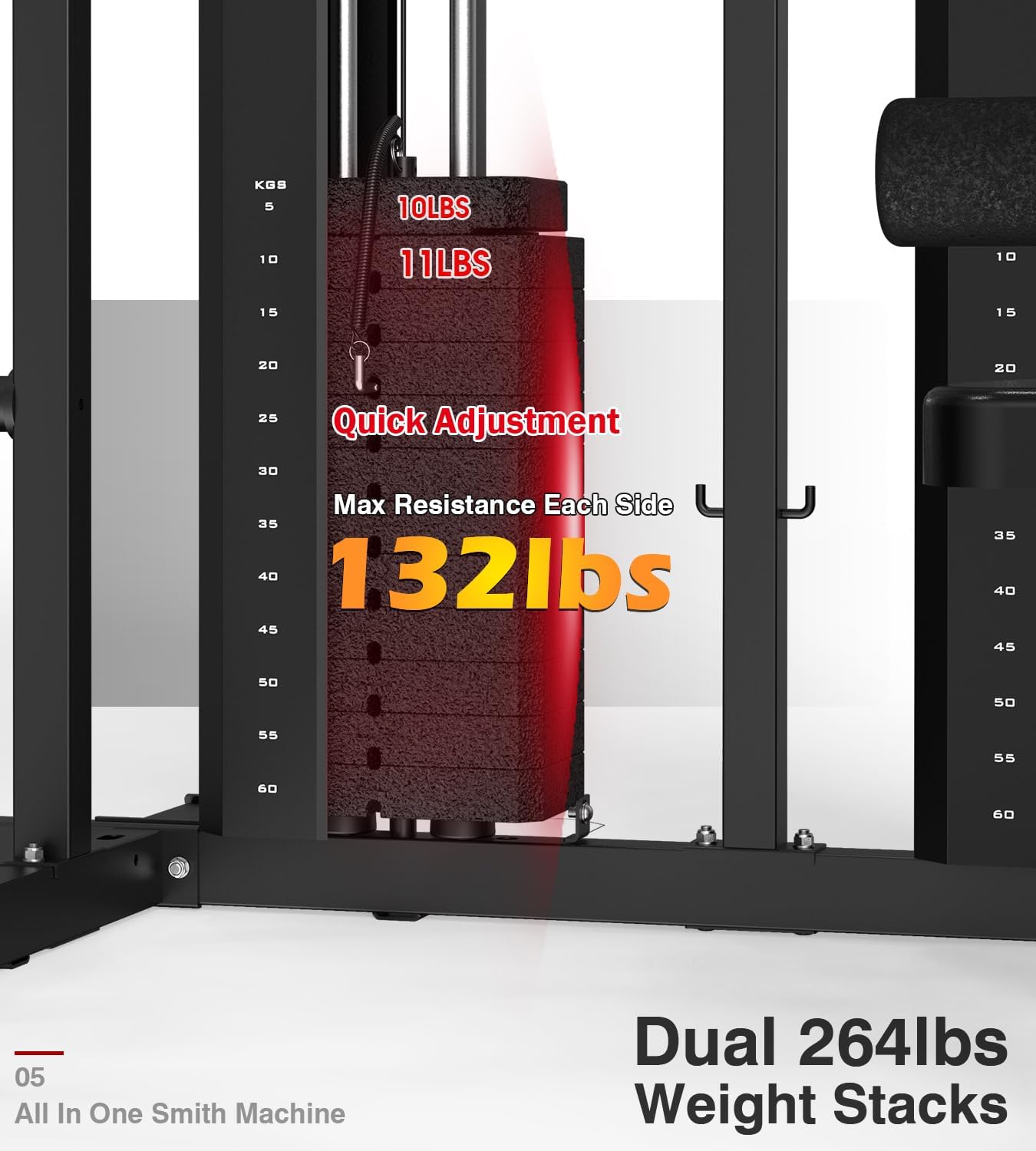

Figure 6: Dual 264lbs weight stacks with quick adjustment mechanism. Max resistance each side 132lbs.
Figure 7: The 264lbs weight stacks are sturdy, durable, and feature four steel covers for safety and easy adjustment.
5.4. Multi-Grip Pull-Up Station
The integrated multi-grip pull-up station offers various grip options for different muscle targeting. Ensure a secure grip before performing pull-ups. Maximum capacity is 400lbs.
Figure 8: The Multi-Grip Pull-Up Station, designed for various grip positions. Max capacity 400lbs.
5.5. Lat Pull Down Bench
If your model includes a lat pull down bench, ensure it is securely attached and adjusted to your height. The bench typically offers 6 adjustable levels for optimal comfort and exercise effectiveness. Maximum capacity is 250lbs.
Figure 9: The Lat Pull Down Bench, featuring 6 adjustable levels for user comfort and exercise variation. Max capacity 250lbs.
6. Exercise Guide
The DONOW Smith Machine supports a wide array of exercises. Below are video demonstrations for various movements. Always prioritize proper form over heavy weight.
6.1. Smith Machine Exercises
Video 1: Exercise guide for the Smith Machine AL-3000Y, demonstrating various exercises such as Smith Squat, Straight Leg Deadlift, Smith Bent Over Row, Smith Chest Press, Smith Incline Press, Smith Shoulder Press, Cross Body Chop, Chest Press, Bicep Curl (Bar), Overhead Extension, Tricep Push Down (Bar), Seated Row, Cable Front Raise, Lat Pull Down, Chin Ups, Knee to Chest, Dips, Parallel Bar Push-up, Twisting Press, Standing Row, Barbell Squat, and Core Rotation.
6.2. Cable Crossover Exercises
Video 2: Exercise guide for the Cable Crossover AL-3075, demonstrating various exercises such as High Flys, Mid Flys, Low Flys, Rear Delt Fly, Cable Tricep Extension, Single Bicep Curl, Cable Side Raise, Cable Shoulder Press, Dual Cable Bicep Curl, Tricep Push Down (Rope), Face Pull, Bicep Curl (Rope), Tricep Overhead, Cross Body Chop, Chest Press, Bicep Curl (Bar), Straight Arm Pull Down, Barbell Squat, Shoulder Press, Cable Front Raise, Overhead Extension, Tricep Push Down (Bar), Seated Row, Bicep Curl (Bar), Lat Pull Down, Kick Back, Side Kick, Chin Ups, Knee to Chest, Dips, Mid Flys, Arm Massage, and TRX Chin Ups.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your DONOW Smith Machine.
- Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and grime. Avoid abrasive cleaners.
- Inspection: Periodically check all nuts, bolts, and connections for tightness. Inspect cables and pulleys for any signs of fraying or wear.
- Lubrication: Apply a silicone-based lubricant to the guide rods of the Smith machine and cable pulleys as needed to maintain smooth operation.
8. Troubleshooting
If you encounter any issues with your machine, refer to the following common solutions:
- Sticking Cables/Pulleys: Ensure cables are properly routed through all pulleys. Apply lubricant to the pulleys and cable pathways.
- Weight Stack Not Moving Smoothly: Check for any obstructions in the weight stack path. Ensure the selector pin is fully inserted. Lubricate guide rods.
- Unstable Frame: Verify all assembly bolts are tightened. Ensure the machine is placed on a level surface.
For persistent issues, please contact DONOW customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | DONOW |
| Model Name | DN-DS938 Series |
| Style | A DN-DS938A Pro (Aluminum Alloy Pulley) |
| Color | Black |
| Material | Alloy Steel |
| Weight Stacks | 264lbs (Cement Weights) |
| Cable Ratio | 1:1 |
| Smith Machine Max Capacity | 400lbs |
| Cable Crossover Max Capacity | 400lbs |
| Lat Pull Down Bench | Yes (Max Capacity 250lbs) |
| Landmine Attachment | Yes |
| Manufacturer | DONOW |
| Suggested Users | Unisex |
Figure 10: Comparison of different DONOW Smith Machine models, detailing weight stacks, ratio, and included features.
10. Warranty & Support
The DONOW Smith Machine comes with a 2-year manufacturer warranty. DONOW provides a US-based after-service team that aims to respond within 6 hours and supplies all replacement parts within the 2-year warranty period.
