Mirightone 30-Inch Bathroom Vanity with Sink, Grey Left Drawers

1. Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Mirightone 30-Inch Bathroom Vanity with Sink. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and functionality. Keep this manual for future reference.

2. Safety Information

• Always follow local plumbing and building codes during installation.
• Ensure all connections are secure and watertight to prevent leaks.
• Do not overtighten screws during assembly to avoid damaging the wood.
• Keep small parts and hardware away from children to prevent choking hazards.
• Use appropriate tools and wear safety glasses during assembly.
• This product is designed for bathroom use only.
• Maximum weight capacity for the vanity is 200 pounds. Do not exceed this limit.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Vanity Cabinet
• Ceramic Sink Top
• Assembly Hardware (screws, dowels, hinges, drawer slides, handles)
• User Manual

Note: Faucet and drain assembly are not included.

4. Setup and Assembly

The Mirightone 30-Inch Bathroom Vanity is designed for easy assembly. Follow the steps below carefully. An installation video is provided for visual guidance.

Assembly Video Guide

Step-by-Step Assembly Instructions

1. Prepare the Base Panels: Attach the cam lock screws to the designated holes on panels 1, 2, and 7. Ensure they are securely fastened.
2. Install Drawer Slides (Part N): Separate the inner and outer parts of the drawer slides. Attach the outer slides (Part N) to panels 2, 3, 8, and 9 using screws (Part P).
3. Assemble Side Panels: Connect panel 4 to panel 3 using wooden dowels (Part Q) and screws (Part E). Then, attach panel 5 to panel 3 using screws (Part E).
4. Connect Remaining Side Panels: Attach panel 6 to the assembly from Step 3 using wooden dowels (Part Q) and cam locks (Parts A, B, D). Secure with screws.
5. Assemble the Base Frame: Insert wooden dowels (Part Q) into the base frame (Part 10). Attach the four vanity legs (Part 11) to the base frame using cam locks (Part A) and an Allen key.
6. Attach Side Panels to Base Frame: Connect panels 8 and 9 to the assembled base frame (Part 10) using wooden dowels (Part Q) and cam locks (Parts A, B). Secure with screws.
7. Attach Bottom Panel: Place panel 7 onto the assembled base structure, aligning the cam lock screws. Secure it by tightening the cam locks (Part D) with a screwdriver.
8. Connect Base to Main Cabinet: Carefully align the assembled base (Part 7) with the main cabinet structure (Parts 1, 2, 3, 4, 5, 6). Insert wooden dowels (Part Q) and secure the connection.
9. Secure Main Cabinet to Base: Fasten the main cabinet to the base using cam locks (Part D) and a screwdriver, ensuring all connections are tight.
10. Install Door Hinges: Attach the hinges (Part L) to the cabinet door (Part 12) using screws (Part M).
11. Attach Cabinet Door: Mount the cabinet door (Part 12) to the main cabinet structure by aligning the hinges and securing them with screws (Parts H, J).
12. Assemble Drawer Sides: Attach the inner drawer slides (Part O) to the drawer side panels (Parts 15, 16, 20, 21) using screws (Part P).
13. Assemble Drawer Box 1: Connect the front (Part 13) and side panels (Part 15) of the first drawer using screws (Part F). Insert the bottom panel (Part 17) and secure the remaining side panel (Part 14).
14. Install Drawer Handle 1: Attach the handle (Part G) to the front of the first drawer using screws (Part K).
15. Assemble Drawer Box 2: Connect the front (Part 18) and side panels (Part 19) of the second drawer using screws (Part F). Insert the bottom panel (Part 22) and secure the remaining side panel (Part 20).
16. Assemble Drawer Box 3: Connect the front (Part 23) and side panels (Part 24) of the third drawer using screws (Part F). Insert the bottom panel (Part 22) and secure the remaining side panel (Part 16).
17. Insert Drawers: Carefully slide the assembled drawers into their respective tracks within the vanity cabinet.
18. Place Ceramic Sink Top: Gently place the ceramic sink top onto the assembled vanity cabinet, ensuring it is properly aligned and seated.

5. Operating Instructions

Your Mirightone 30-Inch Bathroom Vanity is designed for functional and convenient use in your bathroom. Here’s how to operate its features:

Storage Access

• Cabinet Door: The vanity features one soft-closing door for quiet operation. Gently pull the handle to open and push to close. The soft-close mechanism will prevent slamming. Inside, you'll find a two-tier storage shelf for larger items.
• Drawers: The vanity includes three drawers of varying sizes. The top two are shallow for small essentials, and the bottom drawer is wider for extra storage. Pull the handles to open and push to close. The smooth glides ensure easy access.

Sink Usage

• The ceramic sink features three pre-drilled holes for a 4-inch center faucet (faucet not included).
• An overflow port with a metal ring is integrated to prevent water from overflowing the basin.

Function Introduction Video

6. Maintenance

Proper care will ensure the longevity and appearance of your Mirightone bathroom vanity.

• Cleaning the Cabinet: The vanity cabinet has a painted finish, making it easy to clean. Wipe surfaces with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the finish.
• Cleaning the Ceramic Sink: The solid ceramic sink has a smooth, waterproof, and stain-resistant surface. Clean with a soft cloth and a non-abrasive bathroom cleaner. Rinse thoroughly after cleaning.
• Hardware: The metal hinges and handles are designed to resist rust. Periodically check that all screws and hardware are tight. Do not overtighten.
• Spills: Wipe up any water spills immediately to prevent water damage to the wood components.

7. Troubleshooting

If you encounter any issues with your vanity, refer to the following common solutions:

8. Specifications

Detailed product specifications for the Mirightone 30-Inch Bathroom Vanity with Sink.

• Brand: Mirightone
• Model Number: N759P313314E
• Color: Grey Left Drawers
• Material: Wood (MDF panels, solid poplar wood frame, rubberwood legs)
• Product Dimensions (D x W x H): 18.3" x 30" x 33.7"
• Item Weight: 97 Pounds
• Number of Drawers: 3
• Number of Doors: 1
• Number of Shelves: 2 (inside cabinet)
• Installation Type: Freestanding
• Mounting Type: Floor Mount
• Weight Capacity Maximum: 200 Pounds
• Sink Material: Ceramic
• Faucet Compatibility: 4-inch centerset faucet (not included)
• Features: Soft-closing door, ample storage space, modern design, smooth ceramic sink.

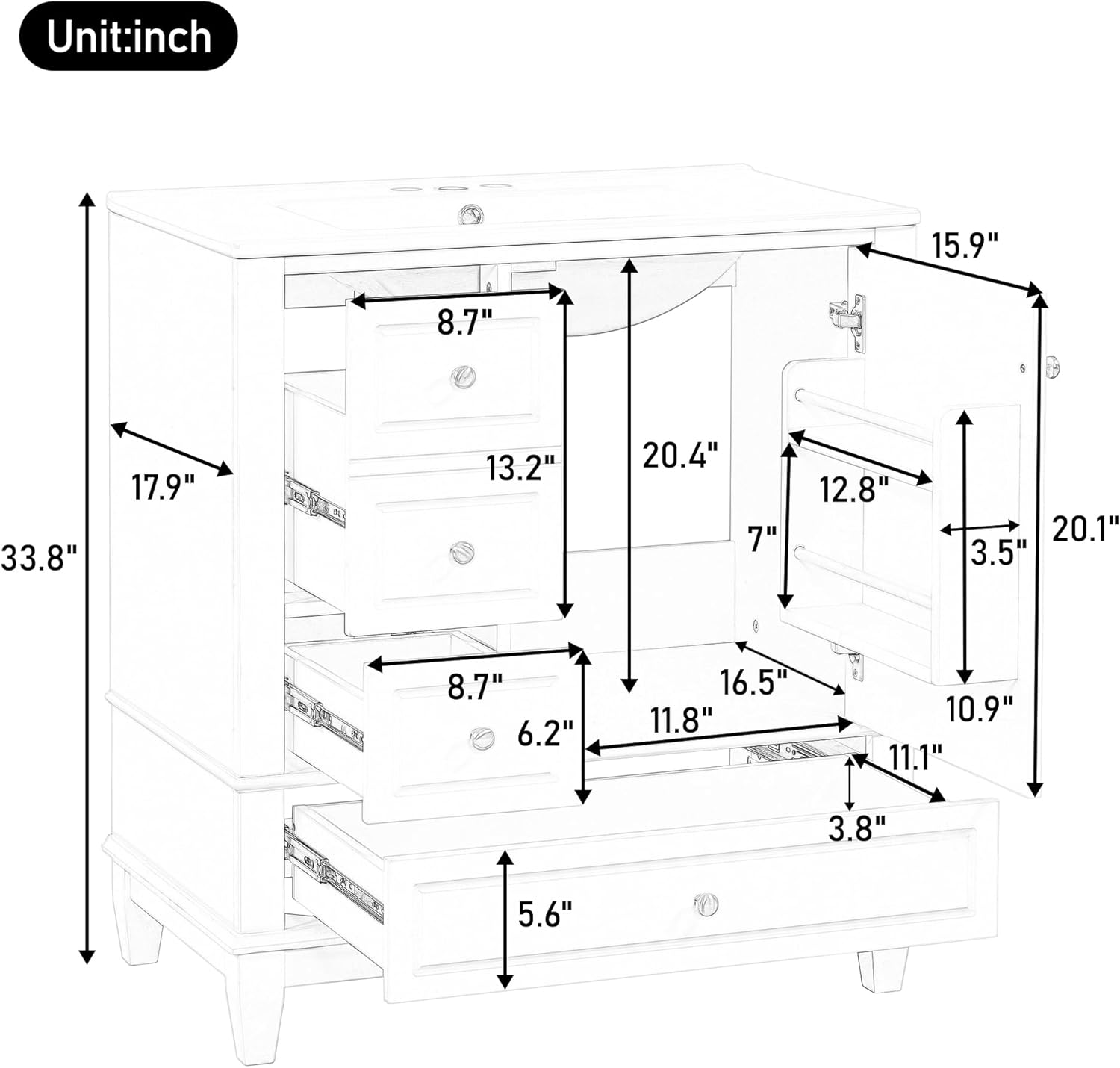

Product Dimensions Diagram

Overall dimensions of the vanity: 33.8 inches height, 30 inches width, and 17.9 inches depth.

Internal dimensions and top view of the vanity, detailing the sink area and cabinet layout.

Detailed dimensions of the ceramic basin sink, including the 4-inch centerset faucet hole spacing.

9. Warranty Information

Mirightone products are manufactured with quality and durability in mind. For specific warranty details regarding your 30-Inch Bathroom Vanity (Model N759P313314E), please refer to the warranty card included in your product packaging or contact Mirightone customer support directly. The warranty typically covers manufacturing defects under normal use.

10. Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Mirightone customer support:

• Brand: Mirightone
• Online Store: Visit the Mirightone Store on Amazon
• Please have your model number (N759P313314E) and purchase information ready when contacting support.
