1. Introduction
Thank you for choosing the HopCycle W8 Electric Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your scooter. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience.
The HopCycle W8 is designed for urban commuting and recreational use, featuring a powerful 1000W peak motor, a top speed of 25 MPH, and a range of up to 28 miles. Its foldable design and robust construction make it a convenient and reliable personal transport solution.
Figure 1.1: HopCycle W8 Electric Scooter (unfolded)
2. Safety Information
Operating an electric scooter carries inherent risks. To minimize these risks, always adhere to the following safety guidelines:
- Always wear a helmet and appropriate protective gear (knee pads, elbow pads) when riding.
- Ensure all local laws and regulations regarding electric scooter use are followed.
- Do not ride in heavy rain, on icy surfaces, or through standing water deeper than 1 inch (2.5 cm). The scooter has an IPX4 waterproof rating, meaning it is resistant to splashing water from any direction, but not submersion.
- Maintain a safe speed and distance from other vehicles and pedestrians.
- Perform a pre-ride check: verify tire pressure, brake function, and ensure all quick releases are securely fastened.
- Do not allow children under the age of 16 to operate the scooter.
- The maximum weight limit for this scooter is 264 lbs (120 kg). Do not exceed this limit.
- Avoid riding under the influence of alcohol or drugs.
- Be aware of your surroundings and potential hazards such as potholes, uneven surfaces, and obstacles.
3. Package Contents
Upon unpacking your HopCycle W8 Electric Scooter, please verify that all items listed below are present and in good condition:
- HopCycle W8 Electric Scooter
- Power Charger
- User Manual (this document)
- Assembly Tools (if applicable)
If any items are missing or damaged, please contact customer support immediately.
4. Product Overview
Familiarize yourself with the main components of your HopCycle W8 Electric Scooter.
Figure 4.1: Key Features of the HopCycle W8 Electric Scooter
- Handlebar: Includes grips, brake levers, throttle, and display.
- Digital Display: Shows speed, battery level, riding mode, and other indicators.
- Headlight & Taillight: For visibility during low-light conditions.
- Folding Mechanism: Allows for compact storage and transport.
- Deck: Foot platform for riding.
- Motor: Integrated into the rear wheel (1000W peak).
- Wheels: 9.3-inch pneumatic tires for a comfortable ride.
- Braking System: EABS (Electronic Anti-lock Braking System) and rear disc brakes.
- Suspension: Dual spring suspension for shock absorption.
- Kickstand: For parking the scooter.
5. Setup and Assembly
Your HopCycle W8 Electric Scooter comes mostly pre-assembled. Follow these steps to complete the setup:
- Unfold the Scooter: Carefully lift the stem until it locks into the upright position. Ensure the folding mechanism is securely latched.
- Attach Handlebars: If detached, slide the handlebars onto the stem and tighten any screws or clamps as instructed in the quick start guide (if provided separately). Ensure they are firmly secured and do not wobble.
- Check Tire Pressure: Verify that the 9.3-inch pneumatic tires are inflated to the recommended pressure, typically found on the tire sidewall.
- Initial Charge: Before your first ride, fully charge the scooter's battery. Refer to Section 7 for charging instructions.
6. Operating Instructions
6.1 Power On/Off
- To power on, press and hold the power button on the display for a few seconds.
- To power off, press and hold the power button again until the display turns off.
6.2 Riding Modes and Speed Control
The HopCycle W8 features multiple speed modes to suit different riding conditions and preferences.
Figure 6.1: Speed Modes and App Control Interface
- Press the mode button (usually a short press of the power button after turning on) to cycle through available speed modes (e.g., Eco, Drive, Sport).
- Each mode offers a different maximum speed and acceleration profile. The Sport mode provides the highest speed, up to 25 MPH.
- Use the throttle lever on the right handlebar to accelerate.
6.3 Braking
The scooter is equipped with a dual braking system for effective stopping power.
- Apply the brake levers on the handlebars to engage the EABS and rear disc brakes.
- Always brake smoothly and gradually, especially at higher speeds, to avoid loss of control.
6.4 Folding and Portability
The HopCycle W8 features a quick-folding design for easy storage and transport.
Figure 6.2: Folding and Portability of the HopCycle W8
- To fold, ensure the scooter is powered off. Locate the folding latch mechanism on the stem.
- Follow the instructions on the latch to release the stem and fold it down towards the rear wheel.
- Secure the folded stem to the rear fender or designated latch point.
- The scooter weighs approximately 46.6 lbs, making it manageable for carrying short distances or storing in a car trunk.
6.5 App Control
The HopCycle W8 can be connected to a smartphone application for additional features and control.

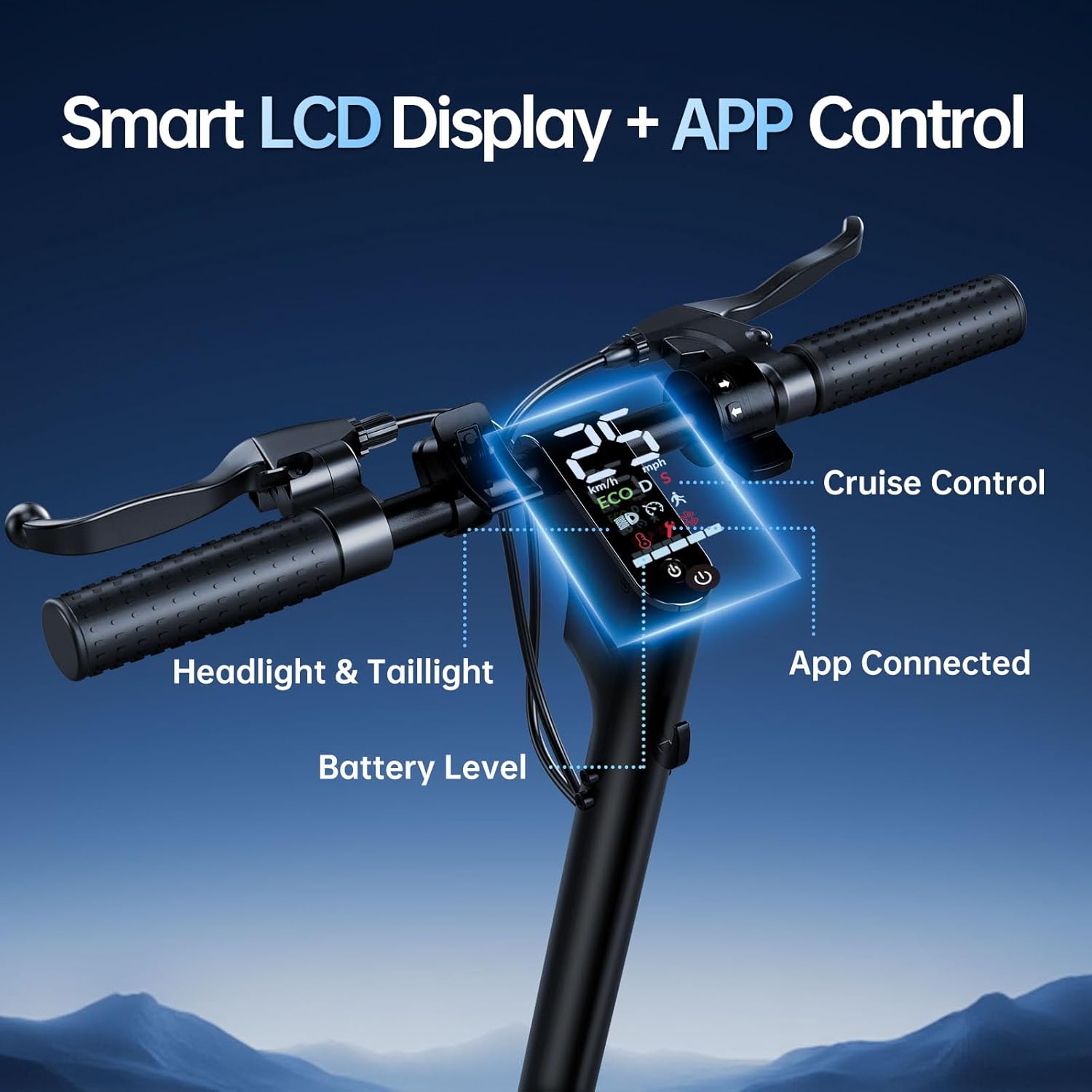

Figure 6.3: Smart LCD Display and App Control Features
- Download the official HopCycle app from your smartphone's app store.
- Follow the in-app instructions to pair your scooter via Bluetooth.
- The app may offer features such as locking/unlocking, tracking riding statistics, adjusting settings, and firmware updates.
7. Charging
Proper charging procedures are crucial for battery longevity and safety.
Figure 7.1: Battery Specifications and Charging Time
- Ensure the scooter is powered off before charging.
- Locate the charging port, typically on the side of the deck.
- Connect the charger to the charging port, then plug the charger into a standard wall outlet.
- The charging indicator light on the charger will typically turn red during charging and green when fully charged.
- A full charge takes approximately 5 hours. Do not overcharge the battery.
- Only use the official HopCycle charger provided with your scooter.
8. Maintenance
Regular maintenance helps ensure the performance and longevity of your scooter.
- Cleaning: Wipe the scooter with a damp cloth. Do not use high-pressure water jets or corrosive cleaners.
- Tires: Regularly check tire pressure and inspect for wear or damage. Replace worn tires promptly.
- Brakes: Inspect brake levers, cables, and disc pads for wear. Adjust or replace as needed to ensure effective braking.
- Battery Care: Store the scooter in a cool, dry place. If storing for extended periods, charge the battery to approximately 50-70% every 30-60 days to prevent deep discharge.
- Fasteners: Periodically check all screws and bolts for tightness.
- Suspension: Inspect the dual spring suspension for any signs of damage or reduced effectiveness.

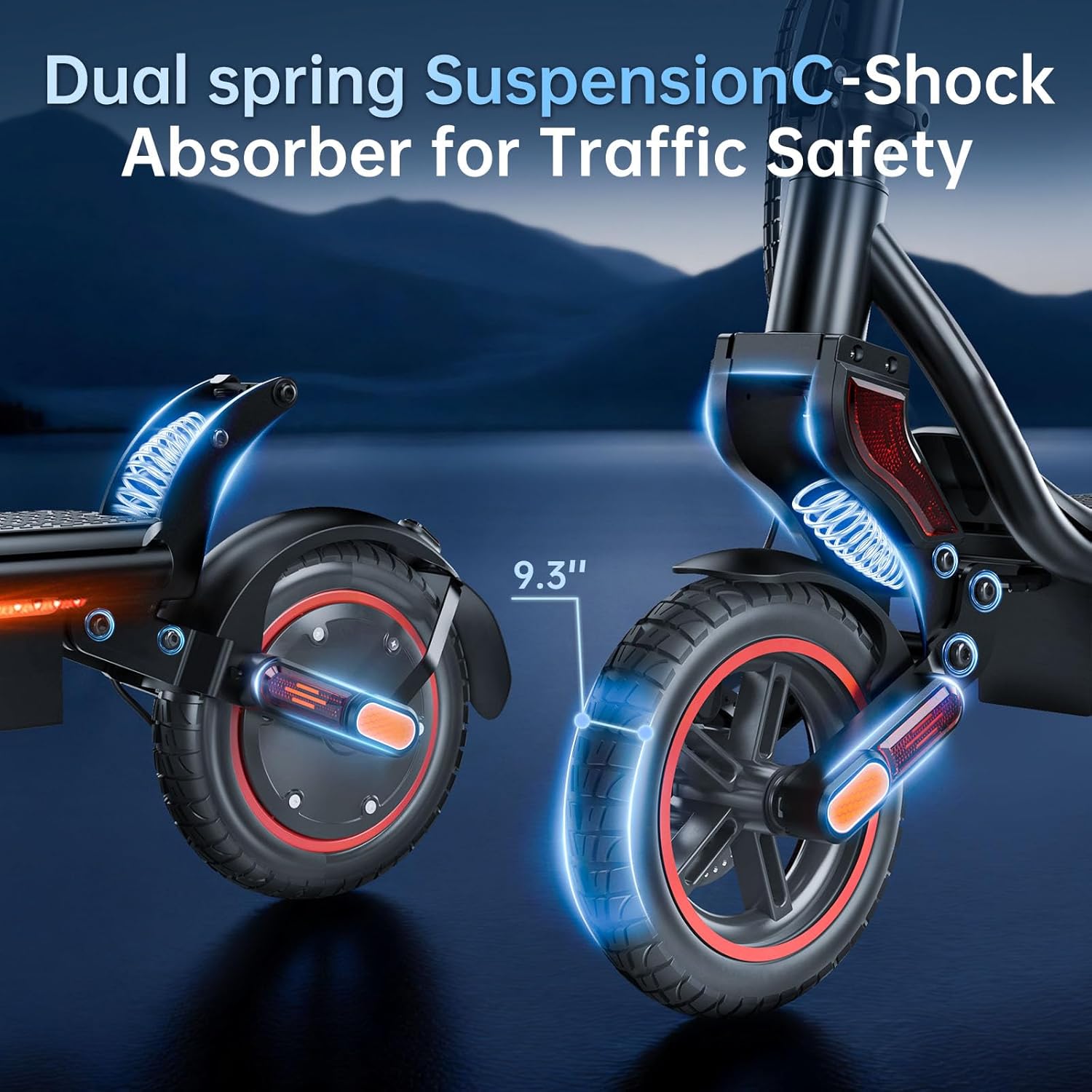

Figure 8.1: Dual Spring Suspension System
9. Troubleshooting
This section addresses common issues you might encounter with your HopCycle W8 Electric Scooter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; Loose connections; Faulty power button | Charge the battery; Check all visible connections; Contact support if issue persists. |
| Reduced range or speed | Low tire pressure; Overload; Battery degradation; Riding uphill | Inflate tires to correct pressure; Ensure rider weight is within limits; Charge fully; Avoid steep inclines. |
| Brakes feel weak | Worn brake pads; Loose brake cable; Air in hydraulic system (if applicable) | Inspect and replace brake pads; Adjust brake cable tension; Consult a professional for hydraulic brake issues. |
| Unusual noises during operation | Loose components; Debris in wheels; Motor issue | Check all fasteners; Inspect wheels for foreign objects; Contact support for motor-related noises. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact HopCycle customer support.
10. Specifications
Detailed technical specifications for the HopCycle W8 Electric Scooter.
Figure 10.1: Performance Specifications
| Feature | Specification |
|---|---|
| Model Name | W8 |
| Motor Power | 1000W Peak |
| Top Speed | Up to 25 MPH (40 km/h) |
| Maximum Range | Up to 28 Miles (45 km) |
| Battery Capacity | 54.6V 14Ah |
| Charging Time | Approximately 5 hours |
| Tire Size | 9.3 Inches |
| Tire Type | Pneumatic Off-Road |
| Braking System | EABS + Rear Disc Brake |
| Suspension | Dual Spring Suspension |
| Net Weight | 46.6 lbs (21.1 kg) |
| Maximum Load | 264 lbs (120 kg) |
| Product Dimensions (Unfolded) | 43"L x 17"W x 47"H (109cm x 43cm x 119cm) |
| Waterproof Rating | IPX4 |
| Material | Aluminum |
11. Warranty and Support
HopCycle provides a limited warranty for the W8 Electric Scooter.
- Warranty Period: The HopCycle W8 Electric Scooter comes with a 180-day repair warranty from the date of purchase.
- Coverage: This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
- Claim Process: To initiate a warranty claim, please contact HopCycle customer support with your proof of purchase and a detailed description of the issue.
Customer Support
For technical assistance, warranty inquiries, or spare parts, please contact HopCycle customer support through the official website or the contact information provided with your purchase documentation.
