DJI Neo Intelligent Flight Battery User Manual

Introduction

This manual provides essential information for the safe and efficient use of your DJI Neo Intelligent Flight Battery. This battery is designed for compatibility with the DJI Neo 2 drone, offering reliable power for your flight experiences. Please read this manual thoroughly before using the product.

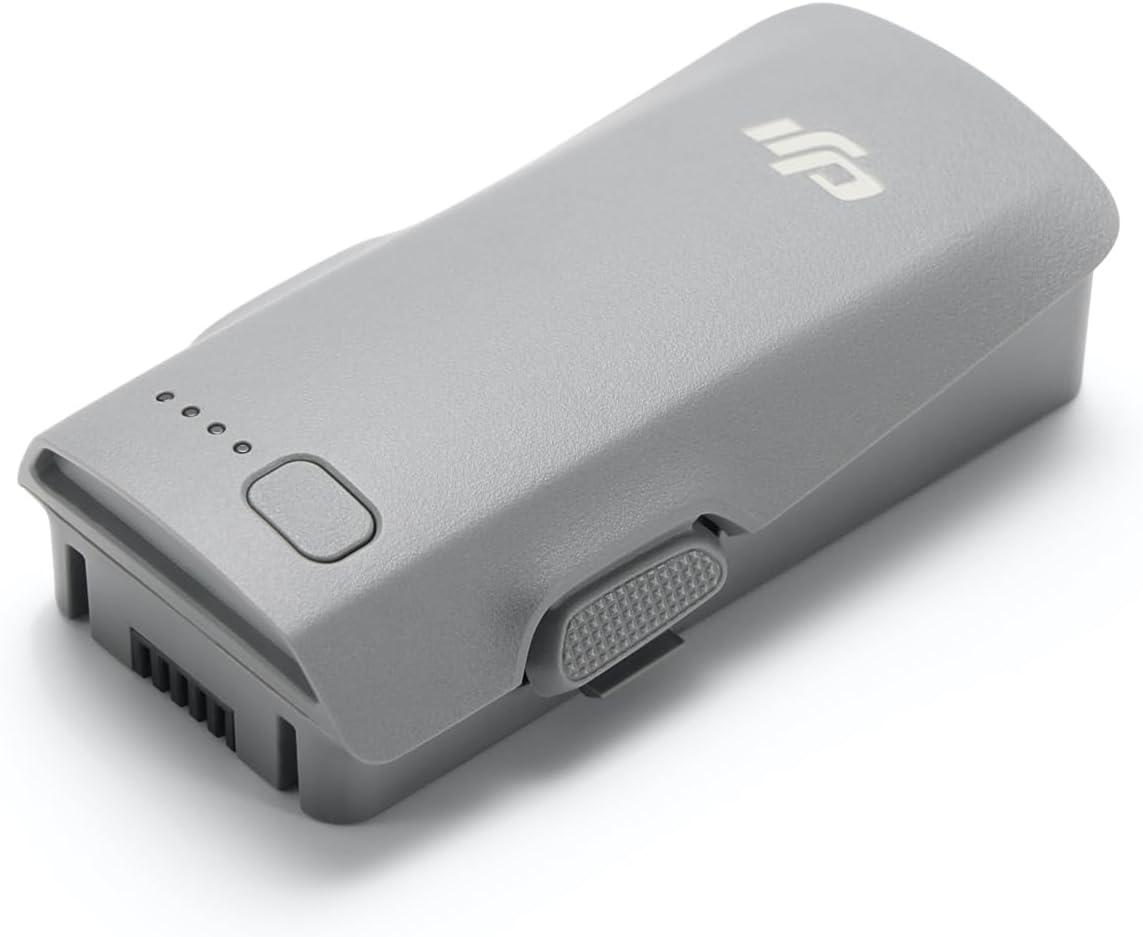

The DJI Neo Intelligent Flight Battery, showcasing its sleek design and the four LED lights that indicate battery charge level.

Setup

1. Unboxing

Carefully remove the DJI Neo Intelligent Flight Battery from its packaging. The package should contain one (1) DJI Neo Intelligent Flight Battery.

2. Initial Charging

Before first use, fully charge the battery using a DJI-approved charging device. Connect the charger to a power source and then connect the battery to the charger. The LED indicators on the battery will show the charging status.

3. Battery Installation

To install the battery into your DJI Neo 2 drone, align the battery with the battery compartment on the drone. Gently push the battery into place until it clicks securely. Ensure it is firmly seated to prevent dislodgement during flight.

The DJI Neo Intelligent Flight Battery positioned beside a compatible DJI Neo 2 drone, illustrating its size and form factor relative to the drone.

Operating Instructions

1. Powering On/Off

To power on the battery, press the power button once, then press and hold it for two seconds. The LED indicators will light up. To power off, repeat the same procedure: press the power button once, then press and hold it for two seconds until the LEDs turn off.

2. Checking Battery Level

With the battery powered off, a single short press of the power button will illuminate the LED indicators to show the current charge level. Each illuminated LED typically represents approximately 25% of the battery's charge.

3. Flight Time

The DJI Neo Intelligent Flight Battery provides up to 19 minutes of flight time under optimal conditions. Actual flight time may vary based on environmental factors, flight style, and drone payload.

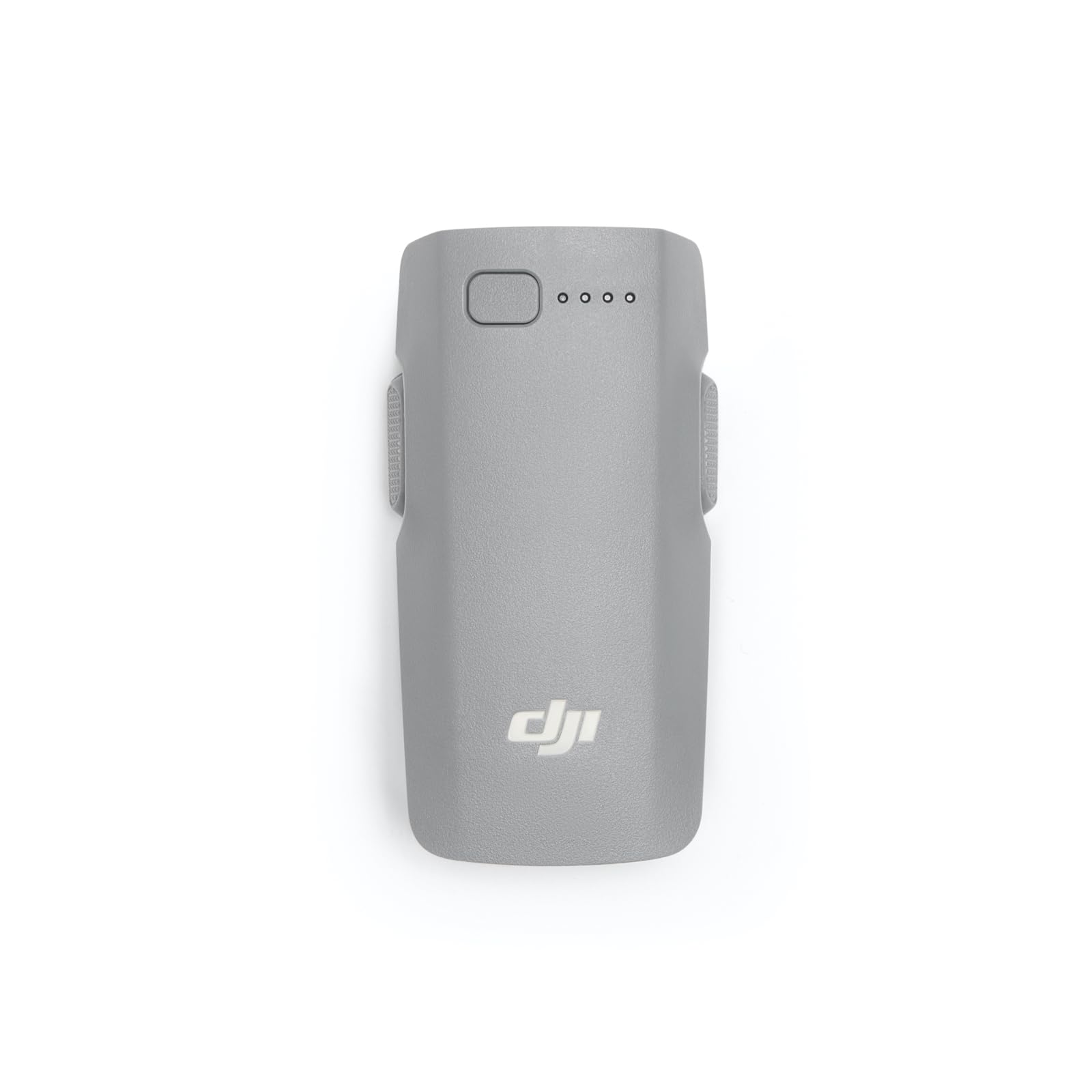

A close-up view of the DJI Neo Intelligent Flight Battery, showing its grey casing, LED indicators, and power button.

Maintenance and Safety

1. Charging Best Practices

• Always use a DJI-approved charger.
• Do not charge the battery unattended.
• Avoid charging in extreme temperatures.

2. Storage

• Store the battery in a cool, dry place, away from direct sunlight and heat sources.
• For long-term storage, discharge the battery to approximately 50-60% to prolong its lifespan.
• Avoid storing fully charged or fully discharged batteries for extended periods.

3. Cleaning

Wipe the battery surface with a clean, dry cloth. Do not use liquid cleaners or immerse the battery in water.

4. Safety Warnings

Observe the following critical safety warnings to prevent damage or injury:

• Only use DJI approved charging devices.
• DO NOT place the battery in a fire or disassemble, pierce, drop, strike, or short circuit the battery.
• DO NOT use batteries that have been dropped in water.
• Keep the battery away from children and pets.
• If the battery shows signs of swelling, leakage, or damage, discontinue use immediately and dispose of it properly.

A detailed view of the warning label on the DJI Neo Intelligent Flight Battery, displaying important safety instructions, specifications, and certification marks.

Troubleshooting

Battery Not Charging

• Ensure the charger is properly connected to a power source and the battery.
• Verify that you are using a DJI-approved charger.
• Check for any visible damage to the battery or charger.
• Try charging in a different power outlet.

Drone Not Powering On with Battery

• Ensure the battery is fully charged.
• Confirm the battery is correctly installed and securely clicked into the drone's compartment.
• Perform the power-on sequence correctly (press once, then press and hold for two seconds).

Reduced Flight Time

• Extreme temperatures (hot or cold) can affect battery performance.
• Aggressive flight maneuvers or high wind conditions consume more power.
• Ensure the battery is fully charged before each flight.
• Over time, all batteries experience degradation. If flight time significantly decreases, consider replacing the battery.

Specifications

Warranty Information

The DJI Neo Intelligent Flight Battery is covered by DJI's standard manufacturer's warranty. Please refer to the official DJI website or your purchase documentation for detailed warranty terms and conditions, including coverage period and claim procedures. Keep your proof of purchase for warranty service.

Customer Support

For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact DJI Customer Support. You can find contact information, including phone numbers and online support resources, on the official DJI website.
