1. Introduction and Overview
The PYY French Fry Warmer is a commercial-grade food warming unit designed to maintain the optimal temperature and crispness of fried foods. Utilizing light source heating technology, it provides consistent warmth for items such as french fries, chicken tenders, onion rings, and more, making it suitable for restaurants, buffets, food trucks, cafeterias, and concession stands. This manual provides essential information for the safe and efficient operation and maintenance of your PYY French Fry Warmer.

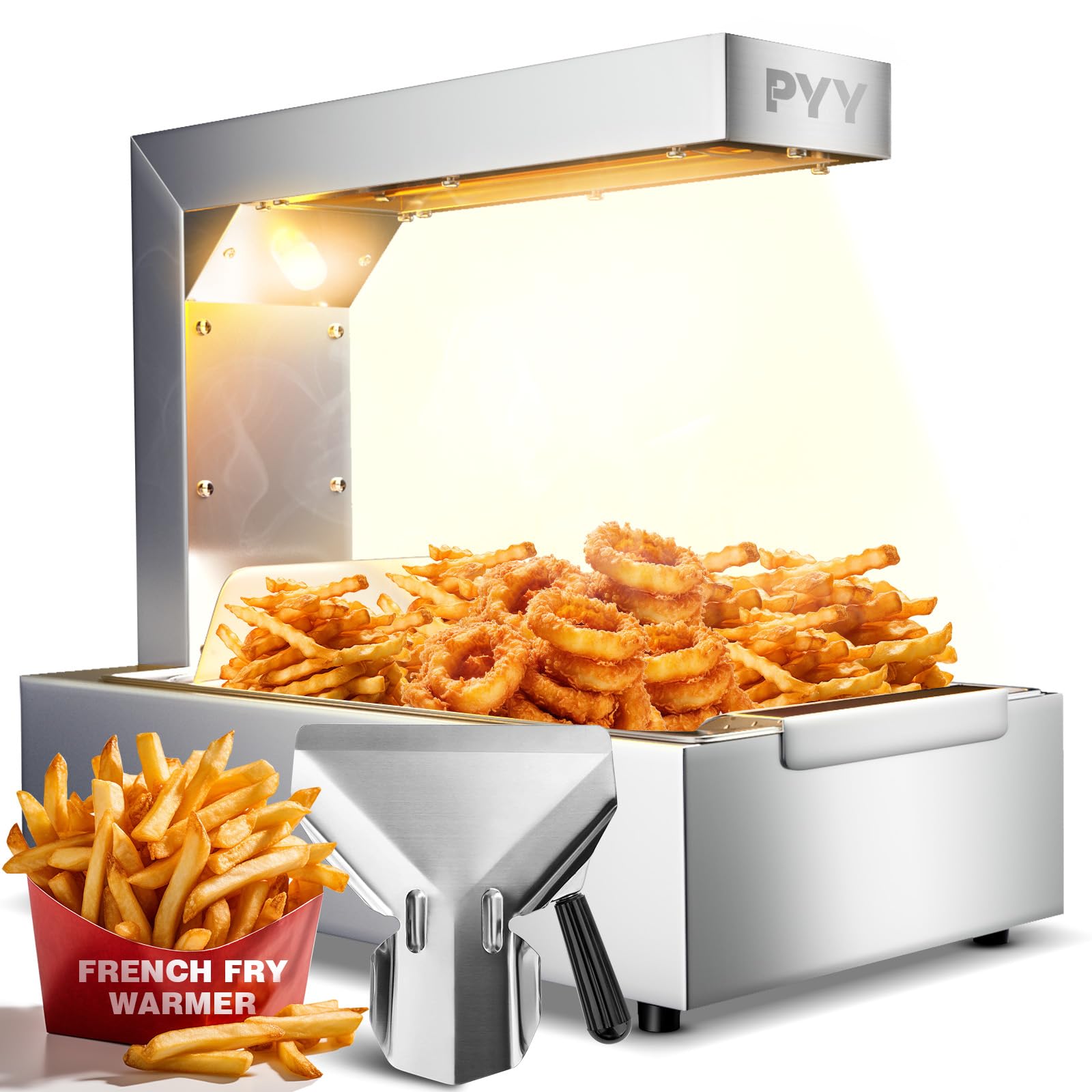

Figure 1: PYY French Fry Warmer in operation, showcasing its design and capacity for various fried items.
2. Safety Instructions
- Always ensure the unit is placed on a stable, heat-resistant surface.
- Do not touch the heating element or the top surface of the unit when in operation, as it becomes very hot (up to 122°F / 50°C). A warning sticker is present on the unit to indicate hot surfaces.
- Keep hands, clothing, and other flammable materials away from the heating elements.
- Ensure proper ventilation around the unit during use.
- Do not immerse the electrical components or power cord in water or other liquids.
- Unplug the unit from the power outlet before cleaning or performing any maintenance.
- This appliance is for commercial use. Follow all local electrical and safety codes.
- Keep out of reach of children.
3. Product Components
The PYY French Fry Warmer comes with the following components:
- French Fry Warmer Base (main unit with heating lamp)
- Bulb (x3)
- Oil Filter Plate (perforated drip tray)
- Oil Pan (bottom collection pan)
- Fry Scoop (stainless steel)
Figure 2: Product accessories and dimensions for the PYY French Fry Warmer.
4. Setup Instructions
The PYY French Fry Warmer requires minimal assembly. Follow these steps:
- Carefully unpack all components from the packaging.
- Place the main warmer base on a stable, level, and heat-resistant countertop.
- Secure the upper heating lamp assembly to the base using the provided four bolts. Ensure they are tightened securely.
- Insert the oil pan into the bottom compartment of the warmer base.
- Place the perforated oil filter plate on top of the oil pan. The slanted design of the filter plate facilitates scooping and allows excess oil to drain into the pan below.
- Connect the power cord to a suitable 110-120V electrical outlet.
Video 1: Demonstration of the simple assembly process, showing the attachment of the main unit to the base with four bolts.
5. Operating Instructions
To operate your PYY French Fry Warmer:
- Ensure the unit is properly assembled and plugged into a grounded electrical outlet.
- Turn on the unit using the one-touch power switch located on the side of the main unit. The heating lamp will illuminate and begin to warm up.
- Allow the unit a few minutes to reach its operating temperature (up to 122°F / 50°C). The heating element will glow bright red.
- Place your freshly cooked fried foods onto the perforated oil filter plate. The warm lighting will also enhance the presentation of the food.
- Use the provided stainless steel fry scoop to easily serve food from the warmer. The scoop's design is optimized for efficient serving.
- When finished, turn off the unit using the power switch and unplug it from the outlet.
Figure 3: The U-shaped heat circulation system ensures uniform and efficient heating.
Figure 4: The warmer maintains a consistent temperature of 122°F (50°C) to keep food crispy.
6. Cleaning and Maintenance
Regular cleaning ensures the longevity and hygienic operation of your PYY French Fry Warmer. All removable parts are designed for easy cleaning.
- Always unplug the unit and allow it to cool completely before cleaning.
- Remove the perforated oil filter plate and the bottom oil pan.
- Discard any accumulated oil or food debris from the oil pan.
- Hand wash the oil filter plate, oil pan, and fry scoop with warm, soapy water. Rinse thoroughly and dry completely before reassembling. These stainless steel components are corrosion-resistant.
- Wipe down the exterior surfaces of the warmer base and heating lamp assembly with a damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the stainless steel finish.
- Ensure all parts are dry before plugging the unit back in for use.
Figure 5: The removable drip tray and oil pan simplify cleaning and maintenance.
Video 2: Demonstration of removing the perforated tray and oil pan for cleaning, highlighting the ease of maintenance.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | PYYBWD620SSUS |
| Capacity | 9.5 Liters / 10 Quarts |
| Voltage | 110-120V |
| Power | 600W |
| Maximum Temperature | 122°F (50°C) / 115°C (Note: 115°C is likely a typo in source data, 50°C is consistent with other mentions) |
| Material | Stainless Steel |
| Product Dimensions (L x W x H) | 31.5" x 19.09" x 8.86" (80.00 x 48.50 x 22.50 cm) |
| Item Weight | 17.63 lbs (8 kg) |
8. Troubleshooting
If you encounter any issues with your PYY French Fry Warmer, please consider the following:
- Unit not turning on: Ensure the power cord is securely plugged into a functional outlet and the power switch is in the 'ON' position. Check the circuit breaker if necessary.
- Food not staying warm: Verify that the unit has been on long enough to reach operating temperature. Ensure the heating element is glowing.
- Excessive smoke or unusual odors: Immediately turn off and unplug the unit. Allow it to cool and inspect for any foreign objects or damage. Do not operate if damage is found.
For persistent problems or technical assistance, please contact customer support.
9. Warranty and Support
PYY offers a one-year warranty for the French Fry Warmer. For any questions, technical support, or warranty claims, please reach out to our customer service team.
Customer Support Email: pyycustomer@gmail.com
