1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your ANRAN Q7M2 Dual-Lens Solar Security Camera. This device is designed to provide comprehensive outdoor surveillance with its innovative dual-lens system, solar power, and advanced detection features.
Figure 1: ANRAN Q7M2 Dual-Lens Solar Security Camera (2-Pack)
2. What's in the Box
Verify that all components are present before proceeding with installation:
- 1x Dual Lens Camera
- 1x Type C Cable
- 1x Solar Panel
- 1x Mounting Bracket
- 1x Screw Pack (screws and wall anchors)
Figure 2: Included Components
3. Setup
3.1 Initial Charging
Before first use, fully charge the camera's internal battery using the provided USB-C cable. Locate the USB-C port under the rubber flap on the camera. A red indicator light will illuminate during charging and turn off when fully charged.
3.2 App Installation and Connection
Download the ANRAN app from your device's app store (available for iOS and Android). Create an account using your email address and a password. Follow the in-app instructions to connect the camera to your local 2.4GHz Wi-Fi network. You will need your Wi-Fi password for this step.
3.3 Mounting the Camera
The camera comes with a mounting bracket that allows for flexible positioning. Loosen the bracket's adjustment screw to pivot the camera to your desired angle. Once positioned, tighten the screw to secure it. Use the provided screws and wall anchors to securely mount the bracket to a wall or ceiling. Ensure the solar panel is positioned to receive maximum direct sunlight for optimal charging.
Figure 3: Easy Installation Steps
4. Operating Instructions
4.1 Dual-Lens System
The camera features a dual-lens system for comprehensive surveillance:
- Fixed Wide-Angle Lens: Provides constant monitoring of a broad area.
- PTZ (Pan-Tilt-Zoom) Lens: Can be remotely controlled via the ANRAN app to pan 355° and tilt 90° for detailed views. It also supports 4x digital zoom.
Figure 4: Dual-Lens System for Better Viewing
Figure 5: No Blind Spot Monitoring with Dual Lenses
4.2 Solar Power and Wire-Free Operation
The camera is 100% wire-free and powered by an integrated high-efficiency solar panel. This ensures continuous operation without the need for external power cables, provided the solar panel receives adequate sunlight.
Figure 6: 100% Wireless and Solar-Powered
4.3 Live View and Two-Way Talk
Access real-time video feed from anywhere using the ANRAN app. The built-in microphone and speaker enable two-way audio communication, allowing you to speak with visitors or deter intruders.
Figure 7: Motion Detection & Two-way Talk
4.4 Color Night Vision and Smart Human Detection
The camera offers full-color night vision, activated by a built-in spotlight, providing clear and identifiable details in low-light conditions. Advanced AI-powered human detection filters out false alerts by distinguishing between people, pets, and vehicles.
Figure 8: Color Night Vision
Figure 9: Smart PIR Senses & Instant Alerts
4.5 Flexible Storage Options
Recordings can be stored locally on a microSD card (up to 128GB, not included) or securely in the cloud with an optional subscription. The microSD card slot is located under the rubber flap next to the USB-C port.
Figure 10: Local Storage Option
4.6 App Controls
The ANRAN app provides various controls:
- Live View, History, Cloud Playback
- Screenshot, Hold to Talk, Record
- Motion Detection settings, Light control, Siren activation
- Full Color Mode, Album access
Figure 11: App Interface for 2K Viewing
4.7 Video Demonstration of ANRAN Dual-Lens Solar Security Camera
Video 1: Official ANRAN demonstration of the Dual-Lens Solar Security Camera features.
5. Maintenance
5.1 Weather Resistance
The ANRAN Q7M2 camera is engineered with an IP66 waterproof rating, ensuring durability against various outdoor elements including sun, rain, and freezing temperatures. Regular cleaning of the solar panel and camera lenses is recommended to maintain optimal performance.

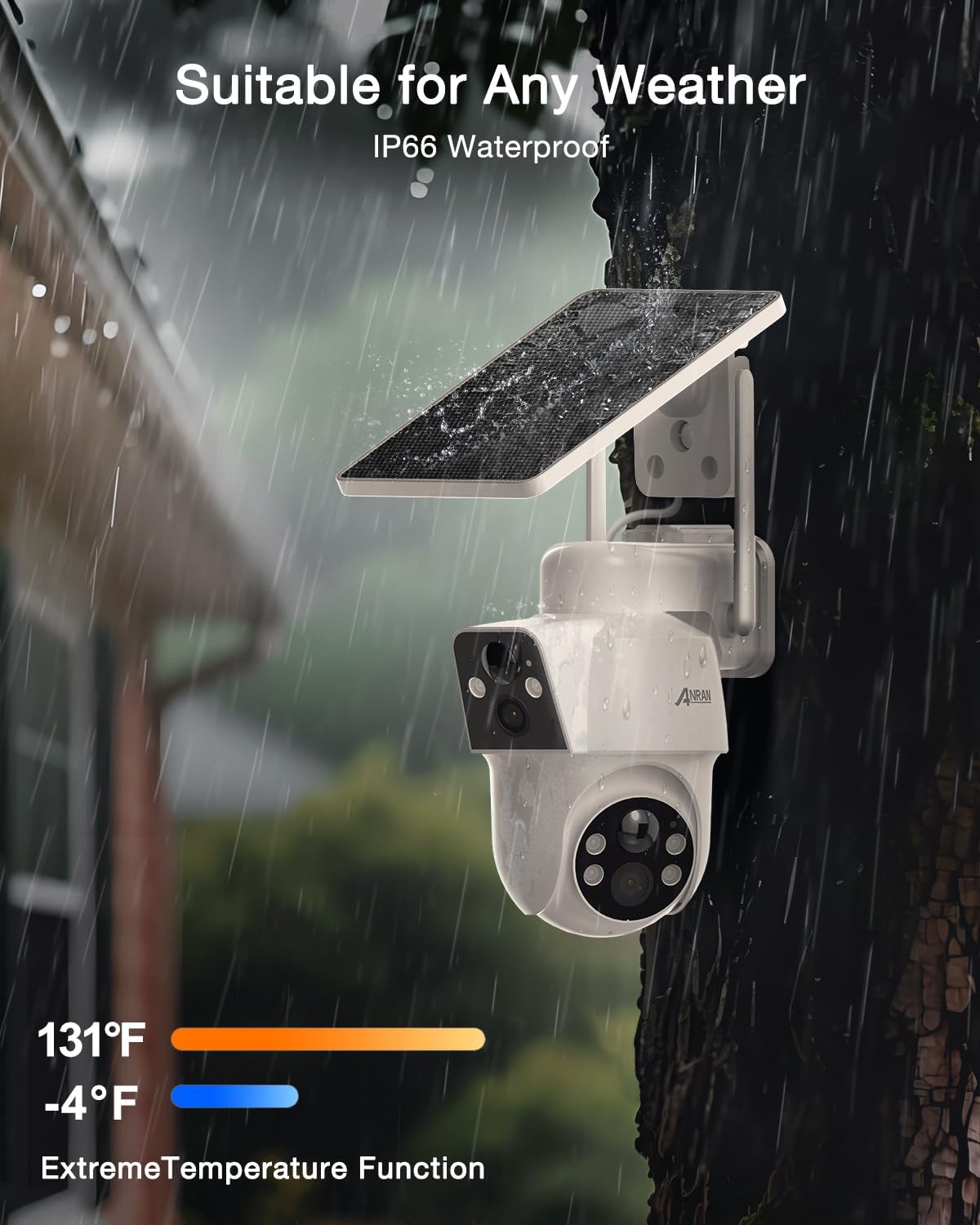

Figure 12: Suitable for Any Weather (IP66 Waterproof)
6. Troubleshooting
6.1 Resetting the Device
If you encounter issues, locate the reset button under the rubber flap near the USB-C port. Use a small pin or paperclip to press and hold the reset button for approximately 5 seconds to restart the device.
7. Specifications
| Feature | Value |
|---|---|
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Compatible Devices | Smartphone |
| Power Source | Solar Powered |
| Connectivity Protocol | Cellular, Wi-Fi (2.4G) |
| Controller Type | Amazon Alexa, Android, CloudEdge, SmartThings |
| Mounting Type | Wall Mount |
| Video Capture Resolution | 4k (Effective 3MP) |
| Number of Items | 2 |
| Wireless Communication Technology | Cellular, Wi-Fi |
| Form Factor | Dome |
| Viewing Angle | 360 Degrees (PTZ) |
| Night Vision Range | 55 Feet |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Water Resistance Level | Waterproof (IP66) |
| Flash Memory Installed Size | 128 GB (Micro SD, not included) |
| Batteries Required? | Yes (1 9V batteries included) |
| Optical Zoom | 4 x |
| Video encoding | MPEG-4 |
| Focus Type | Auto Focus |
| Low light technology | Night Color |
| Alert Type | Audio and Motion |
| Light Source Type | Infrared |
| Video Capture Format | MP4 |
| Photo Sensor Technology | CMOS |
| Special Feature | 2-Way Audio, Dual Lens, Night Vision, PTZ Technology, Weather Proof |
8. Warranty and Support
ANRAN is committed to providing reliable products and excellent customer service. Your ANRAN Q7M2 Dual-Lens Solar Security Camera comes with the following support:
- 24/7 Online Customer Service
- Lifetime Technical Support
- Extended One-Year Warranty
For further questions or assistance, please contact ANRAN customer support:
- Website: www.anran-cctv.com
- Email: support@anran-cctv.com
- Social Media: @AnranTechnology
Please register your product within 10 days of purchase to ensure your warranty is fully activated.
