Introduction
Thank you for choosing the ARDES AIRGLOW EVO AR5PL92 Ceiling Fan. This fan features a Ø92 cm design with a 59W DC motor, retractable blades, and an integrated LED light offering 2200 lm brightness, adjustable from 3000K to 6000K. This manual provides essential information for safe installation, operation, and maintenance of your new ceiling fan. Please read it thoroughly before use and retain it for future reference.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Electrical Safety: Ensure the power supply is disconnected at the main circuit breaker before installation, cleaning, or maintenance. All electrical connections must comply with local codes and standards.
- Installation: The fan must be installed by a qualified electrician. Ensure the mounting structure can support the fan's weight (approximately 5 kg). Do not install the fan in locations where blades could strike objects or people. Maintain a minimum clearance of 2.3 meters (7.5 feet) from the floor to the bottom of the blades.
- Blade Clearance: Ensure there is adequate clearance around the fan blades to prevent contact with walls or other obstructions.
- Operation: Do not insert any objects into the fan blades while the fan is operating. Avoid using the fan in damp or wet locations.
- Cleaning: Always turn off and disconnect power before cleaning. Use a soft, damp cloth; never use abrasive cleaners or solvents.
Package Contents
Verify that all components are present and undamaged before installation. If any parts are missing or damaged, contact customer support.
- Ceiling Fan Motor Assembly with Integrated LED Light
- Retractable Fan Blades (3x)
- Mounting Bracket
- Downrod and Canopy
- Remote Control with Wall Mount
- Hardware Pack (screws, wire nuts, etc.)
- Instruction Manual
Setup and Installation
Installation should be performed by a qualified professional to ensure safety and proper functioning. The following steps are a general guide.
- Prepare for Installation: Turn off power at the circuit breaker. Ensure the mounting location is structurally sound and can support the fan's weight.
- Install Mounting Bracket: Secure the mounting bracket to the ceiling junction box using appropriate screws and washers.
- Assemble Downrod: Feed the electrical wires from the fan motor through the downrod. Attach the downrod to the fan motor assembly.
- Hang Fan Assembly: Carefully lift the fan assembly and hang it on the mounting bracket.
- Make Electrical Connections: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full manual. Ensure all connections are secure.
- Secure Canopy: Slide the canopy up to cover the mounting bracket and electrical connections, then secure it.
- Attach Blades: Install the retractable blades to the fan motor assembly. Ensure they are securely fastened.
- Test Operation: Restore power at the circuit breaker and test the fan and light functions using the remote control.
Operating Instructions
The ARDES AIRGLOW EVO AR5PL92 is controlled via the included remote control.
Remote Control Functions
- Power Button: Turns the fan and light on or off.
- Fan Speed (1-6): Adjusts the fan speed from a gentle breeze (1) to maximum airflow (6).
- Natural Breeze Mode: Simulates a natural breeze by varying fan speed intermittently.

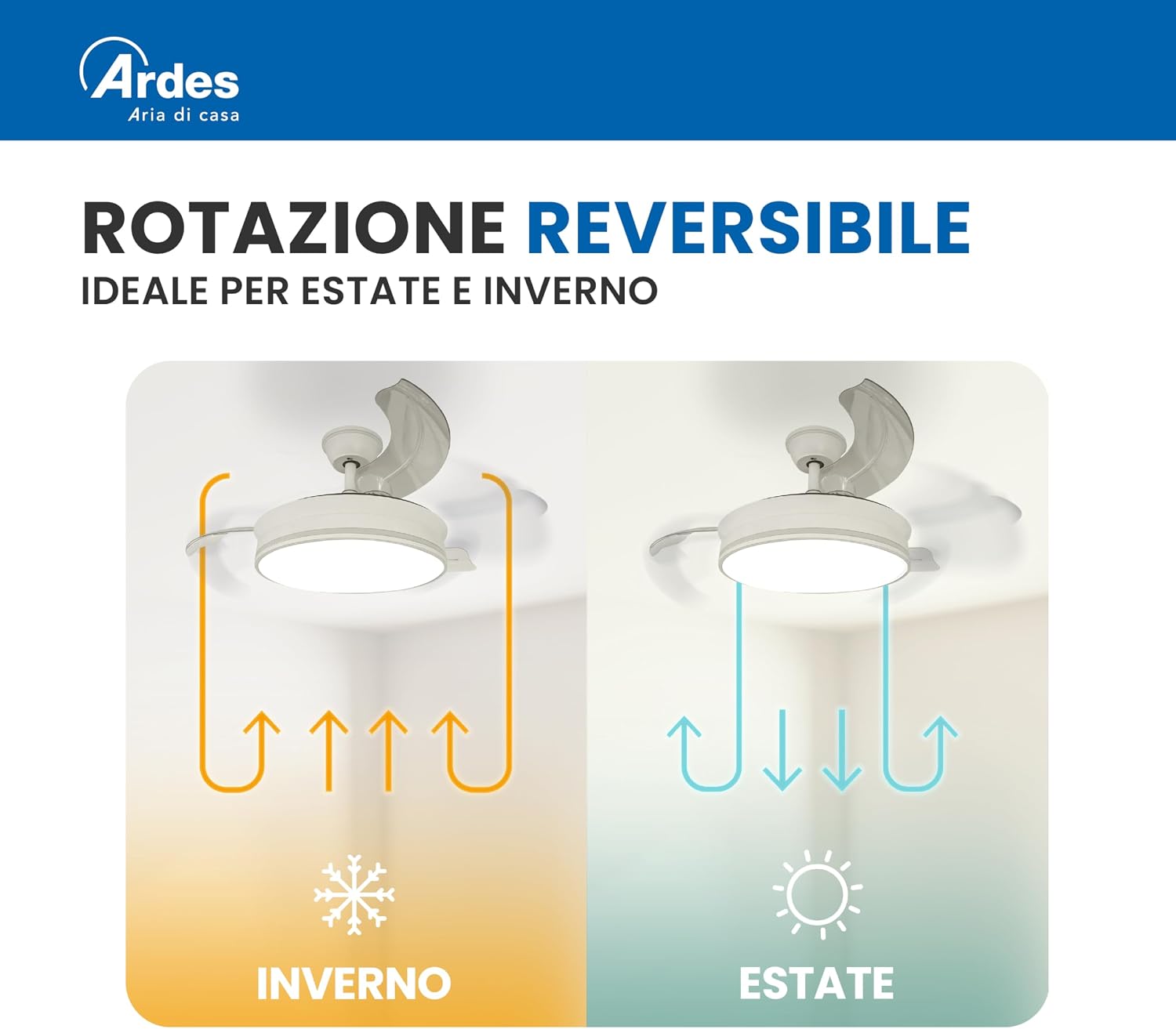

- Summer/Winter Mode: Reverses the direction of blade rotation. In summer, blades rotate counter-clockwise to create a downdraft for cooling. In winter, blades rotate clockwise to create an updraft, circulating warm air trapped near the ceiling.
- Timer (1h/2h): Sets the fan to automatically turn off after 1 or 2 hours.
- Light On/Off: Toggles the LED light.
- Light Color Temperature (CCT) Adjustment: Cycles through 3 preset color temperatures (3000K warm white, 4000K neutral white, 6000K cool white).
- Dimmer: Adjusts the brightness of the LED light.
Light Functions
The integrated LED light offers 2200 lumens of brightness and can be adjusted in both color temperature (3000K, 4000K, 6000K) and intensity (dimmable) to suit your preference.
Summer/Winter Function
The reversible motor allows for year-round use. In summer, the fan creates a cooling breeze. In winter, it helps circulate warm air, improving heating efficiency.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Periodically clean the fan blades and motor housing with a soft, dry, or slightly damp cloth. Do not use water directly on the fan or any harsh chemicals.
- Blade Inspection: Check the blades for any signs of damage or looseness. Tighten screws if necessary.
- Dust Removal: Use a soft brush or vacuum cleaner with a brush attachment to remove dust from the motor vents to prevent overheating.
- Light Source: The LED light source is integrated and not user-replaceable. If the LED light fails, contact qualified service personnel.
Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply; Loose wiring; Remote control battery dead | Check circuit breaker; Verify wiring connections (consult electrician); Replace remote control battery. |
| Light does not work | No power supply; Loose wiring; LED module failure | Check circuit breaker; Verify wiring connections (consult electrician); Contact customer support for LED module issues. |
| Fan wobbles | Loose blades or mounting; Unbalanced blades | Ensure all blade screws and mounting screws are tight; Use a balancing kit (not included) if necessary. |
| Excessive noise | Loose screws; Motor issue; Blades hitting an obstruction | Check and tighten all screws; Ensure no obstructions are near blades; If noise persists, contact customer support. |
Technical Specifications
| Feature | Specification |
|---|---|
| Model Name | AR5PL92 |
| Brand | Ardes |
| Fan Diameter | Ø92 cm |
| Motor Type | Brushless DC Motor |
| Fan Power | 59 W |
| Airflow | 33.3 m³/min (max) |
| Noise Level | 42 dB(A) |
| Light Type | Integrated LED |
| Light Power | 24 W |
| Luminous Flux | 2200 lm |
| Color Temperature (CCT) | 3000K – 6000K (Adjustable) |
| Voltage | 220 V |
| Dimensions (L x W x H) | 92 x 92 x 18 cm |
| Protection Class | Class I |
| IP Rating | IPX0 (Not water resistant) |
| Country of Origin | China |
Warranty Information
This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the manufacturer's website for detailed terms and conditions. Keep your proof of purchase for any warranty claims.
Customer Support
For technical assistance, spare parts, or warranty inquiries, please contact Ardes customer support:
- Company Name: B&B TRENDS ITALIA S.R.L.
- Website: https://ardes.it/
- Email Address: ardes@bbtrends.it
- Phone Number: +39 035 410 4090
- Address: Via Sottocorna 21/B, 24020 Parre (Bergamo), Italy
