1. Introduction
The Puig 22152N Beam 3.0 Auxiliary Lights are designed to enhance visibility and safety for motorcycles in various driving conditions. Featuring low-consumption, high-performance LED technology, these lights provide 2200 total lumens, significantly improving night vision and performance in adverse weather such as fog, rain, snow, or on winding roads. Their intermediate size offers a balanced option for those seeking power, efficiency, and a compact design. This manual provides essential information for the proper installation, operation, and maintenance of your auxiliary lights.
2. Product Overview and Components
The Puig 22152N Beam 3.0 Auxiliary Lights kit includes all necessary accessories for mounting and operation. Please ensure all components are present before beginning installation.

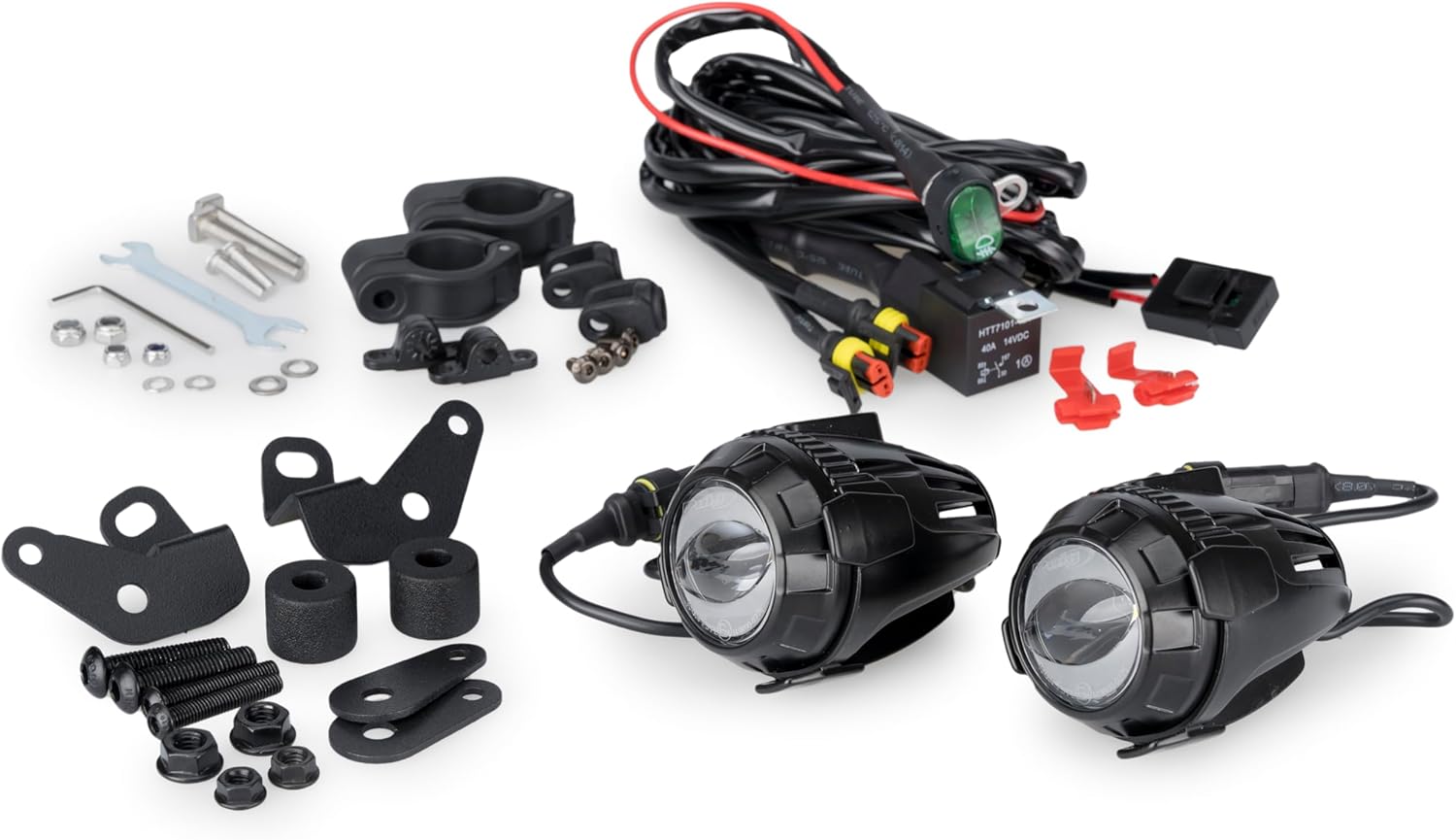

Figure 1: All components included in the Puig 22152N Beam 3.0 Auxiliary Lights kit. This includes two auxiliary lights, a wiring harness with an integrated switch, various mounting brackets, screws, washers, and Allen keys for installation.
2.1. What's in the Box:
- 2 x Puig Beam 3.0 Auxiliary Lights (Black)
- 1 x Wiring Harness with Integrated Switch
- Various Mounting Brackets (specific for direct fixation, adaptable to 25 mm diameter tubes)
- Installation Hardware (screws, washers, nuts, Allen keys)
- Instruction Manual (this document)
3. Key Features
- Enhanced Visibility: Designed to provide additional visibility and safety in all driving situations.
- High Performance LED: Low consumption and high performance LED technology, delivering 2200 total lumens.
- Durable Construction: Lightweight and resistant aluminum housing for durability, heat dissipation, and protection against gravel impact.
- Resistant Lenses: Polycarbonate lenses offer resistance and clarity in illumination.
- Adjustable System: Features an adjustable system for precise light beam orientation.
- Easy Installation: Includes all necessary accessories for quick and secure mounting without the need for crash bars.
- Homologated: These auxiliary lights are homologated, ensuring compliance with safety standards.
4. Compatibility
The Puig 22152N Beam 3.0 Auxiliary Lights are compatible with the following motorcycle models:
- BMW R1300GS (2023, 2024, 2025, 2026)
- BMW R1300GS OPTION 719 TRAMONTANA (2023, 2024, 2025)
- BMW R1300GS TRIPLE BLACK (2023, 2024, 2025, 2026)
- BMW R1300GS TROPHY (2023, 2024, 2025, 2026)
Note: These lights are not compatible with Puig R19 protectors.
5. Setup and Installation
Follow these steps for proper installation of your Puig Beam 3.0 Auxiliary Lights. Professional installation is recommended if you are unsure about any steps.
5.1. Mounting the Lights
- Prepare the Mounting Area: Identify a suitable location on your motorcycle's crash bars or frame tubes (up to 25 mm diameter) for mounting the auxiliary lights.
- Assemble the Brackets: Attach the appropriate mounting brackets to the auxiliary lights using the provided screws and Allen keys. Ensure all connections are secure but do not overtighten initially.
- Attach Lights to Motorcycle: Secure the assembled lights and brackets to the chosen location on your motorcycle. Use the provided washers and nuts, tightening them firmly to prevent movement.
- Adjust Light Angle: Once mounted, adjust the angle of each light to achieve the desired beam orientation. Ensure they do not interfere with other motorcycle components or visibility.
Figure 2: Puig 22152N Beam 3.0 Auxiliary Lights mounted on a motorcycle, showcasing their compact design and integration.
5.2. Electrical Connection
- Disconnect Battery: For safety, disconnect the motorcycle's battery (negative terminal first) before making any electrical connections.
- Connect Power: Connect the red wire from the wiring harness to the positive (+) terminal of the motorcycle battery. Connect the black wire to the negative (-) terminal or a suitable ground point on the motorcycle frame.
- Connect ACC Line: Connect the ACC (Accessory) wire from the harness to an original ACC line on your motorcycle. This ensures the auxiliary lights turn on/off with the ignition.
- Connect Lights to Harness: Plug the auxiliary lights into the quick connectors on the wiring harness. Ensure a secure connection.
- Mount Switch: Install the included switch in a convenient and accessible location on your handlebars.
- Reconnect Battery: Once all connections are secure and verified, reconnect the motorcycle's battery (positive terminal first).
Warning: Incorrect wiring can damage your motorcycle's electrical system or the auxiliary lights. If you are not confident in performing electrical work, seek assistance from a qualified technician.
Note: No relevant installation videos from the seller were available for this specific product. Please refer to the detailed text instructions and diagrams provided.
6. Operating Instructions
The Puig Beam 3.0 Auxiliary Lights are operated via the integrated switch on the wiring harness. The lights offer multiple modes for different driving conditions.
- Power On/Off: Press the switch once to turn the lights on or off.
- Change Modes: With the lights on, press the switch repeatedly to cycle through the available lighting modes (e.g., low beam, high beam, combination, safety flash). Refer to the specific instructions provided with the switch for detailed mode descriptions.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your auxiliary lights.
- Cleaning: Clean the lenses and housing regularly with a soft cloth and mild soap solution. Avoid abrasive cleaners that could scratch the polycarbonate lenses.
- Inspection: Periodically check all mounting hardware for tightness. Vibrations from riding can loosen screws over time.
- Wiring Check: Inspect the wiring harness for any signs of wear, fraying, or damage. Ensure all connections remain secure and free from corrosion.
- Lens Condition: Check the polycarbonate lenses for cracks or significant scratches that could impair light output.
8. Troubleshooting
If you encounter issues with your auxiliary lights, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. |
|
|
| Lights flicker or dim. |
|
|
| Light beam is misaligned. |
|
|
If the problem persists after attempting these solutions, please contact Puig customer support for further assistance.
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | 22152N |
| Brand | Puig |
| Color | Black |
| Lighting Type | LED |
| Lumen Output | 2200 total lumens (as per product description) |
| Lens Material | Polycarbonate |
| Housing Material | Aluminum (as per product description) |
| Special Features | Lightweight, Impact Resistant |
| Vehicle Service Type | Motorcycle |
| Mounting Required | Yes |
| Package Dimensions | 23.5 x 21.2 x 10.7 cm |
| Item Weight | 1.42 kg |
10. Warranty and Support
Manufacturer's Warranty: The Puig 22152N Beam 3.0 Auxiliary Lights come with a 2-year manufacturer's warranty.
For technical support, warranty claims, or any questions regarding your product, please contact Puig customer service through their official website or the retailer where the product was purchased. Please have your model number (22152N) and proof of purchase ready.
You can visit the official Puig store for more information: Puig Official Store
