Zebronics Juke Bar 4120 200W Soundbar Instruction Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Zebronics Juke Bar 4120 200W Soundbar. Please read this manual thoroughly before using the product to ensure proper functionality and to maximize your audio experience. Keep this manual for future reference.

Image: The Zebronics Juke Bar 4120 Soundbar system, including the soundbar unit, subwoofer, wireless microphone, and remote control.

What's in the Box

Carefully unpack the contents and ensure all items are present:

• Sound Bar - 1 unit
• Subwoofer - 1 Unit
• Wireless Mic - 1 Unit
• Remote Control - 1 Unit
• Input Cable - 1 Unit
• Wall Mount Fasteners - 1 Unit
• QR Code Guide - 1 Unit

Key Features

• Powerful Output: Delivers an impressive total output power of 200W RMS, with 120W from the subwoofer and 80W (40W x 2) from the soundbar.


  Image: A soundbar and subwoofer setup in a modern living room, illustrating the powerful 200W RMS output with visual sound waves.
• Incredible Audio: The soundbar features two (5 cm x 9 cm) drivers that provide balanced audio across a wide range of frequencies. Complementing this, the subwoofer houses a single 13.33 cm driver, specially designed to deliver deep, powerful bass that enhances the overall sound experience.

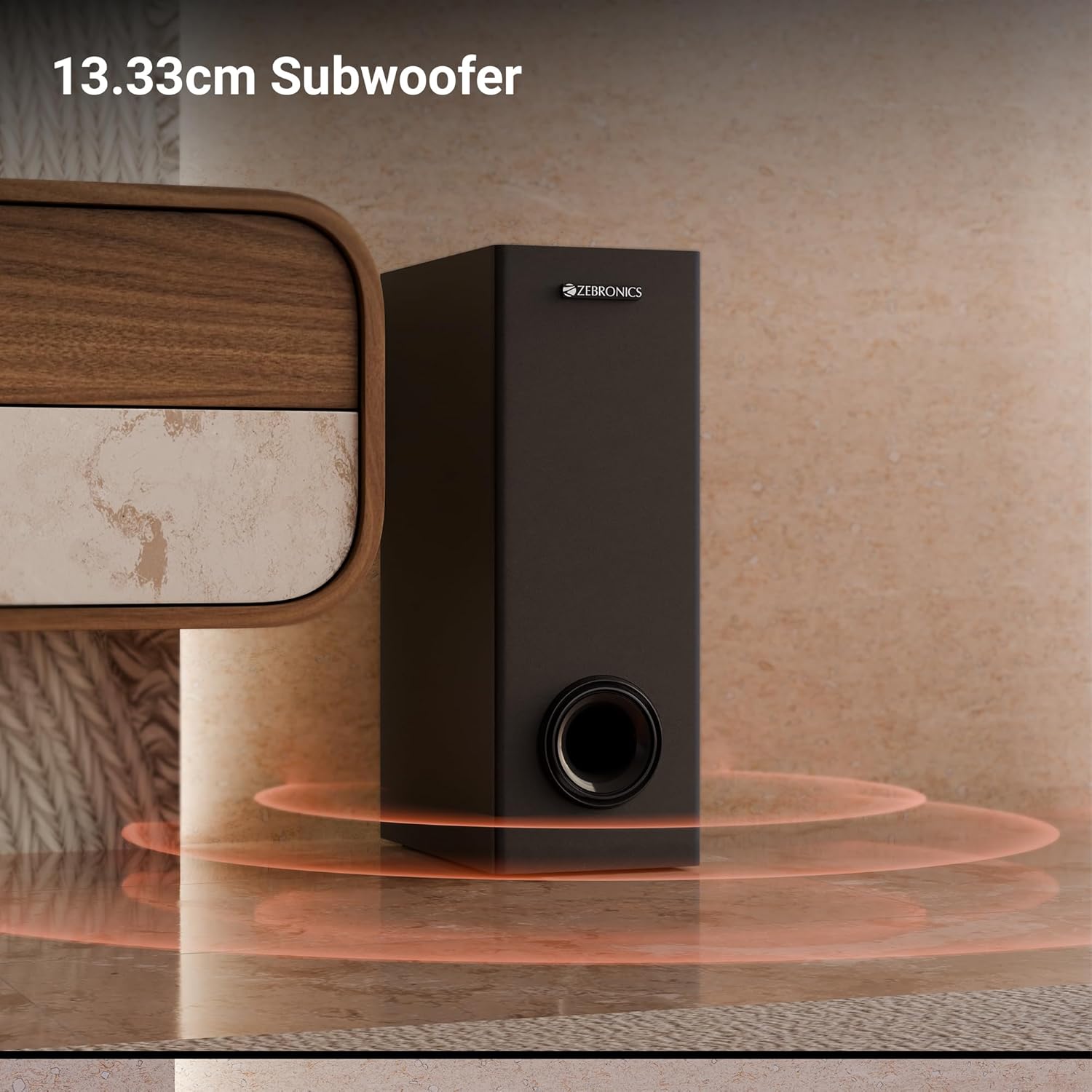

  Image: A close-up view of the 13.33cm subwoofer, highlighting its design and bass output.



  Image: The soundbar mounted below a television, with visual cues indicating sound projection from its dual drivers.
• Virtual 5.1 Surround: To elevate your audio experience, this soundbar features virtual 5.1 surround sound, simulating multi-channel audio for immersive, cinematic sound.
• Multi-Connectivity: The soundbar comes with multi-connectivity, such as BT v5.3 support, and options like TV (ARC), USB, and AUX inputs.
• Wall-Mountable: Designed for space efficiency, this soundbar is wall-mountable, which allows you to save floor space and maintain a clean, organized look in your living areas.
• LED Display: The LED display shows real-time information such as power status, volume levels, and connectivity modes, offering clarity and convenience.
• Karaoke Function: Enjoy fun sing-alongs with the wireless mic and built-in karaoke function, perfect for parties, gatherings, or solo performances.

Setup

1. Placement

Position the soundbar centrally below your television for optimal sound projection. The subwoofer can be placed on the floor near the soundbar, ideally in a corner for enhanced bass response.

2. Wall Mounting

The soundbar can be wall-mounted to save space. Use the provided wall mount fasteners and follow these steps:

1. Mark the desired mounting position on the wall, ensuring it is level and centered with your TV.
2. Drill pilot holes at the marked positions.
3. Insert wall anchors (if necessary) and secure the mounting brackets using the screws.
4. Carefully attach the soundbar to the mounted brackets.

Image: The soundbar is shown securely mounted on a wall beneath a television, demonstrating its space-saving design.

3. Power Connection

Connect the power cable to the soundbar and then plug it into a suitable power outlet. Ensure the subwoofer is also connected to its power source.

Connectivity

The Zebronics Juke Bar 4120 offers multiple connectivity options:

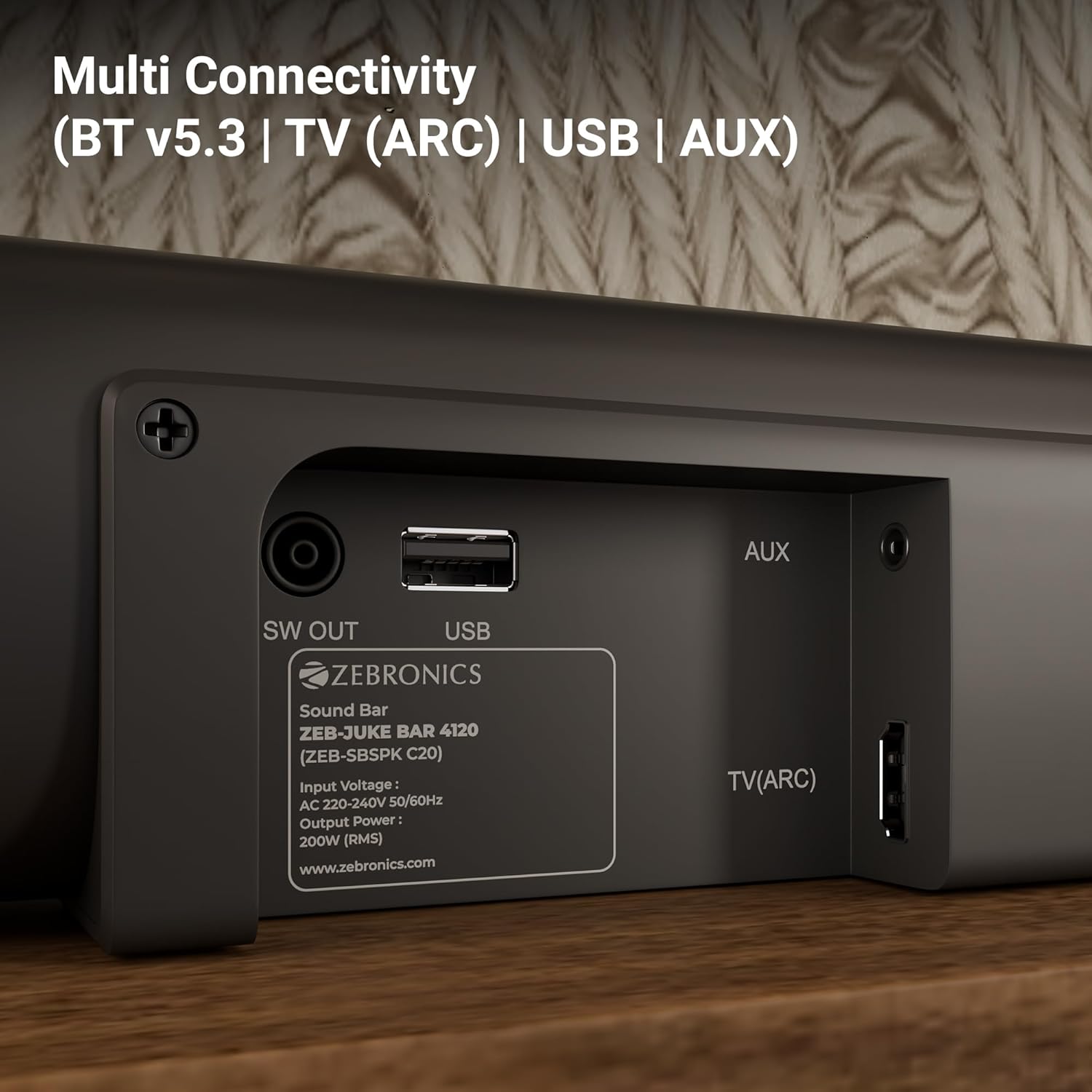

Image: A close-up of the soundbar's rear panel, displaying the SW OUT, USB, AUX, and TV (ARC) input ports for various connections.

1. Bluetooth (BT v5.3)

To connect via Bluetooth:

1. Turn on the soundbar and select Bluetooth mode using the remote or unit controls.
2. Enable Bluetooth on your device (smartphone, tablet, etc.).
3. Search for "ZEB-JUKE BAR 4120" in your device's Bluetooth list and pair.
4. Once paired, the soundbar will indicate a successful connection.

2. TV (ARC)

For optimal audio quality and control, connect your TV using the HDMI ARC port:

1. Connect an HDMI cable from the TV (ARC) port on the soundbar to the HDMI ARC port on your television.
2. Select the HDMI ARC input on the soundbar.
3. Ensure your TV's audio output settings are configured for HDMI ARC.

3. USB

To play media from a USB drive:

1. Insert a USB drive into the USB port on the soundbar.
2. Select USB mode using the remote or unit controls.
3. The soundbar will automatically detect and play compatible audio files.

4. AUX

To connect via an auxiliary cable:

1. Connect a 3.5mm audio cable from your device's audio output to the AUX input on the soundbar.
2. Select AUX mode using the remote or unit controls.

Operating Instructions

1. Power On/Off

Press the Power button on the soundbar or remote control to turn the unit on or off.

2. Volume Control

Use the Volume Up (+) and Volume Down (-) buttons on the soundbar or remote control to adjust the audio level.

3. Input Selection

Press the 'Input' or 'Mode' button on the soundbar or remote control to cycle through available input sources (BT, TV ARC, USB, AUX).

4. LED Display

The integrated LED display provides visual feedback on the current status of the soundbar, including selected input mode, volume level, and other settings.

Image: A detailed view of the soundbar's LED display, showing a clear indicator for current status or mode.

5. Karaoke Function

The soundbar includes a wireless microphone for karaoke. Simply power on the microphone, and it will automatically connect to the soundbar. Use the remote control to adjust microphone volume and echo effects.

Image: The wireless microphone, designed for use with the soundbar's karaoke function.

6. Remote Control

The included remote control provides full functionality for the soundbar, allowing you to power on/off, switch inputs, adjust volume, control playback, and manage karaoke settings.

Image: The remote control for the Zebronics soundbar, showing various buttons for function control.

7. Virtual 5.1 Surround Sound

The soundbar's virtual 5.1 surround sound technology creates an immersive audio experience, simulating multi-channel sound without the need for additional speakers. This enhances movie watching and gaming by providing a wider soundstage.

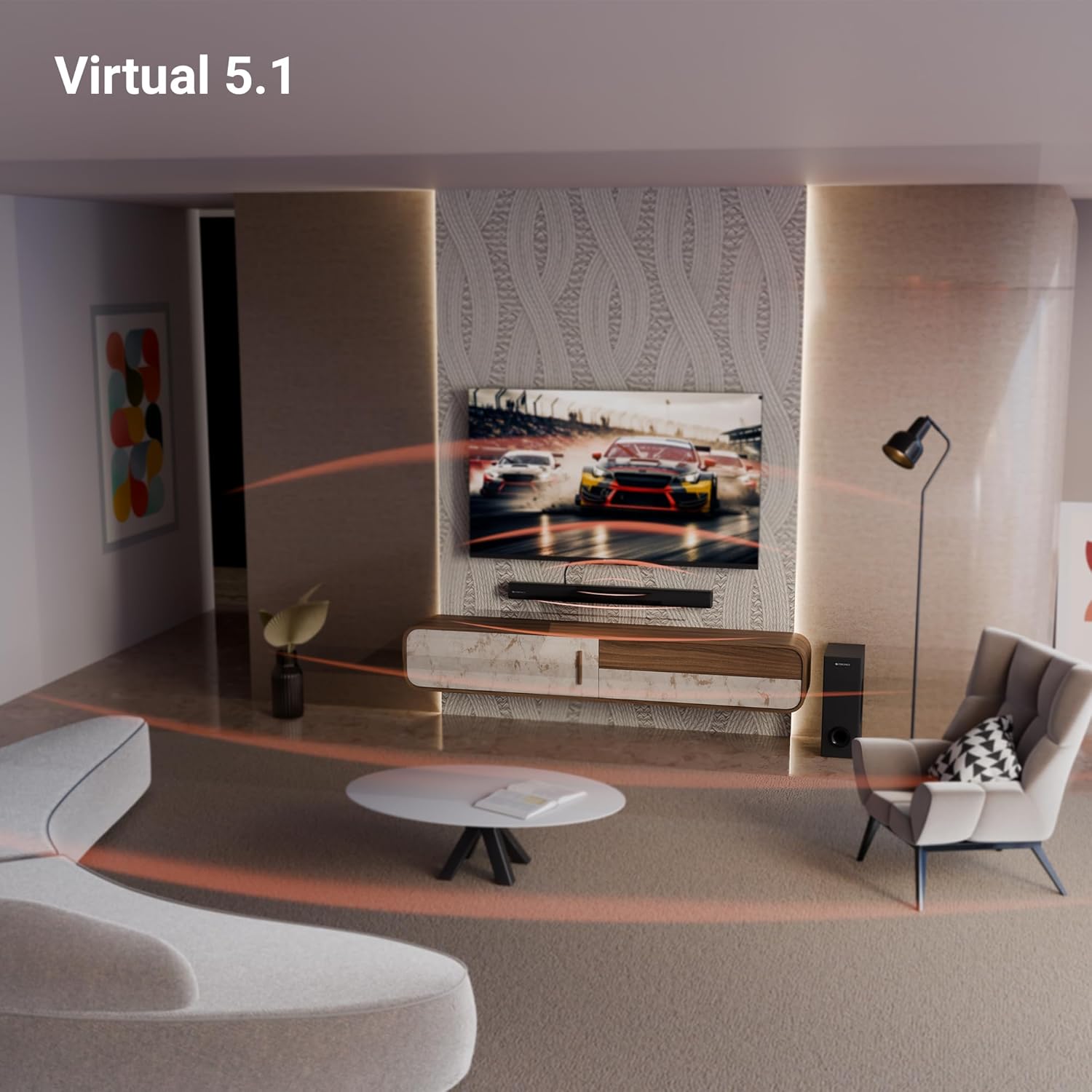

Image: A living room scene with the soundbar and subwoofer, visually representing the expansive sound field created by virtual 5.1 surround sound.

Maintenance

To ensure the longevity and optimal performance of your soundbar:

• Clean the surfaces with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Keep the soundbar and subwoofer away from direct sunlight, heat sources, and excessive moisture.
• Ensure proper ventilation around the units to prevent overheating.

Troubleshooting

If you encounter any issues, refer to the following common problems and solutions:

Specifications

Warranty and Support

This product comes with a standard brand warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included in the packaging or visit the official Zebronics website. You can also visit the ZEBRONICS Store on Amazon for more information.
