1. Product Overview
The OPPSDECOR Weight Bench Set (Model IBC-44) is a versatile fitness equipment designed for comprehensive full-body workouts in a home gym environment. It integrates an adjustable weight bench, a squat rack, and a dual-function leg developer, offering a wide range of exercise possibilities. Constructed with commercial-grade alloy steel, this bench is built for stability and durability.
Image 1.1: The OPPSDECOR Weight Bench Set in a home gym setting.
2. Safety Information
- Always consult with a healthcare professional before starting any new exercise program.
- Ensure all bolts, nuts, and adjustment pins are securely tightened before each use.
- Do not exceed the maximum weight capacity of 900 pounds (including user weight and weights used).
- Use the equipment on a flat, stable surface.
- Keep children and pets away from the equipment during use.
- Inspect the bench for any signs of wear or damage before each workout. Do not use if damaged.
- Use spotters when lifting heavy weights, especially during bench press exercises.
3. Package Contents & Assembly
3.1. Package Contents
Verify that all components are present before beginning assembly. Refer to the included hardware list and diagrams in your product manual.
Image 3.1: Overview of the weight bench highlighting key features and components.
3.2. Assembly Instructions
Assembly typically requires two persons and takes approximately 40 minutes. Follow the step-by-step instructions provided in the separate assembly guide included with your product. Ensure all parts are in a cleared area and remove all packing materials. Do not dispose of packing materials until you finish all assembly steps.
The assembly process involves:
- Orienting the two uprights as shown in the diagrams.
- Attaching the front leg to the front stabilizer.
- Securing the seat frame and backrest.
- Installing the leg developer attachment.
Refer to the detailed diagrams for bolt and washer placement. Do not fully tighten locknuts until instructed to ensure proper alignment.
4. Operating Instructions & Adjustments
The OPPSDECOR weight bench offers multiple adjustment options for a variety of exercises.
4.1. Backrest Adjustment (Flat, Incline, Decline)
The backrest can be adjusted from -20° (decline) to 80° (incline). To adjust, lift the backrest, position the support bar into the desired slot, and ensure it is securely seated. There are 4 backrest positions available.

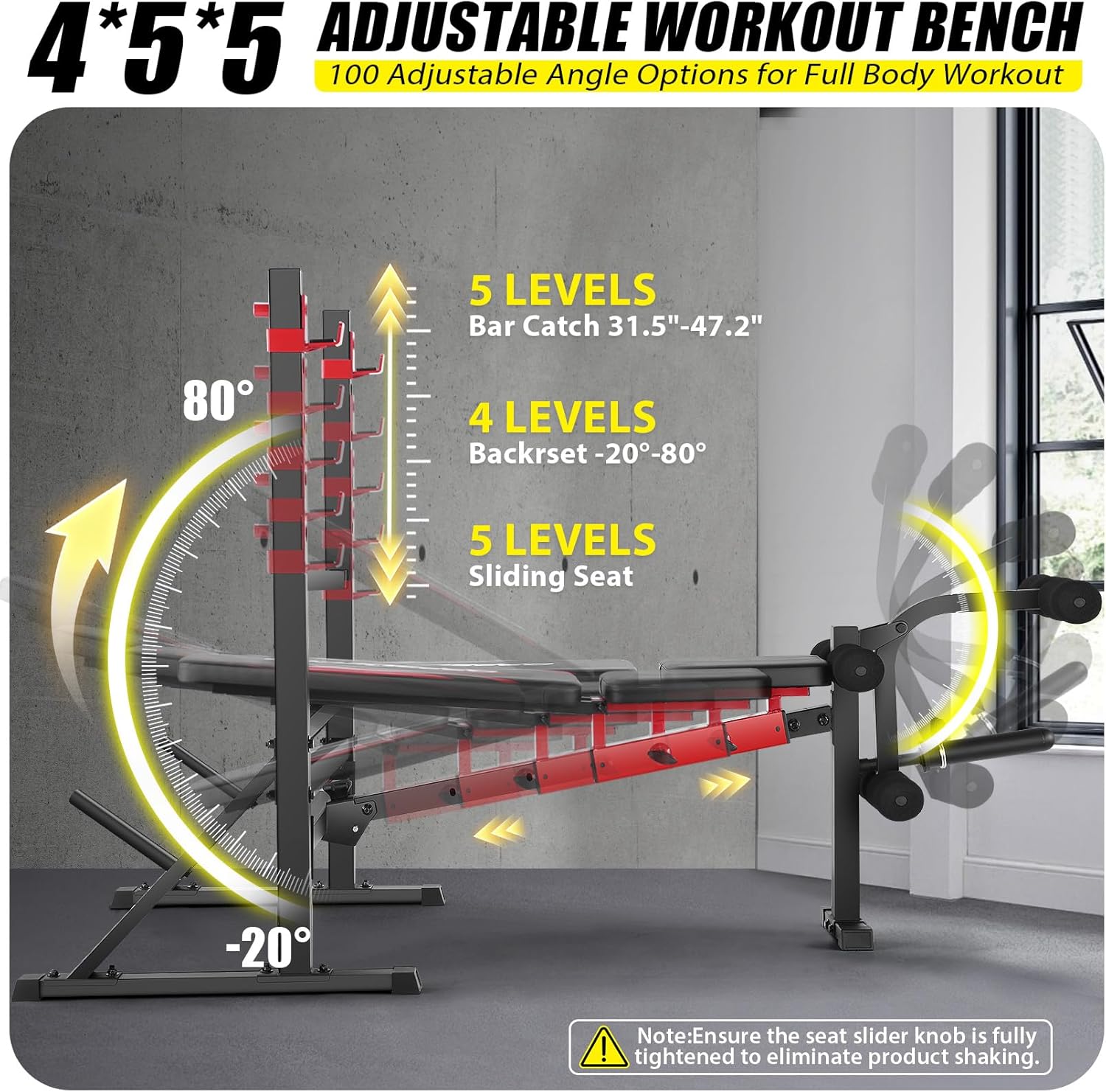

Image 4.1: Illustration of the adjustable backrest and sliding seat positions.
4.2. Sliding Seat Adjustment
The seat features 5 sliding positions to optimize your workout angle and increase the distance between your body and the squat rack for enhanced safety during incline bench presses. To adjust, unscrew and pull out the spring pin located on the underside of the seat, slide the seat to your desired position, then re-insert and tighten the spring pin.
Image 4.2: Detailed steps for adjusting the sliding seat.
4.3. Barbell Height Adjustment
The squat rack offers 5 barbell height positions (Bar Catch 31.5" - 47.2") to accommodate various exercises and user heights. Ensure the barbell is securely placed on the anti-slip bar catches.
Image 4.3: Proper positioning for incline bench press, demonstrating the adjustable rack.
4.4. Leg Developer Usage (Extensions & Curls)
The dual-function leg developer allows for leg extensions and leg curls. Attach weight plates to the weight rod. The weight rod supports both 1-inch and 2-inch inner bore plates using an adapter.
- Leg Extensions: Sit on the bench with your knees bent and the padded rollers resting on your shins. Extend your legs upwards, contracting your quadriceps.
- Leg Curls: Lie face down on the bench with your legs extended and the padded rollers resting on your Achilles tendons. Curl your legs upwards, contracting your hamstrings.
Image 4.4: The dual-function leg developer in action for leg exercises.
4.5. Multi-Functionality
This set combines an Olympic weight bench, barbell rack, preacher curl bench (using the leg developer attachment), and leg developer, enabling a wide array of exercises including bench press, shoulder press, leg extensions, leg curls, and more.
Image 4.5: Examples of full-body exercises possible with the bench.
5. Storage
The OPPSDECOR weight bench features a space-saving foldable design. To fold, remove the locking pin, fold the bench upwards, and re-insert the pin to secure it in the vertical position. This reduces the footprint by up to 80%, allowing for convenient storage against a wall.
Image 5.1: The weight bench in its folded, space-saving configuration.
Image 5.2: Step-by-step guide for folding the bench.
6. Maintenance
- Regularly check all nuts and bolts for tightness and re-tighten as necessary.
- Wipe down the padded surfaces with a damp cloth after each use to remove sweat and maintain hygiene.
- Store the bench in a dry environment to prevent rust and prolong its lifespan.
- Inspect the frame for any cracks or structural damage periodically.
7. Troubleshooting
- Issue: Bench feels unstable or wobbly.
Solution: Check all assembly bolts and nuts to ensure they are fully tightened. Ensure the bench is on a level surface. - Issue: Difficulty adjusting backrest or seat.
Solution: Ensure the adjustment pins are fully disengaged before attempting to move the components. Lubricate moving parts if necessary. - Issue: Leg developer attachment does not fit weight plates.
Solution: Verify you are using the correct adapter for 1-inch or 2-inch inner bore weight plates.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | OPPSDECOR |
| Model Number | IBC-44 |
| Weight Limit | 900 Pounds |
| Material | Alloy Steel |
| Item Weight | 31.5 Kilograms |
| Product Dimensions (LxWxH) | 74.8" x 37.8" x 49.8" |
| Backrest Adjustment | -20° to 80° (4 positions) |
| Seat Sliding Positions | 5 positions |
| Barbell Height Positions | 5 positions (31.5" - 47.2") |
9. Official Product Video
Video 9.1: A demonstration of the OPPSDECOR weight bench set, showcasing its features and various exercises.
10. Warranty and Support
All OPPSDECOR gym benches are approved products. For any problems or further assistance, please contact OPPSDECOR directly through email or Amazon. A free replacement service is offered for any reason.
For customer support, please refer to the contact information provided with your purchase or visit the official OPPSDECOR store on Amazon.
