CHEREEKI Wireless Controller for PS4 User Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your CHEREEKI Wireless Controller for PlayStation 4. Please read this manual thoroughly before using the product to ensure proper functionality and to maximize your gaming experience.

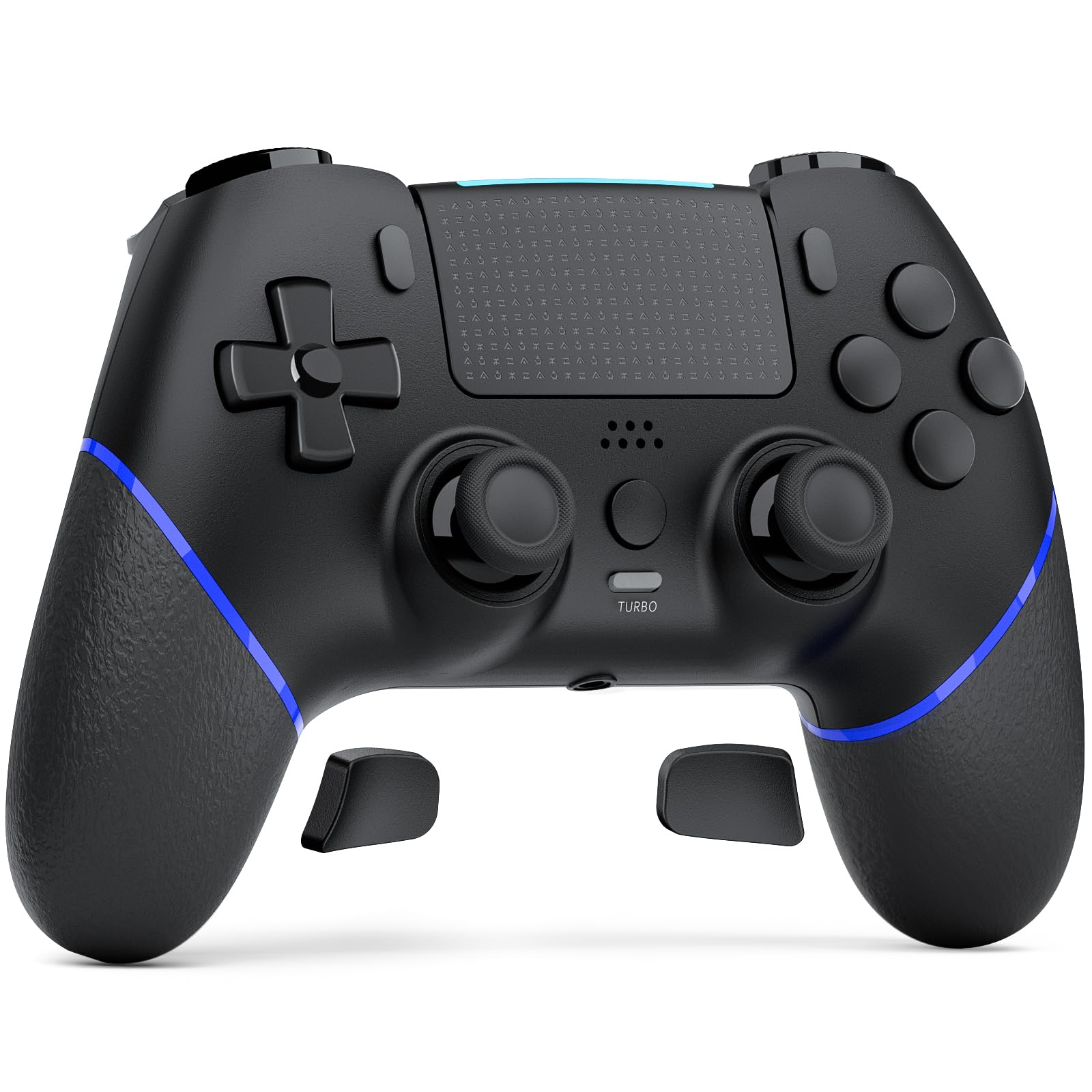

Image 1.1: The CHEREEKI Wireless Controller for PS4. This image displays the black controller from a front-top angle, highlighting its ergonomic design and button layout.

2. Product Overview

The CHEREEKI Wireless Controller is designed for use with PlayStation 4 consoles (PS4, PS4 Slim, PS4 Pro). It features advanced Hall Effect joysticks, customizable back buttons, vibration feedback, motion sensing, a touchpad, and a 3.5mm headphone jack for an immersive gaming experience.

2.1 Key Features

• Universal PS4 Compatibility: Connects seamlessly with PS4, PS4 Slim, and PS4 Pro consoles.
• Hall Effect Joystick Technology: Provides precise, lag-free control and eliminates stick drift.
• Customizable Back Button Programming: Map frequently used actions to two programmable back buttons.
• Long-Lasting Battery: Equipped with a 1000mAh battery, offering 8-10 hours of gameplay on a 3-hour charge.
• Enhanced Comfort: Generously proportioned design for a natural grip, suitable for various hand sizes.
• Double Vibration Feedback: Provides realistic in-game sensations.
• Motion Sensor: Integrated motion sensing for interactive gameplay.
• Touchpad: Functional touchpad for additional control options.
• 3.5mm Headphone Jack: For audio output and communication.

2.2 Controller Layout

Image 2.1: Labeled diagram of the CHEREEKI Wireless Controller. This image identifies the Type C Port, R1/R2/L1/L2 Buttons, SHARE Button, LED indicator, OPTIONS Button, Directional Buttons, Left Stick, Right Stick, Home Button, Turbo Button, Stereo Headset Jack, and Reset button location.

3. Setup and Connection

3.1 Initial Connection to PS4

1. Ensure your PS4 console is powered on.
2. Connect the CHEREEKI Wireless Controller to your PS4 console using the included USB-C cable.
3. Press the Home Button (located in the center of the controller) to activate the controller.
4. The controller will automatically pair with your PS4. Once paired, you can disconnect the USB-C cable for wireless use.
5. For subsequent use, simply press the Home Button to reconnect wirelessly.

3.2 Charging the Controller

The controller features a 1000mAh rechargeable battery. To charge:

• Connect the controller to your PS4 console or a USB power adapter (5V/1A recommended) using the USB-C cable.
• The LED indicator on the controller will show charging status.
• A full charge takes approximately 3 hours and provides 8-10 hours of gameplay.

Image 3.1: Visual representation of the controller's battery capacity and charging details. It shows 'Playing 10 Hours', 'Battery 1000mAh', and 'Charging 3 Hours'.

4. Operating Instructions

4.1 Hall Effect Joysticks

The controller is equipped with Hall Effect joysticks, which use magnetic sensors instead of physical contacts. This design significantly reduces wear and tear, preventing common issues like stick drift and ensuring consistent, precise input over time.

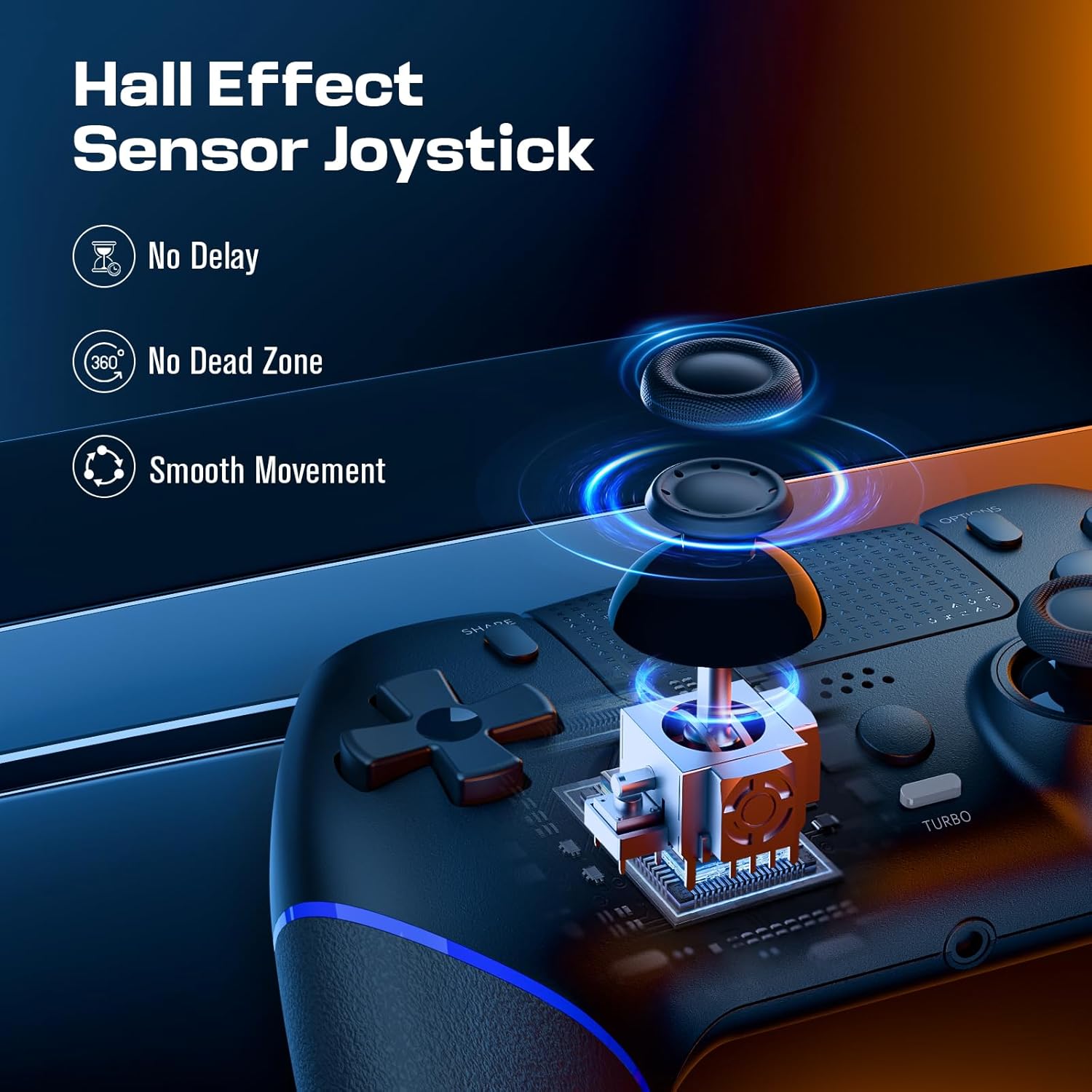

Image 4.1: Diagram illustrating the Hall Effect Sensor Joystick technology. It highlights 'No Delay', 'No Dead Zone', and 'Smooth Movement' as benefits.

4.2 Customizable Back Buttons

The two programmable back buttons (often labeled L3/R3 or similar in mapping) allow you to assign complex actions or frequently used button combinations for quicker execution and reduced finger fatigue. Refer to your console's settings or specific game options for detailed button remapping procedures.

Image 4.2: Visual of the Custom Button Mapping feature. It shows how L3/R3 can be converted to other face buttons or shoulder buttons.

4.3 Turbo Function

The Turbo function allows for rapid, sustained input of a button press without repeatedly pressing the button. To activate/deactivate the Turbo function:

1. Press and hold the Turbo button.
2. While holding Turbo, press the desired action button (e.g., X, O, Square, Triangle, R1, L1, etc.).
3. Release both buttons. The selected action button will now continuously register input as long as it is held down.
4. To deactivate, repeat the process: hold Turbo and press the action button again.

Image 4.3: The Turbo button on the controller is highlighted, with text indicating 'Sustain Auto-Fire with a Single Button Press'.

4.4 Vibration Feedback

The controller includes dual motors for vibration feedback, providing tactile responses to in-game events such as impacts, explosions, or environmental effects. This enhances immersion and provides additional sensory cues during gameplay.

Image 4.4: Controller with visual effects representing Double Vibration Feedback, indicating a 'More Realistic Feeling in the Games'.

4.5 Motion Sensor and Touchpad

The integrated motion sensor allows for intuitive control in games that utilize tilt and movement. The central touchpad provides an additional input method, supporting gestures and taps for navigation and specific in-game actions.

4.6 Headphone Jack

A 3.5mm stereo headphone jack is located at the bottom of the controller, allowing you to connect a headset for game audio and voice chat.

4.7 Product Video

5. Maintenance

To ensure the longevity and optimal performance of your CHEREEKI Wireless Controller, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the controller. For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals or abrasive cleaners.
• Storage: Store the controller in a cool, dry place away from direct sunlight and extreme temperatures.
• Handling: Avoid dropping the controller or subjecting it to strong impacts, as this can damage internal components.
• Charging: Do not overcharge the battery. Disconnect the charging cable once the controller is fully charged.

6. Troubleshooting

If you encounter issues with your CHEREEKI Wireless Controller, please refer to the following common solutions:

6.1 Connection Issues

• Controller not connecting: Ensure the controller is charged. Connect it to the PS4 with the USB-C cable and press the Home button for initial pairing.
• Intermittent connection: Move closer to the PS4 console to rule out interference. Ensure no other wireless devices are causing interference.

6.2 Stick Drift or Unresponsive Inputs

• While the Hall Effect joysticks are designed to prevent stick drift, if you experience any unusual input, try resetting the controller.

6.3 Controller Reset

If the controller is unresponsive or behaving erratically, perform a reset:

1. Locate the small reset button on the back of the controller (often near the L2/R2 triggers or a screw hole).
2. Use a small, pointed object (like a straightened paperclip) to press and hold the reset button for 3-5 seconds.
3. Release the button.
4. Reconnect the controller to your PS4 using the USB-C cable and press the Home button to re-establish connection.

6.4 Battery Not Charging

• Ensure the USB-C cable is securely connected to both the controller and the power source.
• Try a different USB-C cable or a different USB port/power adapter.
• Confirm the power source is providing sufficient power (e.g., a PS4 USB port or a 5V/1A adapter).

7. Specifications

8. Warranty and Support

For warranty information, technical support, or any product-related inquiries, please contact CHEREEKI customer service through the retailer where the product was purchased or visit the official CHEREEKI website. Please retain your proof of purchase for warranty claims.
