Introduction
Welcome to your new Vinsetto 7-Point Vibration Massage Office Chair. This manual provides essential information for assembly, operation, maintenance, and safety to ensure optimal use and longevity of your product. Please read these instructions thoroughly before using the chair.
Safety Information
Always read and follow assembly instructions carefully. Keep fingers and body parts away from moving parts when adjusting height, reclining back, or using massage features. Do not exceed the maximum weight capacity of 264 lbs (120 kg) to ensure stability and safety. Use the chair only on a stable, level surface.
Assembly Instructions
This product requires assembly. Please ensure all parts are present before beginning. Refer to the included assembly diagram (if provided with your product) for detailed steps. A general overview of the assembly process is as follows:
- Unpack all components and verify against the parts list.
- Attach the chair base to the gas lift cylinder.
- Secure the seat to the gas lift and base assembly.
- Attach the backrest to the seat.
- Install armrests and any other accessories.
- Ensure all screws and fasteners are tightened securely before use.

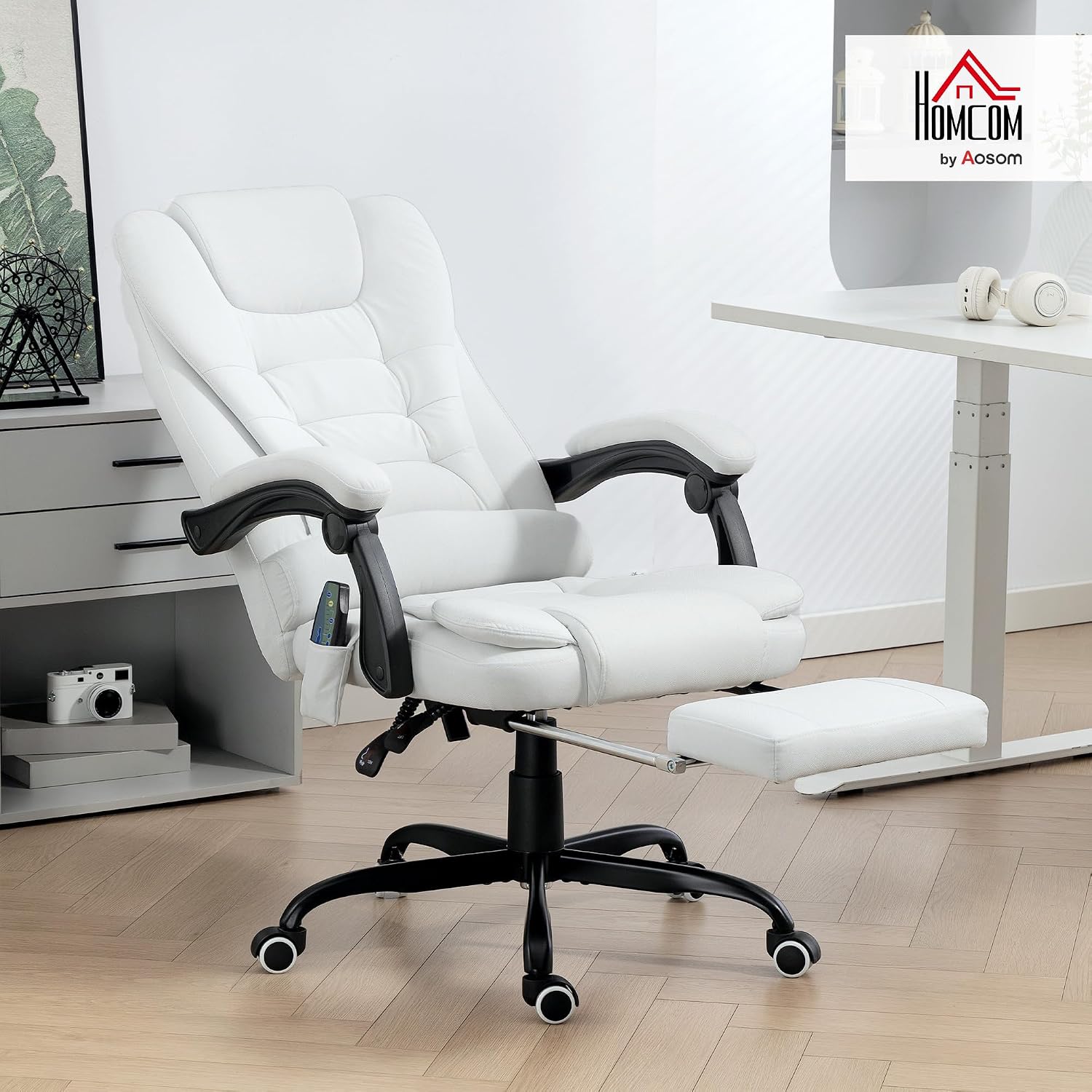

Image: Fully assembled Vinsetto 7-Point Vibration Massage Office Chair, showcasing its design and components.
Operating Instructions
1. Height Adjustment
To adjust the chair height, locate the lever under the seat. Lift the lever while seated to lower the chair, or lift the lever while standing to raise the chair. Release the lever at the desired height. The chair's height can be adjusted from 18.1 inches (46 cm) to 22 inches (56 cm).
Image: Illustration of the chair's height adjustment lever and the adjustable height range.
2. Reclining Function
The chair features a reclining backrest that can be adjusted up to 155 degrees. To recline, pull the recline lever (typically located on the right side under the seat) and lean back. Release the lever to lock the backrest in your preferred position.
Image: Diagram showing the chair's reclining angles for various activities: 90° for working, 110° for watching, and 135° for relaxing.
3. Footrest Operation
To extend the integrated footrest, pull it out from under the seat until it locks into place. To retract, push it back until it is fully stored beneath the seat.
4. Vibration Massage Function
This chair includes a 7-point vibration massage system controlled by a remote. The massage targets 5 points in the back and 2 points in the seat.
- Connect the power adapter to the chair and a standard power outlet.
- Use the remote control to select from 5 massage modes and adjust intensity levels.
- Set the massage timer for 15, 30, or 60 minutes using the remote.
Image: The remote control for the vibration massage function, detailing 5 modes, heat option, and the 7 massage points on the chair.
5. 360° Swivel and Mobility
The chair is designed with a 360-degree swivel for easy rotation and universal wheels for smooth movement across hard floors, enhancing flexibility in your workspace.
Image: Illustration of the chair's 360-degree swivel capability and smooth-rolling universal wheels.
Maintenance
To maintain your Vinsetto office chair, wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners, as these may damage the linen-feel fabric. Regularly check all assembly screws and bolts to ensure they remain tight. Periodically inspect the wheels for any debris that might hinder smooth movement.
Image: A general brand image for Vinsetto, representing the quality and care associated with the product.
Troubleshooting
Chair not adjusting height:
Ensure the gas lift lever is fully engaged or disengaged as required. Check if the gas lift cylinder is damaged or if there is any obstruction preventing movement.
Massage function not working:
Verify that the power adapter is securely connected to both the chair and a functional power outlet. Check the remote control for any visible damage or loose connections.
Squeaking or instability:
Tighten all assembly screws and bolts. Ensure the chair is on a flat, even surface. Lubricate moving parts if necessary with a silicone-based lubricant.
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Vinsetto |
| Model Number | 921-342V82WT |
| Colour | White |
| Material | Linen-feel Fabric (100% Polyester) |
| Frame Material | Metal |
| Product Dimensions (D x W x H) | 79D x 67W x 121H cm (31.1" D x 26.4" W x 43.7"-47.6" H) |
| Item Weight | 19.96 kg |
| Maximum Weight Recommendation | 119.75 kg (264 lbs) |
| Special Features | Adjustable Height, Arm Rest, Massage, Reclining, Swivel, Footrest |
| Massage Points | 7-point vibration (5 back, 2 seat) |
| Massage Timer | 15/30/60 minutes |
| Reclining Angle | Up to 155 degrees |
| Seat Height Adjustment | 46 cm to 56 cm (18.1" to 22") |
| Included Components | Remote, Wheels |
| Product Care | Wipe Clean |
| Manufacturer | Aosom Canada |
Image: Diagram illustrating the key dimensions of the Vinsetto office chair, including height, width, depth, and seat height range, along with the maximum weight capacity of 265 lbs (120 kg).
Warranty and Support
Warranty Information
This product comes with a 90-day warranty against manufacturer defects. Please retain your proof of purchase for all warranty claims. The warranty covers manufacturing faults and defects in materials or workmanship under normal use.
Customer Support
For assistance with assembly, operation, troubleshooting, or any product-related inquiries, please contact Aosom Canada customer support.
Telephone: 1-416-792-6088
Address: Markham, Ontario, CA
