Introduction
This instruction manual provides detailed guidance for the assembly, safe operation, and maintenance of your Garvee Twin Size Loft Bed with an integrated desk and storage shelves. Please read this manual thoroughly before assembly and use to ensure proper setup and to maximize the product's lifespan and safety.
The Garvee Loft Bed is designed to optimize space in smaller rooms, offering a sleeping area, a spacious desk for work or study, and convenient storage shelves. Its robust metal construction ensures stability and durability for both children and adults.
Image: The Garvee Twin Size Loft Bed, showcasing its integrated desk and storage shelves in a bedroom environment.
Safety Information
Your safety is paramount. Adhere to all warnings and instructions to prevent injury or damage to the product.
- Always follow the assembly instructions carefully to ensure stability.
- Do not exceed the weight capacity of 350 lbs (158.75 kg).
- Ensure all bolts and connectors are securely tightened before use and periodically check for tightness.
- The mattress top must sit at least 6 inches below the top of the guard rail for safe use. Recommended mattress thickness is 4-6 inches.
- An anti-tip kit is included and must be used to anchor the bed firmly to the wall, preventing wobble and ensuring maximum stability.
- Do not allow children to play on or under the bed without supervision.
- Use the built-in ladder for climbing only. Do not use chairs or other furniture to access the upper bunk.
- Keep small parts away from children during assembly to prevent choking hazards.
Image: Close-up of safety features: anti-tip mechanism, non-slip ladder pads, and steel slat support for enhanced stability.

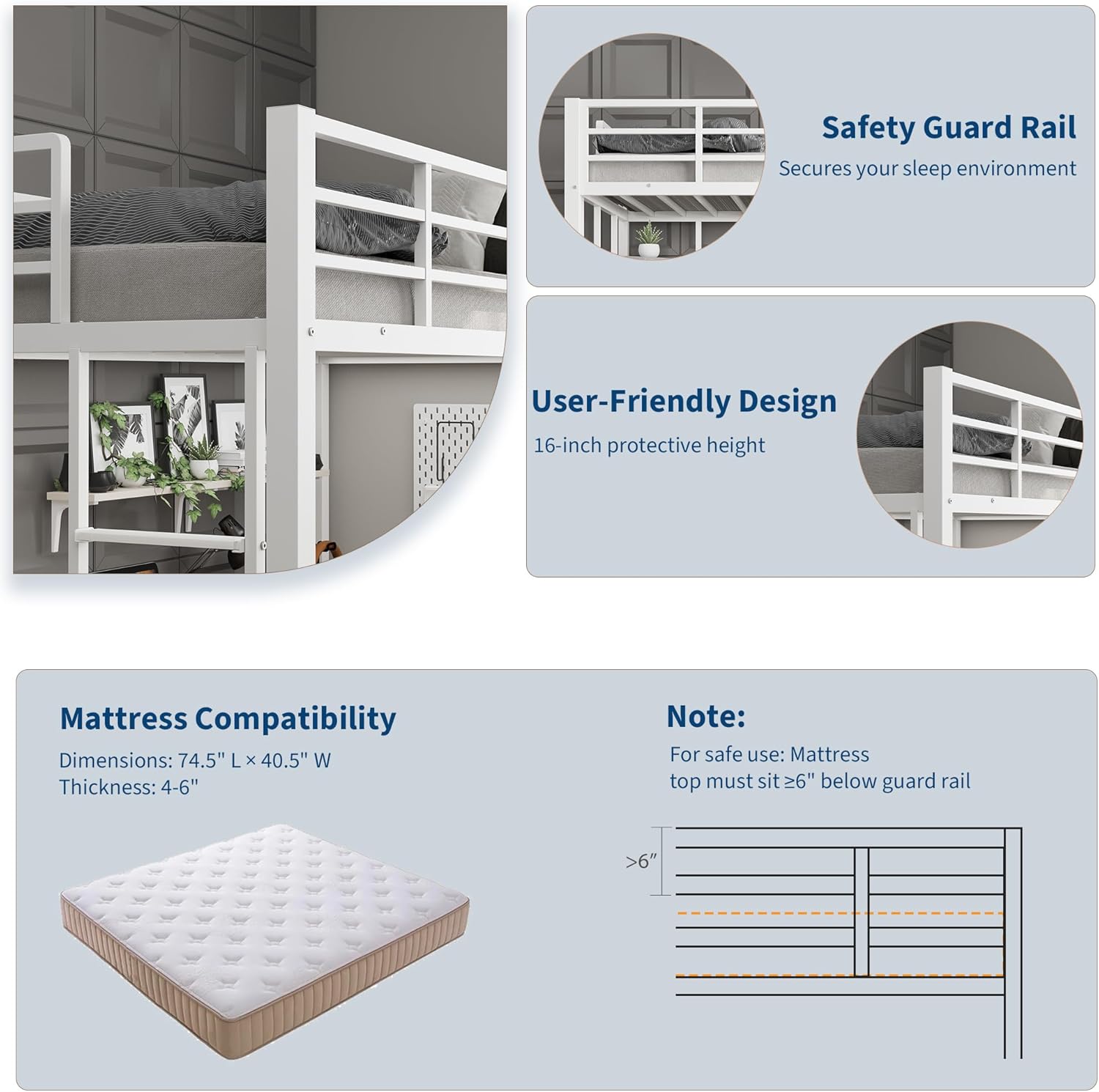

Image: Illustration of the safety guard rail and mattress compatibility, indicating the required mattress height relative to the guard rail.
Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support immediately.
- Metal frame components (legs, side rails, guardrails, ladder sections)
- Steel mattress support slats
- Desk surface and support beams
- Two triangular storage shelves
- Hardware pack (bolts, nuts, washers, Allen wrench)
- Anti-tip kit
- Instruction manual
Assembly Instructions
Assembly typically requires two adults. Clear a spacious area for assembly and keep all parts organized. Do not fully tighten bolts until instructed.
Step 1: Prepare the Area and Identify Parts
Unpack all components and lay them out on a soft, clean surface to prevent scratches. Identify each part using the provided parts list in the separate assembly guide.
Step 2: Assemble the Base Frame
Connect the main vertical support legs and horizontal beams to form the base structure of the loft bed. Hand-tighten all bolts initially.
Step 3: Install the Desk and Shelves
Attach the large desk surface to the designated support points on the frame. Secure the two triangular storage shelves to their respective corner positions.
Image: The integrated desk, providing ample space for a laptop and other items.
Image: The two-tier triangular shelves, suitable for displaying decor or storing small items.
Step 4: Attach the Upper Bed Frame and Guardrails
Assemble the upper bed frame, including the side rails and end panels. Attach the full-length safety guardrails to the upper bunk structure.
Step 5: Install the Ladder
Secure the built-in ladder to the designated attachment points. Ensure the non-slip tread pads are correctly positioned on the rungs.
Step 6: Insert Steel Slats and Final Tightening
Place the steel mattress support slats across the upper bed frame. Once all components are in place and aligned, fully tighten all bolts using the provided Allen wrench. Do not overtighten.
Step 7: Install the Anti-Tip Kit
Follow the instructions provided with the anti-tip kit to securely anchor the loft bed to a wall stud. This step is critical for stability and safety.
Operating Instructions
The Garvee Loft Bed is designed for versatile use, combining sleeping, working, and storage functions.
- Sleeping Area: Place a twin-size mattress directly onto the steel slats. Ensure the mattress meets the safety requirements regarding guard rail height.
- Desk Usage: The spacious desk (74.8" L x 17.7" W) can accommodate computers, books, and other study or work essentials. Maintain an organized workspace for optimal productivity.
- Storage Shelves: Utilize the two corner triangular shelves for organizing books, displaying decorative items, or storing personal belongings.
- Ladder Access: Always use the built-in ladder for safe access to and from the upper bunk. Ensure hands and feet are dry to prevent slipping.
Maintenance
Regular maintenance will help preserve the appearance and structural integrity of your loft bed.
- Cleaning: Wipe down metal surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. For the desk and shelves, use a mild all-purpose cleaner.
- Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten as necessary.
- Structural Integrity: Check for any signs of wear, damage, or instability. If any issues are found, discontinue use and contact customer support.
- Ladder Pads: Ensure non-slip ladder pads are intact and securely attached. Replace if worn or damaged.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable | Loose bolts; Anti-tip kit not installed or improperly installed. | Check and tighten all bolts. Ensure the anti-tip kit is correctly anchored to a wall stud. |
| Difficulty assembling parts | Incorrect orientation of parts; Bolts not aligned. | Refer to the assembly guide for correct part orientation. Do not fully tighten bolts until all parts are loosely connected. |
| Ladder feels slippery | Non-slip pads are worn or missing; Wet feet/hands. | Inspect and replace non-slip pads if necessary. Ensure hands and feet are dry before climbing. |
| Mattress does not fit properly | Incorrect mattress size; Mattress too thick. | Ensure you are using a twin-size mattress. Verify mattress thickness is within the recommended 4-6 inches and sits at least 6 inches below the guard rail. |
Product Specifications
Image: Product dimensions diagram for the Garvee Twin Size Loft Bed.
| Feature | Detail |
|---|---|
| Brand | Garvee |
| Model Number | FSJAGAR25090303ouo6EeE |
| Product Dimensions | 77.9"L x 41.3"W x 72.1"H |
| Compatible Mattress Size | Twin |
| Weight Capacity | 350 lbs |
| Material | Heavy-Duty Metal (Steel) |
| Color | White and Gray |
| Finish Type | Polished |
| Special Features | Integrated Desk, 2-Tier Storage Shelves, Safety Guardrail, Built-in Ladder with Non-Slip Pads, Steel Slats Support, Anti-Tip Mechanism, No Box Spring Needed |
| Desk Dimensions | 74.8" L x 17.7" W |
| Item Weight | 82 pounds |
| Assembly Required | Yes |
| UPC | 199641725691 |
Warranty and Support
Garvee products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your purchase or contact Garvee customer service.
Should you have any questions regarding assembly, missing parts, or product operation, our dedicated support team is available to assist you. Please contact us, and we aim to respond within 24 hours.
For further assistance, please visit the official Garvee store on Amazon: Garvee Store
