Karei V8 Engine Model Kit T3169 User Manual

1. Safety Information

Choking Hazard: This product contains small parts and is not suitable for children under 3 years of age. Adult supervision is recommended during assembly and operation for users under 14 years.

2. Product Overview

The Karei V8 Engine Model Kit T3169 is an 8-cylinder internal combustion engine building set designed for educational and recreational purposes. It features moving pistons, valves, a turbocharger, and an exhaust system, demonstrating the complex inner workings of a real engine. The model supports both manual and electric operation modes, offering interactive learning and display opportunities.

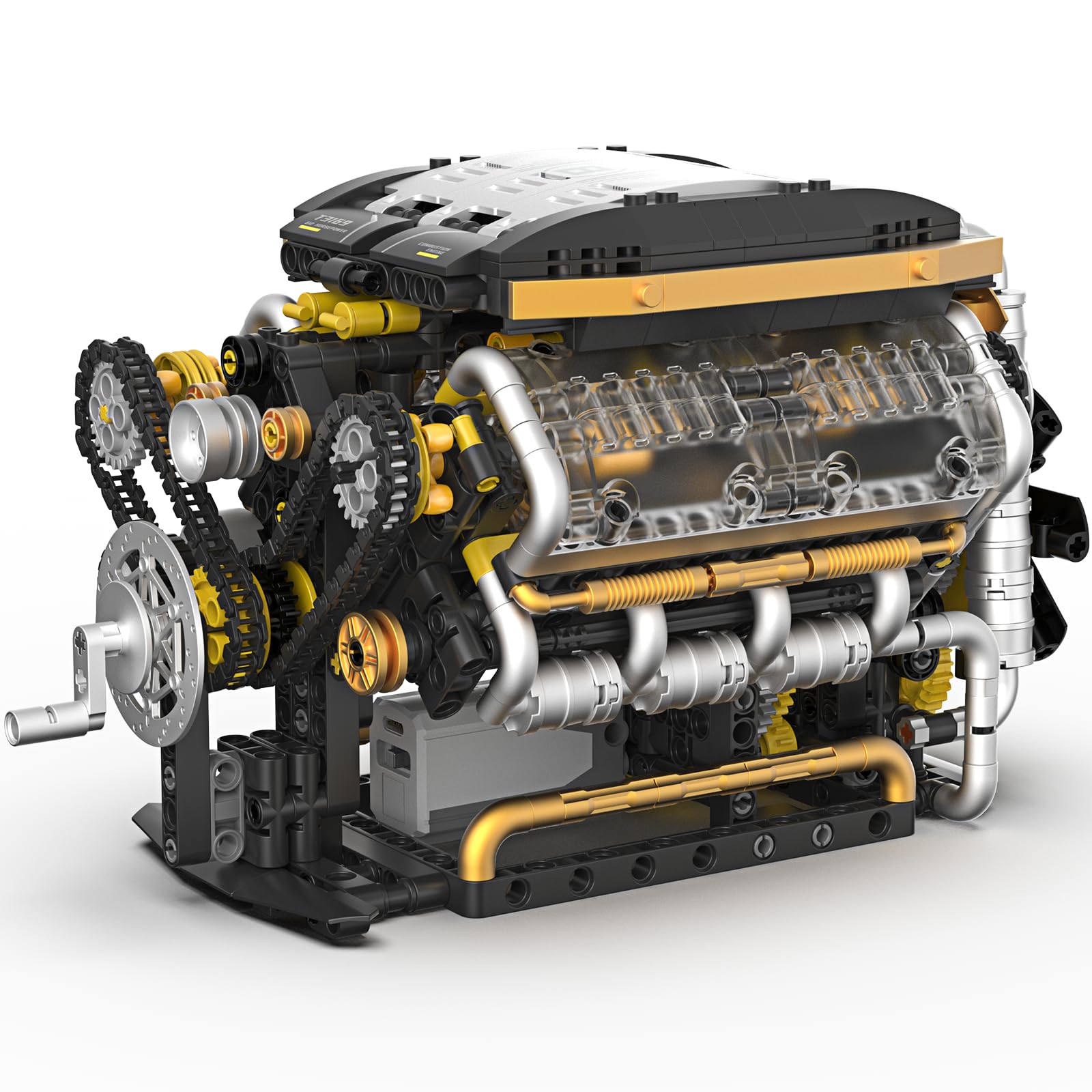

Figure 2.1: Fully assembled Karei V8 Engine Model Kit T3169.

Key Features:

• Realistic V8 Engine Design: Highlights moving pistons, valves, turbocharger, and exhaust system.
• Dual Working Modes: Operates in both manual and electric modes.
• Adjustable Speed and Direction: Electric mode allows for clockwise or counterclockwise rotation at low or high speeds.
• USB Rechargeable Motor: Eliminates the need for disposable batteries in electric mode.
• Educational Value: Ideal for STEM learning, technology clubs, and understanding mechanical principles.
• Durable Construction: Made from non-toxic, odorless ABS materials for a safe and reliable building experience.

3. Setup and Assembly

The Karei V8 Engine Model Kit T3169 includes 1065+ building block parts and an instruction guide. Follow the detailed steps in the provided instruction manual for proper assembly. The assembly process is designed to be challenging and educational, recommended for individuals aged 14 and up due to its complexity.

Assembly Steps Overview:

1. Gear Shifter Installation: Carefully install the gear shifter mechanism. Ensure all components are correctly aligned and move freely.
2. Piston and Crankshaft Assembly: Assemble the piston and crankshaft components. Verify that the connecting rods are installed in the correct orientation to ensure normal operation.
3. Cylinder Block Installation: Integrate the assembled piston and crankshaft into the cylinder block. Test the movement to confirm smooth operation.
4. Gear and Chain Installation: Install the necessary gears and the drive chain. Perform a linkage test to ensure all moving parts are synchronized.
5. Final Assembly: Complete the remaining structural and aesthetic components of the engine model.

Figure 3.2: An individual engaged in the assembly process of the V8 engine model.

4. Operating Modes

The V8 engine model offers two distinct operating modes: Manual and Electric.

4.1 Manual Mode

In manual mode, the engine's internal components can be operated by cranking a handle. This allows for direct observation of the piston and crankshaft movement. Ensure the gear shifter is in the neutral (centered) position for manual operation.

Figure 4.1: Illustration of manual rotation, demonstrating clockwise and counterclockwise movement via the hand crank.

4.2 Electric Mode

The electric mode utilizes a USB rechargeable motor to power the engine. This mode allows for dynamic demonstration of the engine's operation with adjustable direction and speed.

• Power On: Turn on the motor using the switch.
• Adjust Direction: Use the gear shifter to select clockwise (CW) or counterclockwise (CCW) rotation.
• Adjust Speed: The motor button can be combined with the gear shifter to select low or high speed.

Figure 4.2: Detailed view of the electric mode controls, including the motor switch, gear shifter, and speed settings.

5. Maintenance

To ensure the longevity and proper function of your Karei V8 Engine Model Kit, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to gently wipe down the model. Avoid using harsh chemicals or abrasive materials that could damage the plastic components.
• Storage: Store the model in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation.
• Component Check: Periodically inspect all connections and moving parts to ensure they are secure and functioning correctly.
• Battery Care: For the USB rechargeable motor, ensure it is charged regularly if used frequently. Avoid overcharging or completely draining the battery for extended periods.

6. Troubleshooting

If you encounter issues with your V8 Engine Model Kit, refer to the following common troubleshooting tips:

6.1 Manual Mode Rotation Not Smooth

If the engine rotation is not smooth when operating in manual mode, it may be due to slight misalignment of the gears.

• Adjustment: Slightly adjust the position of the black gear located at the bottom of the mechanism. Use a small tool, such as tweezers, to carefully nudge the gear until rotation becomes smooth.

Figure 6.1: Close-up view of the gear mechanism, illustrating the adjustment point for smooth manual rotation.

6.2 Electric Mode Not Functioning

• Check Power: Ensure the motor is switched to the 'ON' position.
• Battery Charge: Verify that the USB rechargeable motor has sufficient charge. Connect it to a power source using the Type C charging cable if needed.
• Gear Shifter Position: Confirm the gear shifter is correctly engaged in either CW or CCW position, not in neutral.
• Connections: Inspect all electrical connections to ensure they are secure.

7. Specifications

Figure 7.1: Visual representation of the V8 engine model's dimensions and the contents of the product package.

8. Support

For any questions, assistance with assembly, part issues, or product suggestions, please contact Karei customer support. Refer to the product packaging or the official Karei website for contact information.
