1. Introduction
This manual provides essential information for the safe operation, setup, and maintenance of your GoolRC WLtoys 6406-C Mini RC Car. Please read it thoroughly before first use to ensure proper functionality and to prevent damage. This 1:64 scale FPV remote control car features a 720P camera, app control, and LED lights, offering a versatile indoor driving experience.

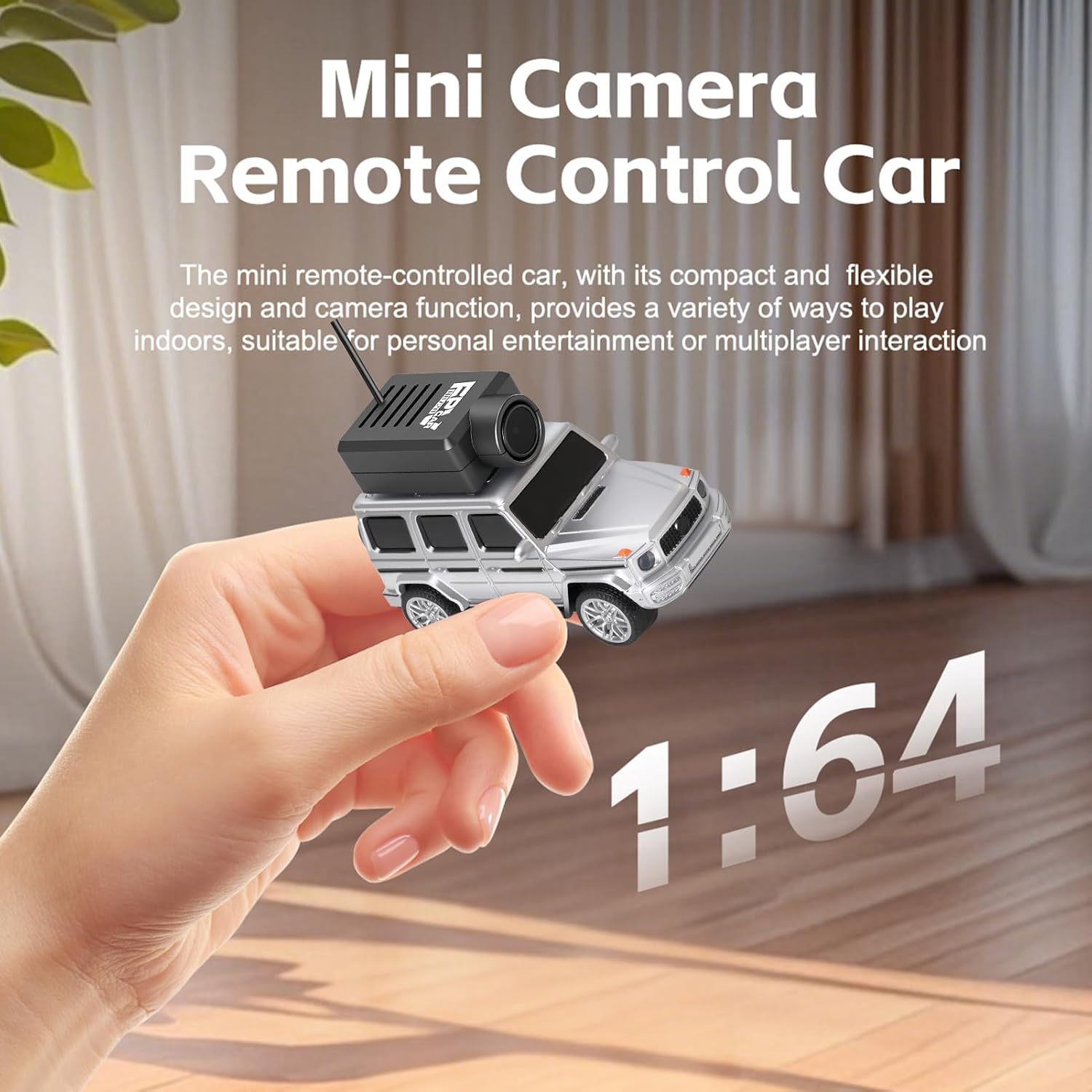

Image 1.1: The GoolRC WLtoys 6406-C Mini RC Car, highlighting its compact design and integrated camera.
2. Package Contents
Verify that all items listed below are included in your package. If any components are missing or damaged, please contact customer support.
- 1 x RC Car (WLtoys 6406-C)
- 1 x Remote Controller
- 1 x Charging Cable (Type-C)
- 1 x Instruction Manual
- 2 x Toy Trailers
- 1 x Screwdriver
- 1 x Phone Mount
- 2 x Screws
- 2 x Tow Hooks
- 1 x Storage Bag
Image 2.1: All components included in the GoolRC WLtoys 6406-C package.
3. Product Features
- 2.4G Auto-Matching Technology: Ensures quick and easy connection between the car and controller.
- Built-in Gyroscope: Provides self-stabilization for smooth driving on various surfaces.
- Shock-Absorbing Front Wheels: Enhances stability and minimizes bumps during operation.
- Undercarriage LED Lights: Cool blue lighting for improved visibility and aesthetic appeal.
- Three Adjustable Speed Modes: Fast, Medium, and Slow settings to suit different skill levels and environments.
- Dual Control Options: Operate via the included remote controller or a smartphone app.
- High-Performance 720P Camera: Offers real-time FPV (First-Person View) video transmission via WiFi with low latency.
- App Functions: Supports photo capture, video recording, VR mode compatibility, and omnidirectional movement control.
- Magnetic Suction Camera: Allows for easy installation and removal of the camera.
Image 3.1: Detailed view of the FPV camera specifications.
Image 3.2: The RC car with its blue ambient undercarriage lighting.
4. Setup
4.1 Charging the RC Car Battery
The RC car is powered by a 3.7V 20C 180mAh polymer lithium battery. Use the provided Type-C charging cable to charge the car. Connect the Type-C end to the car's charging port and the USB-A end to a compatible USB power source (e.g., computer, USB wall adapter). The indicator light will show charging status (refer to the car's specific LED behavior for full charge indication).
Image 4.1: Location of the Type-C charging port on the RC car.
4.2 Remote Controller Setup
The remote controller requires batteries (not included). Insert the required batteries into the controller's battery compartment. Turn on the remote controller. The 2.4G auto-matching technology will automatically pair the controller with the RC car once both are powered on.
4.3 App Installation and Connection
To use app control and FPV features, download the 'WL Tech FPV CAR' app. Scan the QR code provided in the color box or instruction manual, or search for the app on your device's app store (App Store for iOS, Google Play for Android).
- Scan the QR code on the color box or instruction manual to find the app.
- Choose the version compatible with your phone and download the app.
- Turn on the remote control car switch.
- Connect your smartphone to the car's WiFi network. The WiFi name will typically start with "WL_FPV_CAR" followed by a series of numbers. The password is the last 8 digits of the WiFi name.
Image 4.2: Steps for app installation and WiFi connection.
5. Operating Instructions
5.1 Basic Control (Remote Controller)
The remote controller provides precise control over the RC car. Attach your smartphone to the phone mount on the remote for FPV viewing.
- Pilot Lamp: Indicates power status.
- Steering Fine-tuning: Adjusts steering trim for straight driving.
- Light Control Button: Toggles the undercarriage LED lights.
- Turn Left and Right Switch: Controls the direction of the car.
- Gyroscope Fine-tuning: Adjusts gyroscope sensitivity for stability.
- Speed Control Key: Cycles through speed modes (Slow, Medium, Fast).
- Cruise Control Button: Activates/deactivates cruise control.
- Power Switch: Turns the remote controller on/off.
Image 5.1: Remote controller layout and functions.
5.2 Speed Adjustment
The car offers three adjustable speed levels:
- Slow Gear: Approximately 1.7 Km/h. Ideal for beginners or precise indoor maneuvering.
- Medium Speed Gear: Approximately 2.5 Km/h. Balanced speed for general play.
- Quick Gear: Approximately 3 Km/h. For experienced users seeking higher speeds.
Image 5.2: Speed settings for the RC car.
5.3 App Control and FPV Functions
Once connected to the app, your smartphone becomes an intuitive control interface. The app displays real-time video from the car's camera.
- Proportional Throttle Control: Adjust speed precisely.
- Proportional Steering Control: Fine-tune steering.
- Camera Function: Take photos.
- Video Function: Record videos.
- VR Function: Engage VR mode for an immersive first-person perspective (requires VR glasses, not included).
- Lane Assist: Provides driving assistance.
- Mode Switching: Switch between different control modes.
Image 5.3: App interface for FPV and control.
Image 5.4: Detailed app control functions.
Image 5.5: VR mode experience with the RC car.
6. Maintenance
6.1 Battery Care and Charging
- Always use the provided Type-C charging cable.
- Do not overcharge the battery. Disconnect once fully charged.
- Store the car and battery in a cool, dry place away from direct sunlight and extreme temperatures.
- If the car will not be used for an extended period, charge the battery to approximately 50% before storage.
6.2 Cleaning
- Wipe the car with a soft, dry cloth after use.
- Avoid using water or chemical cleaners, as they may damage electronic components.
- Ensure no dust or debris accumulates around the wheels or camera lens.
6.3 Camera Installation/Removal
The camera uses a magnetic suction design for easy attachment and removal. Ensure the camera is securely attached before operation to prevent it from falling off during movement.
Image 6.1: Magnetic camera installation.
7. Troubleshooting
This section addresses common issues you might encounter with your GoolRC WLtoys 6406-C Mini RC Car.
| Problem | Solution |
|---|---|
| RC car tires appear to be showing or exposed. | This design feature, with a strong grip and resistance to drifting, improves the stability and tire grip during turns. This is normal operation. |
| How to adjust tire tilt? | Adjust the tire tilt using the steering fine-tuning on the remote control and the steering pull rod. |
| RC car has slight scratches. | Minor scratches on the chassis may occur during transportation. These do not affect the product's use or performance. |
| Car does not respond to remote/app. | Ensure both the car and controller are powered on and fully charged. Re-pair the controller if necessary. For app control, verify WiFi connection and correct password. |
| FPV video is laggy or disconnected. | Ensure your smartphone is close to the car and there are no strong WiFi interferences. Check the car's battery level. Restart the app and car if needed. |
Image 7.1: Common troubleshooting scenarios.
8. Specifications
| Feature | Detail |
|---|---|
| Brand Name | GoolRC |
| Model Name | GoolRCczig5vd6na-12 (WLtoys 6406-C) |
| Scale | 1:64 |
| Control Frequency | 2.4GHz |
| Remote Control Distance | Up to 30 meters (App Control), Up to 50 meters (Remote Control) |
| Camera Resolution | 720P HD |
| Camera Wide Angle | 120° |
| Battery Type | 3.7V 20C 180mAh Polymer Lithium Battery |
| Charging Port | Type-C |
| Material Type | Plastic |
| Item Dimensions | 8.66 x 6.69 x 2.75 inches |
| Age Range Description | Adult (Manufacturer Minimum Age: 168 months) |
9. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact the retailer. For technical support or inquiries, please visit the official GoolRC website or contact their customer service department. Keep your purchase receipt as proof of purchase for any warranty claims.
