PURPLE LEAF Hardtop Gazebo 8' x 12' Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF Hardtop Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and care will ensure the longevity and safe use of your gazebo.

2. Safety Information

Important Safety Precautions:

• Always verify local building codes and secure the gazebo to a stable foundation to prevent it from being blown over in strong winds.
• Ensure all parts are correctly installed and tightened before use.
• Do not hang excessive weight from the gazebo frame or roof.
• Keep children and pets away from the assembly area during installation.
• In case of severe weather conditions (e.g., heavy snow, strong winds), it is recommended to remove curtains and netting and ensure the structure is securely anchored.

3. Product Features

Your PURPLE LEAF Hardtop Gazebo is designed with the following key features:

• Authentic Wood Look: Powder-coated teak finish replicates the grain, texture, and color of real wood, offering a natural, beautiful, and low-maintenance appearance.
• Dual-Top Ventilated Roof: Constructed from durable galvanized steel, providing excellent UV protection and ensuring optimal airflow and comfort.
• Sturdy Aluminum Frame: Built from strong powder-coated aluminum with 3.9-inch thick triangular posts, engineered to withstand winds up to 40 mph and snow loads up to 3000 lbs. Offers exceptional stability, durability, and rust resistance.
• Upgraded Detachable Netting & Curtain: Includes high-density 160 GSM yarn-dyed curtains and 110 GSM reinforced nettings for enhanced durability, effective sunlight blocking, and privacy. Features dual zippers for easy entry and exit.
• Convenient Ceiling Hooks: Heavy-duty integrated hooks support up to 20 lbs each, ideal for hanging lights, fans, or decorations.

4. Setup and Installation

The gazebo is designed for straightforward assembly. All parts are numbered, and detailed visual guides are included in the packaging. Assembly typically requires two people and takes approximately 2-4 hours.

4.1 Assembly Overview

Refer to the included instruction manual for step-by-step assembly diagrams. Ensure you have adequate space and all components before starting.

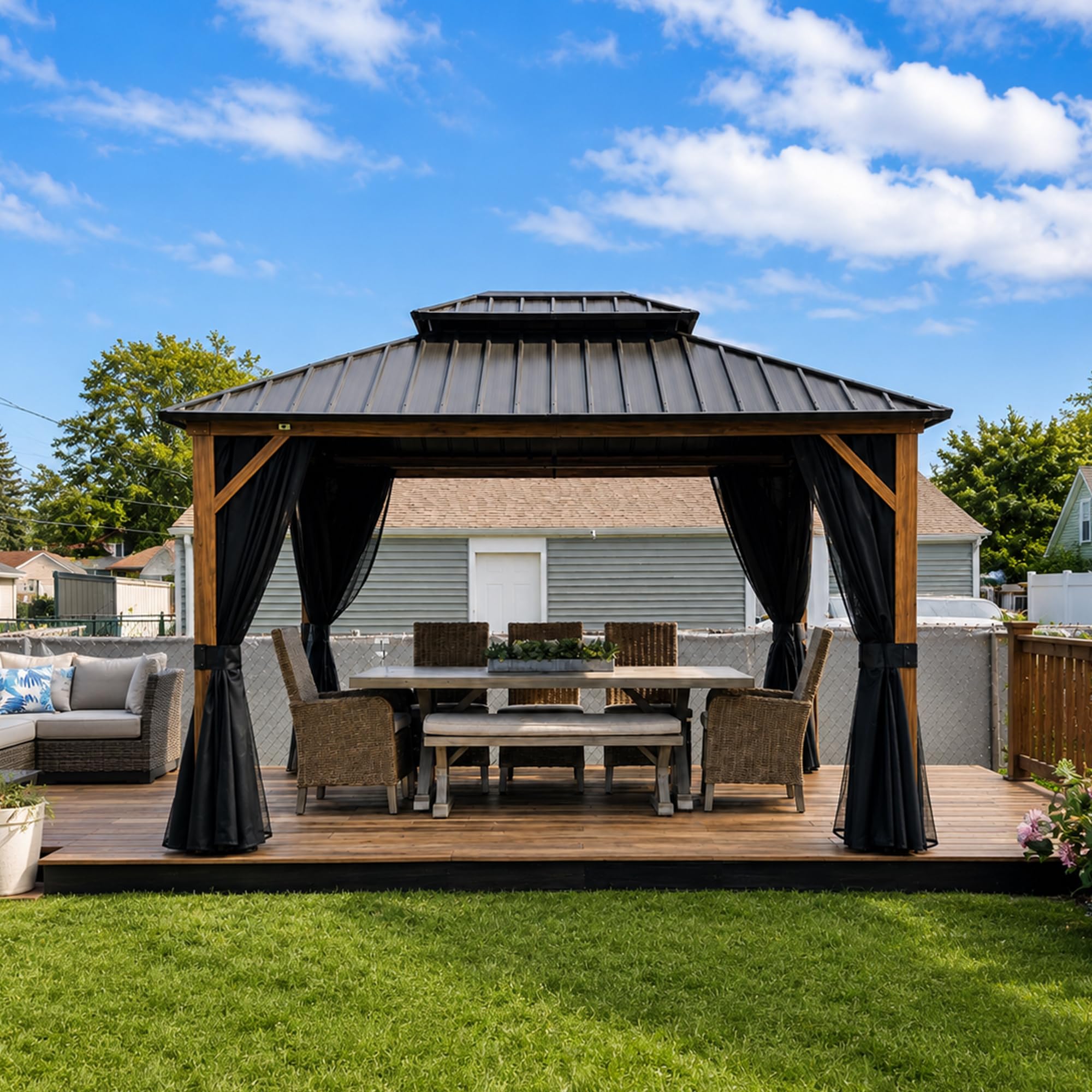

Figure 1: Fully assembled PURPLE LEAF Hardtop Gazebo 8' x 12'.

4.2 Key Structural Components

The gazebo features reinforced beams and wide columns for enhanced stability.

Figure 2: Illustration of reinforced beams (5.9 inches) compared to standard beams (3.9 inches), highlighting increased strength for wind and snow loads.

Figure 3: Detail of the wood grain finish on a gazebo post, showcasing the authentic wood look.

4.3 Foundation and Anchoring

The gazebo posts include pre-drilled anchor holes for secure installation to a stable foundation. Anchoring hardware is typically included, but always ensure it is suitable for your specific installation surface.

5. Operation

Operating your gazebo involves managing the curtains, netting, and utilizing the integrated features.

5.1 Curtains and Netting

The gazebo includes dual-layer curtains and netting. The inner mesh netting blocks insects and UV rays, while the outer fabric curtains provide privacy and weather protection. Both layers feature dual zippers for easy access.

Figure 4: The gazebo with its curtains and netting fully extended, providing privacy and protection.

Figure 5: Visual representation of the gazebo's panoramic view, the inner mesh curtain for insect and UV protection, and the outer fabric curtain for warmth and weather resistance.

5.2 Ceiling Hooks

Three integrated ceiling hooks are provided for hanging accessories. Each hook can support up to 20 lbs.

Figure 6: Close-up view of the three ceiling hooks, demonstrating their use for hanging lights, fans, or flower baskets.

5.3 Ventilated Roof

The dual-top galvanized steel roof is designed to promote airflow, reduce heat buildup, and provide UV resistance.

Figure 7: The galvanized steel double roof, illustrating its ventilation design for heat dissipation and UV resistance.

6. Maintenance

Regular maintenance will help preserve the appearance and functionality of your gazebo.

• Frame: The powder-coated aluminum frame is rust-resistant and requires minimal maintenance. Clean with mild soap and water as needed.
• Roof: The galvanized steel roof is durable and UV-resistant. Periodically check for debris and clean with water.
• Curtains & Netting: The yarn-dyed curtains are designed for colorfastness, maintaining integrity for up to 2 years. The heavy textilene nettings are stable in winds up to 10 mph. Both can be detached for cleaning. Follow fabric care instructions for washing.
• Hardware: The gazebo uses stainless steel screws for exceptional durability and rust resistance. Periodically check all fasteners and tighten if necessary.

7. Troubleshooting

If you encounter any issues during assembly or use, please refer to the detailed assembly guide provided with your product. For further assistance, contact PURPLE LEAF customer support.

• Missing Parts: Check all packaging thoroughly. If parts are still missing, contact customer support with your model number and a list of missing components.
• Assembly Difficulties: Review the step-by-step visual guides. Ensure all components are oriented correctly. Do not force parts together.
• Stability Concerns: Verify that the gazebo is installed on a level surface and securely anchored according to local building codes. Ensure all bolts are tightened.

8. Specifications

9. Warranty and Support

PURPLE LEAF is committed to providing reliable support and hassle-free solutions for your product.

• Warranty Coverage:
  • Top Panel: 5 Years
  • Curtain & Netting: 2 Years
  • Frame: 1 Year
• Customer Support: 24/7 reliable support is available for any questions from order to setup. Professional setup guidance can also be provided.
• Contact Information: For support inquiries, please email gazebo@purpleleafgarden.com.
