1. Introduction
Thank you for choosing the TABU 18lbs Portable Washing Machine. This appliance is designed for efficient and convenient laundry care in various settings, including homes, apartments, dormitories, and RVs. It features a full automatic operation with multiple wash programs and water levels to suit your needs. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.
Image 1.1: Front view of the TABU 18lbs Portable Washing Machine.
2. Safety Information
2.1 General Safety
- Always place the washing machine on a stable, level surface to prevent vibration and noise.
- Keep children and pets away from the appliance during operation.
- Do not operate the machine if any parts are damaged or missing.
- Ensure proper ventilation around the machine.
2.2 Electrical Safety
- Plug the machine into a grounded electrical outlet with the correct voltage.
- Do not use extension cords or adapters.
- Unplug the machine before cleaning or performing any maintenance.
2.3 Water Safety
- Ensure all water connections are secure to prevent leaks.
- Do not immerse the machine in water.
- Avoid using excessively hot water, as it may damage the machine or clothes.
3. Package Contents
Verify that all components are present upon unpacking:
- TABU 18lbs Portable Washing Machine Unit
- Water Inlet Hose
- Drain Hose
- Quick Connect Adapter for Faucet
- User Manual
4. Setup
4.1 Placement
Place the washing machine on a firm, level surface. Ensure there is adequate space around the unit for ventilation and hose connections. The compact design makes it suitable for various locations such as bathrooms, apartments, dormitories, and RVs.
Image 4.1: The washing machine is versatile for placement in small spaces.
4.2 Water Connection
Connect the water inlet hose to a standard faucet using the provided quick connect adapter. Ensure the connection is tight to prevent leaks. The machine requires a cold water supply.
4.3 Drainage
Attach the drain hose to the designated outlet on the machine. Position the other end of the drain hose into a sink, bathtub, or a suitable drain. Ensure the drain hose is securely placed to prevent it from dislodging during the drain cycle.
4.4 Power Connection
Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the machine's requirements.
Image 4.2: Key components and connections of the washing machine.
5. Operating Instructions
5.1 Control Panel Overview
The washing machine features a multi-function control panel with an LED display for easy operation. It includes buttons for power, start/pause, water level, and program selection.
Image 5.1: Detailed view of the control panel with various settings.
5.2 Loading Laundry
Open the clear washer lid and load your clothes into the stainless steel inner tub. Do not overload the machine; it can accommodate up to 18lbs of laundry. Add detergent to the dispenser.
Image 5.2: Loading laundry into the machine.
5.3 Selecting a Wash Program
The machine offers 10 washing programs and 8 water levels. Use the 'Program' button to cycle through options like Normal, Delicates, Heavy Duty, Quick Wash, Soak, Rinse, and Spin. Adjust the water level using the 'Water Level' button as needed.
5.4 Starting the Wash Cycle
After selecting your desired program and water level, press the 'Start/Pause' button to begin the wash cycle. The transparent lid allows you to monitor the washing process.

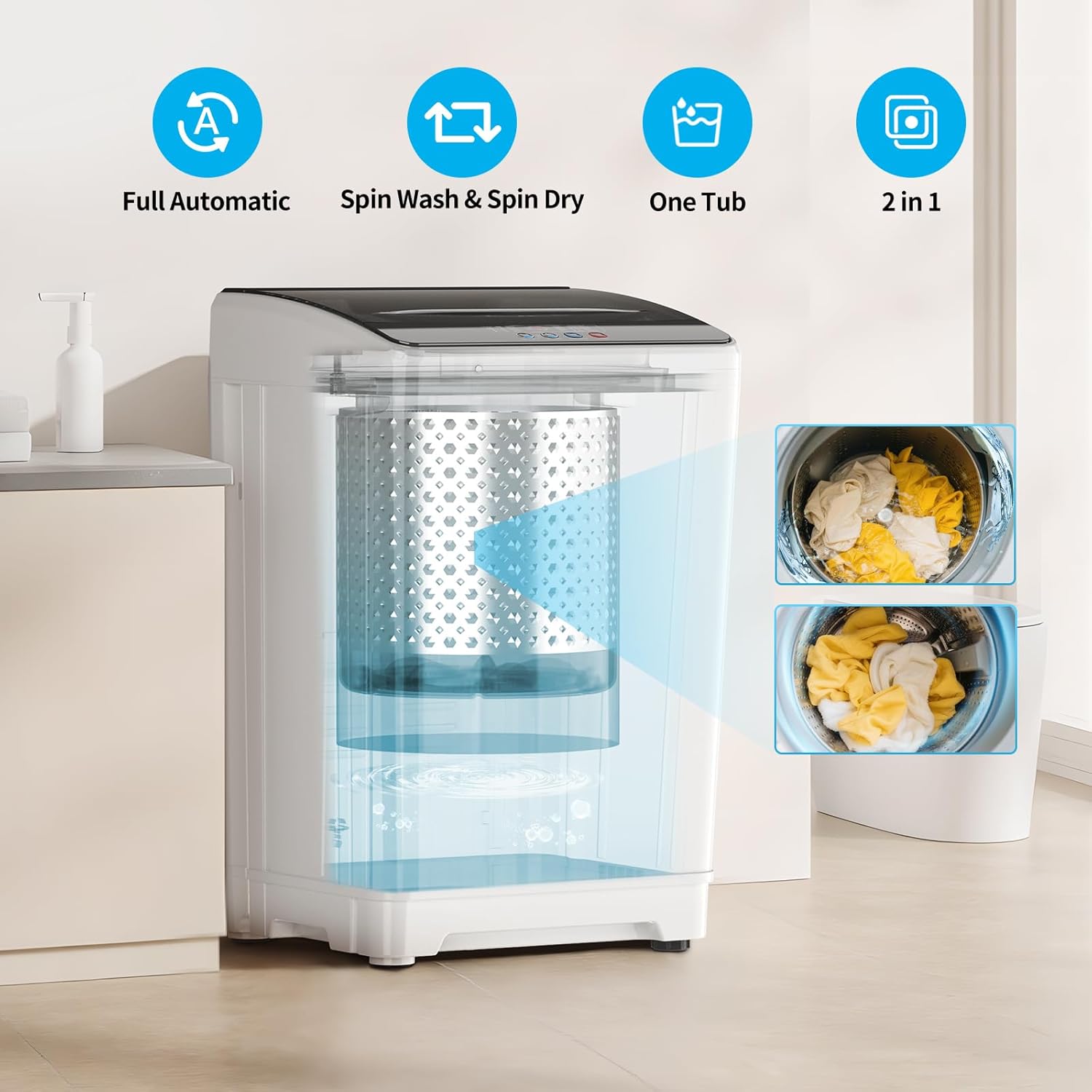

Image 5.3: Illustration of the machine's washing and drying capabilities.
5.5 Delay Start Function
The machine includes a 24-hour delay function, allowing you to set a delayed start time for your wash cycle.
5.6 Automatic Balance Adjustment
The automatic balance detection mechanism corrects tub imbalance during operation, reducing vibration and extending the machine's lifespan.
Video 5.4: A short demonstration of the washing machine's operation, highlighting its energy-saving and automatic features.
6. Maintenance
6.1 Cleaning the Exterior
Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
6.2 Cleaning the Inner Tub
Periodically clean the stainless steel inner tub to prevent residue buildup. Run a 'Tub Clean' cycle if available, or a normal wash cycle with hot water and a tub cleaner.
6.3 Filter Maintenance
The machine has a built-in filter to catch lint and debris. Regularly check and clean the filter to ensure optimal performance and prevent drainage issues.
6.4 Storage
If storing the machine for an extended period, drain all water, clean the interior and exterior, and unplug the power cord. Store in a dry, cool place.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Lid not closed; Program not selected. | Check power connection; Close lid securely; Select a wash program. |
| Water leakage | Loose water inlet/drain hose; Overfilling. | Tighten hose connections; Reduce water level or load size. |
| Excessive vibration/noise | Uneven surface; Unbalanced load; Shipping bolts not removed. | Adjust leveling feet; Redistribute laundry evenly; Remove shipping bolts (if applicable). |
| Poor washing results | Overloading; Insufficient detergent; Incorrect program. | Reduce load size; Use appropriate amount of detergent; Select suitable wash program. |
8. Specifications
- Brand: TABU
- Model Number: 410152110
- Item Weight: 54 pounds
- Product Dimensions: 18.31"D x 18.7"W x 32.3"H
- Capacity: 2.4 Cubic Feet (18lbs)
- Installation Type: Freestanding
- Special Features: Automatic Balance Adjustment, Multi-Function Control Panel, Clear Washer Lid, Drain Pump
- Color: White
- Control Console: Push Button
- Access Location: Top Load
- Material Type: Metal, Plastic, Stainless Steel
- Cycle Options: Normal, Delicates, Heavy Duty, Quick Wash

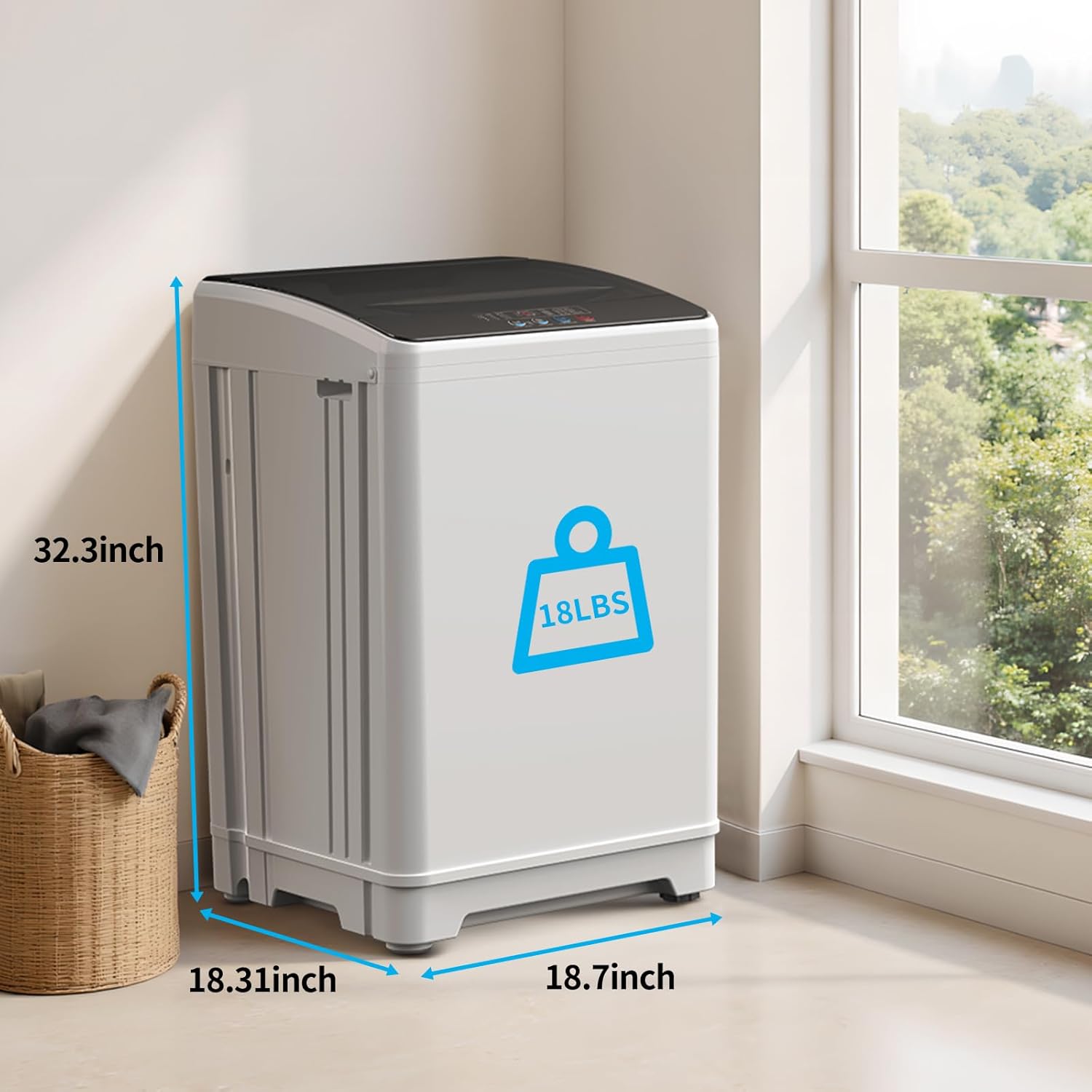

Image 8.1: Key dimensions and capacity of the washing machine.
9. Warranty and Support
For any questions or support regarding your TABU Portable Washing Machine, please contact customer service. We aim to reply within 24 hours.
Protection plans are available for purchase separately:
- 2-Year Protection Plan
- 3-Year Protection Plan
- Complete Protect: One plan covers all eligible past and future purchases
