ovios Large Patio Umbrellas with Base 111

ovios 15ft Large Patio Umbrella with Base & Solar Lights

Model: Large Patio Umbrellas with Base 111

Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your ovios 15ft Large Patio Umbrella. Please read this manual thoroughly before use and retain it for future reference.

Safety Information

  • Always ensure the umbrella base is properly weighted and stable before opening the canopy.
  • Do not use the umbrella in strong winds or severe weather conditions. Close and secure the umbrella to prevent damage or injury.
  • Keep children and pets away from the umbrella during opening and closing operations.
  • Avoid placing the umbrella near open flames or heat sources.
  • Regularly inspect all components for wear and tear. Replace damaged parts immediately.
  • Ensure the solar panel is clean and exposed to direct sunlight for optimal charging of the LED lights.

Package Contents

Verify that all components are present before beginning assembly:

  • 15ft x 9ft Double-Sided Patio Umbrella Canopy with integrated LED lights
  • Powder-Coated Steel Pole (1.9 inch diameter)
  • Cross Base
  • 2 Heavy-Duty Sandbags (sand not included)
  • Protective Cover
  • Assembly Hardware (screws)

Setup and Assembly

Follow these steps to assemble your patio umbrella:

  1. Install the Screws: Attach the cross base components using the provided screws. Ensure all connections are secure.
  2. Set the Base Frame: Place the assembled cross base in your desired location.
  3. Fill Sandbags: Fill each of the two heavy-duty sandbags with 60-88 lbs of sand (sand not included). Place the filled sandbags onto the cross base to provide stability.
  4. Place the Base Cover: Position the protective base cover over the sandbags and cross base for a neat appearance and added protection.
  5. Insert Umbrella Pole: Carefully insert the umbrella pole into the center opening of the weighted base. Ensure it is fully seated and stable.
  6. Attach Canopy: Secure the umbrella canopy to the pole according to the instructions provided with the umbrella.
Diagram showing four steps for base installation: installing screws, setting the base frame, filling sandbags, and placing the base cover.
Figure 1: Base Installation Steps. Ensure sandbags are adequately filled for stability.

Operating Instructions

Opening and Closing the Umbrella

The umbrella features a smooth crank lift system for easy operation.

  • To open the umbrella, turn the crank handle clockwise until the canopy is fully extended.
  • To close the umbrella, turn the crank handle counter-clockwise until the canopy is fully retracted.
  • Always close the umbrella when not in use or during windy conditions to prevent damage.
Image showing a hand operating the built-in crank mechanism on the umbrella pole, with 'UP' and 'DOWN' arrows indicating direction.
Figure 2: Built-in Crank Mechanism for opening and closing the umbrella.

Solar LED Lights

The umbrella is equipped with 32 LED lights and color-changing RGB strips, powered by a solar panel located on top of the canopy. The lights are solar-powered only and cannot be plugged in.

  • Ensure the solar panel receives direct sunlight for several hours to charge the internal battery.
  • An on/off button, typically located near the crank handle, controls the LED lights. Press to activate or deactivate.
  • The RGB strips may offer multiple color options, controllable via a remote or mobile app (refer to specific instructions for app pairing if applicable).
  • Fully charged lights can provide 6-8 hours of continuous illumination.
Image showing the patio umbrella at night with colorful RGB lights illuminated, and a smartphone displaying a color selection app for control.
Figure 3: RGB LED lights in operation, controllable via remote or mobile app.
Image showing the umbrella illuminated at night with 36 LED beads and two central headlamps, highlighting solar-powered automatic charging and 6-8 hours of continuous illumination.
Figure 4: Solar-powered LED lights providing evening illumination.

Maintenance

Proper maintenance extends the life of your patio umbrella.

  • Cleaning the Canopy: Wipe the canopy with a damp cloth. For deeper cleaning, hand wash the canopy with mild soap and water. Do not use harsh chemicals or abrasive cleaners.
  • Storage: When not in use, especially during off-season or prolonged periods, close the umbrella and cover it with the provided protective cover. This protects against dust, dirt, and weather elements.
  • Wind and Rain: Always close and fasten the umbrella during windy or rainy days to prevent damage to the canopy and frame.
  • Solar Panel: Keep the solar panel clean and free of debris to ensure efficient charging of the lights.
Close-up image of the umbrella canopy with water droplets, illustrating its waterproof and weather-resistant fabric.
Figure 5: The canopy fabric is waterproof and weather-resistant.
Image highlighting the umbrella's all-weather use features: water resistance, UV resistance, fade resistance, and wind resistance.
Figure 6: The umbrella is designed for all-weather use, offering water, UV, fade, and wind resistance.

Troubleshooting

ProblemPossible CauseSolution
Umbrella is unstable or tips over.Insufficient weight in sandbags; strong winds.Ensure sandbags are filled with 60-88 lbs of sand each. Close umbrella in strong winds.
LED lights are not turning on.Solar panel not charged; on/off switch off; faulty connection.Ensure solar panel receives direct sunlight for several hours. Check the on/off button. Verify connections if accessible.
Crank mechanism is stiff or difficult to operate.Lack of lubrication; debris in mechanism.Apply a silicone-based lubricant to moving parts. Inspect for and remove any debris.
Canopy fabric shows signs of wear or fading.Prolonged exposure to harsh elements without protection.Always use the protective cover when the umbrella is not in use. Follow care instructions for cleaning.

Specifications

  • Canopy Dimensions: 15 ft (Length) x 9 ft (Width) (174 x 100 inches)
  • Shade Area: Approximately 135 sq ft
  • Pole Diameter: 1.9 inches (48mm)
  • Ribs: 12 Rust-proof Steel Ribs (5+2+5 Heavy Duty Ribs design)
  • Canopy Material: 100% Polyester Fabric
  • UV Protection: UPF 50+
  • Wind Resistance: Up to 18 mph
  • Lighting: 32 LED Lights (65 lms brightness), Solar-powered Color-Changing RGB Strips
  • Power Source for Lights: Solar (cannot be plugged in)
  • Opening Mechanism: Crank Lift
  • Recommended Sandbag Weight: 60-88 lbs per sandbag (sand not included)

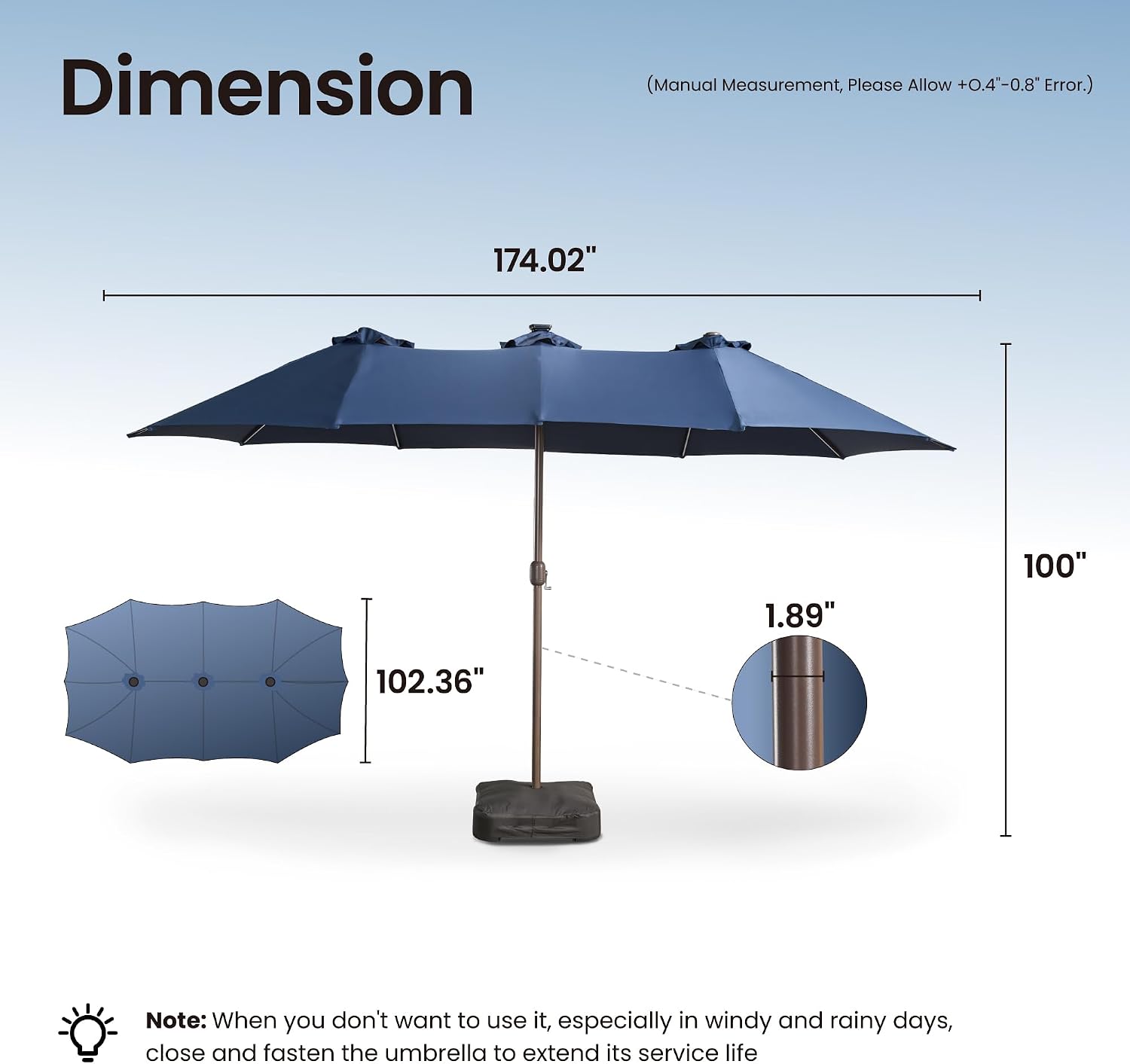

Dimension diagram showing the umbrella's length as 174.02 inches, height as 100 inches, and pole diameter as 1.89 inches.
Figure 7: Key dimensions of the ovios 15ft Large Patio Umbrella.
Close-up image of the umbrella's internal structure, highlighting the 5+2+5 heavy-duty ribs, indicating 30% thicker construction and 18 mph wind resistance.
Figure 8: Reinforced rib structure for enhanced durability and wind resistance.

Warranty and Support

For warranty inquiries, missing parts, or technical support, please contact ovios customer service. Refer to your purchase documentation for specific contact details or visit the official ovios website.
