1. Introduction
This manual provides essential information for the safe and effective use of your Urbanista Mini Sleep Earbuds Porto. Please read it thoroughly before using the product and retain it for future reference.
Image 1: Urbanista Mini Sleep Earbuds Porto in their charging case.
2. What's in the Box
- Urbanista Mini Sleep Earbuds Porto (Left and Right)
- Charging Case
- USB-C Charging Cable
- Silicone Ear Tips (Sizes S, M, L)
- User Manual
3. Setup
3.1 Initial Charging
Before first use, place the earbuds in the charging case and connect the case to a power source using the provided USB-C cable. Ensure the case and earbuds are fully charged. The charging indicator lights on the case will provide status.
3.2 Bluetooth Pairing
- Open the charging case. The earbuds will automatically enter pairing mode.
- On your device (smartphone, tablet, etc.), enable Bluetooth.
- Select 'Urbanista Porto' from the list of available devices.
- Once connected, a voice prompt will confirm successful pairing.
For Bluetooth Multipoint, connect the earbuds to the first device, then disconnect. Connect to the second device. Reconnect to the first device. The earbuds will now be connected to both devices simultaneously, allowing seamless switching between audio sources.
4. Operating Instructions
4.1 Touch Controls
The Urbanista Porto earbuds feature intuitive touch controls for managing audio playback, calls, and settings. Refer to the quick start guide for specific tap functions (e.g., single tap for play/pause, double tap for next track).
4.2 EQ Modes
Customize your listening experience with three Equalizer (EQ) presets: Bass Boost, Treble Boost, and Natural Sound. These can be selected via the touch controls or the Urbanista companion app (if available).

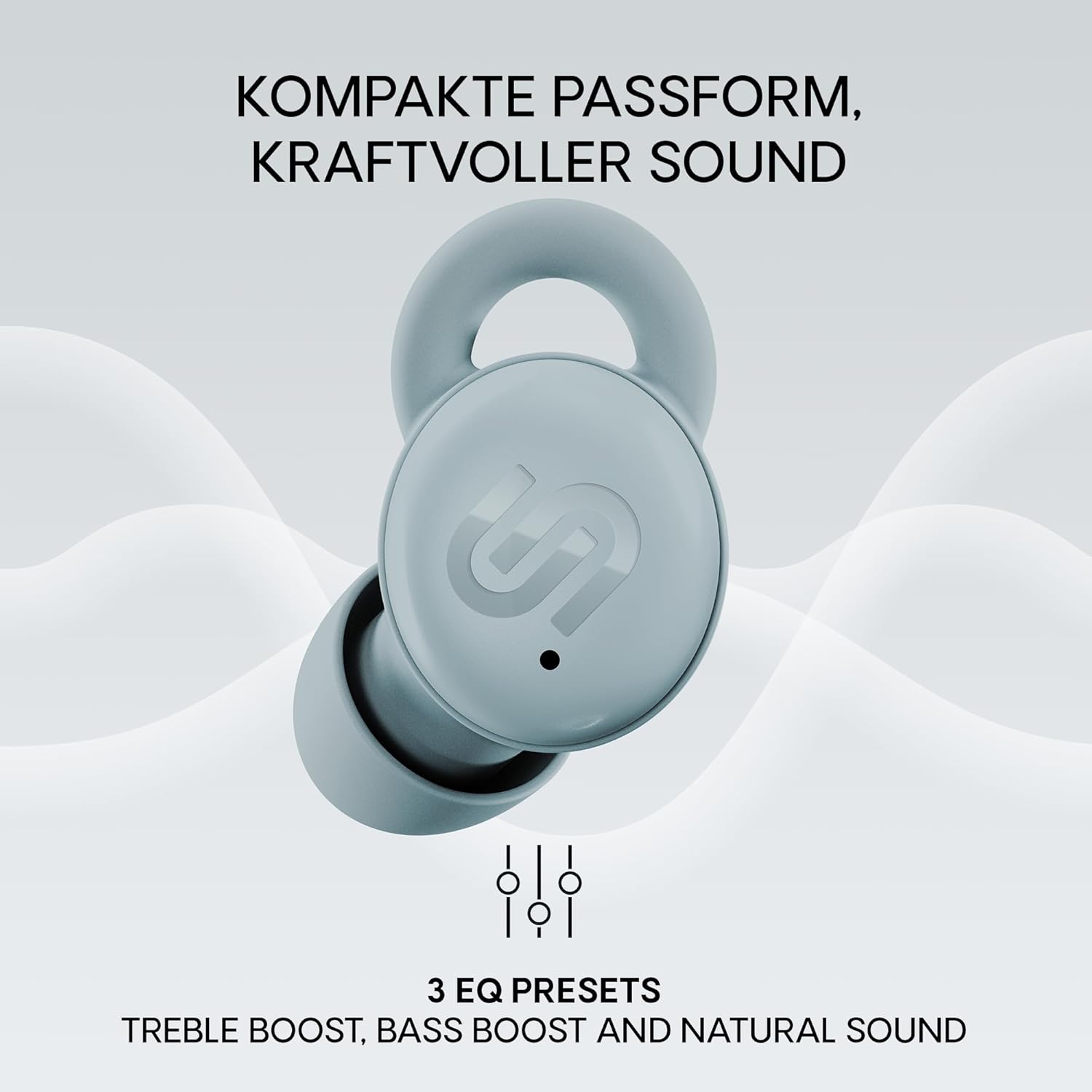

Image 2: Earbud highlighting the three EQ presets for personalized sound.
4.3 Sleep Timer
The adjustable sleep timer allows you to set automatic shutdown after 30, 60, or 90 minutes. This feature is designed for a seamless transition to restful sleep without draining the battery, whether you're listening to white noise or an audiobook.
Image 3: User wearing earbuds with a graphic indicating the sleep timer function.
5. Noise Blocking Features
The Porto earbuds are designed to create a peaceful environment through impressive passive noise reduction. They reduce low to mid-frequency noise by up to 20 dB, minimizing common disturbances like distant chatter, air conditioner hum, or rustling curtains.
Image 4: Visual representation of the passive noise reduction capability of the earbuds.
6. Comfort and Fit
The Sleep Porto earbuds are ideal for side sleepers, combining the benefits of Air Wings and a 3D ergonomic design. The soft material ensures pressure-free comfort, even when sleeping on your side. Custom-fit silicone inserts, available in S, M, and L sizes, ensure a secure seal and enhance acoustic isolation for undisturbed sleep in any position.
Image 5: Close-up of an earbud comfortably fitted in an ear.
7. Battery Life and Charging
The earbuds offer up to 6 hours of playtime on a single charge, with an additional 21 hours provided by the charging case, totaling 27 hours of playback. The charging case is included for convenient recharging.
Image 6: Earbuds and case illustrating the total battery life.
8. Specifications
| Feature | Detail |
|---|---|
| Wireless Communication Technology | Bluetooth 5.4 |
| Model Name | Porto |
| Ear Placement | In-ear |
| Form Factor | In-ear |
| Noise Control | Passive Noise Cancellation |
| Frequency Response | 20 - 20,000 Hz |
| Impedance | 32 Ohm |
| Control Type | Touch Control |
| Battery Life (Earbuds) | 6 Hours |
| Total Battery Life (with Case) | 27 Hours |
| Weight | 43 Grams |
| Water Resistance Level | Waterproof |
| Material | Plastic |
9. Troubleshooting
- No Sound: Ensure earbuds are charged, paired correctly, and volume is up on both earbuds and device.
- Pairing Issues: Place earbuds back in the case, close and reopen. Ensure no other devices are trying to connect. Try forgetting the device on your phone and re-pairing.
- Uncomfortable Fit: Experiment with different sizes of silicone ear tips to find the best seal and comfort.
- Charging Problems: Check the USB-C cable and power adapter. Ensure the charging contacts on the earbuds and case are clean and dry.
10. Maintenance
- Cleaning: Regularly clean the earbuds and charging case with a soft, dry cloth. Remove ear tips and clean them with mild soap and water, ensuring they are completely dry before reattaching.
- Storage: Store the earbuds in their charging case when not in use to protect them and keep them charged.
- Avoid Extreme Conditions: Do not expose the earbuds to extreme temperatures, humidity, or liquids.
11. Warranty and Support
Your Urbanista Mini Sleep Earbuds Porto are covered by a manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please visit the official Urbanista website or contact their customer support directly. Keep your proof of purchase for warranty claims.
