1. Introduction
Thank you for choosing the Aigostar 100W RGB Solar LED Floodlight. This manual provides essential information for the safe and efficient use of your new solar floodlight. Please read these instructions carefully before installation and operation, and retain them for future reference.
2. Safety Information
To ensure safe operation and prevent damage, please observe the following safety precautions:
- Always handle the solar panel and floodlight with care.
- Do not attempt to disassemble or modify the product. This will void the warranty and may cause damage or injury.
- Keep the product away from open flames or extreme heat sources.
- Ensure the solar panel is installed in a location that receives direct sunlight for optimal charging.
- Avoid looking directly into the LED light source when it is active, as it may cause eye strain.
- The product is IP66 waterproof, suitable for outdoor use, but avoid submerging it in water.
- Children should be supervised to ensure they do not play with the appliance.
3. Package Contents
Verify that all components are present in your package:
- Aigostar 100W RGB Solar LED Floodlight (4 units)
- Solar Panel (4 units)
- Remote Control (1 unit)
- Mounting Accessories (screws, anchors, brackets)
- Ground Stake (for solar panel, if applicable)
Image: Contents of the Aigostar 100W RGB Solar LED Floodlight package, showing the floodlight, solar panel, remote control, and various mounting accessories.
4. Product Overview
The Aigostar 100W RGB Solar LED Floodlight is designed for versatile outdoor and indoor illumination, featuring a powerful 100W LED, an 8000mAh high-capacity battery, and an efficient monocrystalline silicon solar panel. It offers RGB color options and is controlled via a remote.
Key Features:
- High Efficiency Solar Panel: Monocrystalline silicon panel with up to 25% photoelectric conversion efficiency.
- Long Battery Life: 8000mAh battery provides up to 14 hours of continuous operation after 4-6 hours of charging.
- RGBW Multi-purpose LED: 16 static colors and 4 dynamic modes (Flash, Strobe, Fade, Smooth) for various ambiance settings.
- Durable and Weatherproof: IP66 rating, resistant to cold (-10°C) and heat (50°C), made from ABS and tempered glass.
- Automatic Mode: Built-in light sensor for automatic dusk-to-dawn operation.
- Remote Control: Convenient control of colors, modes, and brightness.
- Adjustable Bracket: 180° rotatable steel tube holder for flexible positioning.
Image: The Aigostar Solar LED Floodlight highlighting its large solar panel, 8000mAh battery capacity, and efficient charging/working times.
Image: Illustration of the floodlight's IP66 waterproof rating and its ability to withstand extreme temperatures, from -10°C to 50°C, shown in sunny, snowy, and rainy environments.
Image: The floodlight in an outdoor setting, demonstrating its RGB capabilities with 15 static colors and 4 dynamic modes, suitable for creating festive atmospheres.
5. Setup and Installation
The Aigostar solar floodlight is designed for easy installation on walls, ceilings, or floors. It comes with a 5-meter cable for flexible placement of the solar panel.
Important Considerations:
- Solar Panel Placement: Install the solar panel in an area that receives maximum direct sunlight throughout the day. Adjust its angle for optimal sun exposure.
- Initial Charge: It is recommended to charge the solar panel for 24 hours before the first use to ensure the battery is fully charged.
- Installation Height: For optimal light distribution, an installation height of 3-6 meters is recommended.
Installation Steps (Wall Mount):
- Mark the desired drilling points on the wall for the floodlight bracket.
- Drill holes and insert wall anchors. Secure the floodlight bracket using screws.
- Attach the solar panel bracket to the wall in a location with good sunlight.
- Connect the solar panel cable to the floodlight cable, ensuring a secure, waterproof connection.
- Adjust the angle of both the floodlight and the solar panel as needed.
Installation Steps (Floor/Ground Mount):
- Attach the ground stake to the solar panel bracket.
- Insert the ground stake into soft ground in a location with good sunlight.
- Position the floodlight on a stable surface or mount it using its bracket.
- Connect the solar panel cable to the floodlight cable, ensuring a secure, waterproof connection.
- Adjust the angle of both the floodlight and the solar panel as needed.
Image: Visual guide for installing the solar floodlight, illustrating both wall and ground mounting options for the solar panel and floodlight unit.
6. Operating Instructions
The Aigostar Solar LED Floodlight can be operated using the included remote control and features an automatic light sensor.
Remote Control Functions:

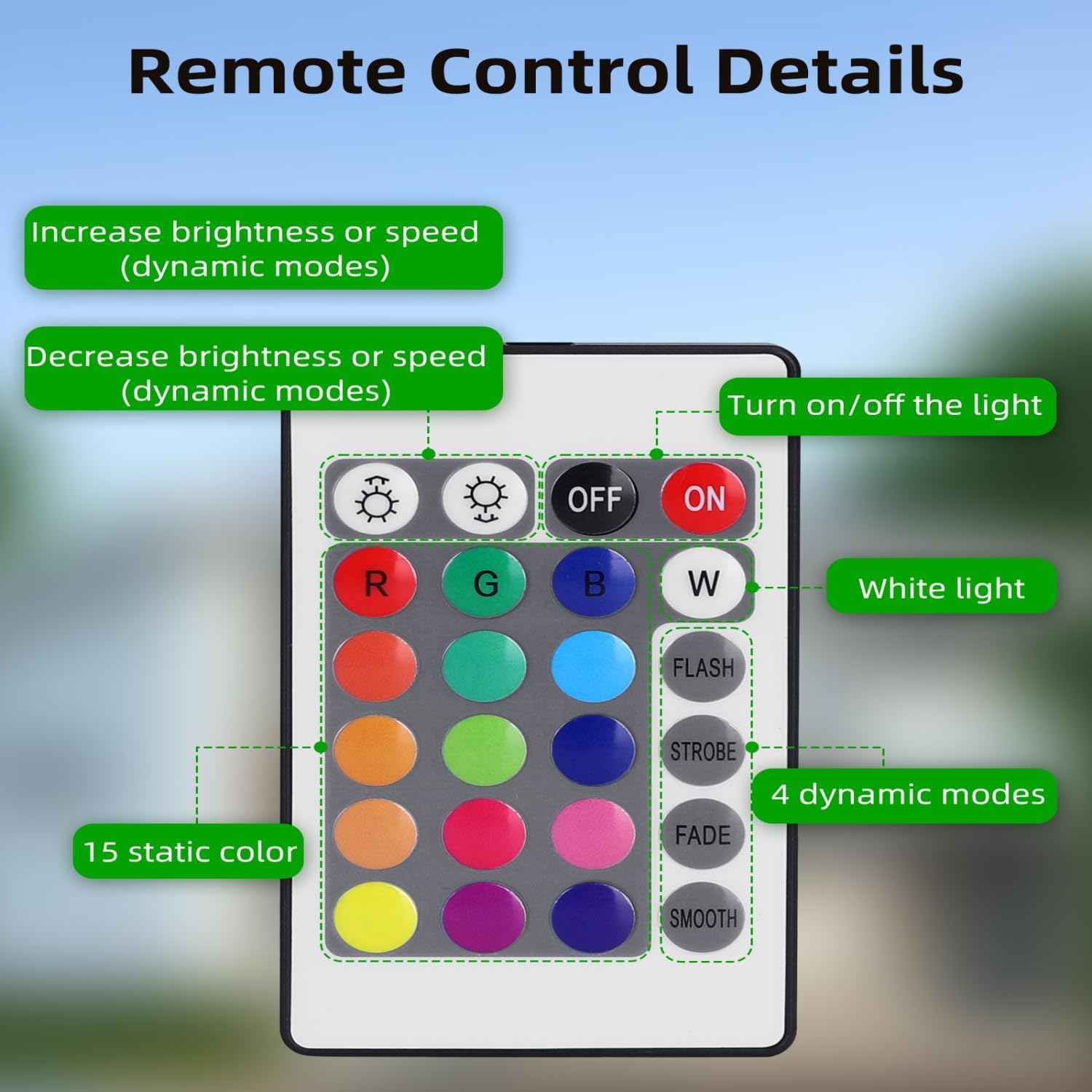

Image: Layout of the remote control, detailing buttons for power, brightness adjustment, 16 static color selections (including White), and 4 dynamic lighting modes.
- ON/OFF Button: Press to turn the light on or off.
- Brightness/Speed Adjustment: Use the + and - buttons to increase/decrease brightness for static colors or adjust speed for dynamic modes.
- Static Colors: Select from 16 predefined colors, including White (W), Red (R), Green (G), Blue (B), and various shades.
- Dynamic Modes:
- FLASH: Rapid color changes.
- STROBE: Flashing of a single color.
- FADE: Gradual transition between colors.
- SMOOTH: Smooth, continuous color cycling.
Automatic Mode:
- The floodlight has a built-in light sensor that automatically turns the light on at dusk and off at dawn.
- To disable Automatic Mode: Press and hold the "OFF" button on the remote control for 3 seconds. The light will flash twice to confirm the mode is deactivated.
- To re-enable Automatic Mode: Press the "ON" button on the remote control.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your solar floodlight.
- Solar Panel Cleaning: Clean the solar panel regularly (at least once a year, or more frequently in dusty environments) with a soft, damp cloth. This prevents dust accumulation and maintains charging efficiency.
- General Cleaning: Wipe the floodlight housing with a soft, damp cloth as needed. Do not use abrasive cleaners or solvents.
- Battery: The integrated battery is designed for long-term use. Do not attempt to replace it yourself.
- Inspection: Periodically check the cables and connections for any signs of wear or damage. Ensure all mounting hardware remains secure.
8. Troubleshooting
If you encounter issues with your Aigostar Solar LED Floodlight, try the following steps:
- Light not turning on:
- Ensure the solar panel is receiving sufficient direct sunlight for charging.
- Verify that the cable connection between the solar panel and floodlight is secure.
- Check if the automatic mode is active or if the light was manually turned off via the remote.
- Allow for an initial 24-hour charge before first use.
- Light dim or short working time:
- Clean the solar panel surface to remove any dust or debris that may be obstructing sunlight.
- Ensure the solar panel is positioned for maximum sun exposure.
- Cloudy weather or insufficient sunlight will reduce charging efficiency and working time.
- Remote control not working:
- Ensure there are no obstructions between the remote and the floodlight.
- Check the remote control battery and replace if necessary.
If problems persist, please contact Aigostar customer support.
9. Specifications
| Brand | Aigostar |
| Model Number | ZQ-JXRGB-100W |
| Power | 100W |
| Light Color | RGB |
| Battery Capacity | 8000mAh |
| Solar Panel Efficiency | Up to 25% |
| Water Resistance Rating | IP66 |
| Operating Temperature | -10°C to 50°C |
| Material | ABS, Tempered Glass |
| Control Method | Remote Control (Infrared) |
| Cable Length (Solar Panel to Light) | 5 meters |
| Dimensions (Floodlight) | Approx. 34L x 35.8W x 26.1H cm (based on product dimensions) |
| Number of Lights | 4 (as per product title, assuming 4-pack) |
Image: Detailed dimensions of the solar panel and floodlight, including the 5-meter connection cable.
10. Warranty and Support
Aigostar products are manufactured to high-quality standards. For warranty information, please refer to the specific terms provided at the point of purchase or visit the official Aigostar website.
If you require technical assistance, have questions about your product, or need to report a defect, please contact Aigostar customer support through their official channels. Please have your model number (ZQ-JXRGB-100W) and purchase details ready when contacting support.
You can often find support contact information on the brand's official website or through the retailer where you purchased the product.
