Sannover Anita 9.4 kW Sealed Pellet Stove User Manual

Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Sannover Anita 9.4 kW Sealed Pellet Stove. The Anita pellet stove is a compact and efficient heating appliance designed for optimal performance and energy savings. It features a compact design, double combustion, ventilated air, and an integrated room probe for precise temperature control.

Please read this manual thoroughly before attempting to install or operate the appliance. Retain this manual for future reference.

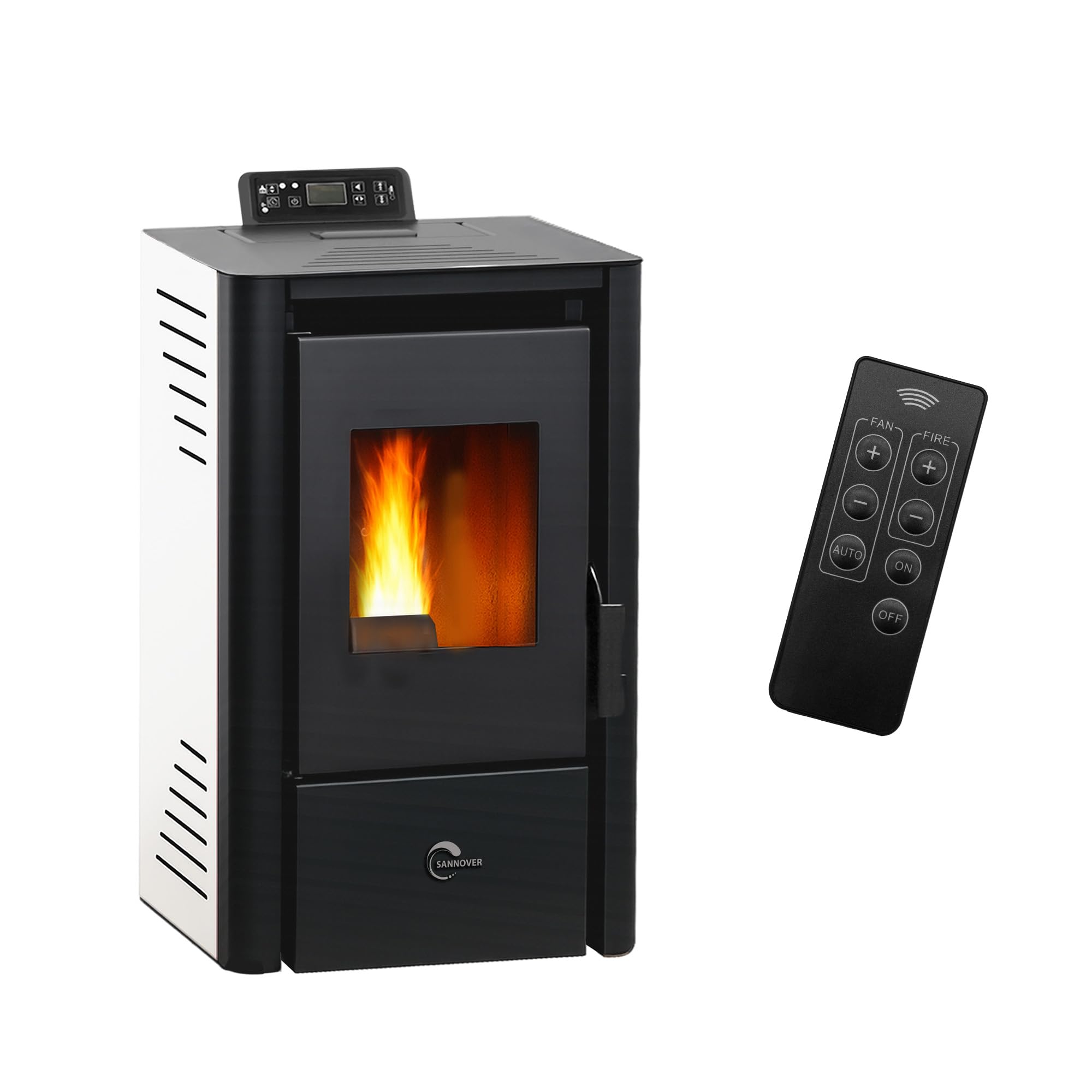

Figure 1: Sannover Anita 9.4 kW Sealed Pellet Stove in a typical home environment.

1. Setup and Installation

Important: For your safety and the safety of others, installation of this pellet stove must be performed by a qualified professional in accordance with all local and national regulations.

1.1 Package Inspection

Upon receipt of your order, carefully inspect the package for any signs of damage. If the package appears damaged or does not conform to your order, you may refuse the delivery. Document any issues with photographs and contact customer service immediately.

1.2 Professional Installation

Even if local regulations do not strictly require professional installation, it is strongly recommended to have a qualified professional install the appliance. This ensures correct setup, optimal performance, and adherence to safety standards.

1.3 Flue Gas Evacuation (Ventouse System)

The Sannover Anita pellet stove uses a sealed (Ventouse) flue gas evacuation system. The outlet diameter is 80mm. To comply with French regulations, a minimum vertical height of 2 meters is required between the start of the T-piece and the outlet hole of the Ventouse system. Flue pipes are not included with the product.

If installing a facade Ventouse outlet, a core drill will be required to create the necessary opening.

1.4 Igniter Plug (Bougie)

The first igniter plug is supplied and pre-installed in the stove. Please note that the igniter plug is a consumable item and is not covered by warranty.

2. Operating Instructions

The Anita pellet stove is designed for ease of use with advanced features to optimize your heating experience.

2.1 Power Levels

The stove offers 5 power levels, allowing you to adjust the heat output according to your comfort needs and external temperature.

2.2 Weekly Programming

Utilize the weekly programming system to set specific operating times and modes. This allows you to tailor the stove's operation to your daily schedule and preferences, maximizing efficiency and comfort.

2.3 Remote Control

A remote control is provided for convenient adjustment of settings from a distance.

2.4 Integrated Room Probe

The integrated room probe helps maintain a consistent and comfortable temperature by monitoring the ambient conditions and adjusting the stove's output accordingly.

2.5 Pellet Loading

Ensure the pellet tank is adequately filled with high-quality wood pellets. The tank capacity is 8kg, providing approximately 10 hours of autonomy depending on the power level.

2.6 Starting the Stove

Follow the specific startup sequence outlined in the stove's control panel instructions. This typically involves activating the igniter and ensuring proper pellet feed.

3. Maintenance

Regular maintenance is crucial for the longevity, efficiency, and safe operation of your pellet stove.

3.1 Annual Professional Maintenance

It is strongly recommended that your pellet stove undergoes annual maintenance by a qualified professional. This includes cleaning the flue system, inspecting internal components, and ensuring optimal combustion.

3.2 Ash Pan Cleaning

The Anita stove features a removable ash pan for easy cleaning. Regularly empty the ash pan to prevent buildup, which can impede airflow and affect performance.

3.3 Crucible Cleaning

Periodically clean the large crucible to remove any clinker or unburnt pellet residue. A clean crucible ensures efficient combustion.

3.4 Igniter Plug Replacement

The igniter plug is a consumable part and will eventually require replacement. Refer to the specific instructions for replacing the igniter plug when necessary.

4. Troubleshooting

Before contacting customer support, please review the following common issues and their potential solutions.

• Stove not starting:
  • Check if the stove is properly plugged into a power outlet.
  • Ensure the pellet tank has sufficient pellets.
  • Verify that the igniter plug is functioning.
• Low heat output:
  • Check the selected power level.
  • Ensure the ash pan and crucible are clean.
  • Inspect the flue system for blockages.
• Excessive smoke:
  • Check for flue blockages.
  • Ensure proper air intake.
  • Verify the quality of pellets being used.

If the issue persists after attempting these solutions, please contact a qualified technician or customer support.

5. Technical Specifications

Figure 2: Energy efficiency label for the Sannover Anita 9.4 kW pellet stove.

6. Warranty Information

6.1 Legal Conformity Warranty

Your Sannover Anita pellet stove is covered by a legal conformity warranty for two years from the date of delivery.

6.2 Manufacturer's Warranty

For certain components, a manufacturer's warranty, typically for two years on spare parts, may apply. This manufacturer's warranty is valid only if the installation and any fault diagnosis have been carried out by a qualified professional in accordance with current standards.

6.3 Exclusions

Please note that consumable items, such as the igniter plug (bougie), are not covered by the warranty.

7. Customer Support

For technical assistance, warranty claims, or any questions regarding your Sannover Anita pellet stove, please contact your retailer or a qualified heating professional.

Always provide your product model (Anita 9.4 kW) and purchase date when seeking support.
