1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Cofiyard Portable Basketball Hoop with LED Backboard. Please read this manual thoroughly before assembly and use to ensure safe and correct operation. Retain this manual for future reference.
2. Safety Guidelines
- Base Stability: Always fill the base with water or sand before attaching the backboard and rim to prevent tipping. A properly filled base is crucial for stability.
- Assembly: It is recommended that two adults assemble the basketball hoop. Follow all assembly steps carefully.
- Height Adjustment: Ensure the height adjustment mechanism is securely locked in place after making any changes.
- Weather Conditions: In strong winds or severe weather, lower the hoop to its minimum height or lay it down if possible. Ensure the base is adequately weighted.
- Supervision: Children should be supervised when using the basketball hoop.
- Maintenance: Regularly inspect all components for wear, damage, or loose connections. Tighten fasteners as needed.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Shatterproof Backboard (44-inch)
- Basketball Rim and Net
- Multi-section Support Poles
- Portable Base with Wheels
- Sandbag (empty, for additional weight)
- LED Light Kit for Backboard and Rim
- Remote Control for LED Lights
- Assembly Hardware (Screws, Bolts, Washers, Nuts)
- Wrench and other necessary installation tools
- Instruction Manual
4. Assembly Instructions
Please follow these steps carefully. Two adults are recommended for assembly.
- Unpack and Organize: Carefully remove all components from the packaging. Lay out all parts and hardware, comparing them against the package contents list to ensure everything is present.
- Assemble the Base: Attach the support poles to the portable base. Ensure all connections are secure. The base is designed with easy-rolling wheels for portability.
- Connect Support Poles: Connect the multi-section support poles. The innovative rotatable mechanism for height adjustment will be integrated here.
- Install Backboard and Rim: Securely attach the shatterproof backboard to the upper support pole. Then, attach the basketball rim and net to the backboard. The backboard features an alloy frame with extra metal trim and a bottom PE wrap edge for durability.
- Fill the Base for Stability: This is a critical step. Fill the base with water (up to 14.3 gallons / 143 lbs) or sand. For enhanced stability, place the provided sandbag (fill with sand separately, approx. 110 lbs) into its designated compartment on the base. This significantly reduces the risk of tipping.
- Install LED Light Kit: Attach the LED light strips around the perimeter of the backboard and rim. Connect them to the control box. Refer to the separate LED light kit instructions for detailed wiring and placement.
Figure 1: Overview of the basketball hoop's dimensions and key features, including the height adjustment handle and rolling wheels.
Figure 2: Detailed view of the PC backboard construction, showing the alloy frame, metal trim, and bottom PE wrap edge for enhanced durability.

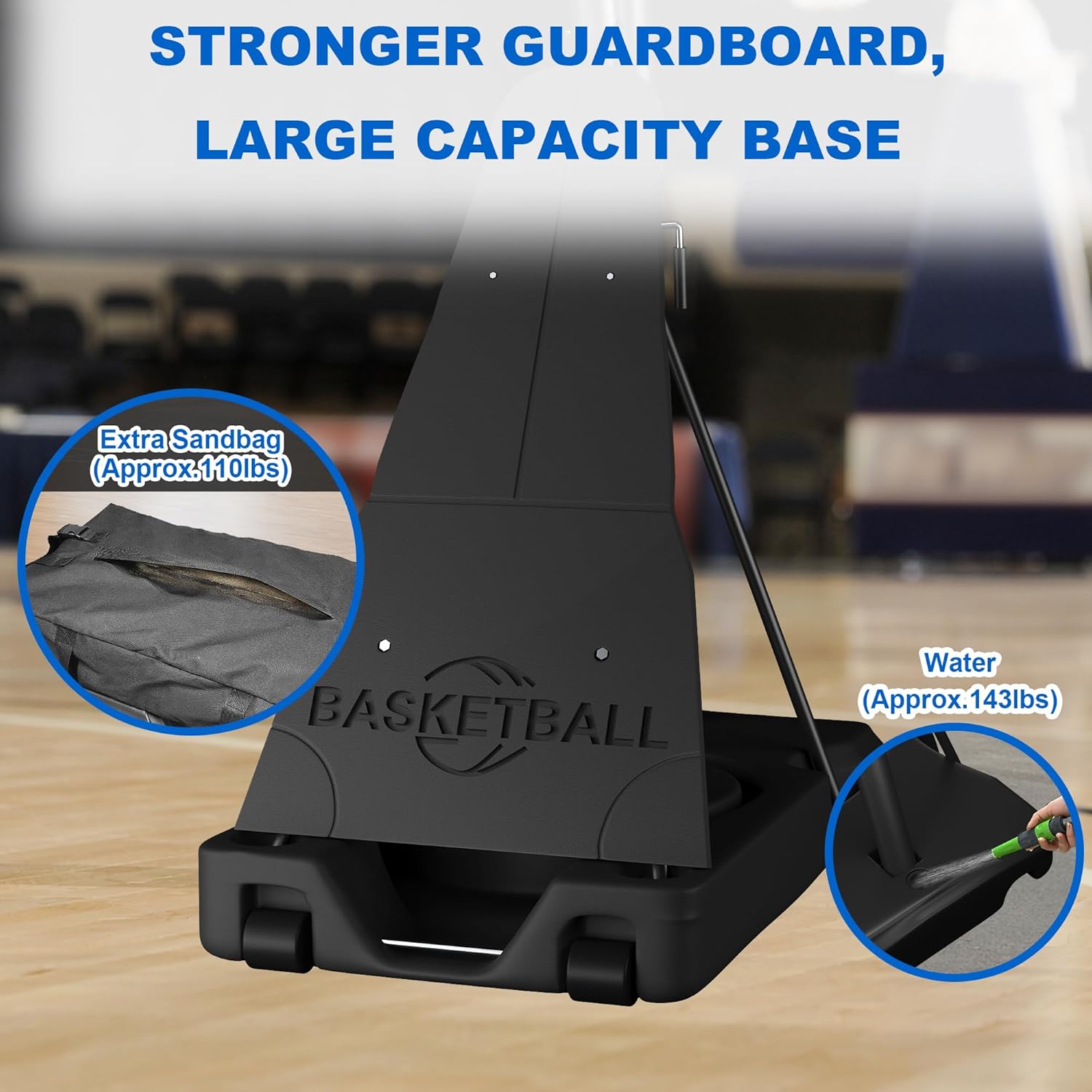

Figure 3: Illustration of the base's stability features, including the water fill port and the compartment for the additional sandbag.
5. Operating Instructions
5.1 Height Adjustment
The basketball hoop features an innovative rotatable mechanism for easy height adjustment. It can be adjusted from 5.25 feet to 10 feet, accommodating various user heights and skill levels. To adjust the height, loosen the locking mechanism, rotate the adjustment handle to the desired height, and then securely fasten the locking mechanism.
Figure 4: The hoop's adjustable height range, illustrating configurations for different playing heights.
5.2 LED Lighting System
The integrated LED light system illuminates the backboard and rim, enhancing visibility and allowing for night play. Use the provided remote control to operate the lights.
- Power On/Off: Use the designated button on the remote to turn the LED lights on or off.
- Color Selection: The remote offers 12 color options (e.g., red, blue, green, white). Select your preferred color.
- Lighting Modes: Choose from 4 flashing modes to add dynamic effects.
- Timer Function: Utilize the 4 timer functions to set automatic shut-off for the lights.
Figure 5: The LED lighting system in operation, with the remote control and power unit visible.
6. Maintenance
- Base Water/Sand Level: Periodically check the water or sand level in the base. Refill as necessary to maintain optimal stability.
- Cleaning: Clean the backboard, rim, and poles with a mild soap and water solution. Avoid abrasive cleaners that could damage surfaces.
- Hardware Inspection: Regularly inspect all bolts, screws, and connections for tightness. Tighten any loose hardware to ensure structural integrity.
- Net Replacement: Replace the basketball net if it becomes worn or damaged.
- LED Lights: Ensure the LED light strips and control box are free from excessive moisture or physical damage.
7. Troubleshooting
- Hoop is Unstable/Tips Easily:
- Ensure the base is completely filled with water or sand.
- Verify the sandbag (if used) is properly filled and placed in its compartment.
- Check all pole connections and hardware for tightness.
- Height Adjustment Mechanism is Stuck:
- Ensure the locking mechanism is fully disengaged before attempting to adjust.
- Lubricate moving parts if necessary with a silicone-based lubricant.
- LED Lights Not Working:
- Check the batteries in the remote control and the LED control box.
- Ensure all connections between the LED strips, control box, and power source are secure.
- Verify the LED strips are not physically damaged.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Cofiyard |
| Model Name | Basketball Hoop LED |
| Material | Iron (Frame), PC (Backboard) |
| Color | Black |
| Product Dimensions (LxWxH) | 44"D x 44"W x 120"H (Max Height) |
| Item Weight | 80 Pounds |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Special Features | Adjustable Height, Portable, Shatterproof Backboard, LED Lighting |
| Mounting Type | Pole Mount |
| Target Audience | Adults, Tweens, Youth |
| Minimum Height | 5.25 Feet |
| Maximum Height | 10 Feet |
| Base Water Capacity | 14.3 Gallons (approx. 143 lbs) |
| Sandbag Capacity | Approx. 110 lbs (sand not included) |
| Overhang Distance | 12 Inches |
9. Warranty and Support
Warranty: This Cofiyard Basketball Hoop comes with a 1-year limited warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase.
Customer Support: For any questions regarding assembly, operation, troubleshooting, or warranty claims, please contact Cofiyard customer support. Cofiyard is committed to providing excellent after-sales support.
Contact information can typically be found on the product packaging or the official Cofiyard website.
