Product Overview
The LotFun Folding Dining Table with 2 Storage Racks is designed for versatility and space-saving functionality. This table can serve as a dining table, kitchen island, or desk, and features integrated storage and mobile casters for easy relocation and compact storage.

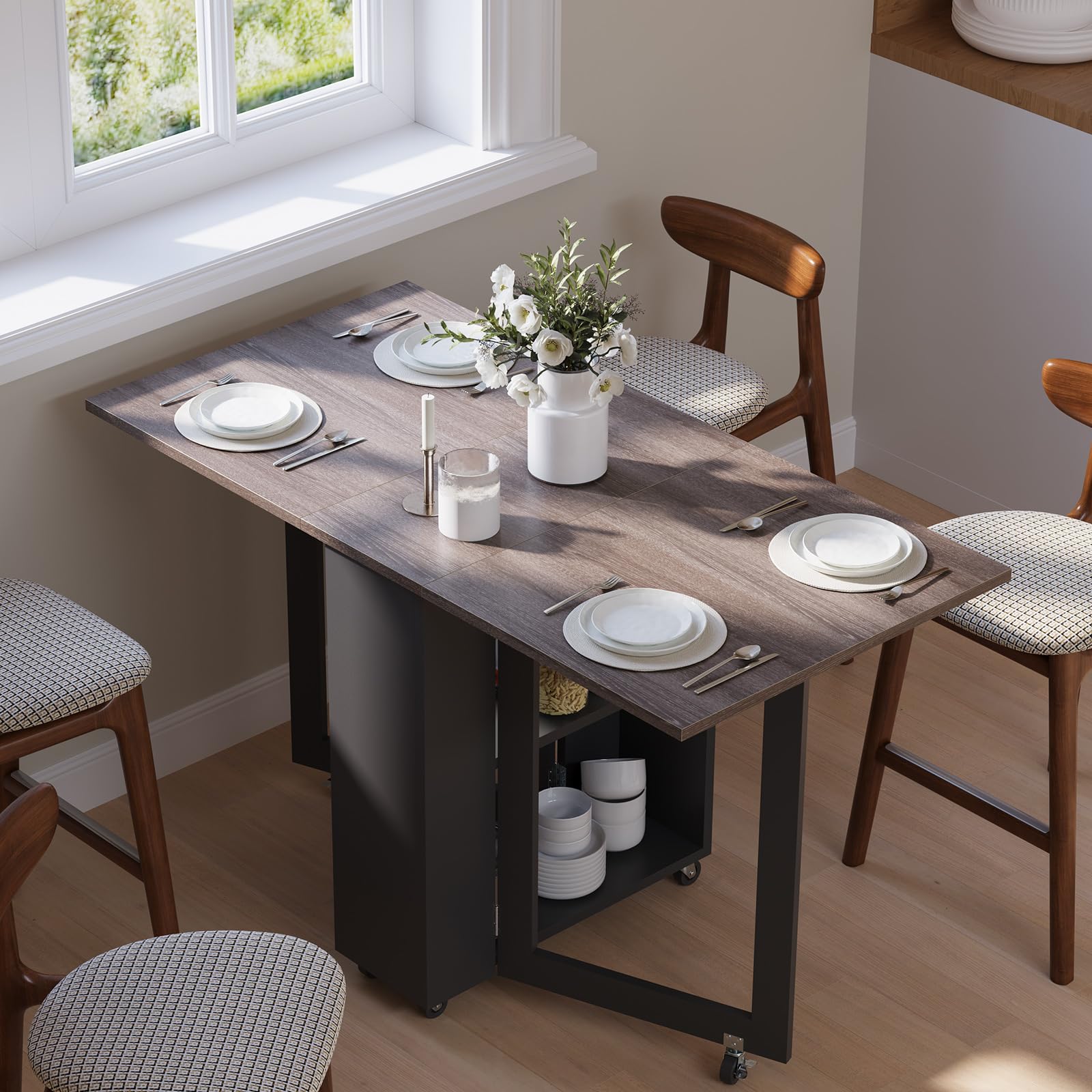

Image: The LotFun Folding Dining Table in its fully unfolded configuration, showcasing its spacious tabletop.
Setup and Assembly
This product requires assembly. Please ensure all components and hardware are present before beginning. A screwdriver is recommended for assembly. Follow the detailed instructions provided in the included assembly guide. It is advised to secure the main frame first before fully tightening all screws.
Video: An assembly demonstration for the LotFun Folding Dining Table, showing the step-by-step process of putting the components together.
Assembly Steps Overview:
- Unpack all components and verify against the parts list in the assembly guide.
- Assemble the central storage unit, ensuring all panels are correctly aligned.
- Attach the drop-leaf supports and hinges to the main tabletop sections.
- Install the six 360° swivel casters with brakes to the base of the unit.
- Connect the tabletop sections to the central storage unit using the provided hardware.
- Once the frame is stable, tighten all screws securely.
Image: A diagram illustrating the dimensions of the table in both its folded and fully extended configurations, along with its 200 lbs weight capacity.
Operating Instructions
Folding and Unfolding the Tabletop:
- To unfold: Gently lift one side of the drop-leaf tabletop until it is horizontal. Extend the support leg from the central unit and lock it into place. Repeat for the other side if desired.
- To fold: Unlock the support leg and carefully fold the tabletop leaf downwards until it rests against the central unit. Ensure the locking mechanism engages to prevent accidental unfolding.

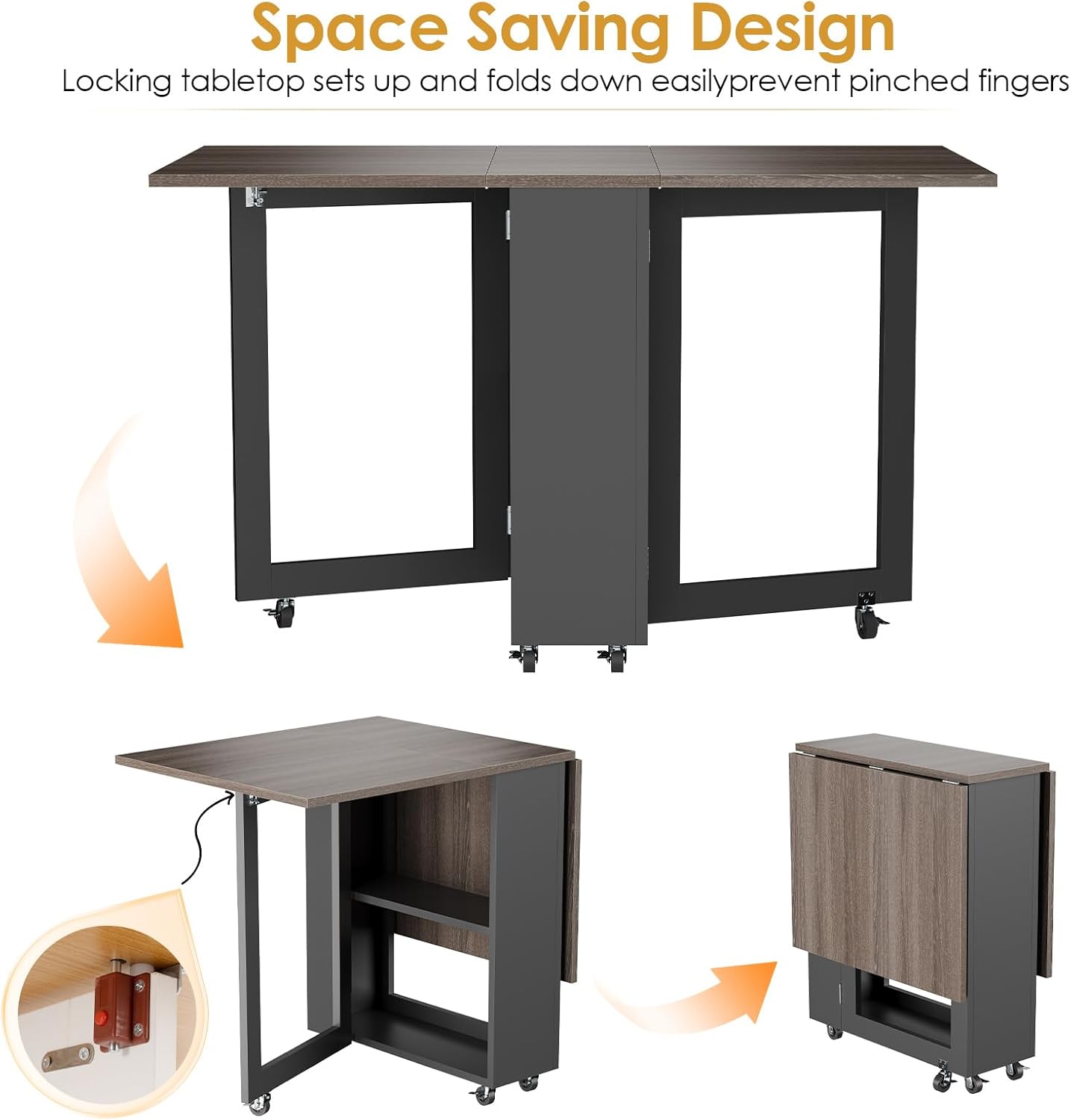

Image: Visual guide on how to fold and unfold the table, highlighting the locking tabletop feature designed to prevent pinched fingers.
Utilizing Storage Racks:
The central unit features a 2-tier storage cabinet and a drawer. These can be used to store kitchenware, books, stationery, or other daily essentials. The cabinet door opens to reveal two shelves, providing organized storage space.
Image: The table configured for dining, with the 2-layer shelving levels visible and used for storing dishes.
Mobility and Positioning:
The table is equipped with six 360° swivel casters, four of which are lockable. To move the table, ensure all wheel brakes are disengaged. To secure the table in place, engage the brakes on the lockable wheels.
Image: A detailed view of the table's 360° lockable universal rubber wheels, highlighting their sturdy and noiseless design.
Versatile Configurations:
- Fully Unfolded: Ideal for dining, accommodating 4-6 people.
- Half-Folded: One side folded down, suitable for use as a desk or a smaller dining area.
- Fully Folded: Compact form for storage, can be tucked away in small spaces or used as a console table.
Image: The LotFun Folding Dining Table demonstrating its versatility in three configurations: as a dining table, an office desk, and a console table.
Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
- Weight Capacity: Do not exceed the maximum weight recommendation of 200 lbs (90.7 kg) to prevent instability or damage.
- Screw Tightness: Periodically check and tighten all screws to ensure the table remains stable and secure.
- Indoor Use: This table is designed for indoor use only. Avoid prolonged exposure to moisture or direct sunlight.
Troubleshooting
- Table feels wobbly after assembly:
- Ensure all screws are fully tightened. Check that all components are correctly aligned according to the assembly guide.
- Tabletop does not fold/unfold smoothly:
- Inspect the hinges for any obstructions or damage. Ensure the support legs are fully extended or retracted as needed.
- Wheels are not locking or rolling properly:
- Verify that the wheel brakes are correctly engaged or disengaged. Clean any debris from the wheels. If a wheel is damaged, contact customer support for replacement.
Specifications
| Feature | Detail |
|---|---|
| Brand | LotFun |
| Model Number | HKHW-JYKC |
| Product Dimensions (Unfolded) | 48"D x 30"W x 24"H (122cm D x 76cm W x 61cm H) |
| Product Dimensions (Folded Minimum) | 9.8"D x 30"W x 29.1"H (25cm D x 76cm W x 74cm H) |
| Item Weight | 40 Pounds (18.1 kg) |
| Maximum Weight Recommendation | 200 Pounds (90.7 kg) |
| Frame Material | Metal |
| Top Material Type | Wood |
| Color | Grayish Black + Gray Wood Grain |
| Storage | 2-Tier Storage Racks, 1 Drawer |
| Wheels | 6 x 360° Swivel Lockable Rubber Wheels |
| Assembly Required | Yes (Assembly Guide Included) |
| Usage | Indoor |
Warranty & Support
For specific warranty information, please refer to the documentation included with your product or visit the official LotFun website. If you encounter any issues or require assistance with your LotFun Folding Dining Table, please contact LotFun customer support.
You can often find support contact details on the product packaging, the assembly guide, or the brand's official website.
