Introduction
This manual provides essential information for the safe and efficient operation of your HEINNER HDW-BIM60514E++ built-in dishwasher. Designed for medium to large households, this 60 cm integrated dishwasher offers a capacity of 14 place settings, electronic controls, and multiple wash programs for versatile cleaning. Please read these instructions carefully before installation and use, and keep them for future reference.
Safety Information
Always observe the following safety precautions to reduce the risk of fire, electric shock, injury, or damage when using your dishwasher.
- Electrical Safety: Ensure the dishwasher is properly grounded. Do not use extension cords or adapters. Disconnect power before any maintenance or repair.
- Water Safety: Connect the dishwasher to a cold water supply using new hoses. Check for leaks after installation.
- Child Safety: Keep children away from the dishwasher, especially when it is operating. Detergents are corrosive; keep them out of reach of children.
- Loading: Load sharp items (knives, forks) with handles up to prevent injury. Do not overload the dishwasher.
- Flammable Materials: Do not store or use flammable materials near the dishwasher.
- Service: All servicing should be performed by a qualified technician.
Product Overview
The HEINNER HDW-BIM60514E++ dishwasher is designed for optimal cleaning performance and user convenience. Key features include:
- 14 Place Settings: Ample capacity for daily dishes, glasses, pots, and cutlery.
- Electronic Control Panel: Intuitive selection of programs and settings.
- Multiple Wash Programs: Diverse options for various washing needs, from lightly soiled to heavily soiled items.
- Quiet Operation: Suitable for open-plan kitchens.
- Energy Class E (EU 2021): Efficient energy consumption.
- Adjustable Racks: Flexible interior layout for optimal space utilization.

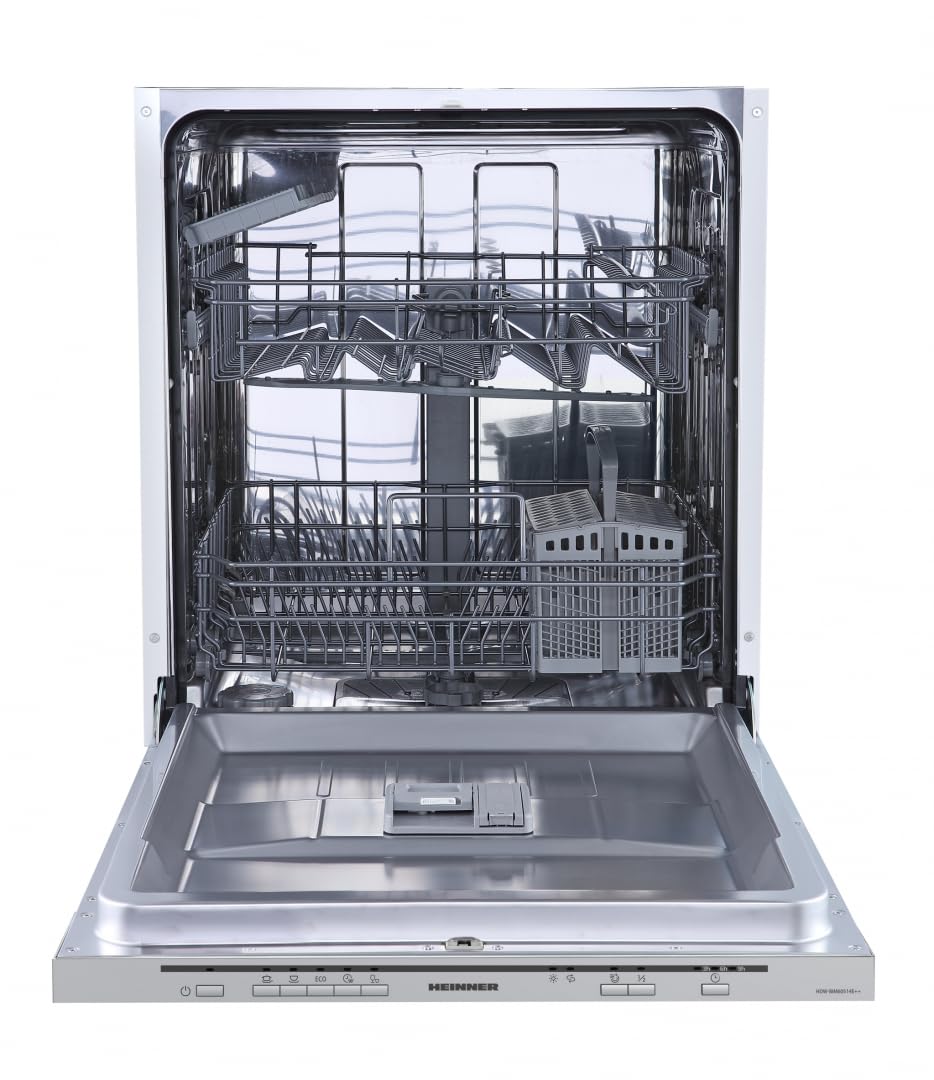

Figure 1: Front view of the HEINNER HDW-BIM60514E++ built-in dishwasher, showing the integrated design and control panel.
Setup
Proper installation is crucial for the dishwasher's performance and longevity. It is recommended that installation be performed by a qualified professional.
- Positioning: Place the dishwasher in the designated cabinet opening, ensuring sufficient space for connections and ventilation.
- Water Supply Connection: Connect the inlet hose to a cold water tap with a 3/4-inch thread. Ensure the connection is tight to prevent leaks.
- Drain Connection: Connect the drain hose to the household drain system, ensuring it is properly secured and has a high loop to prevent backflow.
- Electrical Connection: Connect the power cord to a grounded electrical outlet. Verify that the voltage matches the dishwasher's requirements (230V).
- Leveling: Adjust the dishwasher's feet to ensure it is perfectly level. This prevents water leakage and ensures proper door alignment.
- First Use: Before the first wash cycle, run an empty cycle with dishwasher detergent to clean the interior.
Operating Instructions
Follow these steps for effective and efficient dishwashing.
1. Loading the Dishwasher
- Scrape off large food particles from dishes.
- Place larger items in the lower basket and smaller, delicate items (glasses, cups) in the upper basket.
- Ensure items do not block the spray arms.
- Place cutlery in the cutlery basket with handles down for forks and spoons, and handles up for knives.
2. Adding Detergent and Rinse Aid
- Fill the detergent dispenser with the recommended amount of dishwasher detergent. Close the dispenser lid securely.
- Check the rinse aid indicator. If low, refill the rinse aid dispenser to ensure streak-free drying.
3. Selecting a Wash Program
The electronic control panel allows you to choose from various programs. Refer to the program table below for details (example programs):
| Program | Description | Typical Use |
|---|---|---|
| Intensive | Heavy-duty wash for heavily soiled dishes and pots. | Pots, pans, oven dishes. |
| Eco | Energy-saving program for normally soiled dishes. | Daily dishes with normal soil. |
| Quick Wash | Fast wash for lightly soiled dishes without drying. | Lightly soiled glasses and cups. |
| Glass | Gentle wash for delicate glassware. | Delicate glasses, crystal. |
Select the desired program using the control panel buttons. The LED display will show the selected program or remaining time.
4. Starting the Cycle
- Close the dishwasher door firmly.
- Press the Start button. The dishwasher will begin the cycle.
- To pause or cancel a cycle, refer to the specific instructions on your control panel, usually by pressing and holding the Start/Pause button.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your dishwasher.
- Cleaning Filters: Regularly check and clean the coarse and fine filters at the bottom of the dishwasher. Remove food debris and rinse under running water.
- Cleaning Spray Arms: Periodically check the spray arm nozzles for blockages. Remove any debris with a toothpick or small brush.
- Cleaning the Interior: Wipe the interior with a damp cloth to remove any residue. For stubborn stains or odors, run a dishwasher cleaning cycle with a specialized cleaner.
- Cleaning the Exterior: Wipe the exterior surfaces, including the control panel, with a soft, damp cloth. Do not use abrasive cleaners.
- Salt Reservoir: If your dishwasher uses dishwasher salt, ensure the reservoir is filled to prevent limescale buildup, especially in hard water areas.
Troubleshooting
Before contacting service, try these solutions for common issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start. | Power cord unplugged, door not closed properly, fuse blown. | Check power connection, ensure door is latched, check household fuse/breaker. |
| Dishes are not clean. | Improper loading, clogged spray arms, insufficient detergent, dirty filters. | Reload dishes correctly, clean spray arm nozzles, add more detergent, clean filters. |
| Water not draining. | Clogged drain hose or filter, drain pump issue. | Clean drain filter, check drain hose for kinks or blockages. |
| Leaks from the door. | Door seal damaged, dishwasher not level, improper loading. | Check door seal for damage, ensure dishwasher is level, avoid overloading. |
| White film on dishes. | Hard water, insufficient rinse aid, too much detergent. | Adjust rinse aid setting, use dishwasher salt, reduce detergent. |
Specifications
Technical data for the HEINNER HDW-BIM60514E++ built-in dishwasher.
- Model: HDW-BIM60514E++ (5949494028464)
- Brand: HEINNER
- Installation Type: Built-in (Integrated)
- Capacity: 14 Place Settings
- Dimensions (D x W x H): 55 x 60 x 82 cm (21.65 x 23.62 x 32.28 inches)
- Weight: 34 kg (74.96 lbs)
- Voltage: 230 Volt
- Energy Class (EU 2021): E
- Noise Level: 49 Decibels
- Display Type: LED
- Control Type: Touch
- Manufacturer: Network One Distribution srl
- Country of Origin: Romania
Warranty and Support
Your HEINNER HDW-BIM60514E++ dishwasher comes with a comprehensive warranty and dedicated customer support.
- Warranty: This product is covered by a 5-year manufacturer's warranty, ensuring quality, reliability, and durability. Please retain your proof of purchase for warranty claims.
- Customer Support: For technical assistance, spare parts, or warranty service, please contact your retailer or the authorized HEINNER service center. Refer to your purchase documentation for specific contact details.
