1. Product Overview
The BOSHIRO Electric Fireplace with Mantel is a versatile furniture piece designed to enhance your living space. It functions as both an elegant fireplace and a robust TV stand, accommodating televisions up to 80 inches. This unit features a natural wood grain tabletop, a stable base, and adjustable shelves for ample storage. The integrated 23-inch electric fireplace insert provides realistic flame effects and adjustable heating, creating a comfortable and inviting atmosphere.

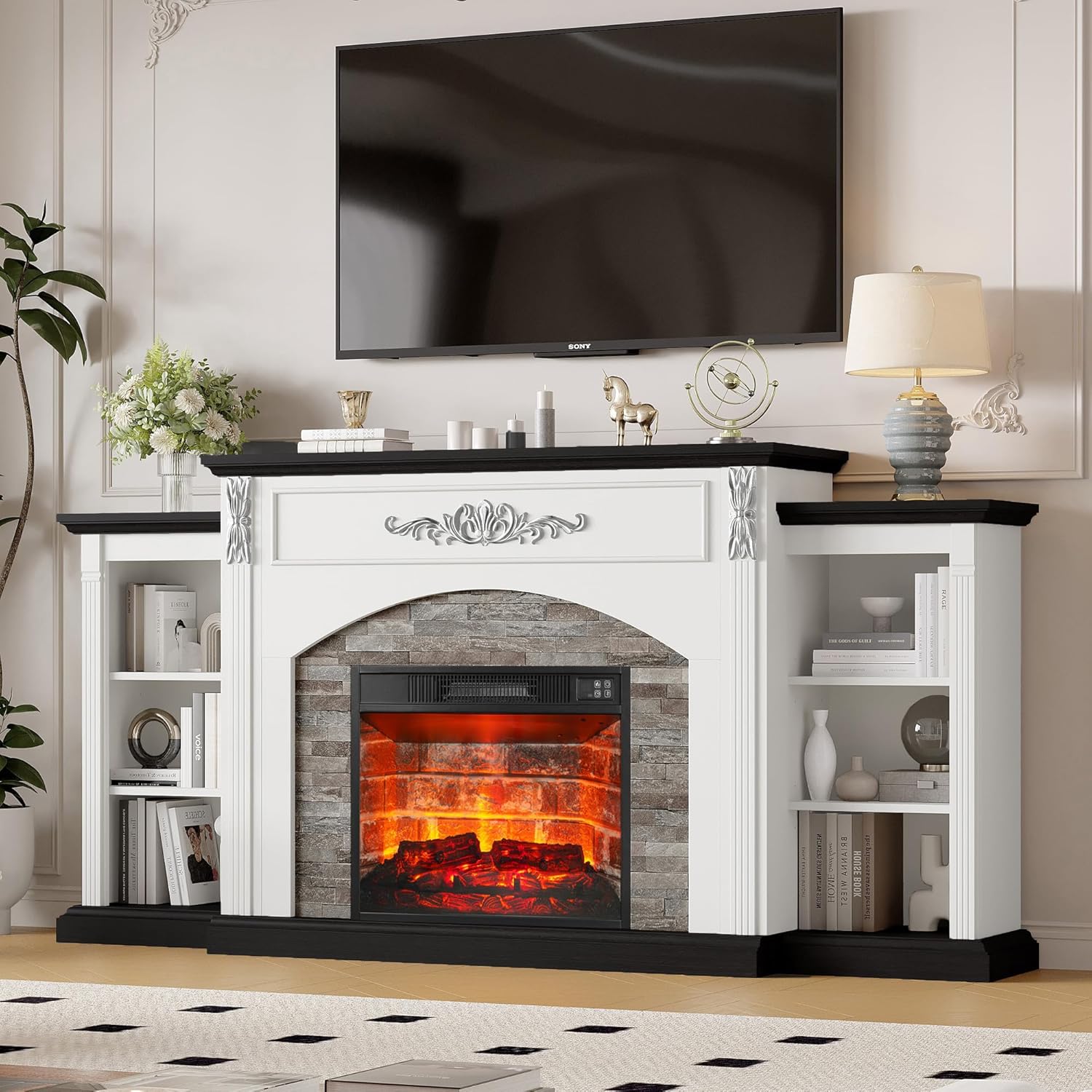

Figure 1.1: The BOSHIRO Electric Fireplace with Mantel, showcasing its design and functionality as a centerpiece in a living room.
Figure 1.2: The fireplace mantel serving as a TV stand, capable of supporting large televisions up to 80 inches.
2. Safety Information
Please read all instructions carefully before assembly and operation. Keep this manual for future reference. Failure to follow these instructions may result in fire, electric shock, or personal injury.
- Ensure the unit is placed on a flat, stable surface.
- Do not block the air vents of the electric fireplace insert.
- Keep combustible materials at least 3 feet (0.9 meters) away from the front of the heater.
- Do not operate the heater with a damaged cord or plug.
- Unplug the unit before cleaning or performing any maintenance.
- This appliance is equipped with a safety cut-off device for overheating protection, which will automatically power off the heater if it tips over or overheats.
3. Setup and Assembly
The BOSHIRO Electric Fireplace with Mantel requires assembly. All necessary parts are numbered and pre-drilled for convenience. It is recommended to assemble the unit in the room where it will be used due to its weight (approximately 128.5 pounds).
3.1 Package Contents
Verify all components are present before beginning assembly. Refer to the included parts list in your package. Your order will be sent in 2 packages, which may arrive 1-2 days apart.
3.2 Assembly Instructions
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Follow the step-by-step instructions provided in the detailed assembly guide included with your product.
- Assemble the mantel structure first, ensuring all connections are secure.
- Carefully insert the 23-inch electric fireplace into the designated opening.
- Attach any adjustable shelves and back panels as per the instructions. Note: For cable management, you may need to modify or omit back panels on shelves where electronic devices will be placed.
- Once assembled, position the unit in its desired location, ensuring adequate clearance around the fireplace for air circulation.
Figure 3.1: Product dimensions and size details. The overall dimensions are 13.6"D x 72"W x 35.6"H. The raised center section for TV feet is 44 inches wide.
4. Operating Instructions
The 23-inch electric fireplace insert offers various settings for flame effects, heat output, and timer functions, all controllable via the unit's panel or the included remote control.
4.1 Fireplace Insert Controls
Figure 4.1: Detailed view of the fireplace insert control panel and remote, illustrating flame, power, heater, timer, and temperature controls.
- Power (On/Off): Press the power button to turn the fireplace on or off.
- Flame: Adjust the flame color and brightness. There are 3 types of realistic flame effects to choose from.
- Heater: Select between high (1400W) or low (750W) heating levels based on your preference and room size.
- Temperature Control: Adjust the temperature from 62°F to 82°F (17°C to 27°C) with 22 available levels.
- Timer: Set the built-in timer for automatic shut-off, ranging from 0.5 hours to 6 hours. This allows for peaceful sleep without needing to manually turn off the unit.
4.2 Remote Control
The included remote control provides convenient operation of all fireplace functions from a distance. Ensure the remote has working batteries and is pointed towards the fireplace insert's receiver.
5. Maintenance and Care
Regular maintenance will ensure the longevity and optimal performance of your electric fireplace.
- Cleaning: Before cleaning, always unplug the unit from the power outlet. Use a soft, damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or solvents.
- Dust Removal: Periodically vacuum or dust the air intake and exhaust vents of the heater to prevent dust buildup, which can affect performance and safety.
- Storage: If storing the unit for an extended period, unplug it and store it in a dry, cool place, protected from dust and moisture.
6. Troubleshooting
If you encounter any issues with your BOSHIRO Electric Fireplace, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on. | No power, unit unplugged, or power switch off. | Ensure the unit is plugged into a working outlet and the power switch is on. Check circuit breaker. |
| No heat output. | Heater function not activated, or thermostat set too low. | Press the heater button on the control panel or remote. Increase the temperature setting. |
| Flames are not visible or dim. | Flame brightness setting is low. | Adjust the flame brightness setting using the control panel or remote. |
| Unit shuts off unexpectedly. | Overheating protection activated or timer set. | Check for blocked vents. Allow unit to cool down. Verify timer setting. |
| Assembly issues (e.g., parts not aligning). | Incorrect orientation of parts or manufacturing variance. | Double-check the assembly instructions and part numbers. If issues persist, contact customer support. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | BOSHIRO |
| Model Name | 72-hbb |
| Product Dimensions | 13.6"D x 72"W x 35.6"H |
| Fireplace Insert Dimensions | 23"W x 6.32"D x 17.1"H |
| Material | Engineered Wood |
| Color | White & Black |
| Item Weight | 128.5 Pounds |
| Power Source | Corded Electric |
| Heat Output | 750W / 1400W |
| Temperature Range | 62°F to 82°F (17°C to 27°C) |
| Timer | 0.5H - 6H |
| Special Features | Dimmer, LED Flame, Overheat Protection, Safety Shut Off, TV Stand |
| Installation Type | Freestanding |
8. Warranty and Support
BOSHIRO is committed to providing quality products and customer satisfaction.
- Returns: This product is eligible for 30-day easy returns. Please refer to the retailer's return policy for detailed information.
- Customer Support: For any questions regarding assembly, operation, or troubleshooting that are not covered in this manual, please contact BOSHIRO customer support. Contact information can typically be found on the retailer's website or on the product packaging.
